House Plans
Plan Summary
-
Stories
1
-
Bedrooms
2
-
Bathrooms
1
-
Garage
0 car
-
Width x Length
42' x 32'
-
First Floor Sq Ft
1052
-
Total AC Sq Ft
1052
-
Total Under Roof Sq Ft
1344
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

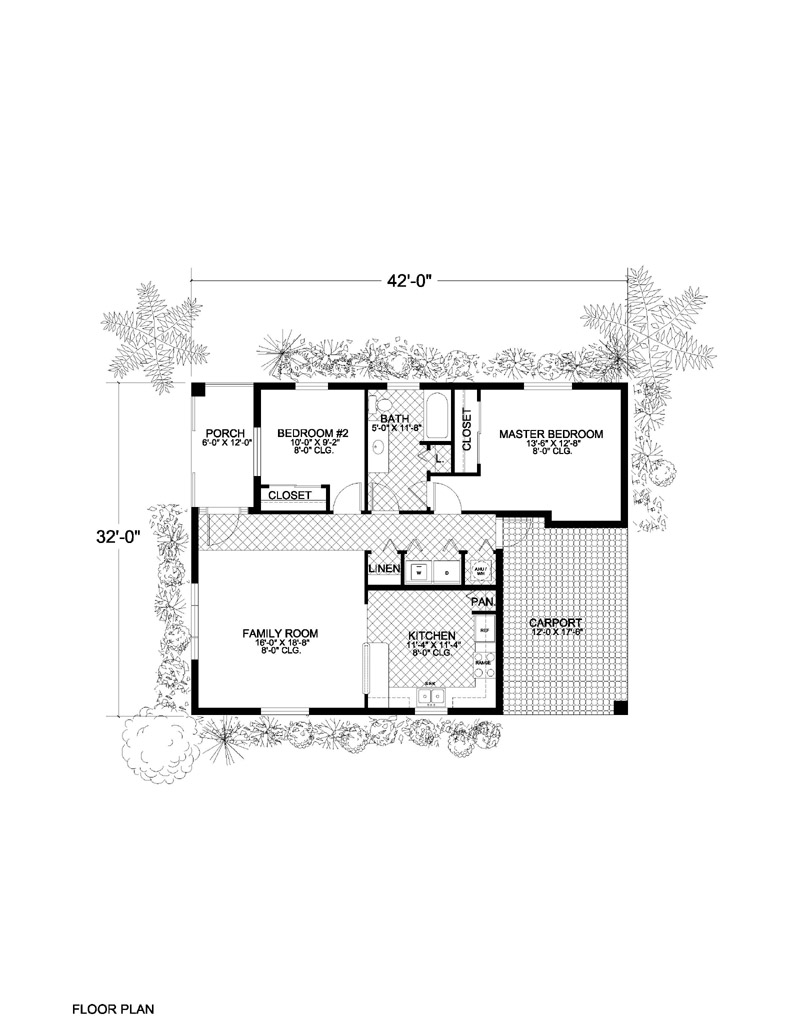

This 1,052 sq, ft., one-story Mediterranean home floor plan is a perfect starter home or vacation retreat. The design with covered entry and rear porch is ideal for a small lot. The floor plan features a large kitchen with eating bar opening to the family room, and a master suite providing plenty of room along with a master bathroom with linen closet. Pick up this perfect vacation retreat home floor plan today.
Dimensions
- Width x Length 42' x 32'
- Height 13'-10
- Stories 1/
Garage
- Number of Cars 0
- Attached No
- Location N/A
Wall Construction
- Interior Metal Stud22
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 2
- Possible 0
- Total 2
Bathrooms
- Full 1
- Half 0
- Total 1
Elevation
- Finishes Stucco
- Master Bedroom Location 0
- Utility Location 0
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1100
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1600
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $600
- (Extra Sets: $50)
- More Information
3 Sets Price: $700
- (Extra Sets: $50)
- More Information
5 Sets Price: $800
- (Extra Sets: $50)
- More Information
8 Sets Price: $950
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1100
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 4:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140
First Floor
- Primary Living 8'-0
- Secondary Living 8'-0
- Primary Bedrooms 8'-0
- Secondary Bedrooms 8'-0
- Bathrooms 8'-0
- Common Areas 8'-0
Exterior
- Garage 0
- Covered Entry 0
- Covered Patio 8'-0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 1052
- Total AC 1052
Total Under Roof Sq Ft
- Garage 0
- Covered Entry 0
- Covered Patio 72
- Covered Balconies 0
- Total Under Roof 1344
