PLAN SUMMARY
-
Stories
1
-
Bedrooms
3
-
Bathrooms
2
-
Garage
1 car
-
Width x Length:
50' " x 38' "
-
First Floor Sq Ft
1,320 Sq. Ft.
-
Total AC Sq Ft
1,320 Sq. Ft.
-
Total Under Roof Sq Ft
1,778 Sq. Ft.
-
$0.00
Plan Description

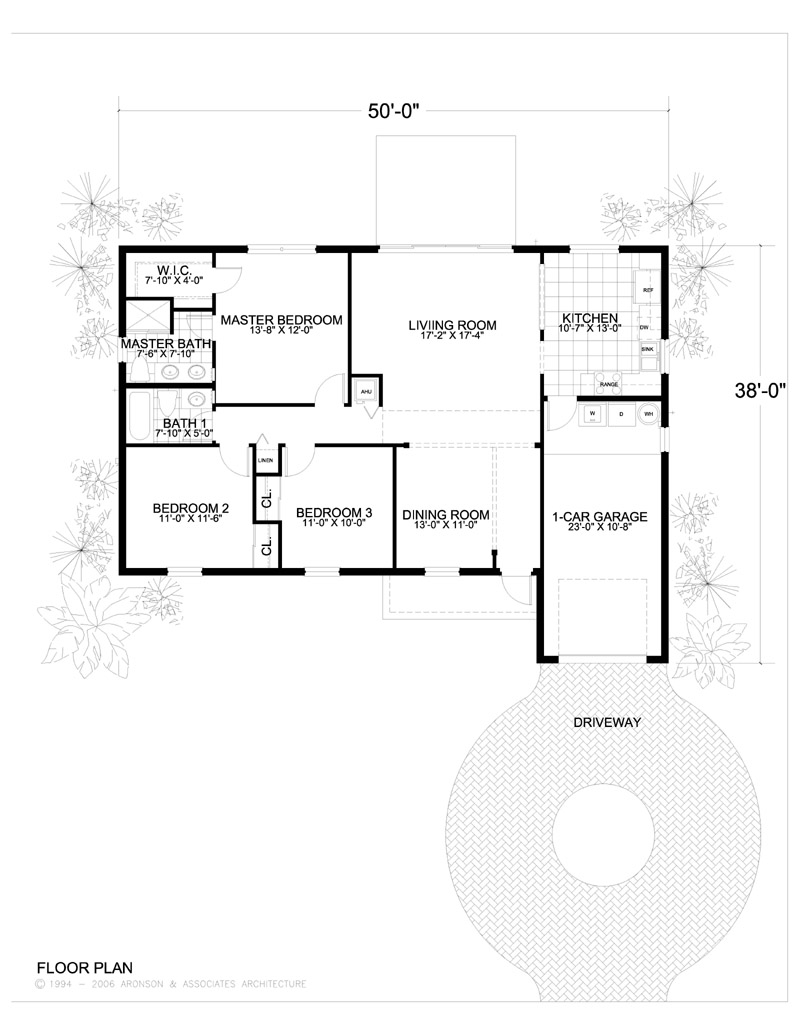

This one-story 1,320 sq. ft., Florida-style house floor plan features three bedrooms, two bathrooms, a one-car garage and rear patio. The floor plan provides a large eat-in kitchen with spacious living room, utility room adjacent to the garage and a master bedroom with walk-in closet and a master bathroom. Purchase this one-story house floor plan now.
Dimensions
-
Width x Length
50' " x 38' "
-
Height
15'-2
-
Stories
1/
Garage
-
Number of Cars
1
-
Attached
Yes
-
Location
Right
Wall Construction
-
Interior
Metal Stud
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
3
-
Possible
0
-
Total
3
Bathrooms
-
Full
2
-
Half
0
-
Total
2

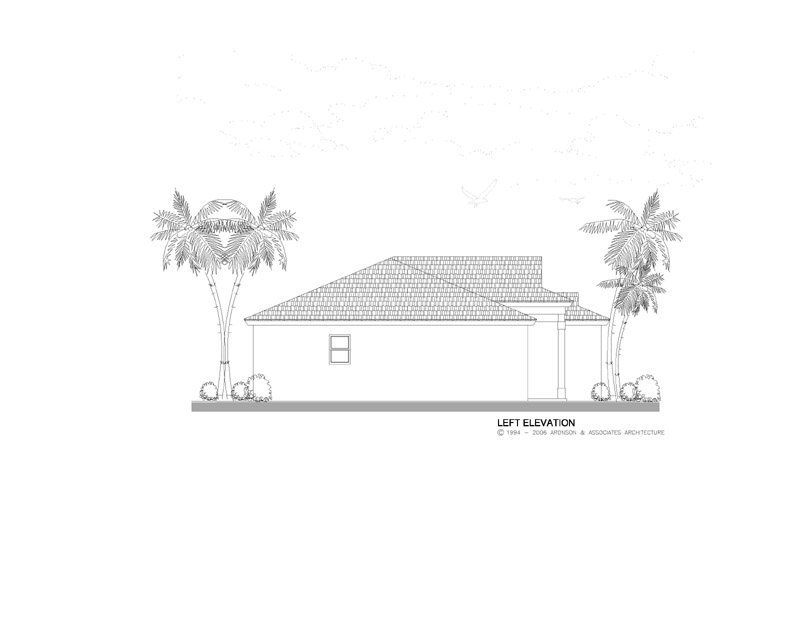

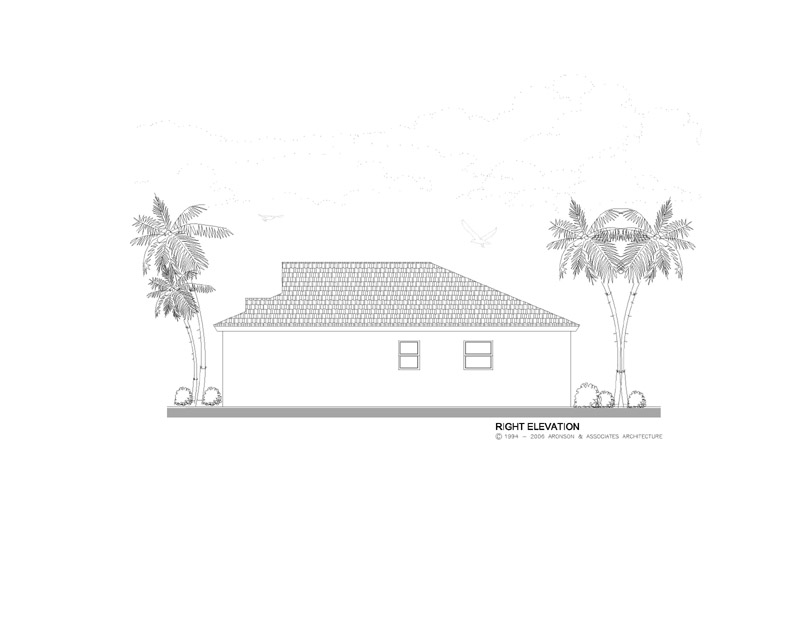

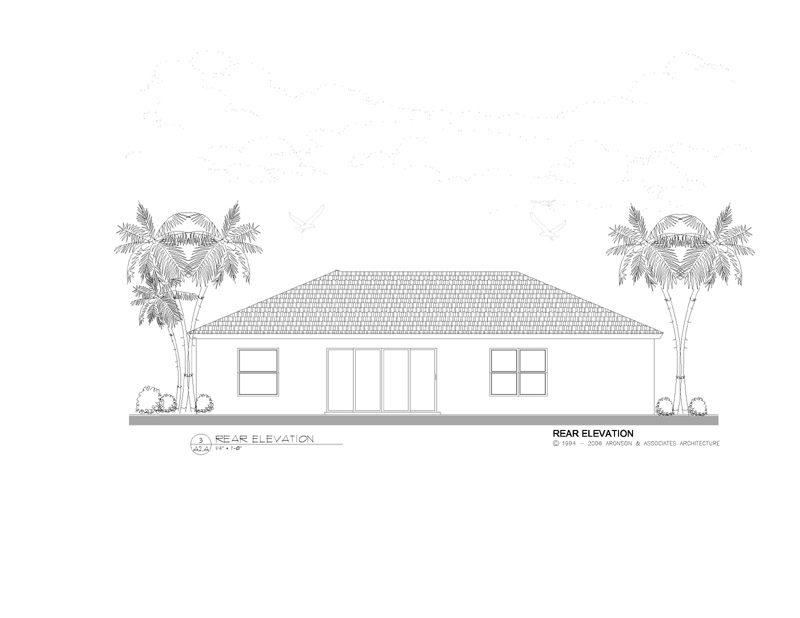

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1100
CAD Disk Price: $1600
Reverse PDF Price: $1350
Reverse CAD Price: $1850
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $600
3 Sets Price: $700
5 Sets Price: $800
8 Sets Price: $950
Reproducible Vellum Price: $1100
Base – Not for Construction Price: $600
3 Sets (Reverse) Price: $950
5 Sets (Reverse) Price: $1050
8 Sets (Reverse) Price: $1200
Reproducible Vellum (Reverse) Price: $1350
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. Tile
-
Wind Speed
140
First Floor
-
Primary Living
Vaulted
-
Secondary Living
Vaulted
-
Primary Bedrooms
Vaulted
-
Secondary Bedrooms
8'-0
-
Bathrooms
0
-
Common Areas
0
Exterior
-
Garage
8'-0
-
Covered Entry
10'-2
-
Covered Patio
0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
1320
-
Total AC
1320
Total Under Roof Sq Ft
-
Garage
275
-
Covered Entry
56
-
Covered Patio
127
-
Covered Balconies
0
-
Total Under Roof
1778
