House Plans
Plan Summary
-
Stories
1
-
Bedrooms
3
-
Bathrooms
2
-
Garage
2 car
-
Width x Length
54'8" x 51'0"
-
First Floor Sq Ft
1404
-
Total AC Sq Ft
1404
-
Total Under Roof Sq Ft
2007
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

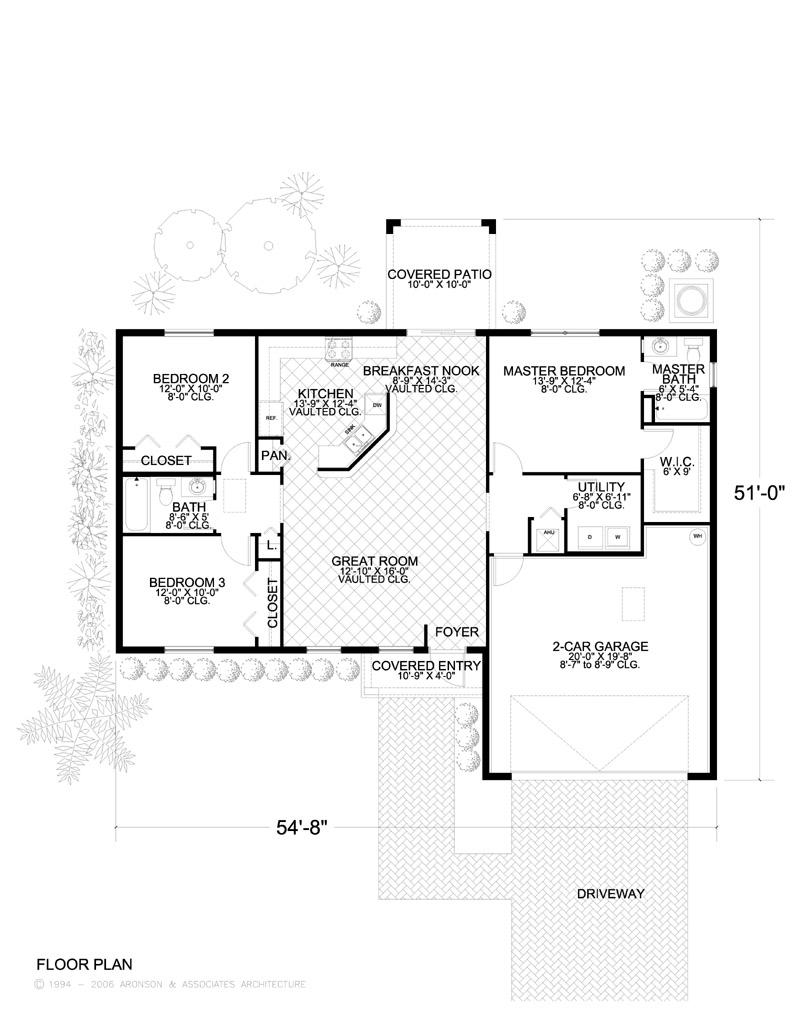

This lovely 1,404 sq. ft., one-story house plan features three bedrooms, two bathrooms, a two-car garage, covered entry and rear patio. The spacious floor plan provides a large great room combined with a spacious kitchen. There is an impressive master suite, master bath and spacious walk-in closet. This is truly a home designed for a family who enjoys entertaining! Buy this lovely house floor plan now.
Dimensions
- Width x Length 54'8" x 51'0"
- Height 14'-7
- Stories 1/
Garage
- Number of Cars 2
- Attached Yes
- Location Right
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 3
- Possible 0
- Total 3
Bathrooms
- Full 2
- Half 0
- Total 2

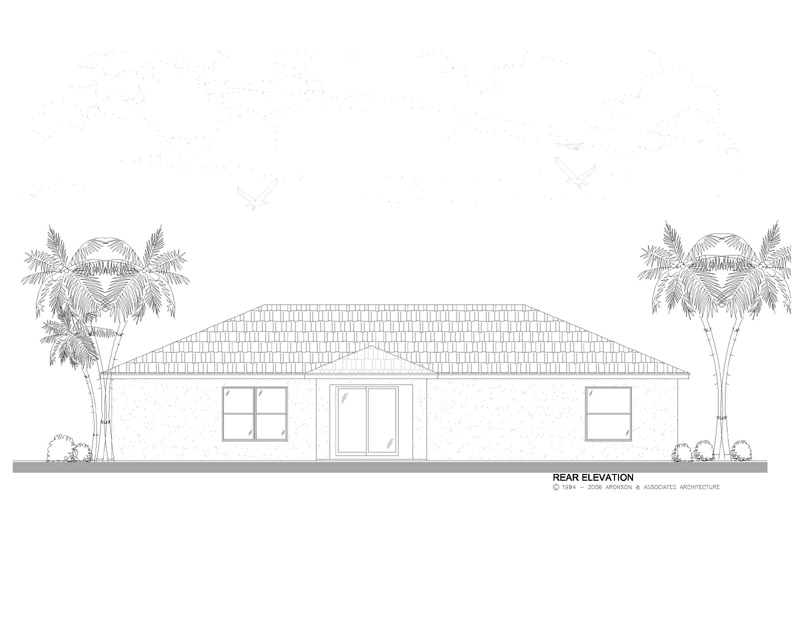

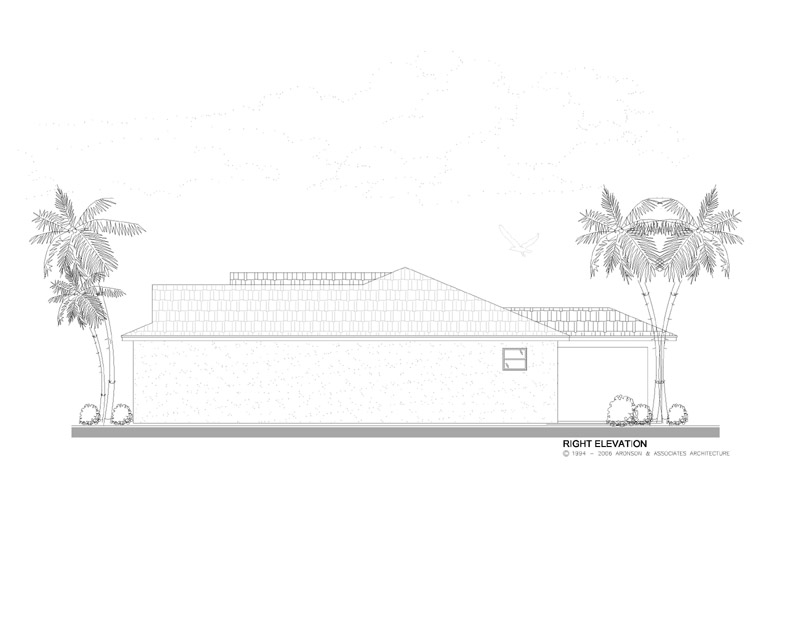

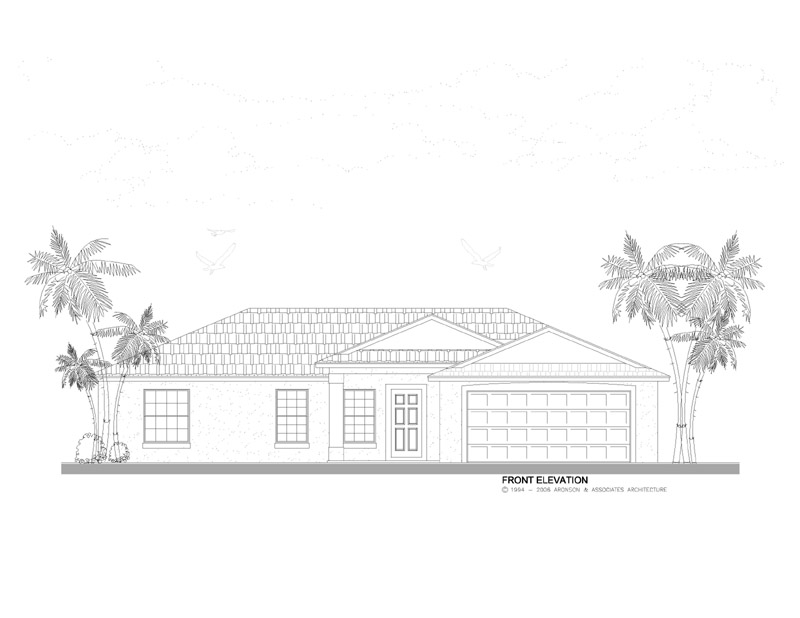

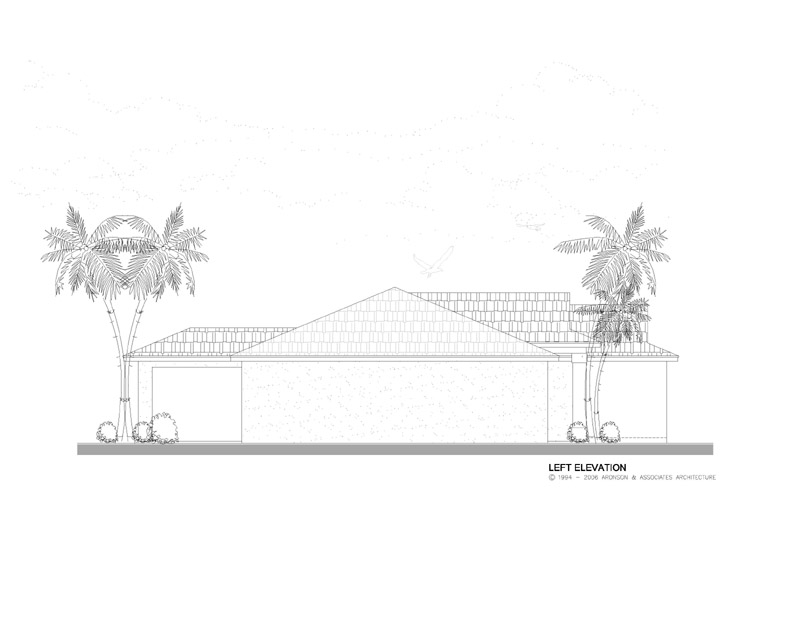

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1100
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1600
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $600
- (Extra Sets: $50)
- More Information
3 Sets Price: $700
- (Extra Sets: $50)
- More Information
5 Sets Price: $800
- (Extra Sets: $50)
- More Information
8 Sets Price: $950
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1100
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140
First Floor
- Primary Living Vaulted
- Secondary Living Vaulted
- Primary Bedrooms 8'-0
- Secondary Bedrooms 8'-0
- Bathrooms 8'-0
- Common Areas 0
Exterior
- Garage 8'-1
- Covered Entry 9'-5
- Covered Patio 8'-1
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 1404
- Total AC 1404
Total Under Roof Sq Ft
- Garage 453
- Covered Entry 43
- Covered Patio 107
- Covered Balconies 0
- Total Under Roof 2007
