House Plan Model 14205-9972

Browsing: By Two Story

Amazing House Plans

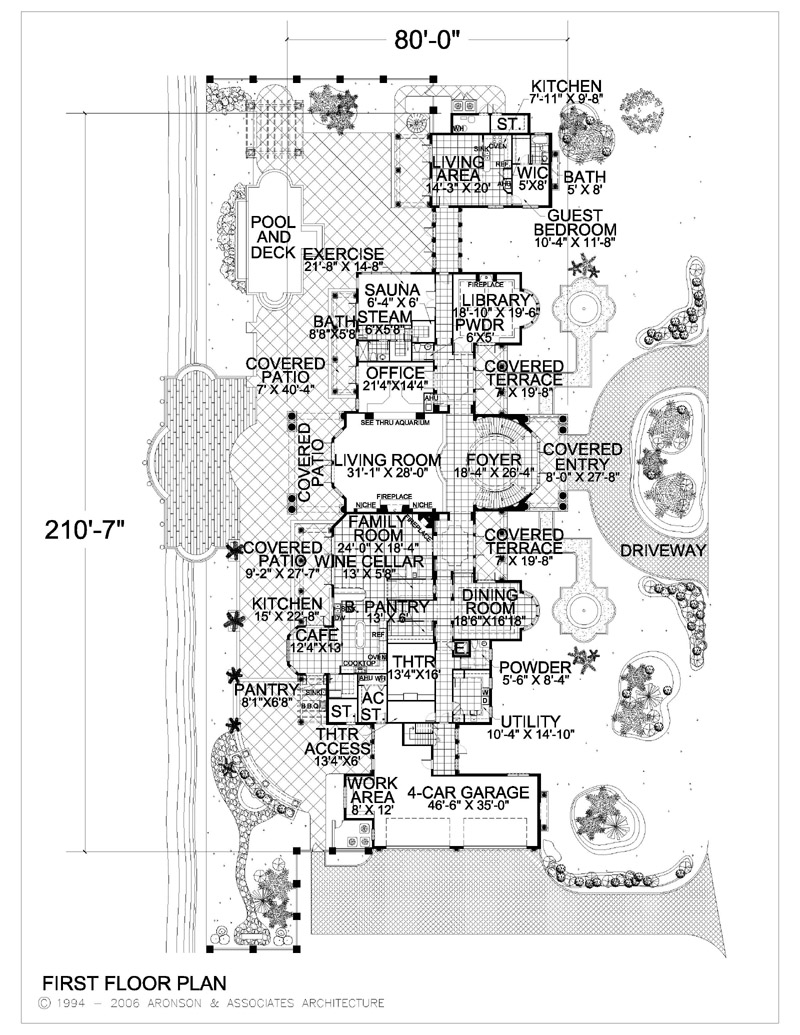

Large Home Floor Plan First Floor

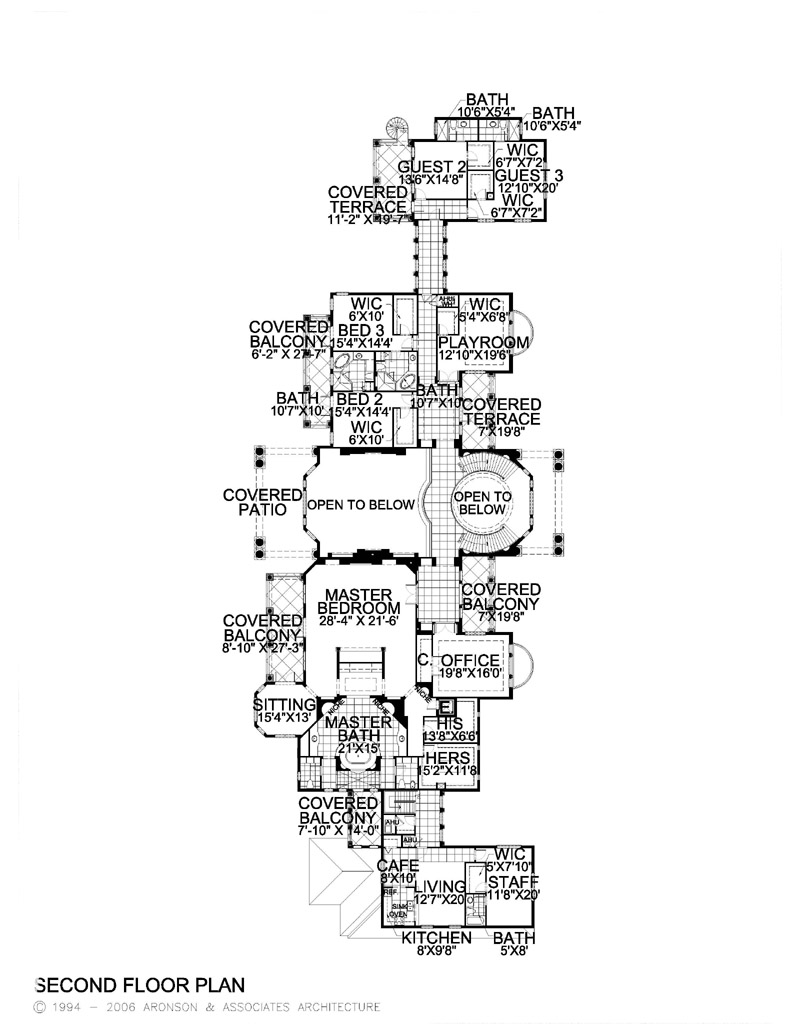

Large Second Floor Home Floor Plan

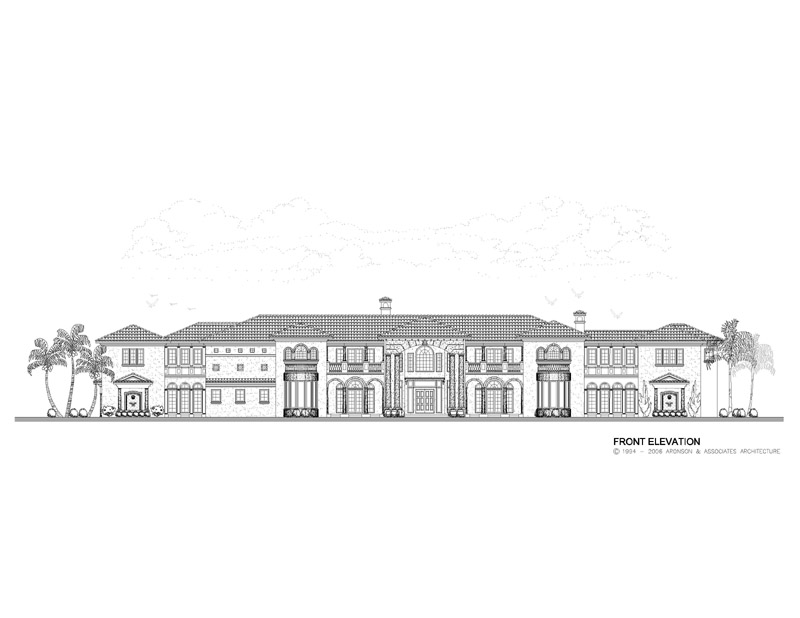

Large Home Floor Plan Front Elevation View

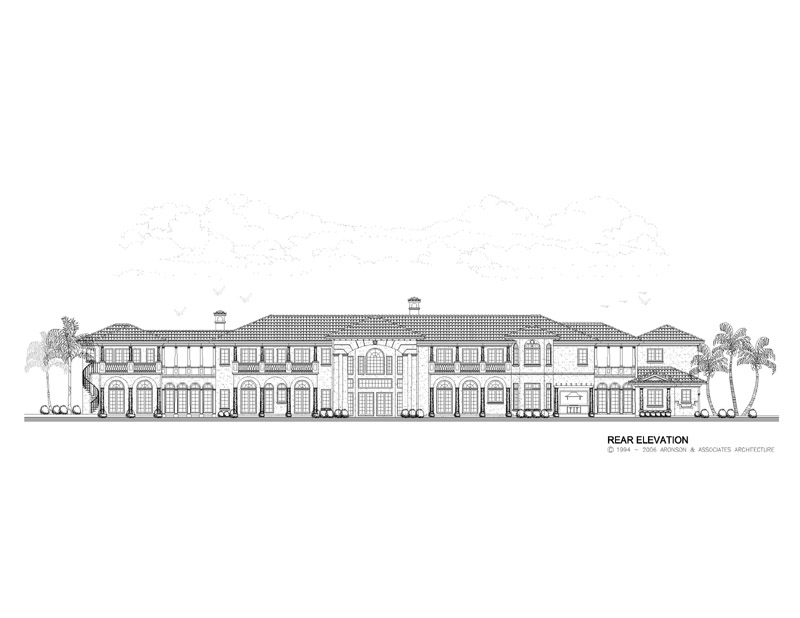

Large Home Plan Rear Elevation
Amazing Home Plans
Beautiful Home Plans
Amazing House Plans
Large Home Floor Plan First Floor
Large Second Floor Home Floor Plan
Large Home Floor Plan Front Elevation View
Large Home Plan Rear Elevation
Amazing Home Plans
Beautiful Home Plans

Plan Summary

  • Stories

    2

  • Bedrooms

    7

  • Bathrooms

    10

  • Garage

    4 car

  • Width x Length

    210'7" x 80'0"

  • First Floor Sq Ft

    7299

  • Second Floor Sq Ft

    6906

  • Total AC Sq Ft

    14205

  • Total Under Roof Sq Ft

    18412

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

This plan is restricted.

Please call 1-855-PLANS-123 (1-954-736-4696) for more information

Plan Description

This traditional 14205 sq. ft. Mediterranean-style home features seven bedrooms with private bathrooms, two half bathrooms, a cabana bathroom, columns, arches, balconies, a courtyard with water features and a four-car garage. The luxurious style of the home can be seen on all exterior sides, the elevations and interior. This home features many amenities including a fireplace in the library for a cozy, relaxing appeal. Entertaining poses no problem for a room environment in the over sized living room. On-lookers and visitors are extremely impressed and mesmerized by the two-volume foyer. The master suite is simply exclusive featuring the exceptionally large “His and Hers” walk-in closets, stylish tray ceiling design, a sitting area and luxurious master bath and opens onto a private, covered balcony. Imagine a guest enjoying their stay in the guest suite complete with a private kitchenette! This is a magnificent home and if you select this design it a home of which you will be forever proud!

Dimensions

  • Width x Length 210'7" x 80'0"
  • Height 33'-3
  • Stories 2/

Garage

  • Number of Cars 4
  • Attached No
  • Location Right

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 7
  • Possible 0
  • Total 7

Bathrooms

  • Full 8
  • Half 2
  • Total 10

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 2

Features

  • Fireplace Yes
  • Elevator Yes
  • Pool Yes
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $3500

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $5300

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $3000

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $3100

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $3200

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $3350

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $3500

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type Steel joist
  • Spacing 16
  • Subfloor Concrete
  • Thickness 3

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. tile
  • Wind Speed 140

First Floor

  • Primary Living 14'-0
  • Secondary Living 14'-0
  • Primary Bedrooms 0
  • Secondary Bedrooms 0
  • Bathrooms 14'-0
  • Common Areas 0

Second Floor

  • Primary Bedrooms 10'-4
  • Secondary Bedrooms 10'-4
  • Bathrooms 10'-4
  • Common Areas 0

Exterior

  • Garage 10'-4
  • Covered Entry 26'-0
  • Covered Patio 26'-0
  • Covered Balcony 10'-4

Total AC Sq Ft

  • First Floor AC 7299
  • Second Floor AC 6906
  • Total AC 14205

Total Under Roof Sq Ft

  • Garage 1319
  • Covered Entry 263
  • Covered Patio 1135
  • Covered Balconies 869
  • Total Under Roof 18412
