House Plans
Plan Summary
-
Stories
2
-
Bedrooms
3
-
Bathrooms
2
-
Garage
2 car
-
Width x Length
37'1" x 44'0"
-
First Floor Sq Ft
803
-
Second Floor Sq Ft
712
-
Total AC Sq Ft
1515
-
Total Under Roof Sq Ft
2149
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description
This 1,515 sq. ft., two story home floor plan has three bedrooms, two and a half bathrooms and a two car garage. Towering covered entrance has arched transom accent. Compact design makes use of every inch. Contemporary open layout gives this house spacious appeal. Huge island kitchen with eating bar and pantry is open to Family Room. Master suite with large his and her walk-in-closets, has a luxurious master bathroom. Purchase this home floor plan today.
Dimensions
- Width x Length 37'1" x 44'0"
- Height 22'-9
- Stories 2/
Garage
- Number of Cars 2
- Attached Yes
- Location Left
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 3
- Possible 0
- Total 3
Bathrooms
- Full 2
- Half 1
- Total 2

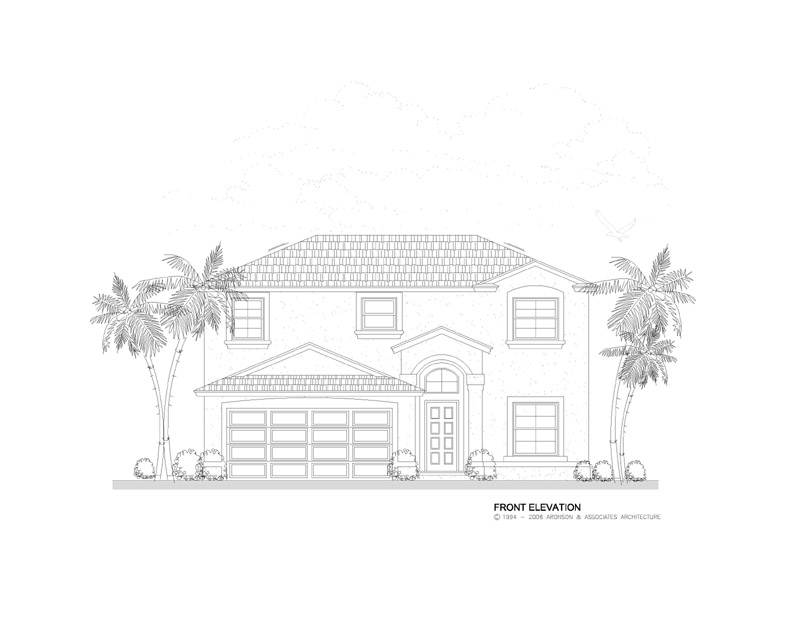

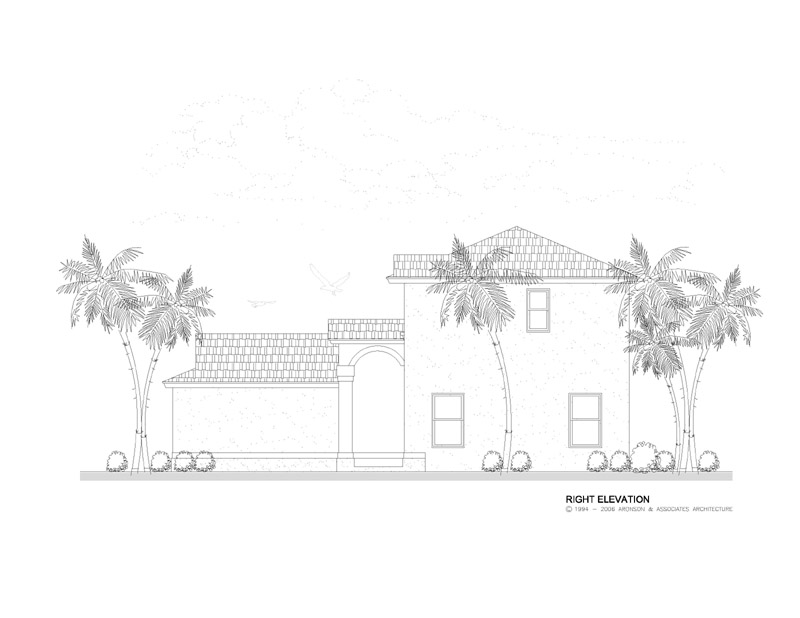

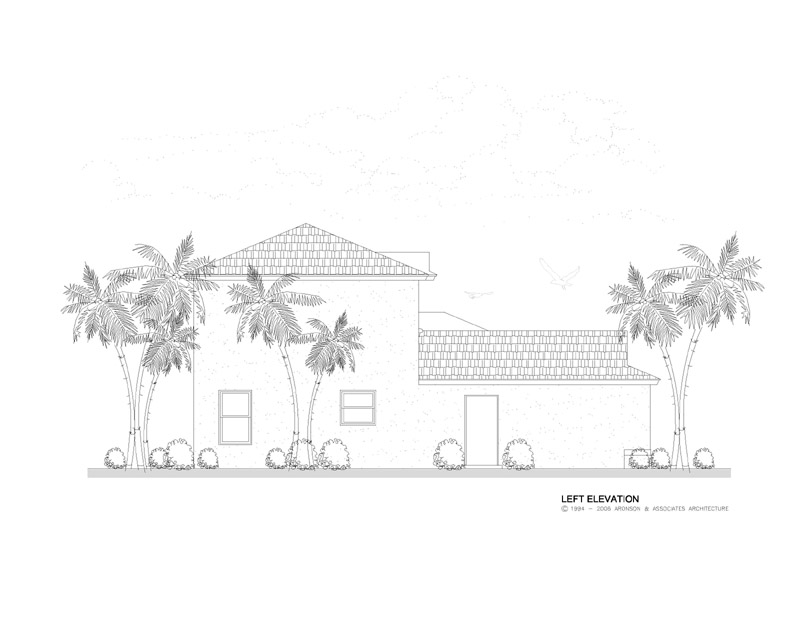

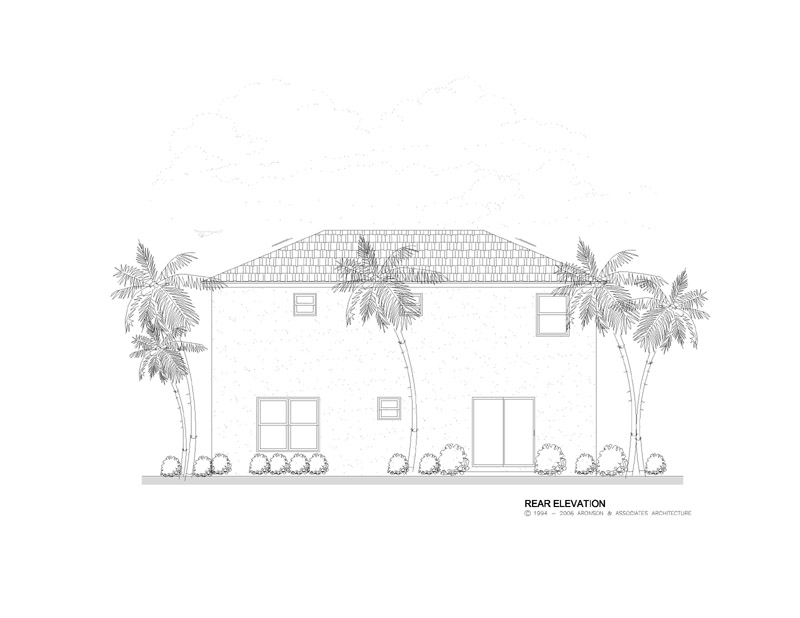

Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1150
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1650
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $650
- (Extra Sets: $50)
- More Information
3 Sets Price: $750
- (Extra Sets: $50)
- More Information
5 Sets Price: $850
- (Extra Sets: $50)
- More Information
8 Sets Price: $1000
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1150
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type Wood
- Spacing 24
- Subfloor wood
- Thickness 3/4
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

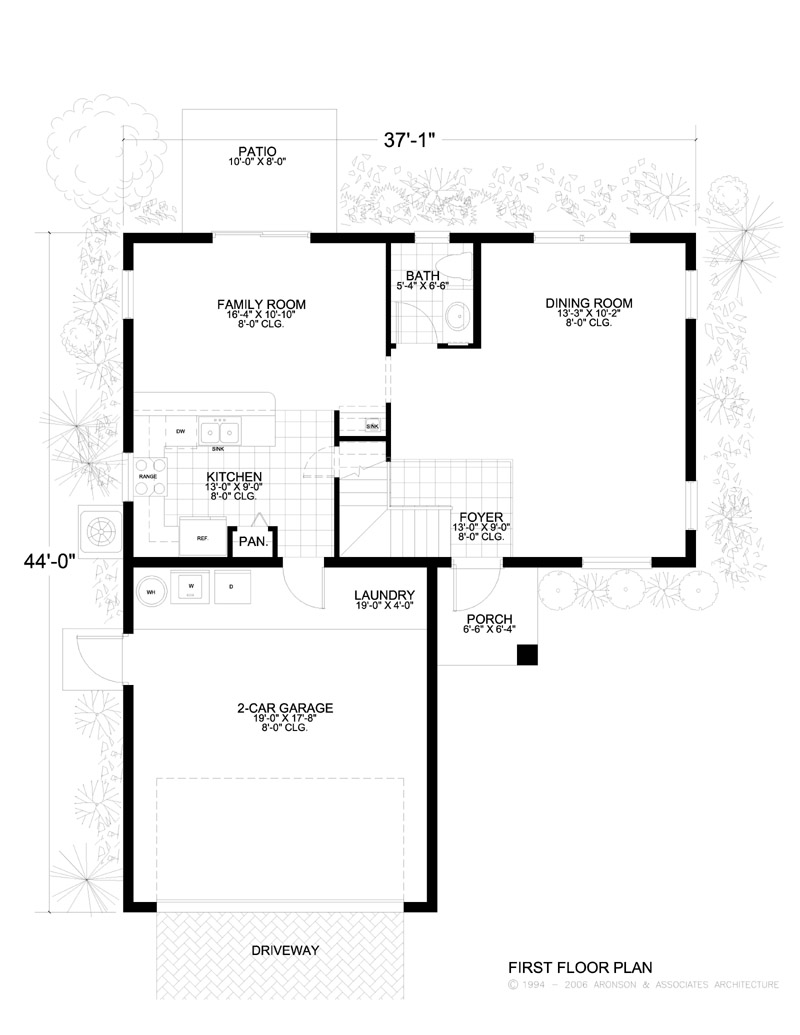

First Floor
- Primary Living 8'
- Secondary Living
- Primary Bedrooms
- Secondary Bedrooms 0
- Bathrooms 8'
- Common Areas 8'

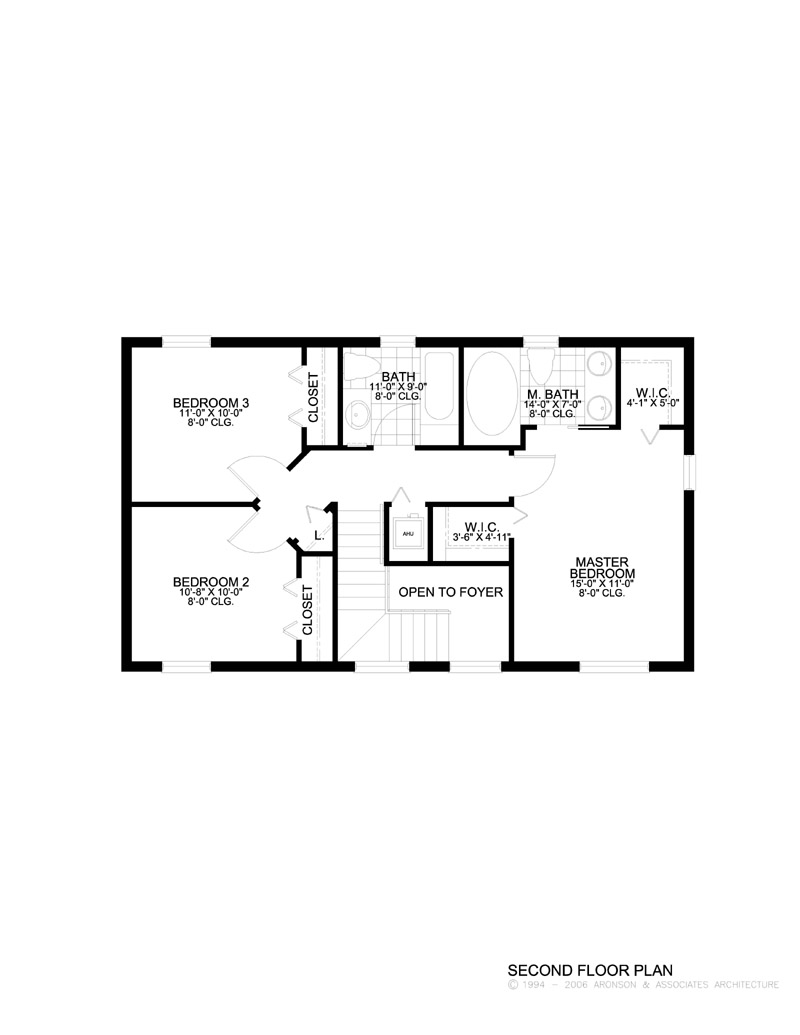

Second Floor
- Primary Bedrooms 8'
- Secondary Bedrooms 8'
- Bathrooms 8'
- Common Areas 8'
Exterior
- Garage 8'
- Covered Entry 0
- Covered Patio 0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 803
- Second Floor AC 712
- Total AC 1515
Total Under Roof Sq Ft
- Garage 454
- Covered Entry 40
- Covered Patio 140
- Covered Balconies 0
- Total Under Roof 2149
