House Plan Model 1645-01164

Browsing: By One Story

Mediterranean House Plans

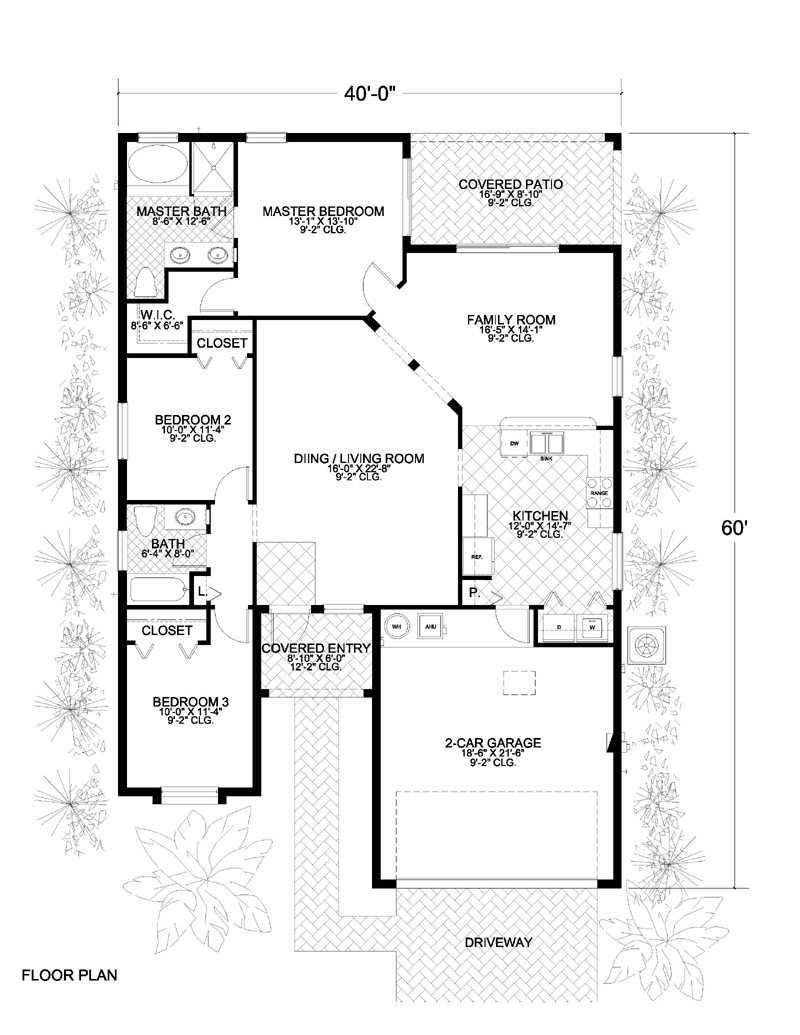

Floor Plan

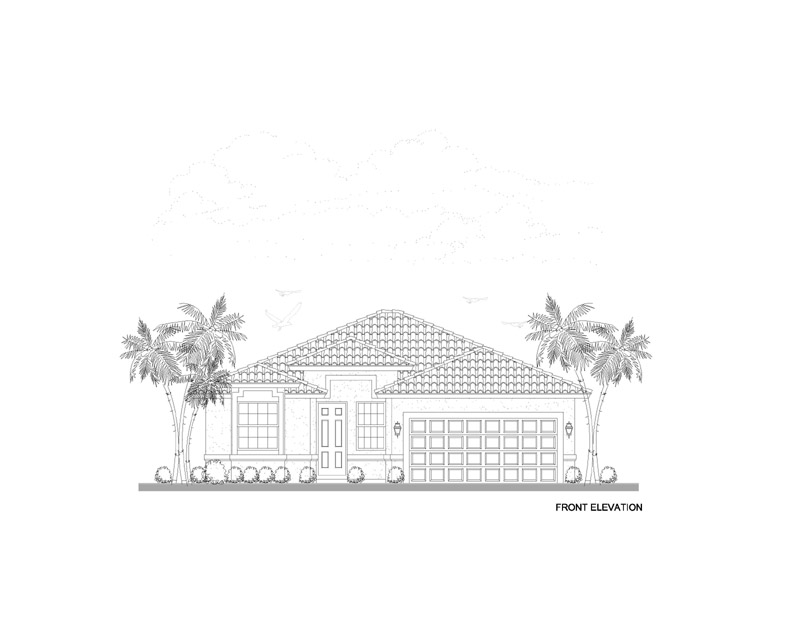

Front Elevation View of Home

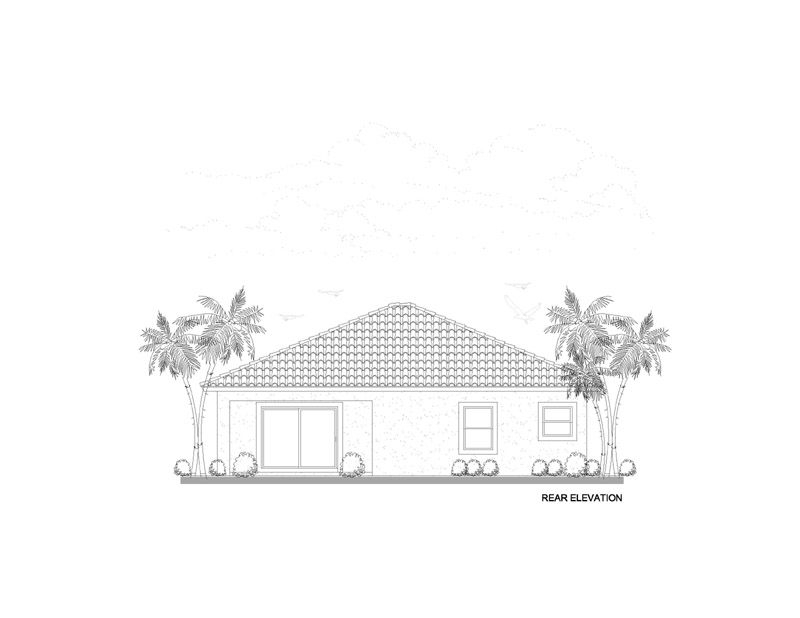

Rear Elevation View of Home

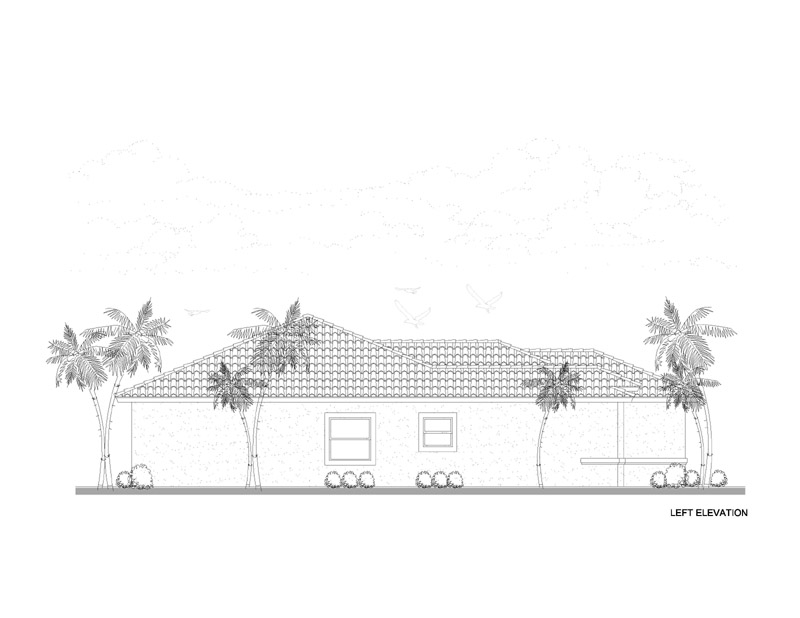

Left Side Elevation View of Home

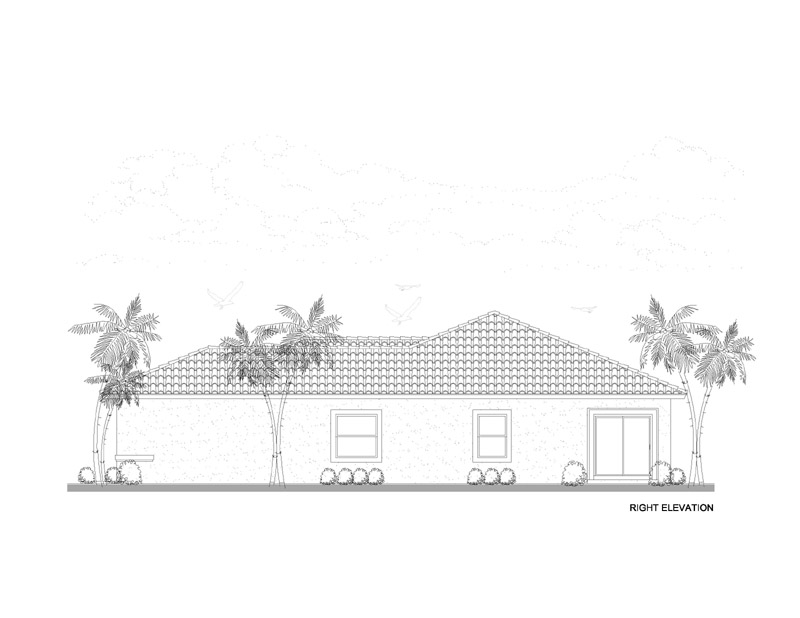

Right Side Elevation View of Home
Mediterranean House Plans
Floor Plan
Front Elevation View of Home
Rear Elevation View of Home
Left Side Elevation View of Home
Right Side Elevation View of Home

Plan Summary

  • Stories

    1

  • Bedrooms

    3

  • Bathrooms

    2

  • Garage

    2 car

  • Width x Length

    40' x 60'

  • First Floor Sq Ft

    1645

  • Total AC Sq Ft

    1645

  • Total Under Roof Sq Ft

    2270
