House Plans
Plan Summary
-
Stories
1
-
Bedrooms
3
-
Bathrooms
2
-
Garage
0 car
-
Width x Length
35' x 52'
-
First Floor Sq Ft
1720
-
Total AC Sq Ft
1720
-
Total Under Roof Sq Ft
1774
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description
This luxurious, one-story home has three bedrooms, and two bathrooms. The living room and dining room are combined to maximize space. The design of the oversized living room is perfect for entertaining large parties. The den offers a private area for relaxing or additional space for entertaining. There is an exclusive master suite with stylish tray ceiling and a walk-in closet. One cannot help, but love the gourmet kitchen with eating bar that opens to the combined living room and dining room. This design is perfect if you seek a home providing spacious living areas and private places!
Dimensions
- Width x Length 35' x 52'
- Height 15'-7
- Stories 1/
Garage
- Number of Cars 0
- Attached No
- Location N/A
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 3
- Possible 0
- Total 3
Bathrooms
- Full 2
- Half 0
- Total 2

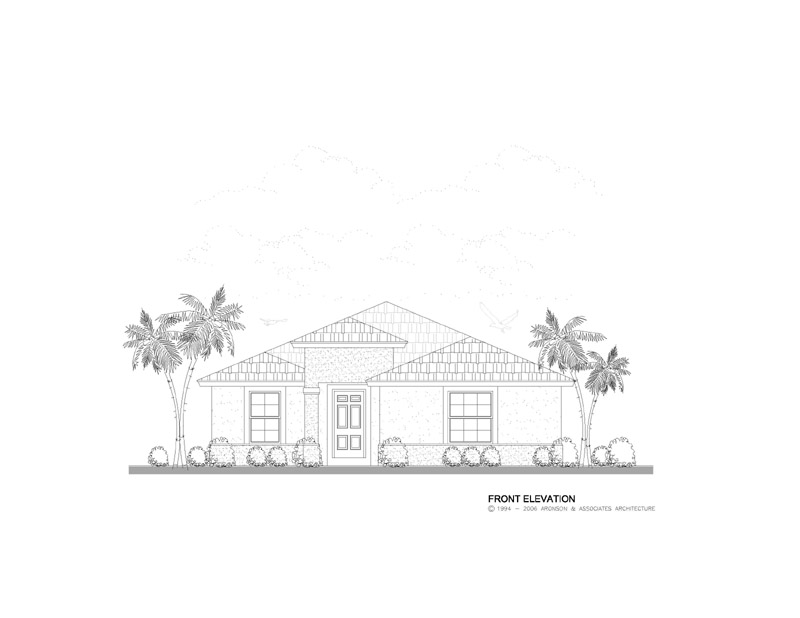

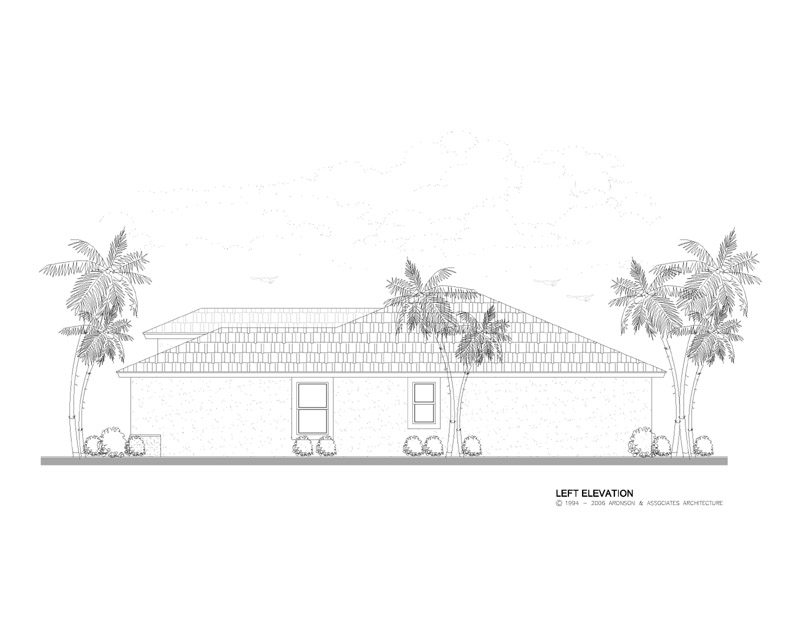

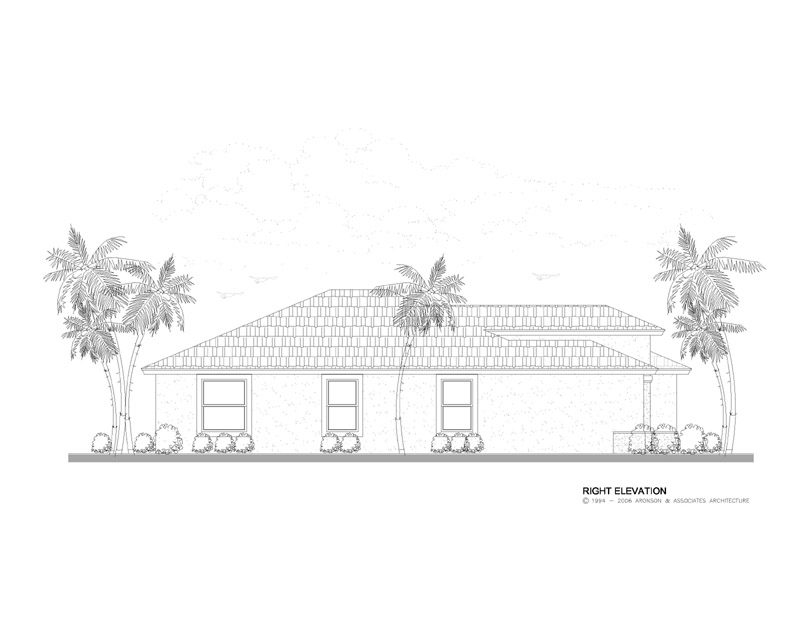

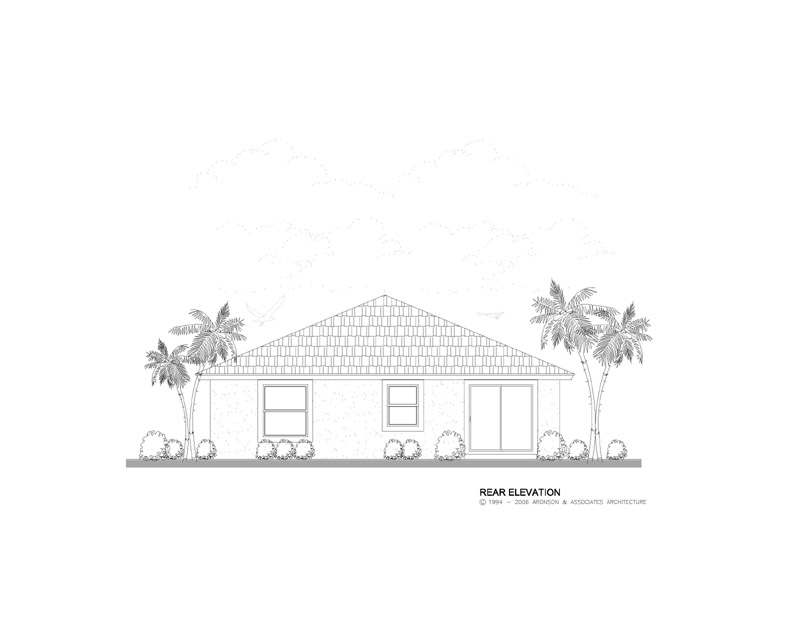

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1150
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1650
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $650
- (Extra Sets: $50)
- More Information
3 Sets Price: $750
- (Extra Sets: $50)
- More Information
5 Sets Price: $850
- (Extra Sets: $50)
- More Information
8 Sets Price: $1000
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1150
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Stem wall
- Option 0
Floor System
- Type
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

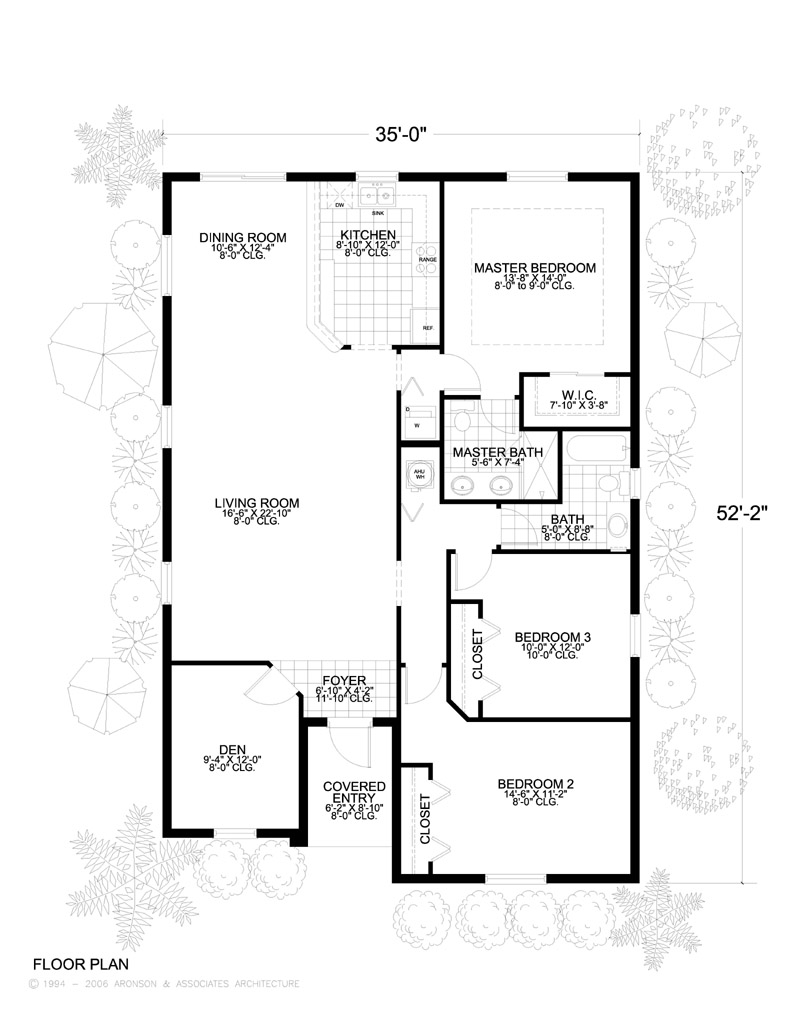

First Floor
- Primary Living 8'
- Secondary Living
- Primary Bedrooms 8' to 9'
- Secondary Bedrooms 8'
- Bathrooms 8'
- Common Areas 0
Exterior
- Garage 0
- Covered Entry 11'-10
- Covered Patio 0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 1720
- Total AC 1720
Total Under Roof Sq Ft
- Garage 0
- Covered Entry 54
- Covered Patio 0
- Covered Balconies 0
- Total Under Roof 1774
