House Plans
Plan Summary
-
Stories
1
-
Bedrooms
4
-
Bathrooms
2
-
Garage
2 car
-
Width x Length
40' x 60'
-
First Floor Sq Ft
1769
-
Total AC Sq Ft
1769
-
Total Under Roof Sq Ft
2232
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description
This luxurious, one-story, classic Florida-style home has four bedrooms, two and one-half bathrooms and a two-car garage. The exquisite French doors have arched transom accent adding detail and elegance to the entrance. The Contemporary open layout gives this house spacious appeal. There is a large kitchen with an eating bar opening to the family room. This design features optional elevations.
Dimensions
- Width x Length 40' x 60'
- Height 16'-10
- Stories 1/
Garage
- Number of Cars 2
- Attached Yes
- Location Right
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 0
- Total 4
Bathrooms
- Full 2
- Half 1
- Total 2

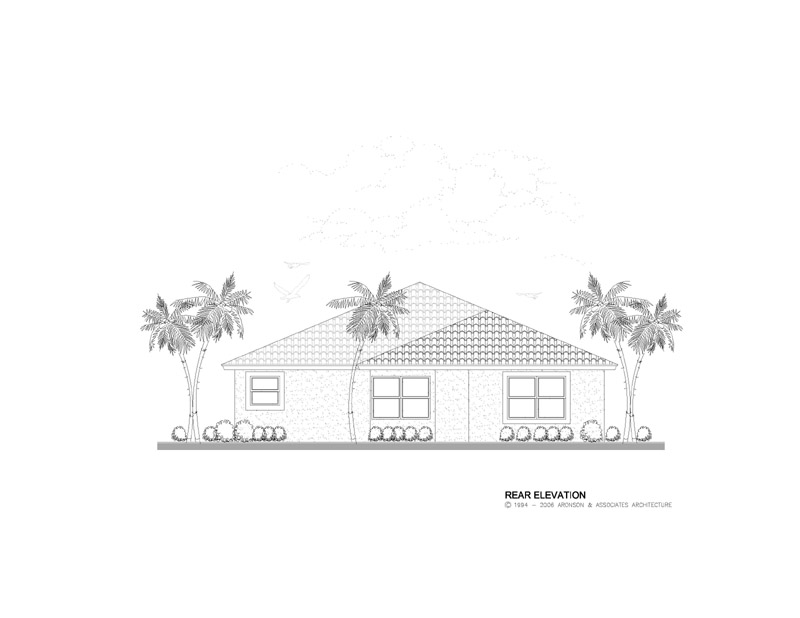

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1150
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1650
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $650
- (Extra Sets: $50)
- More Information
3 Sets Price: $750
- (Extra Sets: $50)
- More Information
5 Sets Price: $850
- (Extra Sets: $50)
- More Information
8 Sets Price: $1000
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1150
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140
First Floor
- Primary Living 11'-0
- Secondary Living 8'-0
- Primary Bedrooms Vaulted
- Secondary Bedrooms 8'-0
- Bathrooms 8'-0
- Common Areas 0
Exterior
- Garage 8'-0
- Covered Entry 13'-0
- Covered Patio 8'-0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 1769
- Total AC 1769
Total Under Roof Sq Ft
- Garage 403
- Covered Entry 60
- Covered Patio 0
- Covered Balconies 0
- Total Under Roof 2232
