PLAN SUMMARY
-
Stories
1
-
Bedrooms
4
-
Bathrooms
2
-
Garage
2 car
-
Width x Length:
54' " x 54' "
-
First Floor Sq Ft
1,803 Sq. Ft.
-
Total AC Sq Ft
1,803 Sq. Ft.
-
Total Under Roof Sq Ft
2,380 Sq. Ft.
-
$0.00
Plan Description

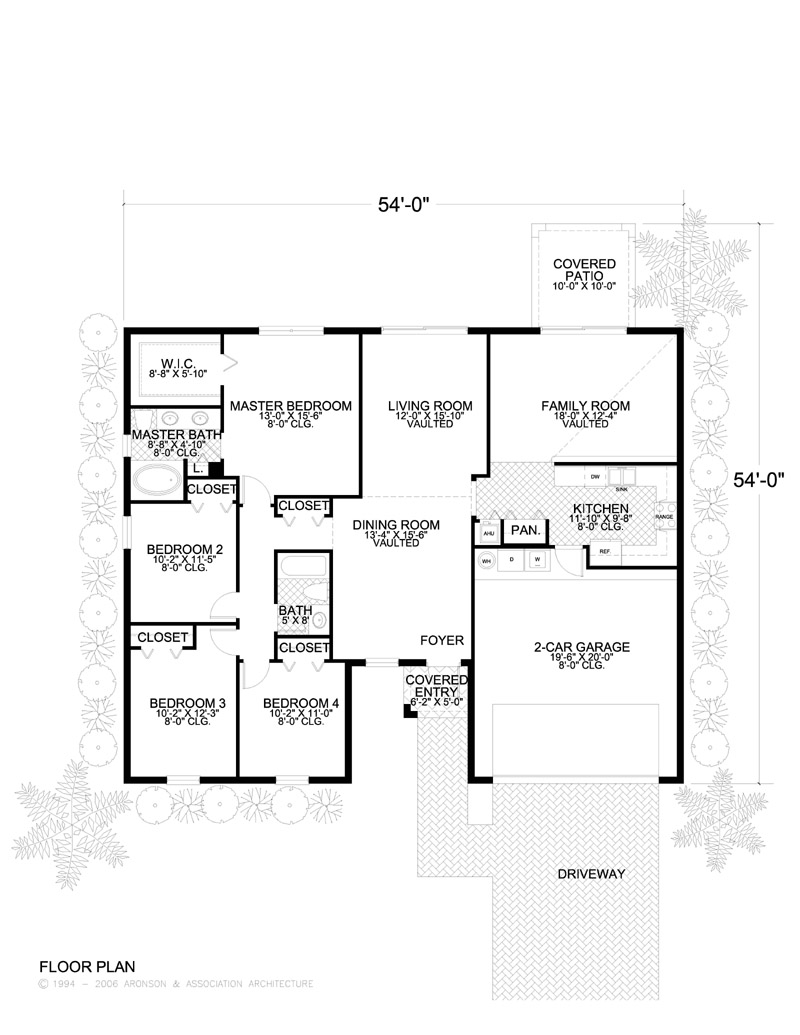

This luxurious 1,803 sq. ft., one-story, classic Florida-style home floor plan has four bedrooms, two bathrooms and a two-car garage. The Contemporary, open layout gives this house spacious appeal. There is a large kitchen with an eating bar, opening to the family room. This home plan design features optional elevations. Buy this luxurious one-story home floor plan now.
Dimensions
-
Width x Length
54' " x 54' "
-
Height
15'-6
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
No
-
Location
Right
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
4
-
Possible
0
-
Total
4
Bathrooms
-
Full
2
-
Half
0
-
Total
2

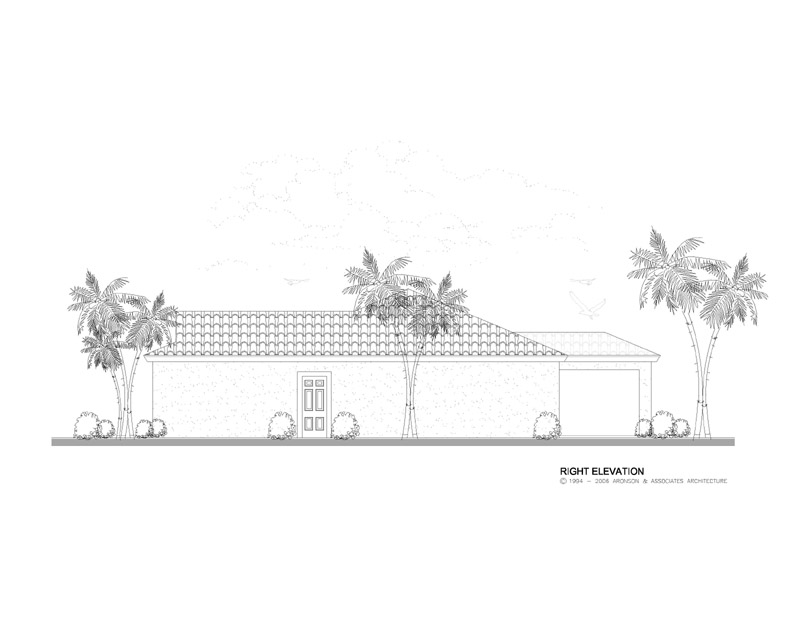

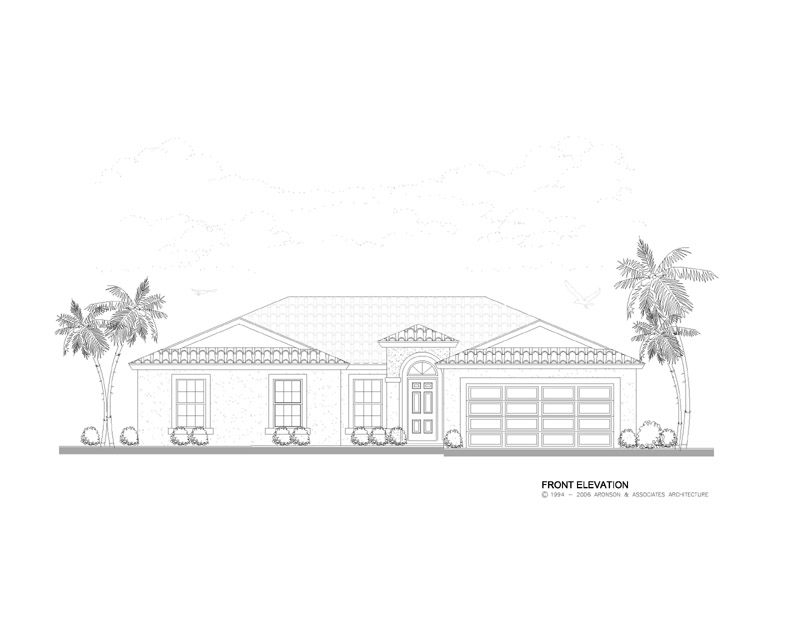

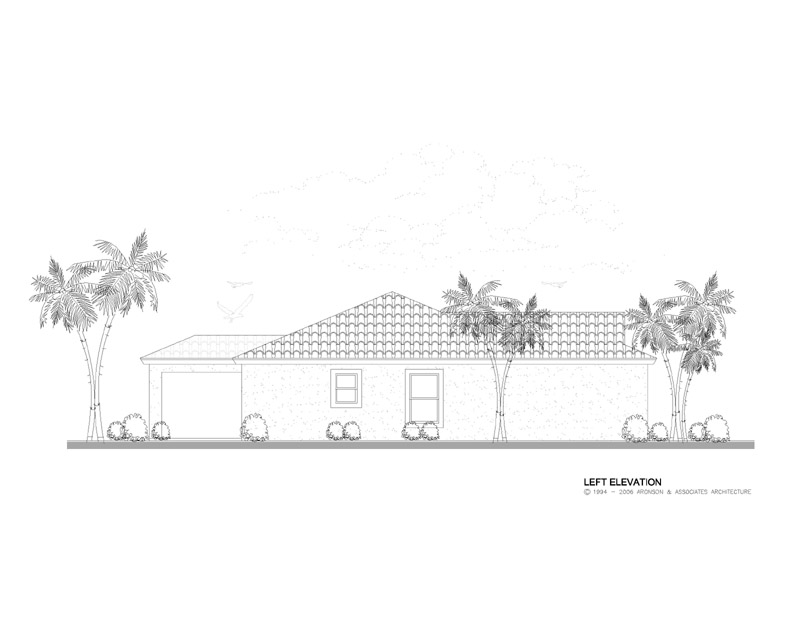

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1150
CAD Disk Price: $1650
Reverse PDF Price: $1400
Reverse CAD Price: $1900
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $650
3 Sets Price: $750
5 Sets Price: $850
8 Sets Price: $1000
Reproducible Vellum Price: $1050
Base – Not for Construction Price: $650
3 Sets (Reverse) Price: $1000
5 Sets (Reverse) Price: $1100
8 Sets (Reverse) Price: $1250
Reproducible Vellum (Reverse) Price: $1300
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
Vaulted
-
Secondary Living
Vaulted
-
Primary Bedrooms
8'-0
-
Secondary Bedrooms
8'-0
-
Bathrooms
8'-0
-
Common Areas
8'-0
Exterior
-
Garage
8'-0
-
Covered Entry
10'-7
-
Covered Patio
8'-0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
1803
-
Total AC
1803
Total Under Roof Sq Ft
-
Garage
446
-
Covered Entry
31
-
Covered Patio
100
-
Covered Balconies
0
-
Total Under Roof
2380
