House Plans
Plan Summary
-
Stories
1
-
Bedrooms
4
-
Bathrooms
2
-
Garage
2 car
-
Width x Length
40' x 62'
-
First Floor Sq Ft
1852
-
Total AC Sq Ft
1852
-
Total Under Roof Sq Ft
2441
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

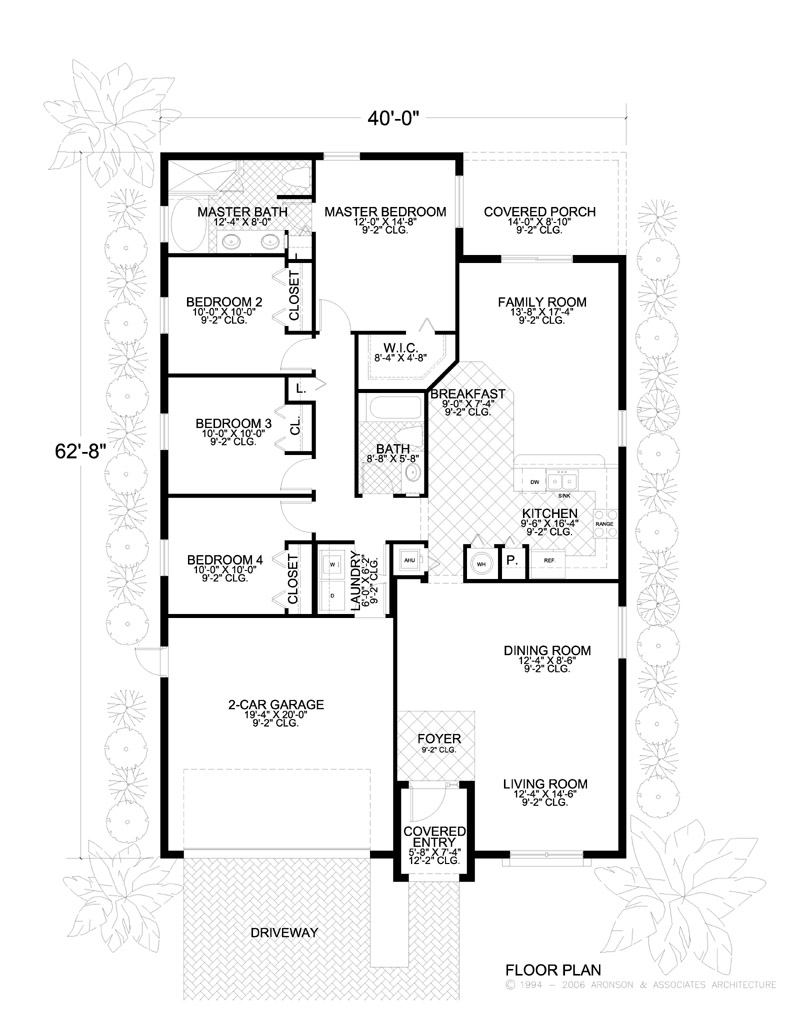

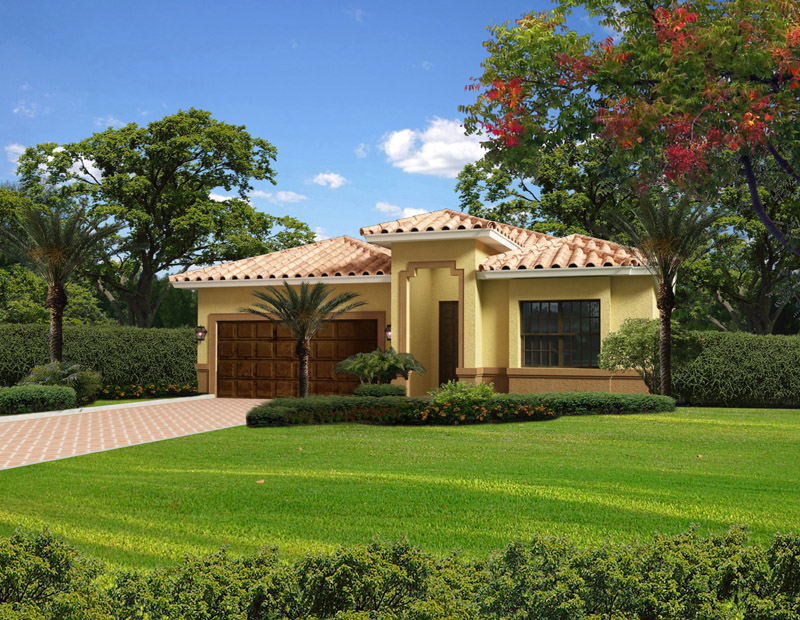

This lovely, Florida Mediterranean-style house features four bedrooms, two bathrooms, a two-car garage, towering entry and a rear porch. The floor plan provides a large combined living room and dining room to maximize space and an exclusive master suite with large walk-in-closet and a luxurious master bathroom.
Dimensions
- Width x Length 40' x 62'
- Height 18'-9
- Stories 1/
Garage
- Number of Cars 2
- Attached No
- Location Left
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 0
- Total 4
Bathrooms
- Full 2
- Half 0
- Total 2

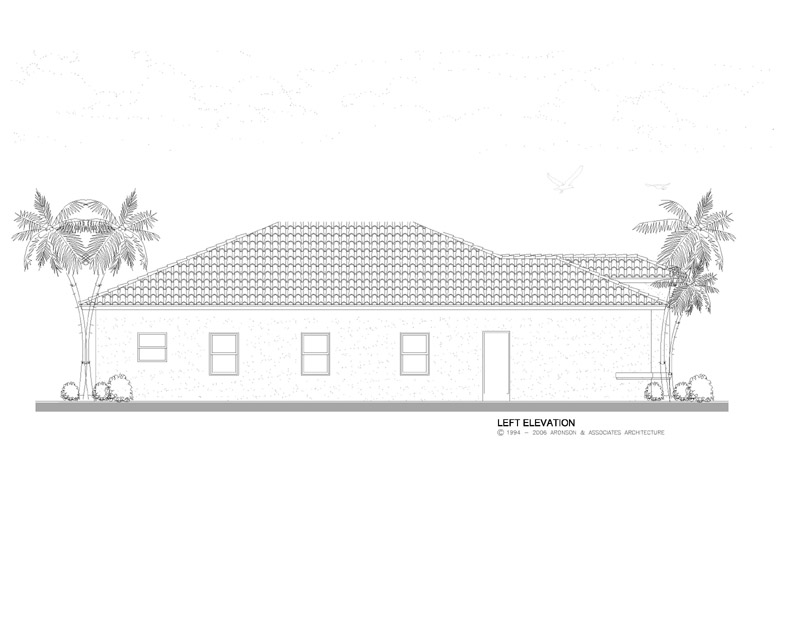

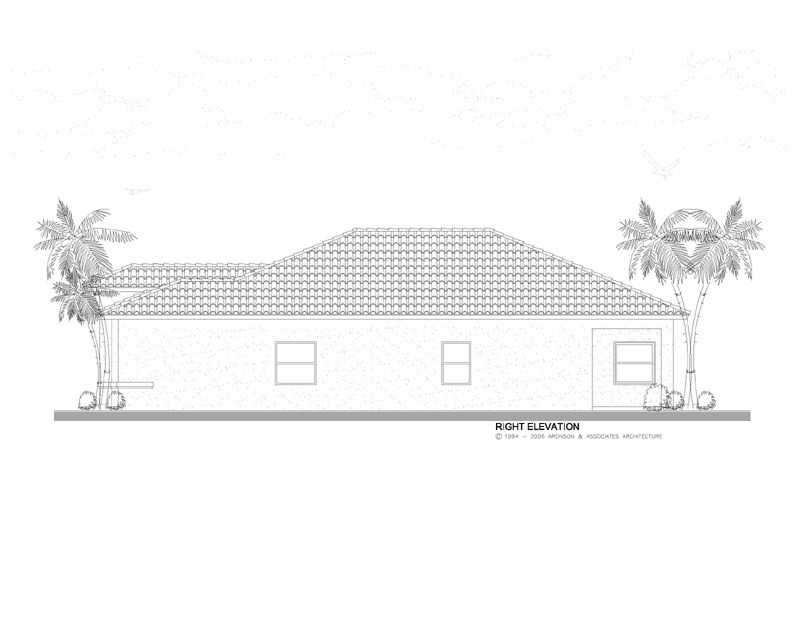

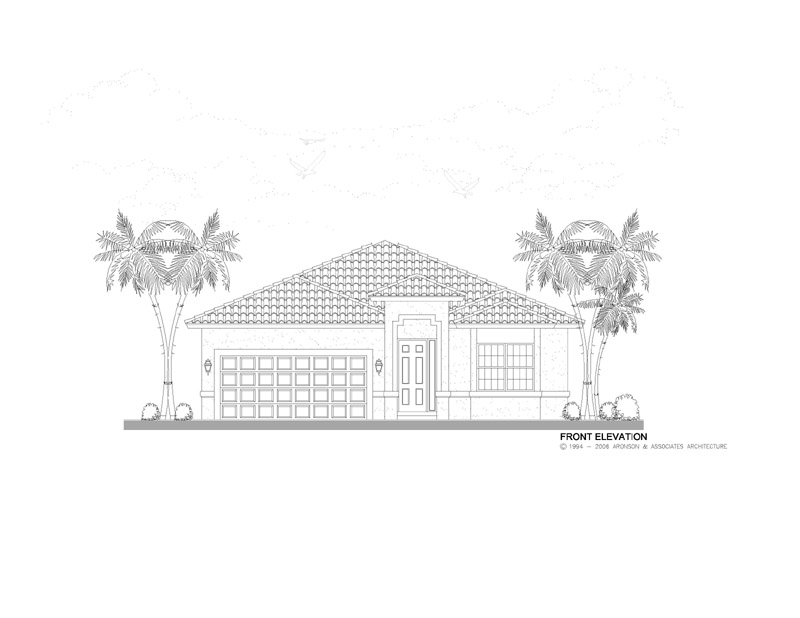

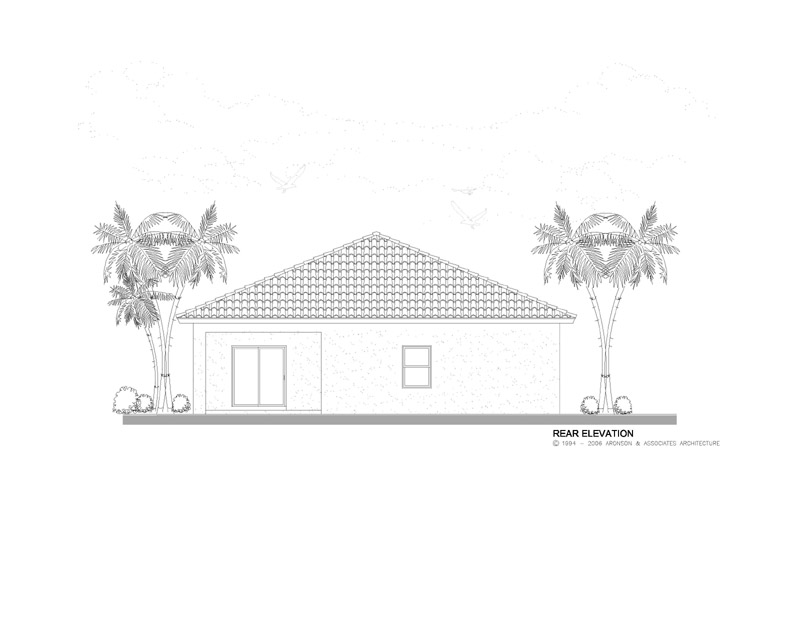

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1150
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1650
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $650
- (Extra Sets: $50)
- More Information
3 Sets Price: $750
- (Extra Sets: $50)
- More Information
5 Sets Price: $850
- (Extra Sets: $50)
- More Information
8 Sets Price: $1000
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1150
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140
First Floor
- Primary Living 9'-2
- Secondary Living 9'-2
- Primary Bedrooms 9'-2
- Secondary Bedrooms 9'-2
- Bathrooms 9'-2
- Common Areas 9'-2
Exterior
- Garage 9'-2
- Covered Entry 12'-2
- Covered Patio 9'-2
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 1852
- Total AC 1852
Total Under Roof Sq Ft
- Garage 417
- Covered Entry 48
- Covered Patio 124
- Covered Balconies 0
- Total Under Roof 2441
In Association With:
1-855-PLANS-123
1-954-736-4696
