PLAN SUMMARY
-
Stories
1
-
Bedrooms
4
-
Bathrooms
3
-
Garage
2 car
-
Width x Length:
40' " x 60' "
-
First Floor Sq Ft
1,924 Sq. Ft.
-
Total AC Sq Ft
1,924 Sq. Ft.
-
Total Under Roof Sq Ft
2,387 Sq. Ft.
-
$0.00
Plan Description
This luxurious 1,924 sq. ft., one-story, Florida-style home plan has four bedrooms, three bathrooms and a two-car garage. A unique gated covered entry provides an extra measure of security. The large living room and family room are combined to maximize space. An exclusive master suite with tray ceiling has a large walk-in closet and regal master bath. Pickup this luxurious home plan today.
Dimensions
-
Width x Length
40' " x 60' "
-
Height
18'-10
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
4
-
Possible
0
-
Total
4
Bathrooms
-
Full
3
-
Half
0
-
Total
3

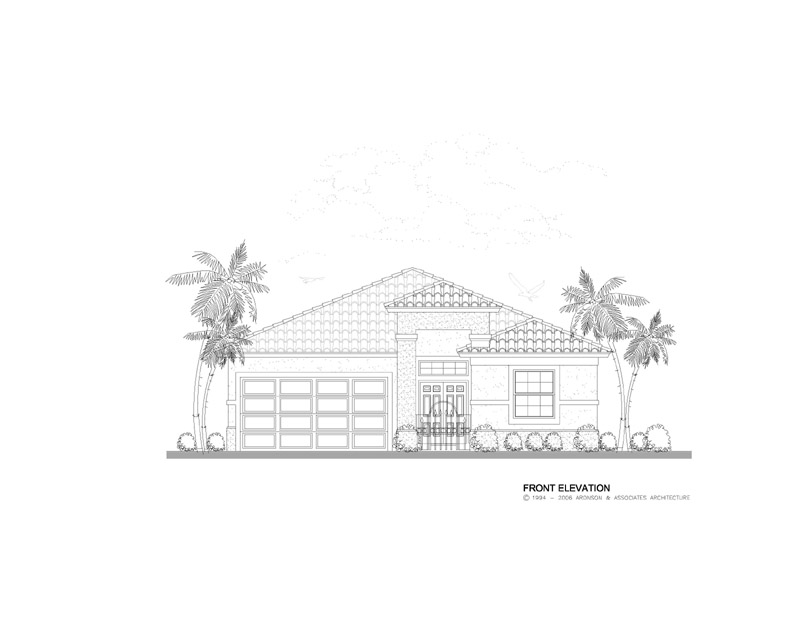

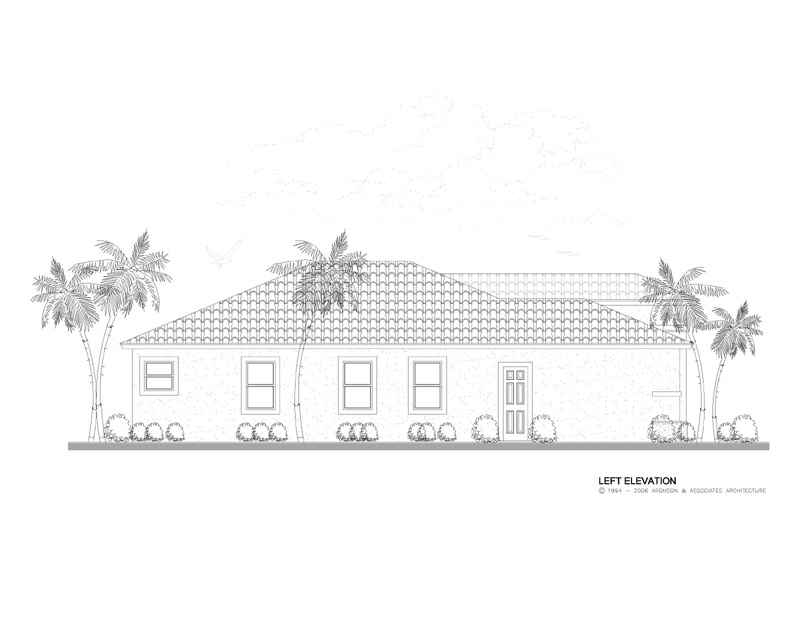

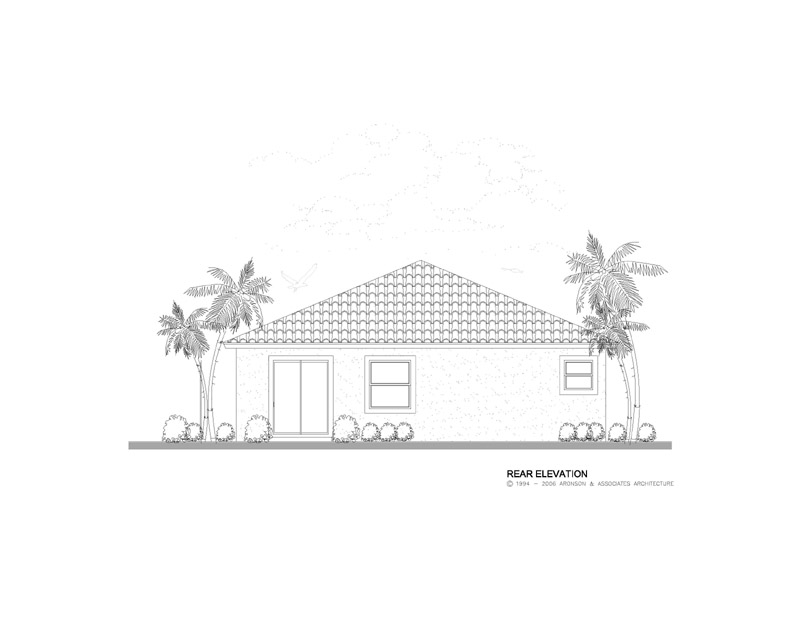

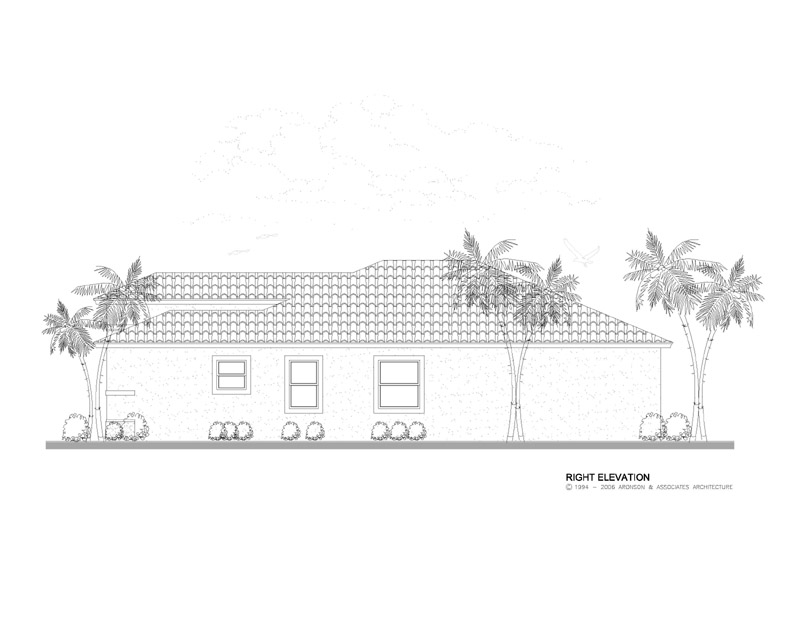

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1150
CAD Disk Price: $1650
Reverse PDF Price: $1400
Reverse CAD Price: $1900
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $650
3 Sets Price: $750
5 Sets Price: $850
8 Sets Price: $1000
Reproducible Vellum Price: $1050
Base – Not for Construction Price: $650
3 Sets (Reverse) Price: $1000
5 Sets (Reverse) Price: $1100
8 Sets (Reverse) Price: $1250
Reproducible Vellum (Reverse) Price: $1300
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140

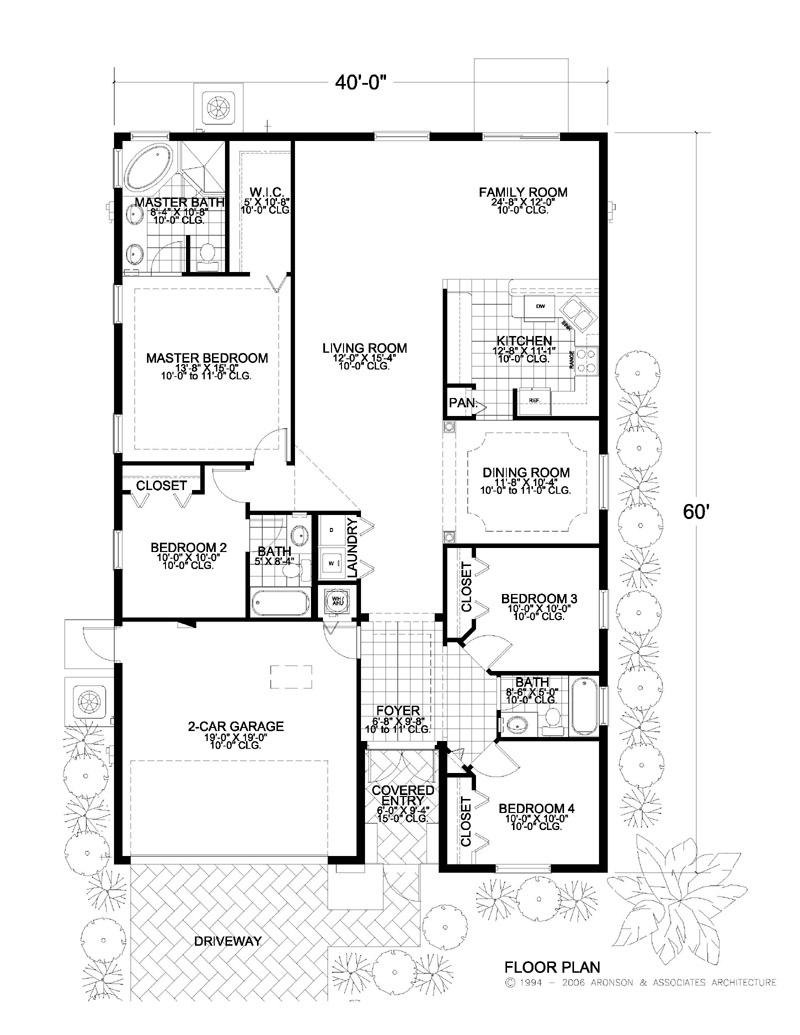

First Floor
-
Primary Living
10'
-
Secondary Living
10'
-
Primary Bedrooms
10' to 11'
-
Secondary Bedrooms
10'
-
Bathrooms
10'
-
Common Areas
10' to 11'
Exterior
-
Garage
10'-0
-
Covered Entry
15'-0
-
Covered Patio
0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
1924
-
Total AC
1924
Total Under Roof Sq Ft
-
Garage
403
-
Covered Entry
60
-
Covered Patio
0
-
Covered Balconies
0
-
Total Under Roof
2387
