House Plan Model 2003-0420

Browsing: By Two Story

Popular Home Plan

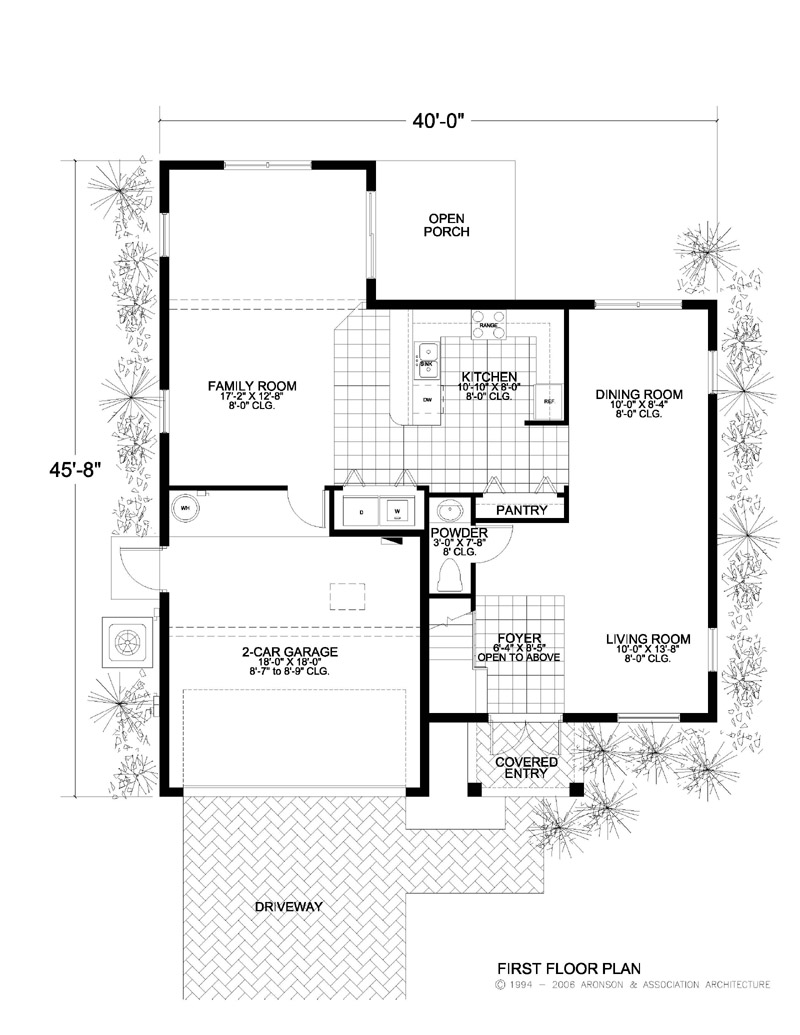

First Floor Plan

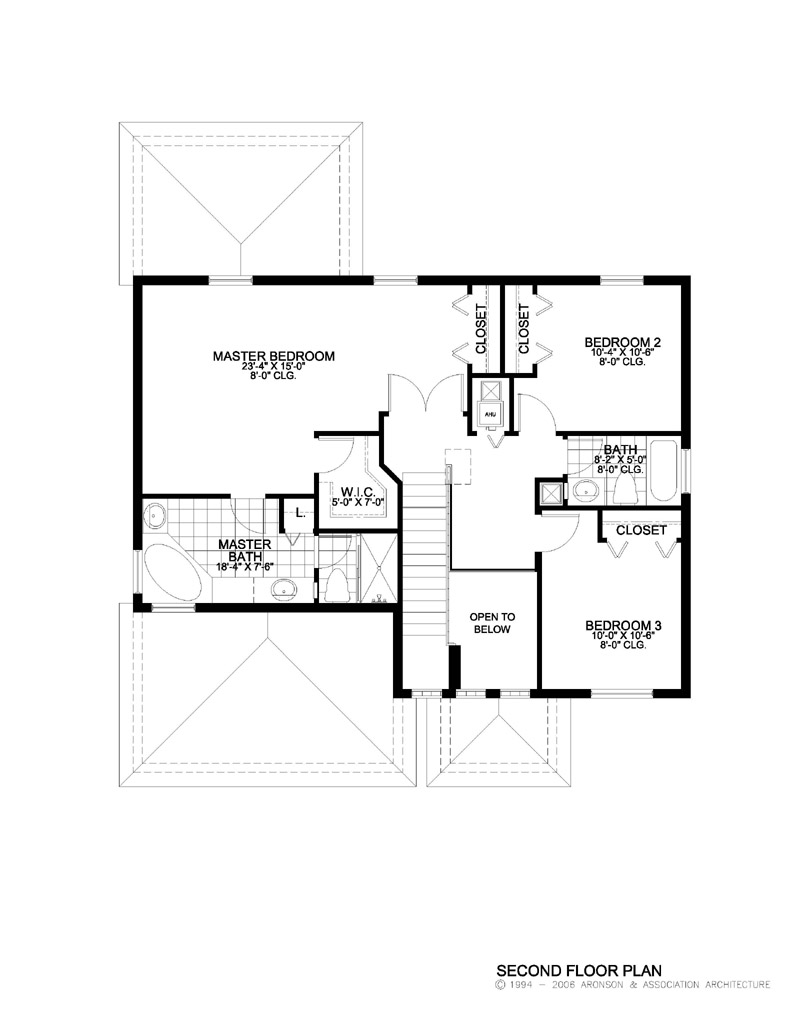

Second Floor Plan

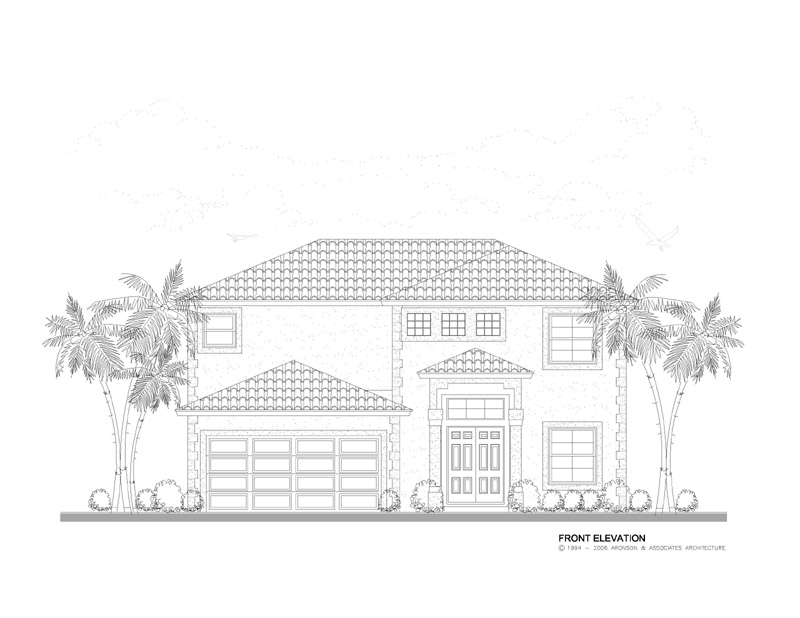

Front Elevation View of Home

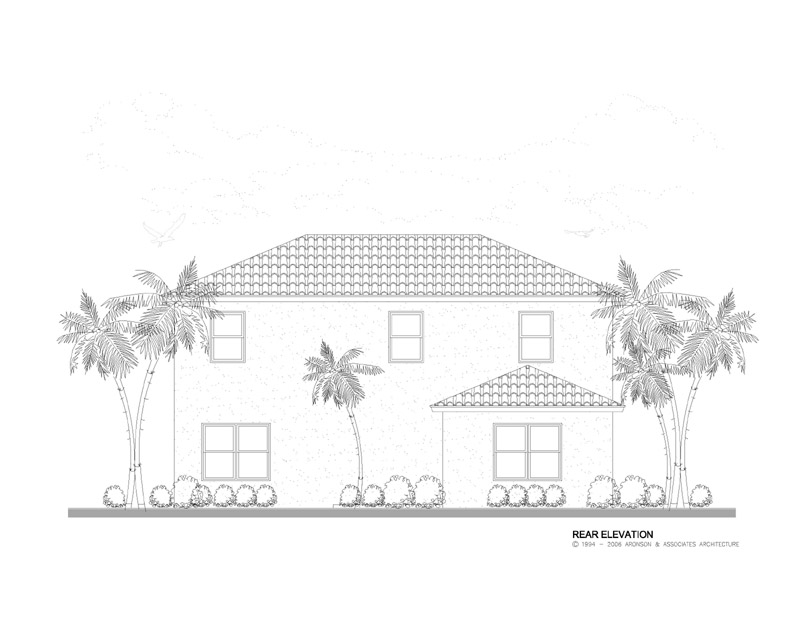

Rear Elevation View of Home

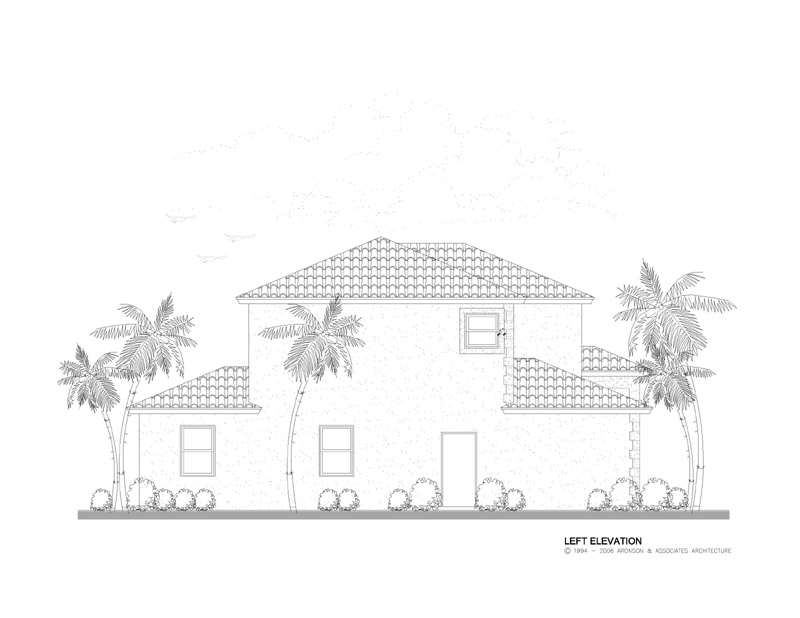

Left Elevation View of Home

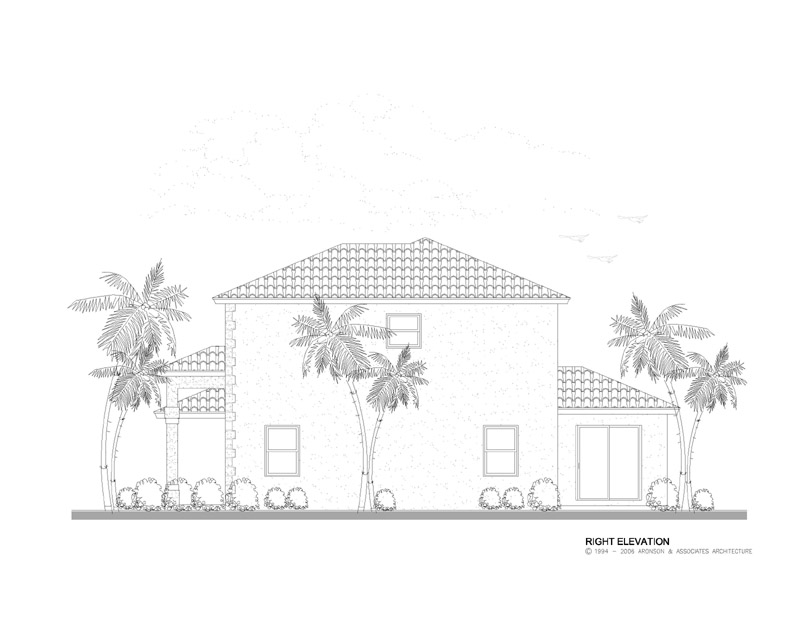

Right Elevation View of Home
Popular Home Plan
First Floor Plan
Second Floor Plan
Front Elevation View of Home
Rear Elevation View of Home
Left Elevation View of Home
Right Elevation View of Home

Plan Summary

  • Stories

    2

  • Bedrooms

    3

  • Bathrooms

    2

  • Garage

    2 car

  • Width x Length

    40' x 45'

  • First Floor Sq Ft

    924

  • Second Floor Sq Ft

    1079

  • Total AC Sq Ft

    2003

  • Total Under Roof Sq Ft

    2441

Order Plan
Compare Plan
Save Plan
Customize Plan

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money
Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This luxurious 2,003 sq. ft., two-story Florida-style home floor plan has three bedrooms, two and a one-half bathrooms and a two-car garage. Columns and arches give this model strong curb appeal. The covered entrance is towering with transom accent. The large master suite has a large walk-in closet and a luxurious master bathroom. The living room and dining room are combined to maximize space. The spacious kitchen open to a family room. The compact design of this home utilizes use of every inch of living space and the reflects a home with spacious appeal. Download this luxurious two story home floor plan today.

Dimensions

  • Width x Length 40' x 45'
  • Height 23'-9
  • Stories 2/

Garage

  • Number of Cars 2
  • Attached No
  • Location Left

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 3
  • Possible 0
  • Total 3

Bathrooms

  • Full 2
  • Half 1
  • Total 2

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 1

Features

  • Fireplace No
  • Elevator No
  • Pool No
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1200

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $1800

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $700

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $800

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $900

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1050

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1200

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Wood Truss
  • Option 0

Floor System

  • Type Wood truss
  • Spacing 24
  • Subfloor wood
  • Thickness 3/4

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material S. tile
  • Wind Speed 140

First Floor

  • Primary Living 8'
  • Secondary Living 8'
  • Primary Bedrooms
  • Secondary Bedrooms 0
  • Bathrooms 8'
  • Common Areas 8'

Second Floor

  • Primary Bedrooms 8'
  • Secondary Bedrooms 8'
  • Bathrooms 8'
  • Common Areas 8'

Exterior

  • Garage 8'-7
  • Covered Entry 11'-6
  • Covered Patio 0
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 924
  • Second Floor AC 1079
  • Total AC 2003

Total Under Roof Sq Ft

  • Garage 393
  • Covered Entry 45
  • Covered Patio 0
  • Covered Balconies 0
  • Total Under Roof 2441
