House Plans
Plan Summary
-
Stories
1
-
Bedrooms
3
-
Bathrooms
2
-
Garage
2 car
-
Width x Length
51' x 69'
-
First Floor Sq Ft
2041
-
Total AC Sq Ft
2041
-
Total Under Roof Sq Ft
2549
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

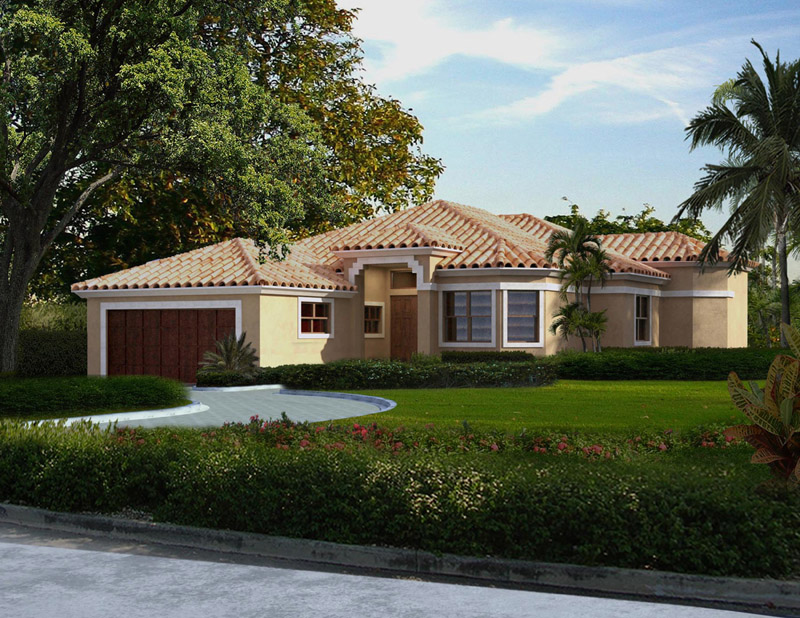

This 2,041 sq. ft., one-story Mediterranean home plan is a perfect starter home or vacation retreat with three bedrooms, two and a half bathrooms and a two-car garage. The home plan design with covered entry is ideal for a small lot. The floor plan features a large kitchen with eating bar opening to the dining room, and a master suite providing plenty of room along with a master bathroom. Get this starter home floor plan today.
Dimensions
- Width x Length 51' x 69'
- Height 19'-4
- Stories 1/
Garage
- Number of Cars 2
- Attached Yes
- Location Left
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 3
- Possible 0
- Total 3
Bathrooms
- Full 2
- Half 1
- Total 2

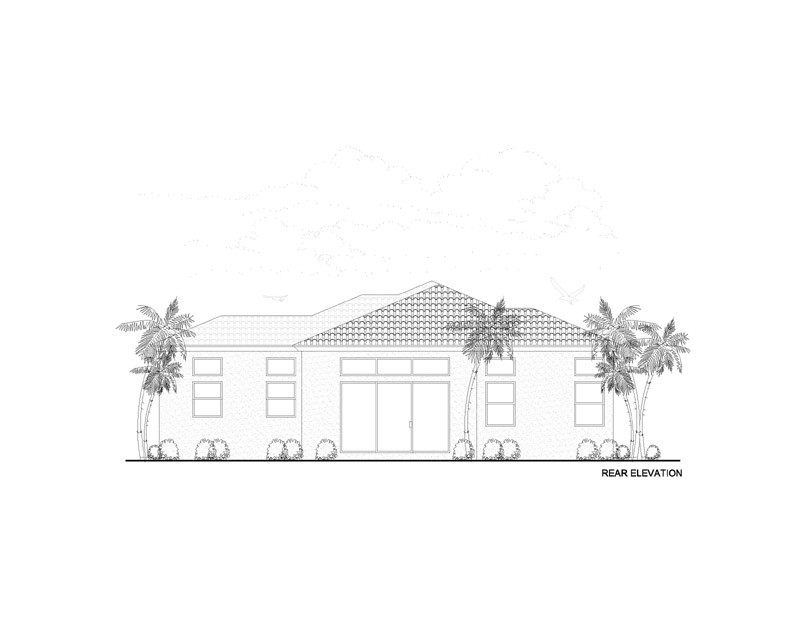

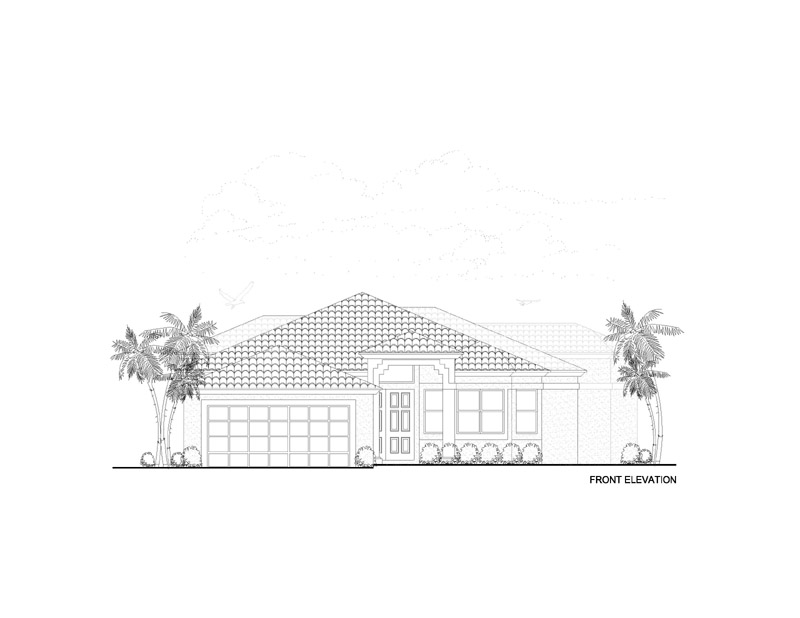

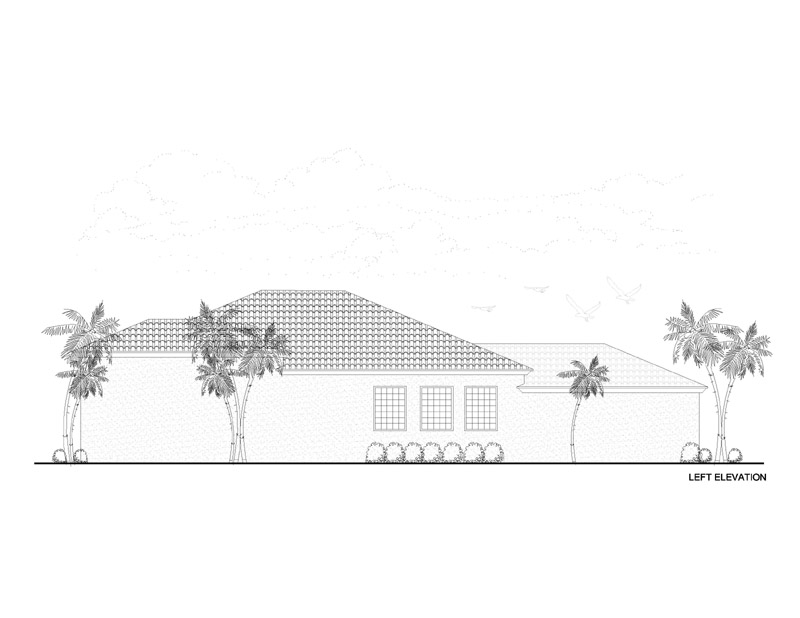

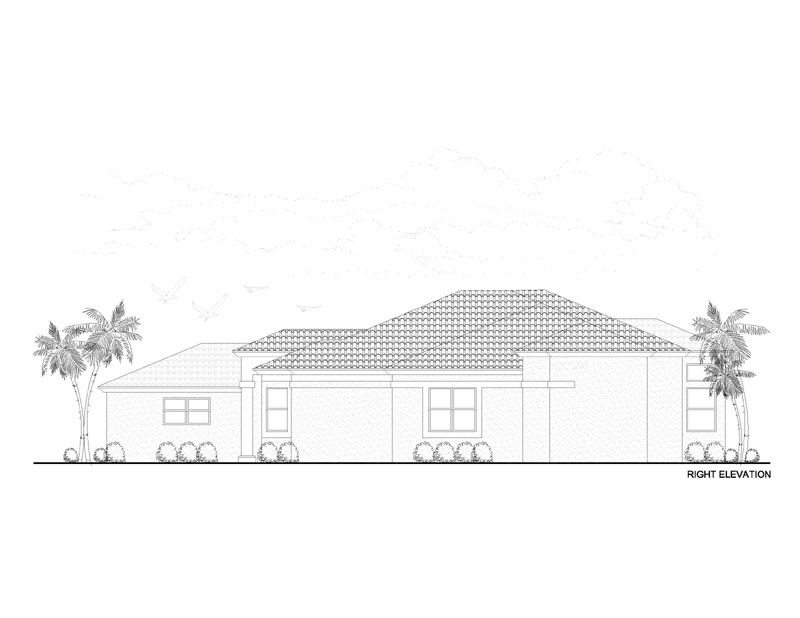

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1200
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1800
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $700
- (Extra Sets: $50)
- More Information
3 Sets Price: $800
- (Extra Sets: $50)
- More Information
5 Sets Price: $900
- (Extra Sets: $50)
- More Information
8 Sets Price: $1050
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1200
- (Extra Sets: $150)
- More Information
Foundation Type
- Type 0
- Option 0
Floor System
- Type Concrete
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140

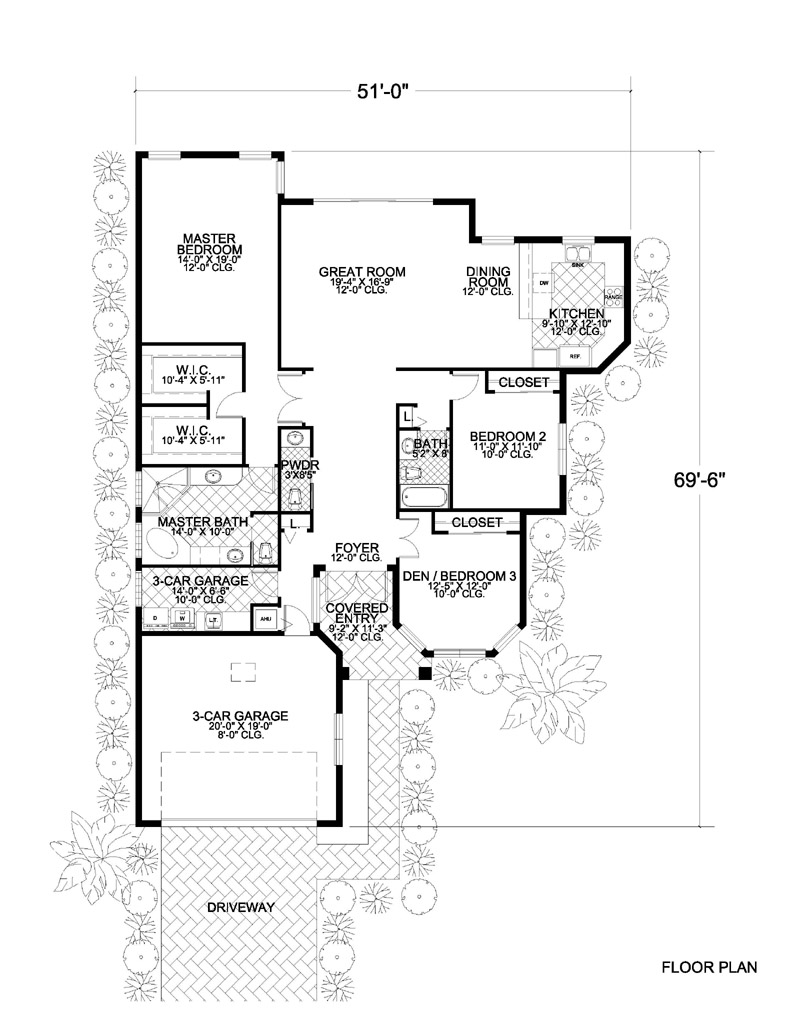

First Floor
- Primary Living 12'
- Secondary Living 12'
- Primary Bedrooms 12'
- Secondary Bedrooms 10'
- Bathrooms 0
- Common Areas 12'
Exterior
- Garage 8'
- Covered Entry 12'
- Covered Patio 0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 2041
- Total AC 2041
Total Under Roof Sq Ft
- Garage 418
- Covered Entry 90
- Covered Patio 0
- Covered Balconies 0
- Total Under Roof 2549
