PLAN SUMMARY
-
Stories
1
-
Bedrooms
3
-
Bathrooms
2
-
Garage
2 car
-
Width x Length:
40' " x 80' "
-
First Floor Sq Ft
2,068 Sq. Ft.
-
Total AC Sq Ft
2,068 Sq. Ft.
-
Total Under Roof Sq Ft
2,807 Sq. Ft.
-
$0.00
Plan Description

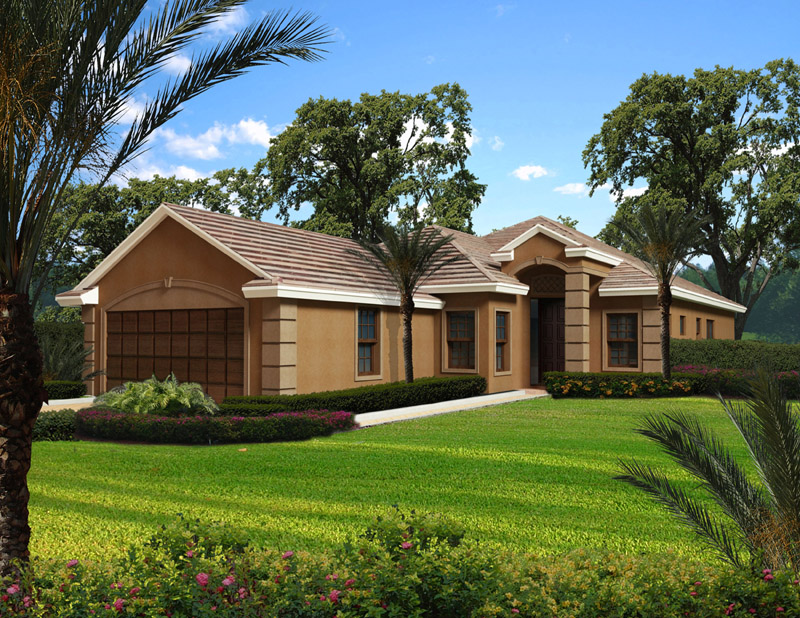

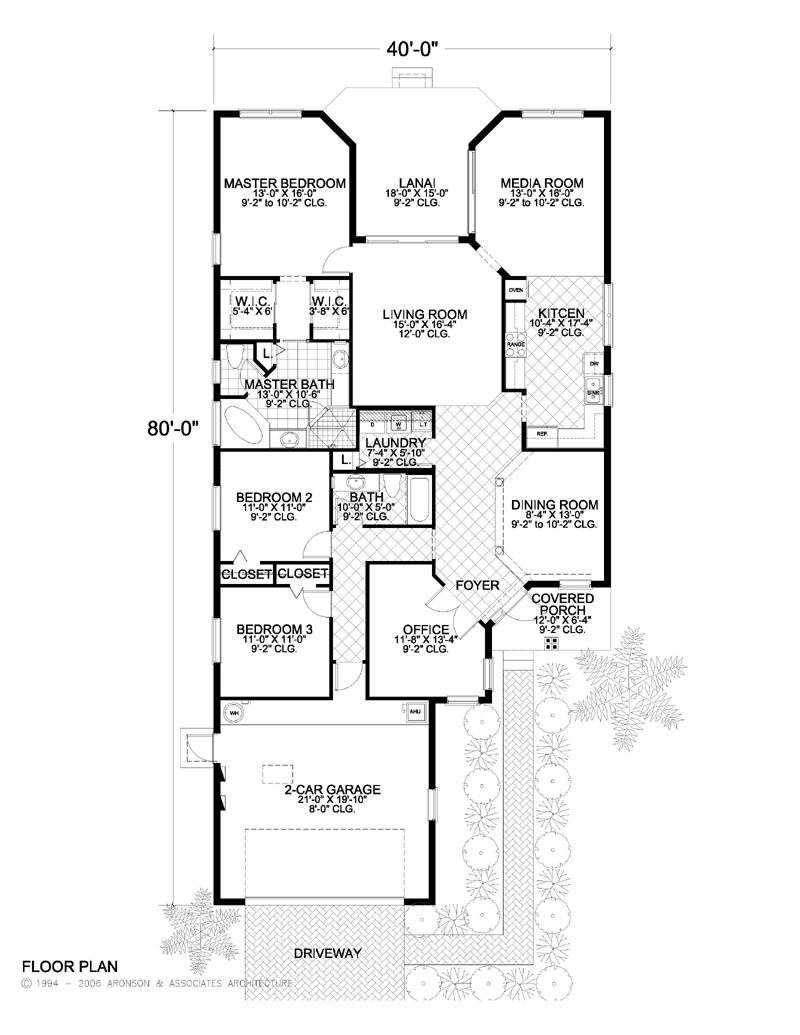

This 2,068 sq. ft., one-story, Florida-style home floor plan has three bedrooms, two bathrooms, an office and a two-car garage. The large kitchen opens to the media room. This unique design includes a home office. The luxurious master suite has a “His and Her” walk-in closets design and regal master bath. Other highlights of this magnificent home is the rear extension that encloses a lanai for added privacy. Purchase and download this one story home floor plan today.
Dimensions
-
Width x Length
40' " x 80' "
-
Height
19'-7
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
3
-
Possible
0
-
Total
3
Bathrooms
-
Full
2
-
Half
0
-
Total
2

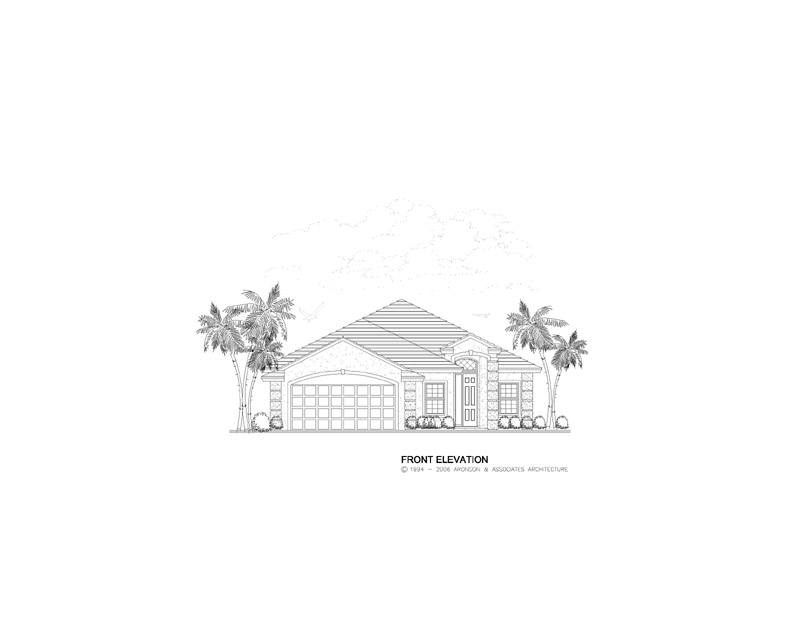

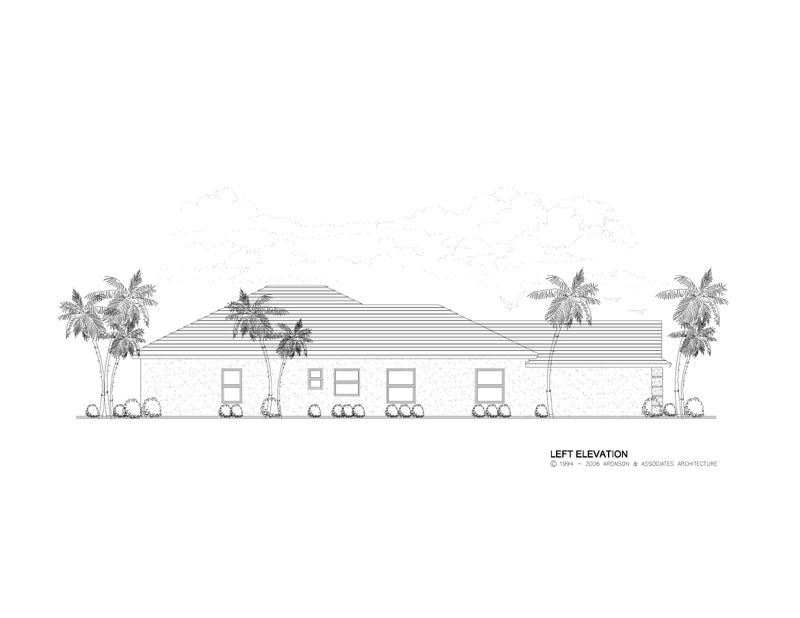

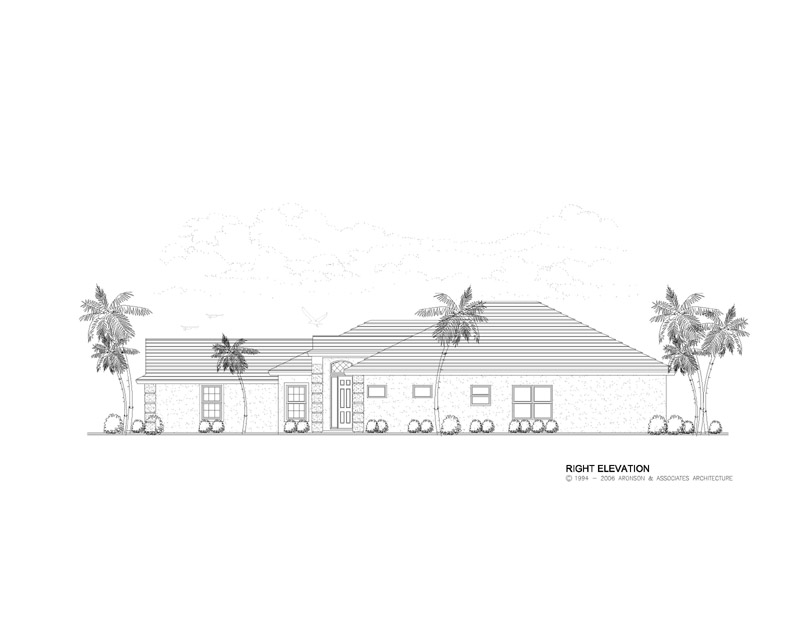

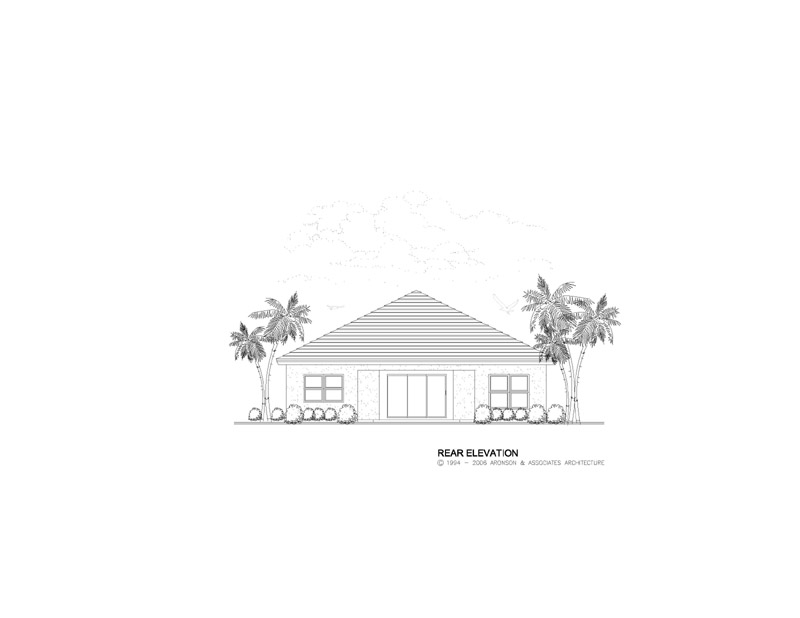

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1200
CAD Disk Price: $1800
Reverse PDF Price: $1450
Reverse CAD Price: $2050
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $700
3 Sets Price: $800
5 Sets Price: $900
8 Sets Price: $1050
Reproducible Vellum Price: $1200
Base – Not for Construction Price: $700
3 Sets (Reverse) Price: $1050
5 Sets (Reverse) Price: $1150
8 Sets (Reverse) Price: $1300
Reproducible Vellum (Reverse) Price: $1450
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
6:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
12'
-
Secondary Living
9'-2
-
Primary Bedrooms
9'-2
-
Secondary Bedrooms
9'-2
-
Bathrooms
9'-2
-
Common Areas
9'-2
Exterior
-
Garage
8'
-
Covered Entry
9'-2
-
Covered Patio
9'-2
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2068
-
Total AC
2068
Total Under Roof Sq Ft
-
Garage
480
-
Covered Entry
191
-
Covered Patio
68
-
Covered Balconies
0
-
Total Under Roof
2807
