PLAN SUMMARY
-
Stories
1
-
Bedrooms
3
-
Bathrooms
2
-
Garage
2 car
-
Width x Length:
40' " x 80' "
-
First Floor Sq Ft
2,093 Sq. Ft.
-
Total AC Sq Ft
2,093 Sq. Ft.
-
Total Under Roof Sq Ft
2,832 Sq. Ft.
-
$0.00
Plan Description

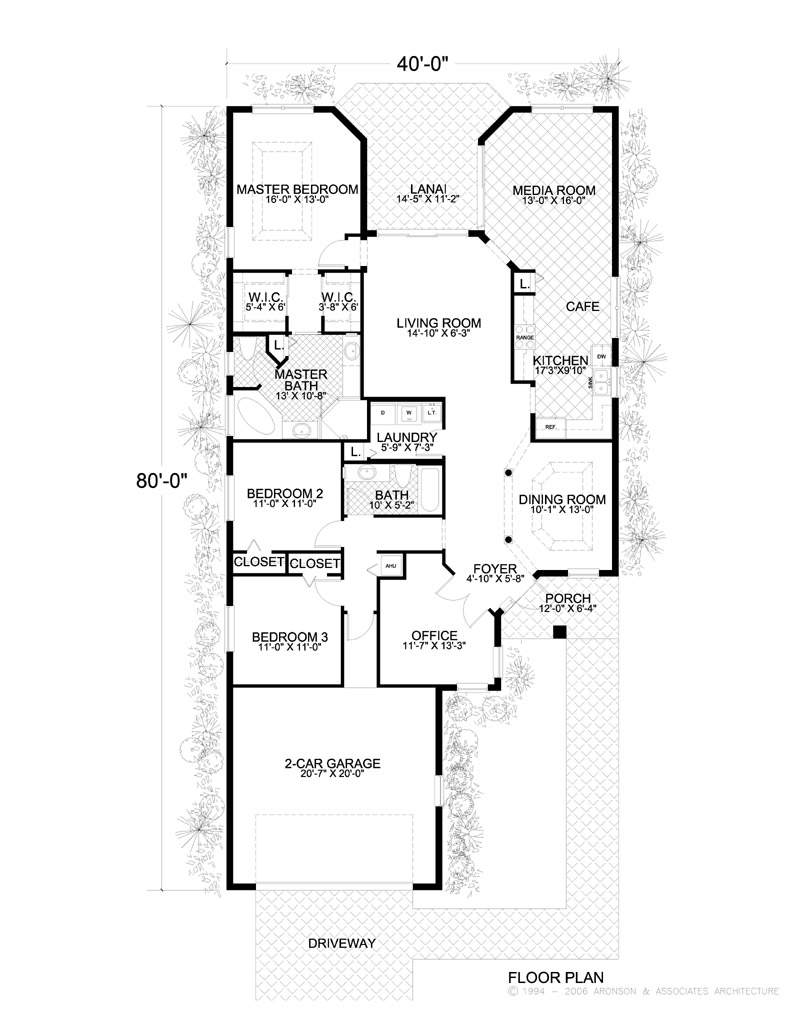

This lovely, 2,093 sq. ft., one-story, classic Florida Mediterranean-style home floor plan features three bedrooms, two bathrooms, a two car garage, a covered entry and rear lanai. This compact design makes efficient use of every square inch of space. It provides a large central living room plus media room, home office, kitchen with a cafe and a master suite with master bath and walk-in closets. Pick up this home floor plan today.
Dimensions
-
Width x Length
40' " x 80' "
-
Height
19'-7
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal Stud
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
3
-
Possible
0
-
Total
3
Bathrooms
-
Full
2
-
Half
0
-
Total
2

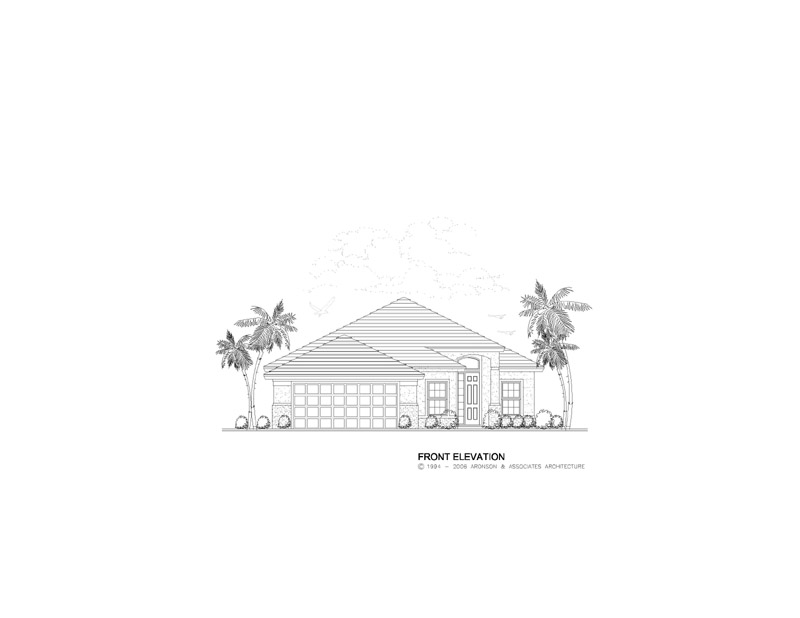

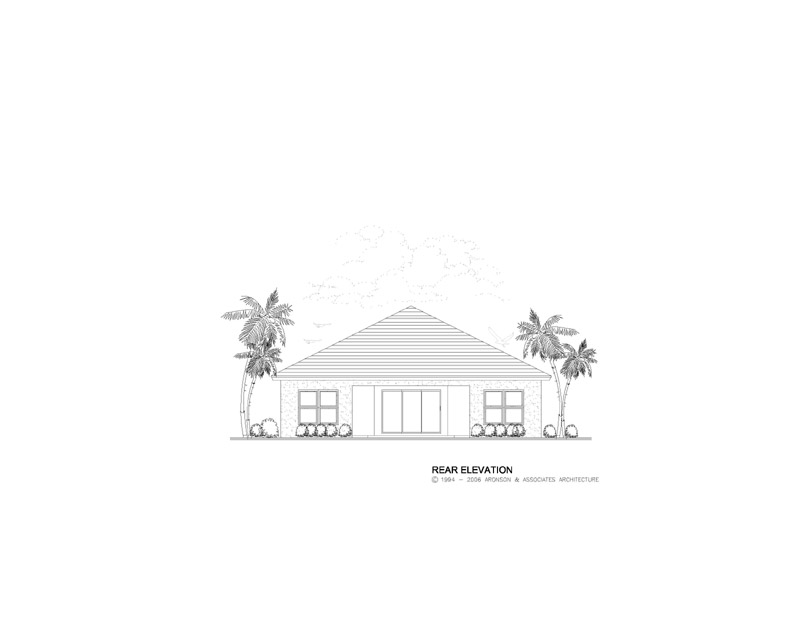

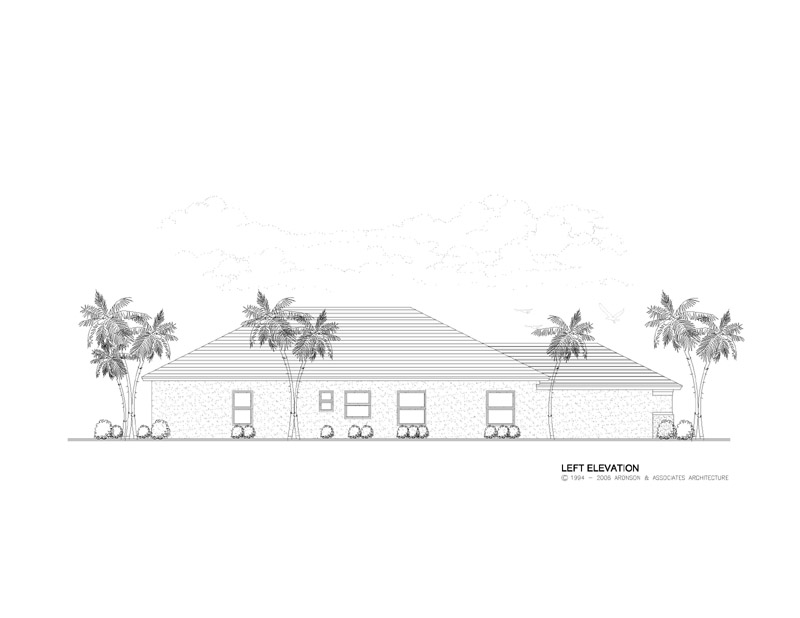

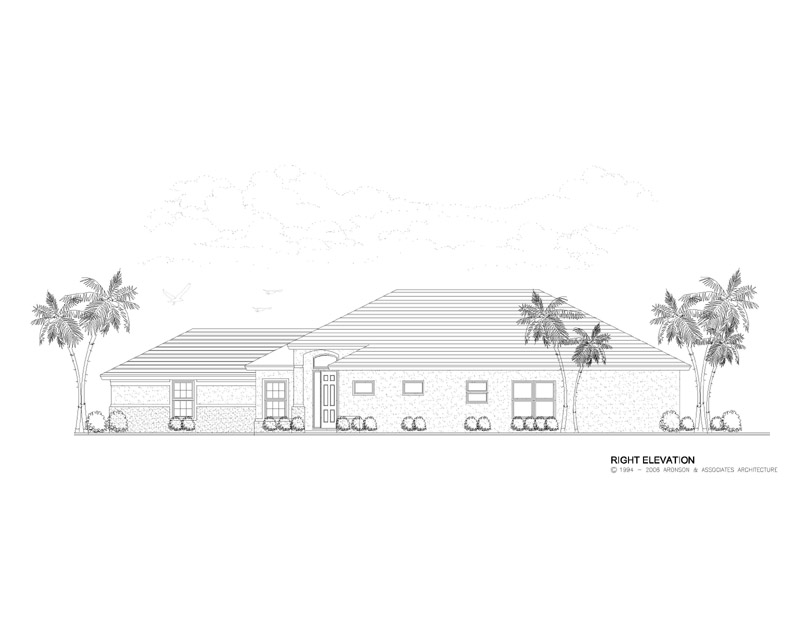

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1200
CAD Disk Price: $1800
Reverse PDF Price: $1450
Reverse CAD Price: $2050
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $700
3 Sets Price: $800
5 Sets Price: $900
8 Sets Price: $1050
Reproducible Vellum Price: $1200
Base – Not for Construction Price: $700
3 Sets (Reverse) Price: $1050
5 Sets (Reverse) Price: $1150
8 Sets (Reverse) Price: $1300
Reproducible Vellum (Reverse) Price: $1450
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. Tile
-
Wind Speed
140
First Floor
-
Primary Living
12'-0
-
Secondary Living
9'--2
-
Primary Bedrooms
9'-2
-
Secondary Bedrooms
9'-2
-
Bathrooms
9'-2
-
Common Areas
9'-2
Exterior
-
Garage
8'-0
-
Covered Entry
9'-2
-
Covered Patio
9'-2
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2093
-
Total AC
2093
Total Under Roof Sq Ft
-
Garage
480
-
Covered Entry
68
-
Covered Patio
191
-
Covered Balconies
0
-
Total Under Roof
2832
