House Plan Model 2124-9805

Browsing: By One Story

Home Rendering

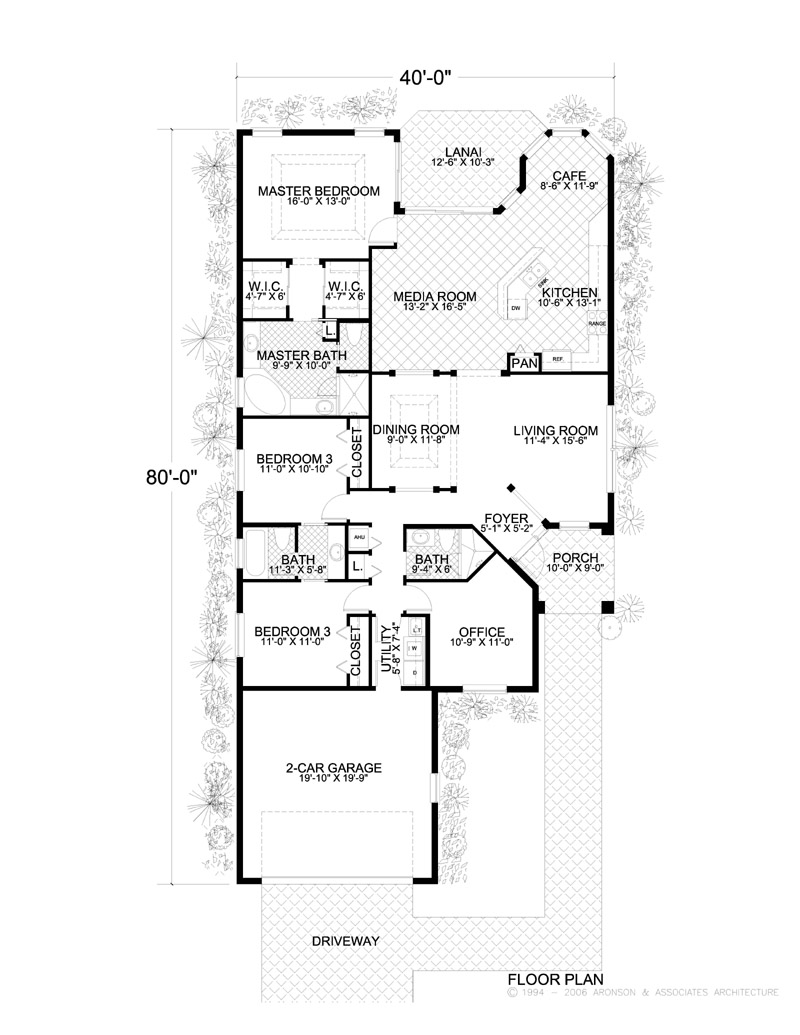

Floor Plan

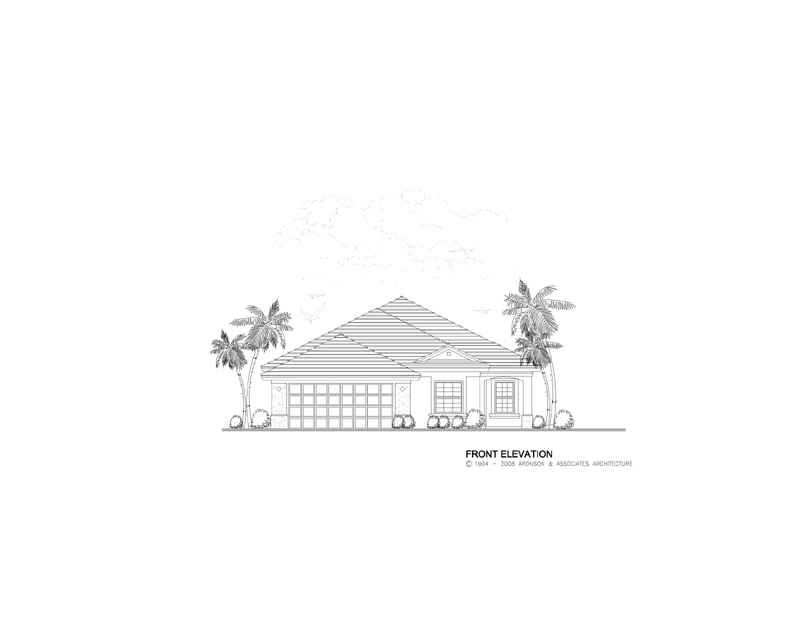

Front Elevation View of Home

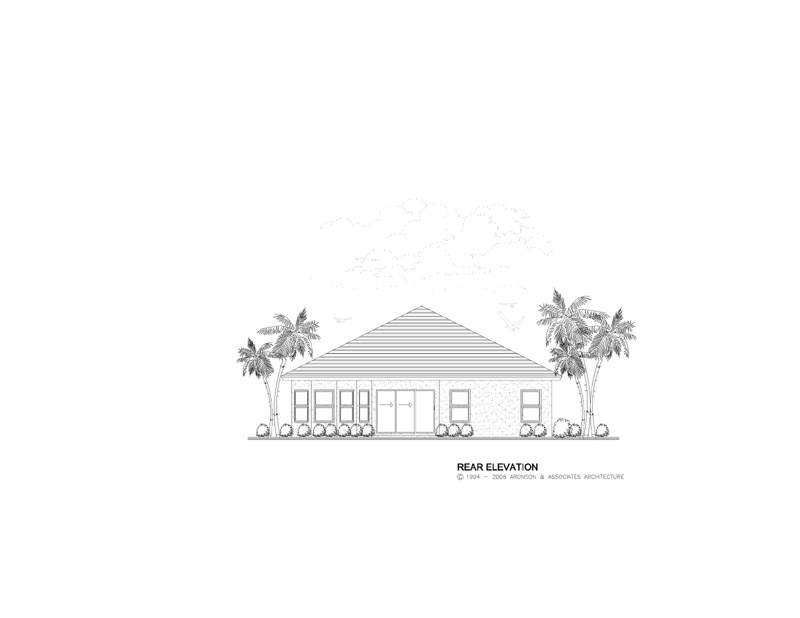

Rear Elevation View of Home

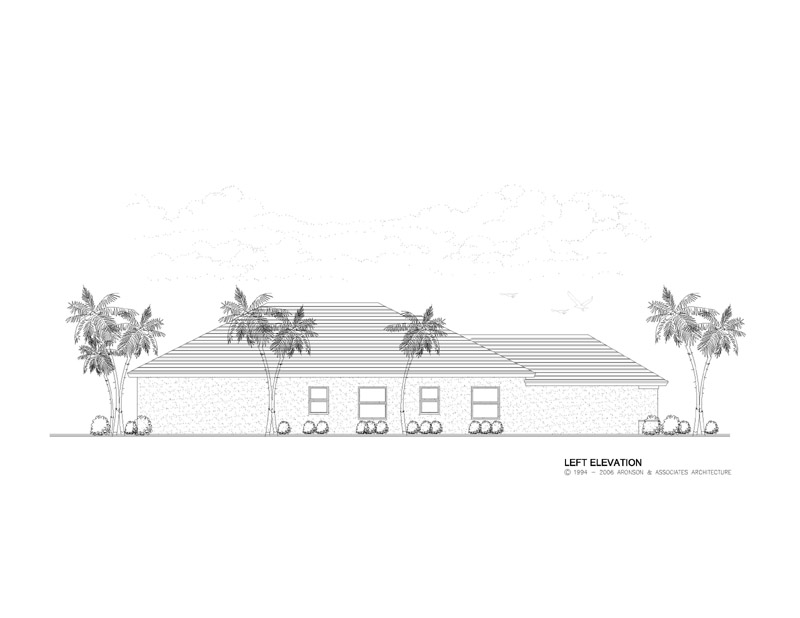

Left Elevation View of Home

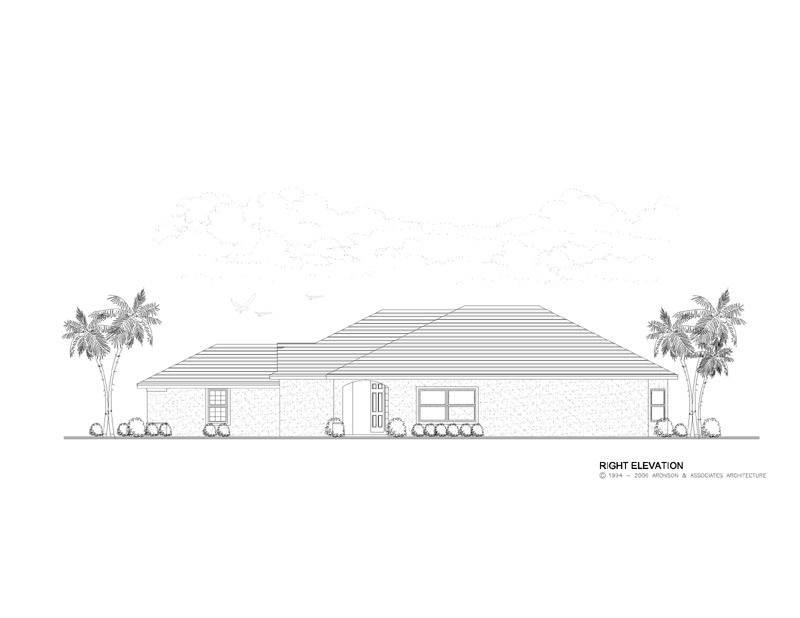

Right Elevation View of Home
Home Rendering
Floor Plan
Front Elevation View of Home
Rear Elevation View of Home
Left Elevation View of Home
Right Elevation View of Home

Plan Summary

  • Stories

    1

  • Bedrooms

    3

  • Bathrooms

    3

  • Garage

    2 car

  • Width x Length

    40' x 80'

  • First Floor Sq Ft

    2124

  • Total AC Sq Ft

    2124

  • Total Under Roof Sq Ft

    2773

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money

Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This 2,124 sq. ft., one-story, Mediterranean home is a perfect starter home or vacation retreat has three bedrooms, three bathrooms and a two-car garage. The design is well-suited for a small lot. The floor plan features a large kitchen with eating bar opening to a family room. The media room feature is very spacious. The home is very eye-appealing with the covered entry and rear porch. Purchase and download this home floor plan today.

Dimensions

  • Width x Length 40' x 80'
  • Height 19'-6
  • Stories 1/

Garage

  • Number of Cars 2
  • Attached Yes
  • Location Left

Wall Construction

  • Interior Metal Stud
  • Exterior CMU Block
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 3
  • Possible 0
  • Total 3

Bathrooms

  • Full 3
  • Half 0
  • Total 3

Elevation

  • Finishes Stucco
  • Master Bedroom Location 1
  • Utility Location 1

Features

  • Fireplace No
  • Elevator No
  • Pool No
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1200

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $1800

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $700

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $800

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $900

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1050

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1200

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type 0
  • Spacing 0
  • Subfloor 0
  • Thickness 0

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 6:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. Tile
  • Wind Speed 140

First Floor

  • Primary Living 9'-2
  • Secondary Living 12'
  • Primary Bedrooms 9'-2
  • Secondary Bedrooms 9'-2
  • Bathrooms 9'-2
  • Common Areas 9'-2

Exterior

  • Garage 8'
  • Covered Entry 13'-4
  • Covered Patio 9'-2
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 2124
  • Total AC 2124

Total Under Roof Sq Ft

  • Garage 440
  • Covered Entry 74
  • Covered Patio 135
  • Covered Balconies 0
  • Total Under Roof 2773
