House Plan Model 2191-9505

Browsing: By One Story

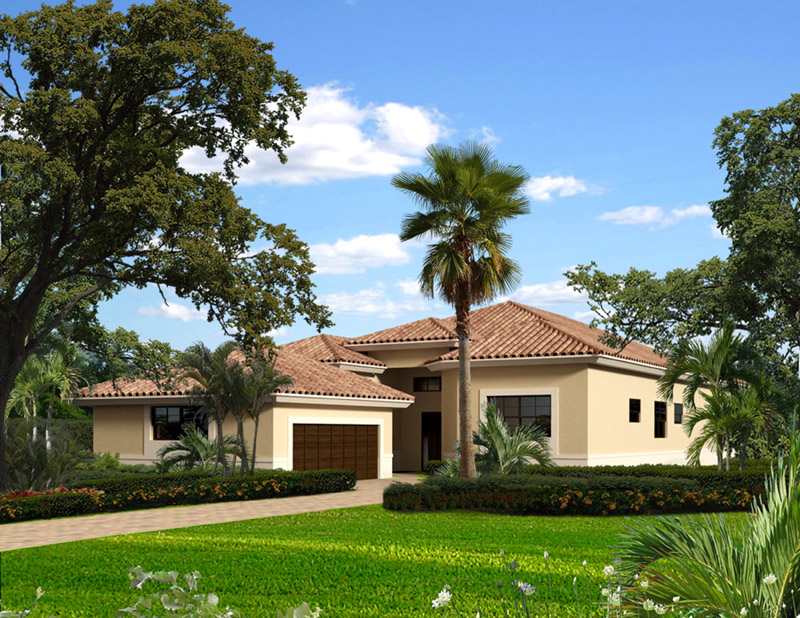

Beautiful Home

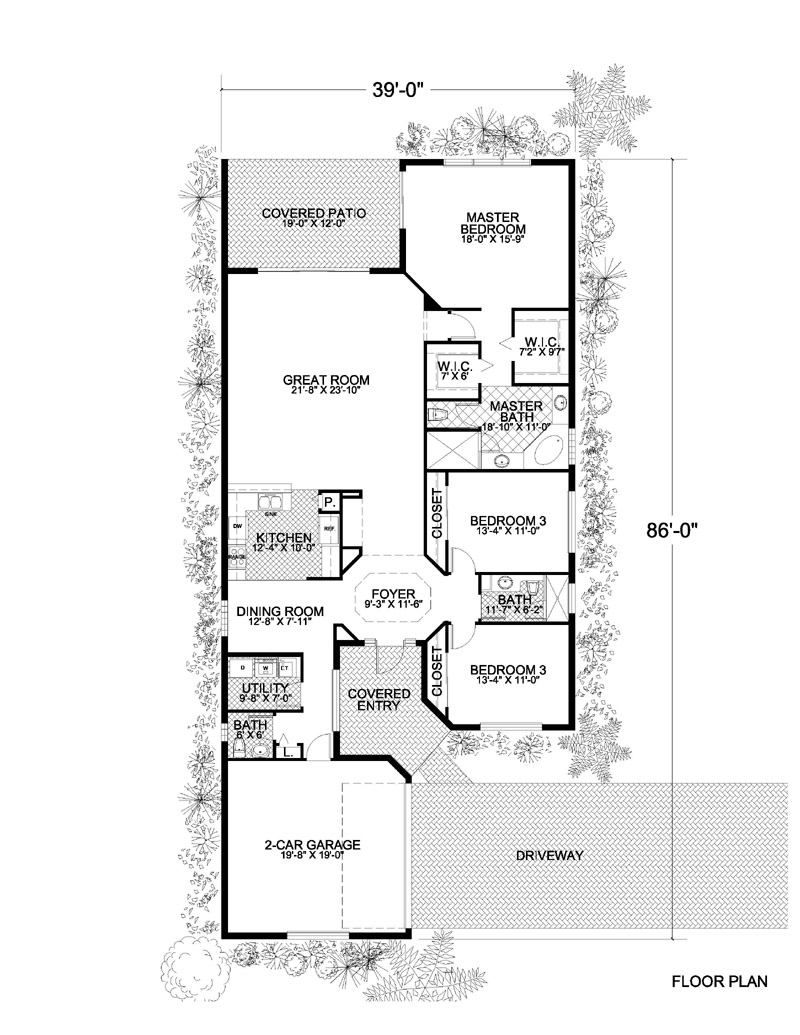

Floor Plan

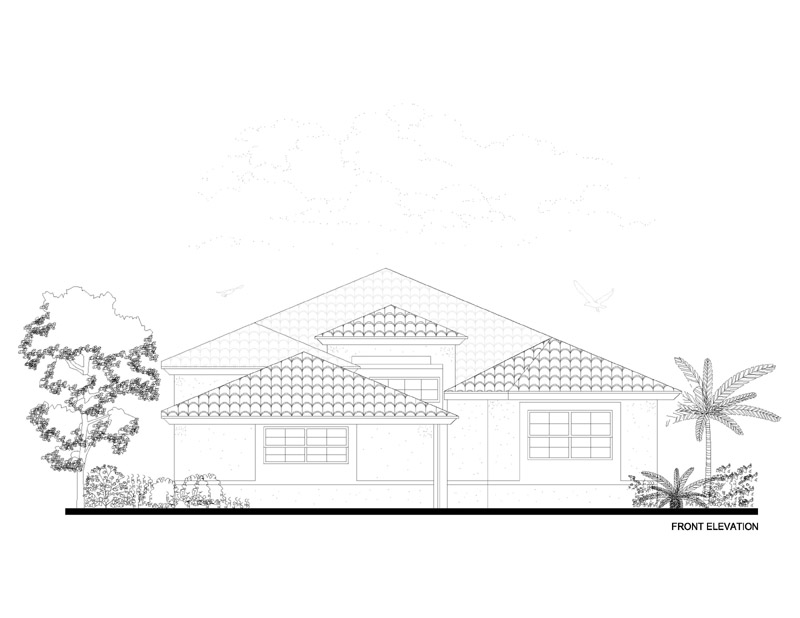

Front Elevation View of Home
Beautiful Home
Floor Plan
Front Elevation View of Home

Plan Summary

  • Stories

    1

  • Bedrooms

    3

  • Bathrooms

    3

  • Garage

    2 car

  • Width x Length

    39' x 86'

  • First Floor Sq Ft

    2191

  • Total AC Sq Ft

    2191

  • Total Under Roof Sq Ft

    2892

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

This plan is restricted.

Please call 1-855-PLANS-123 (1-954-736-4696) for more information

Plan Description

This luxurious 2,191 sq. ft., one-story home plan has three bedrooms, three bathrooms and a two-car garage. The large master suite includes master bath and walk-in closet. The design places the master bedroom with privacy in mind. As a unique design, an open great room features a triple sliding glass doors, opening to a patio – perfect for entertaining! Purchase this luxurious home floor plan today.

Dimensions

  • Width x Length 39' x 86'
  • Height 23'-0
  • Stories 1/

Garage

  • Number of Cars 2
  • Attached Yes
  • Location Left

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 3
  • Possible 0
  • Total 3

Bathrooms

  • Full 3
  • Half 0
  • Total 3

Elevation

  • Finishes Stucco
  • Master Bedroom Location 1
  • Utility Location 1

Features

  • Fireplace No
  • Elevator No
  • Pool No
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1200

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $1800

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $700

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $800

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $900

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1050

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1200

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type 0
  • Spacing 0
  • Subfloor 0
  • Thickness 0

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. tile
  • Wind Speed 140

First Floor

  • Primary Living 13'-0
  • Secondary Living 13'-0
  • Primary Bedrooms 10'-8
  • Secondary Bedrooms 10'-8
  • Bathrooms 10'-8
  • Common Areas 0

Exterior

  • Garage 8'-3
  • Covered Entry 16'-0
  • Covered Patio 13'-0
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 2191
  • Total AC 2191

Total Under Roof Sq Ft

  • Garage 420
  • Covered Entry 53
  • Covered Patio 228
  • Covered Balconies 0
  • Total Under Roof 2892
