House Plan Model 2244-0336

Browsing: By Two Story

Home Plan Large Rendering

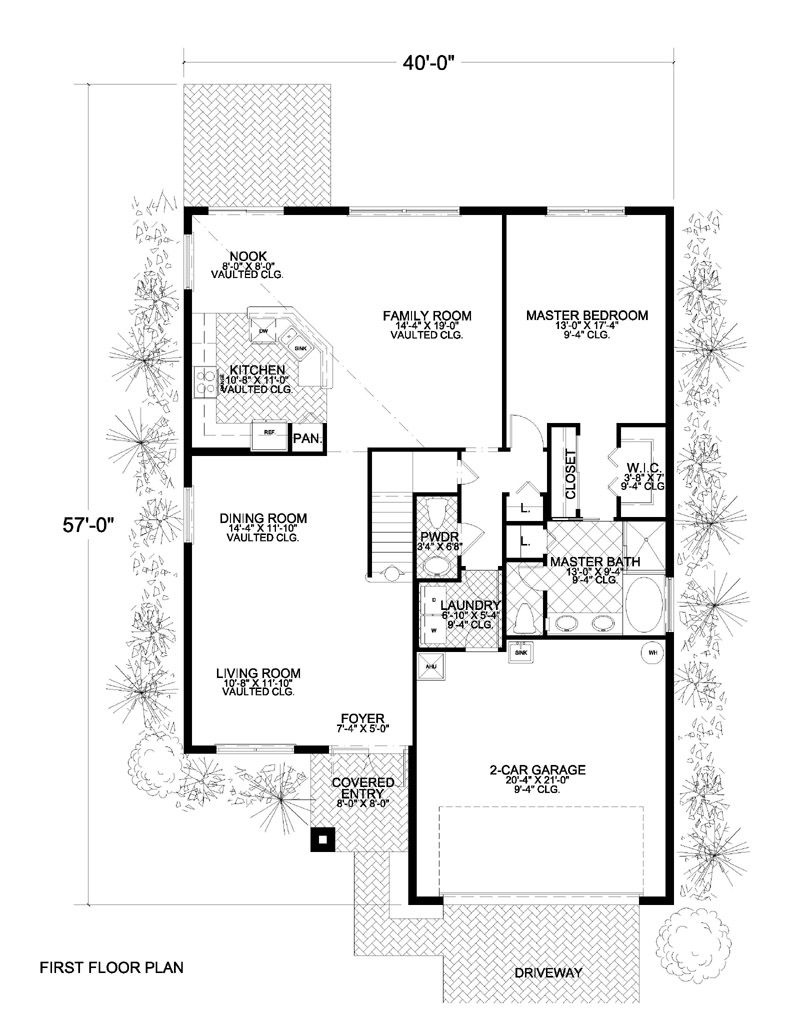

First Floor Home Plan

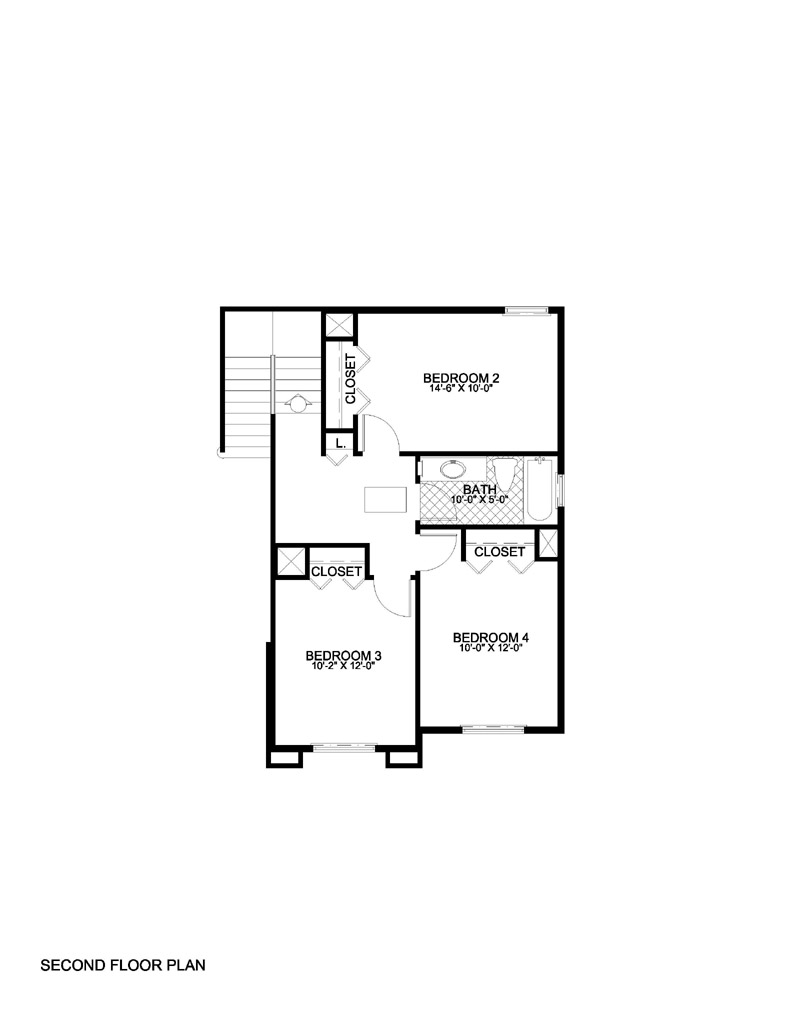

Second Floor Plan

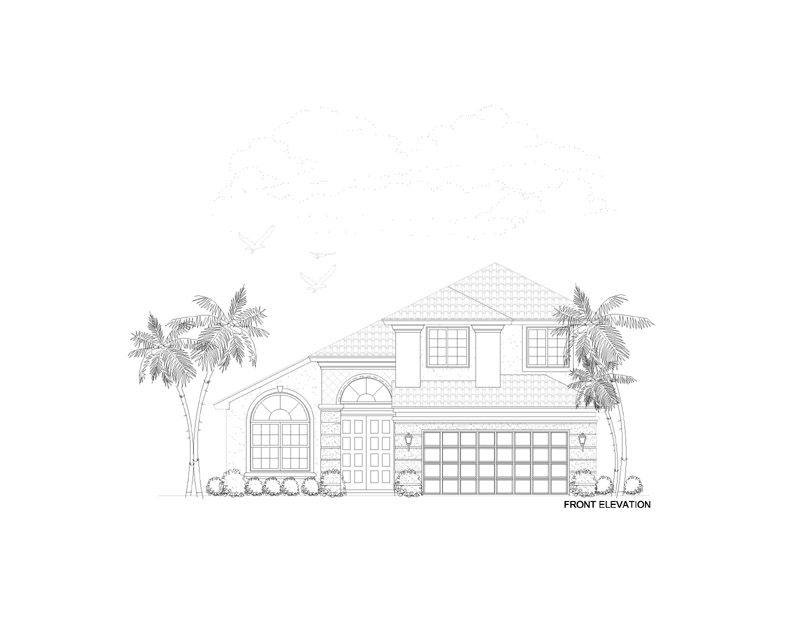

Home Front Elevation View

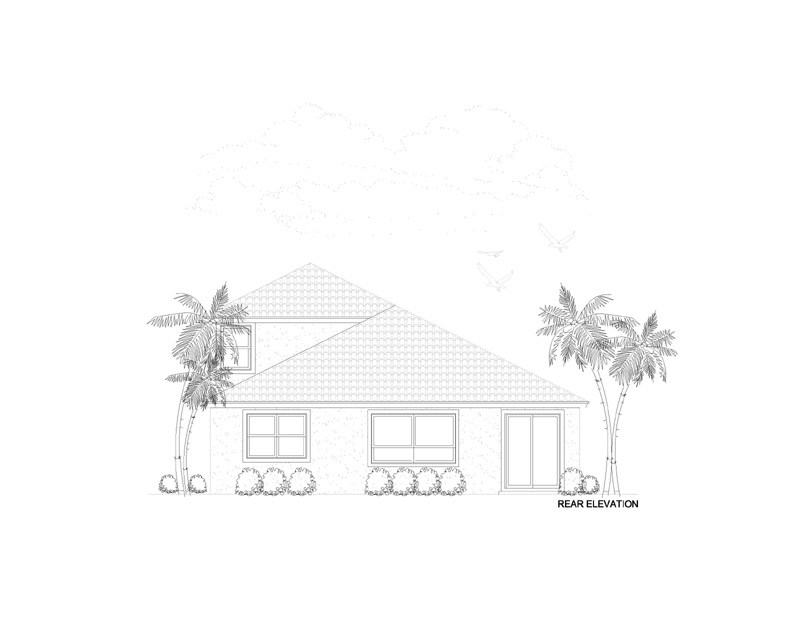

Home Rear Elevation View

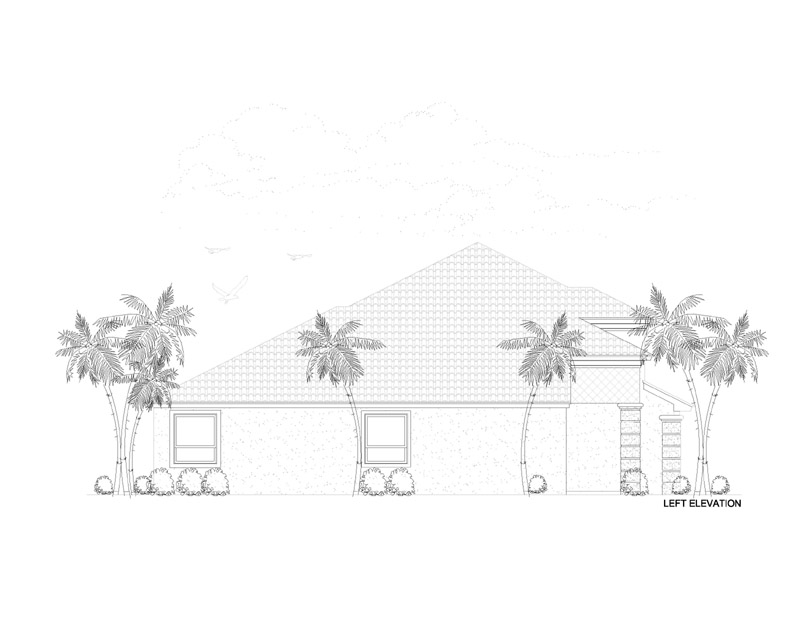

Home Plan Left Elevation View

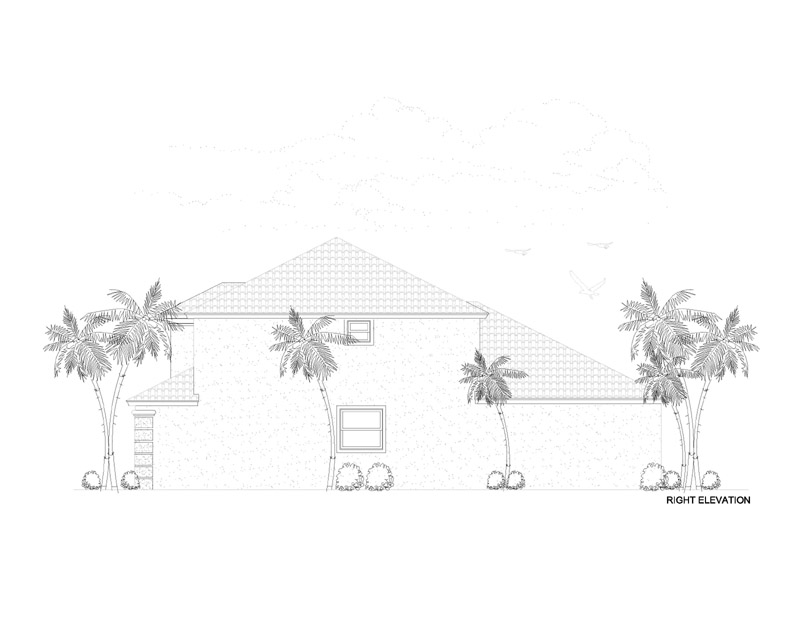

Home Plan Right Elevation View
Home Plan Front Rendering
Home Plan Large Rendering
First Floor Home Plan
Second Floor Plan
Home Front Elevation View
Home Rear Elevation View
Home Plan Left Elevation View
Home Plan Right Elevation View
Home Plan Front Rendering

Plan Summary

  • Stories

    2

  • Bedrooms

    4

  • Bathrooms

    2

  • Garage

    2 car

  • Width x Length

    40' x 57'

  • First Floor Sq Ft

    1598

  • Second Floor Sq Ft

    646

  • Total AC Sq Ft

    2244

  • Total Under Roof Sq Ft

    2764

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

This plan is restricted.

Please call 1-855-PLANS-123 (1-954-736-4696) for more information

Plan Description

This luxurious 2,244 sq. ft., one-story, Florida-style home floor plan has four bedrooms, two bathrooms, a half bathroom and a two-car garage. The kitchen is huge and has an eating bar – opening to a family room and a nook. The exclusive master suite has a large walk-in closet and a luxurious master bathroom. This home design is ideal for narrow lot. Get this home floor plan today.

Dimensions

  • Width x Length 40' x 57'
  • Height 26'-8
  • Stories 2/

Garage

  • Number of Cars 2
  • Attached Yes
  • Location Left

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 4
  • Possible 0
  • Total 4

Bathrooms

  • Full 2
  • Half 1
  • Total 2

Elevation

  • Finishes Stucco
  • Master Bedroom Location 1
  • Utility Location 1

Features

  • Fireplace No
  • Elevator No
  • Pool No
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1200

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $1800

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $700

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $800

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $900

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1050

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1200

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type wood truss
  • Spacing 24
  • Subfloor Plywood
  • Thickness 3/4

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. tile
  • Wind Speed 140

First Floor

  • Primary Living Vaulted
  • Secondary Living Vaulted
  • Primary Bedrooms 9'-4
  • Secondary Bedrooms 8'-6
  • Bathrooms 8'-6
  • Common Areas 0

Second Floor

  • Primary Bedrooms 8'-0
  • Secondary Bedrooms 8'-0
  • Bathrooms 8'-0
  • Common Areas 0

Exterior

  • Garage 9'-4
  • Covered Entry 14'-0
  • Covered Patio 0
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 1598
  • Second Floor AC 646
  • Total AC 2244

Total Under Roof Sq Ft

  • Garage 456
  • Covered Entry 64
  • Covered Patio 0
  • Covered Balconies 0
  • Total Under Roof 2764
