House Plan Model 2257-98102

Browsing: By Two Story

Large Home Rendering

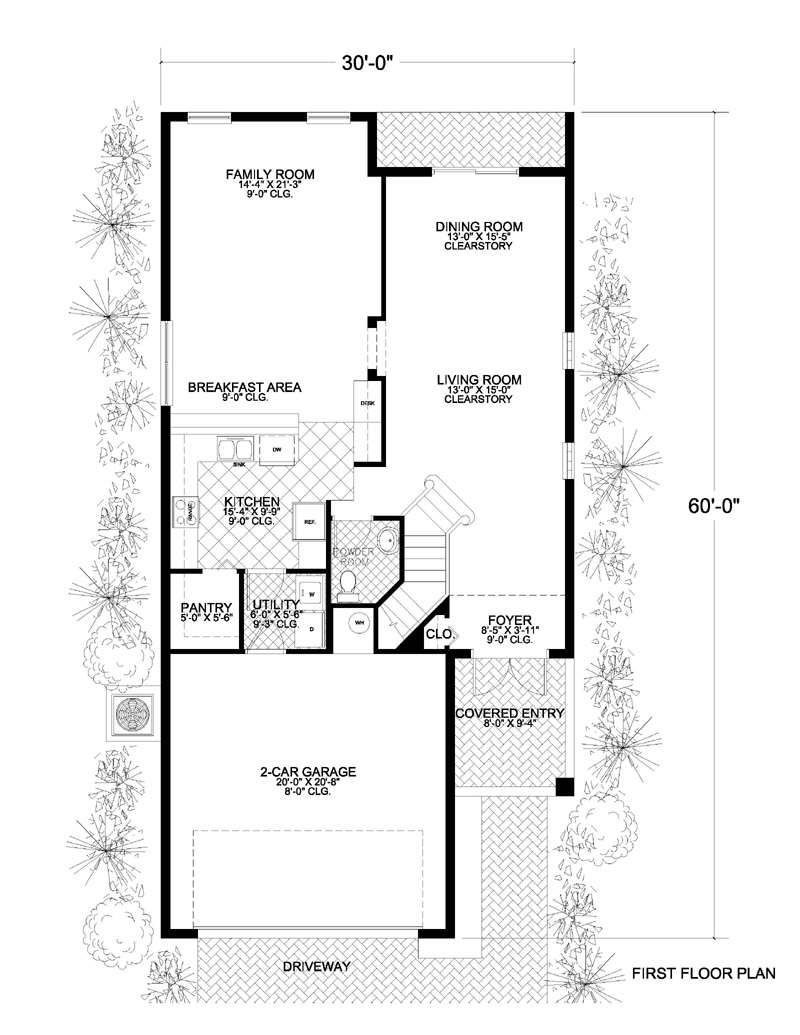

First Floor Home Plan

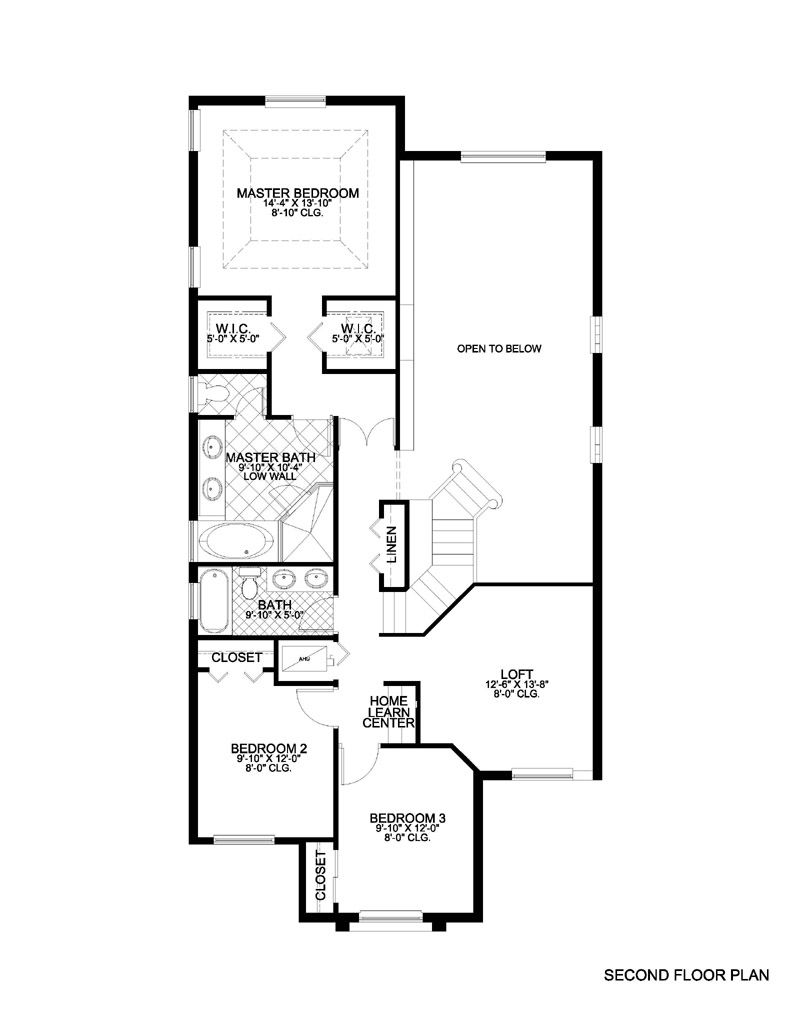

Second Floor Plan

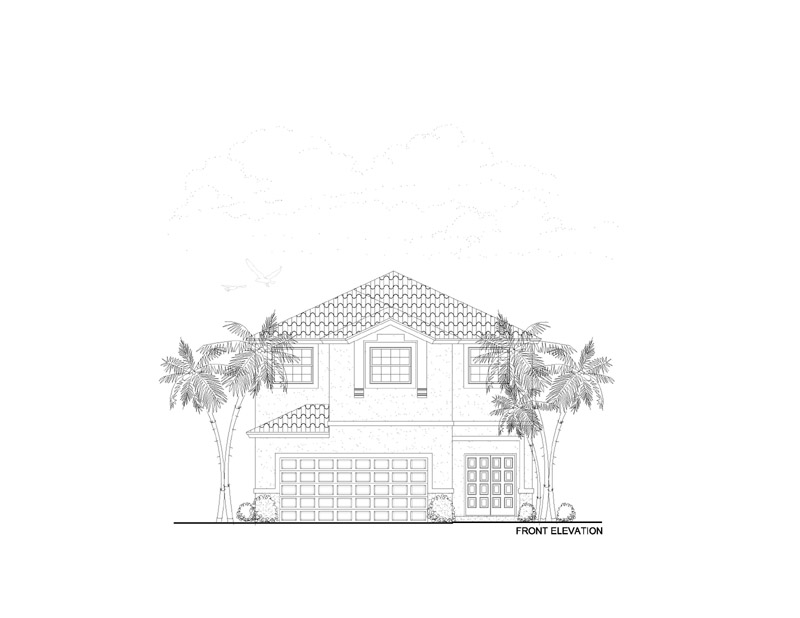

Front Elevation View

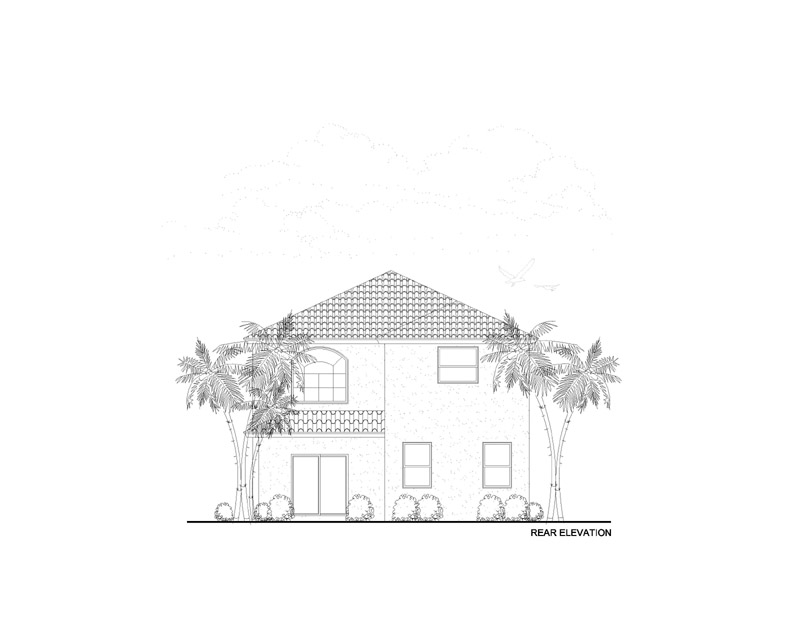

Rear Elevation View

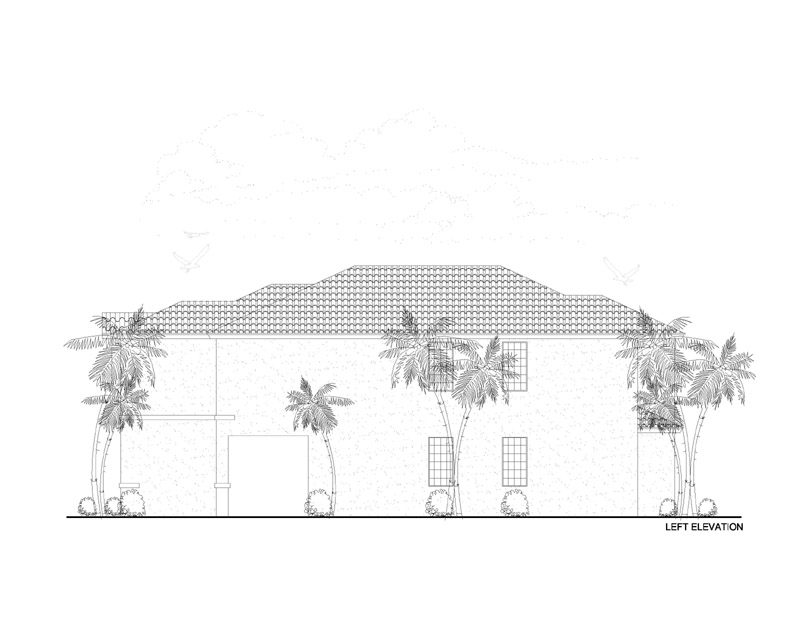

Left Elevation of Home

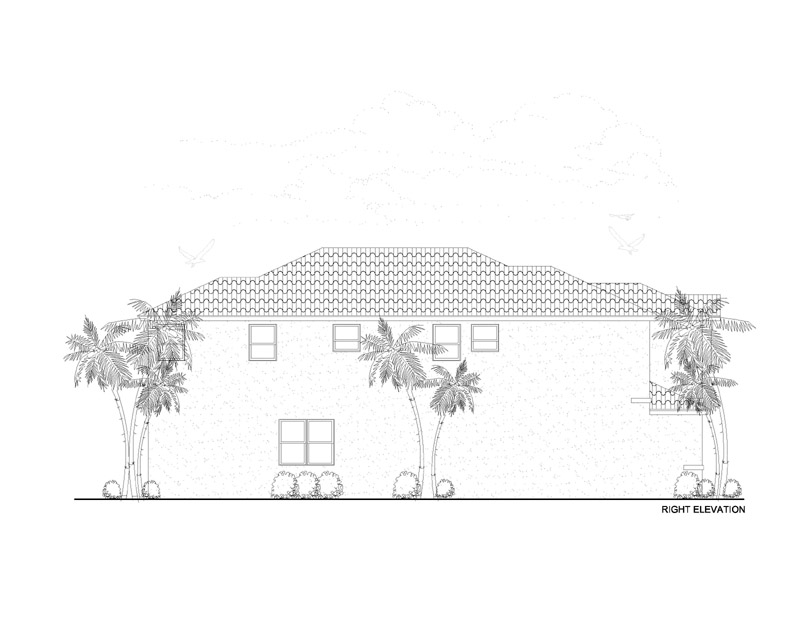

Right Elevation Home
Large Home Rendering
First Floor Home Plan
Second Floor Plan
Front Elevation View
Rear Elevation View
Left Elevation of Home
Right Elevation Home

Plan Summary

  • Stories

    2

  • Bedrooms

    3

  • Bathrooms

    2

  • Garage

    2 car

  • Width x Length

    30' x 60'

  • First Floor Sq Ft

    1126

  • Second Floor Sq Ft

    1131

  • Total AC Sq Ft

    2257

  • Total Under Roof Sq Ft

    2868

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

This plan is restricted.

Please call 1-855-PLANS-123 (1-954-736-4696) for more information

Plan Description

This luxurious 2,257 sq. ft., two-story, Florida-style Mediterranean home floor plan has three bedrooms, two bathrooms, a powder and a two-car garage. The large master suite includes master bathroom and a walk-in closet. The design places the master bedroom with privacy in mind. A spacious combination open family room and living room lead to a covered patio and the back yard. Purchase this home floor plan today.

Dimensions

  • Width x Length 30' x 60'
  • Height 17'-3
  • Stories 2/

Garage

  • Number of Cars 2
  • Attached Yes
  • Location Left

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 3
  • Possible 0
  • Total 3

Bathrooms

  • Full 2
  • Half 1
  • Total 2

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 1

Features

  • Fireplace No
  • Elevator No
  • Pool No
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1200

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $1800

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $700

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $800

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $900

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1050

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1200

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type wood truss
  • Spacing 24
  • Subfloor Plywood
  • Thickness 3/4

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. tile
  • Wind Speed 140

First Floor

  • Primary Living 9'
  • Secondary Living 9'
  • Primary Bedrooms 0
  • Secondary Bedrooms 9'
  • Bathrooms 9'
  • Common Areas 9'

Second Floor

  • Primary Bedrooms 8'
  • Secondary Bedrooms 8'
  • Bathrooms 8'
  • Common Areas 0

Exterior

  • Garage 9'-0
  • Covered Entry 11'-0
  • Covered Patio 0
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 1126
  • Second Floor AC 1131
  • Total AC 2257

Total Under Roof Sq Ft

  • Garage 467
  • Covered Entry 87
  • Covered Patio 57
  • Covered Balconies 0
  • Total Under Roof 2868
