House Plan Model 2363-2069

Browsing: By Two Story

Two Story House Plans

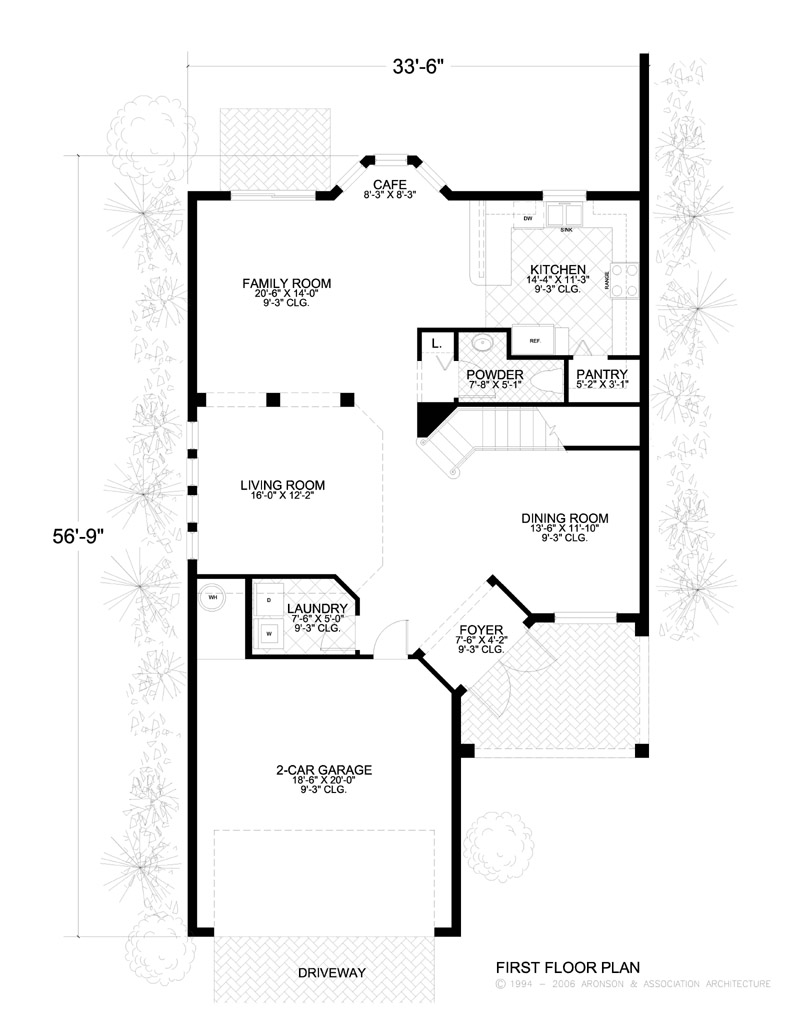

First Floor Plan

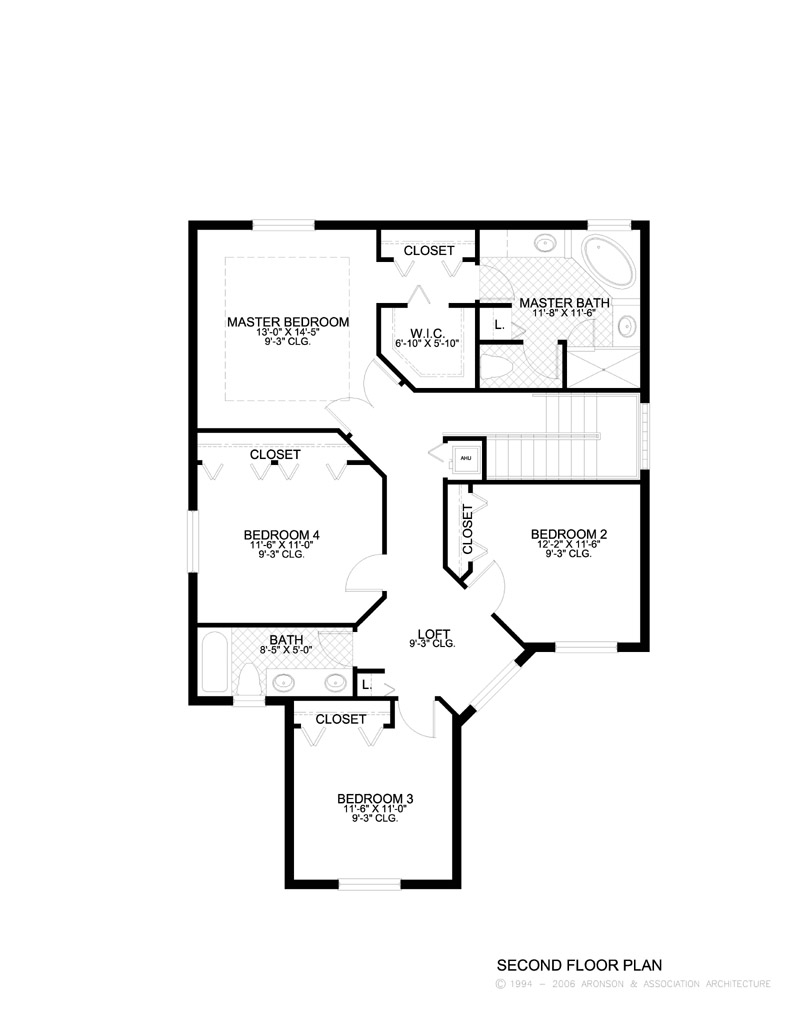

House Second Floor Plan

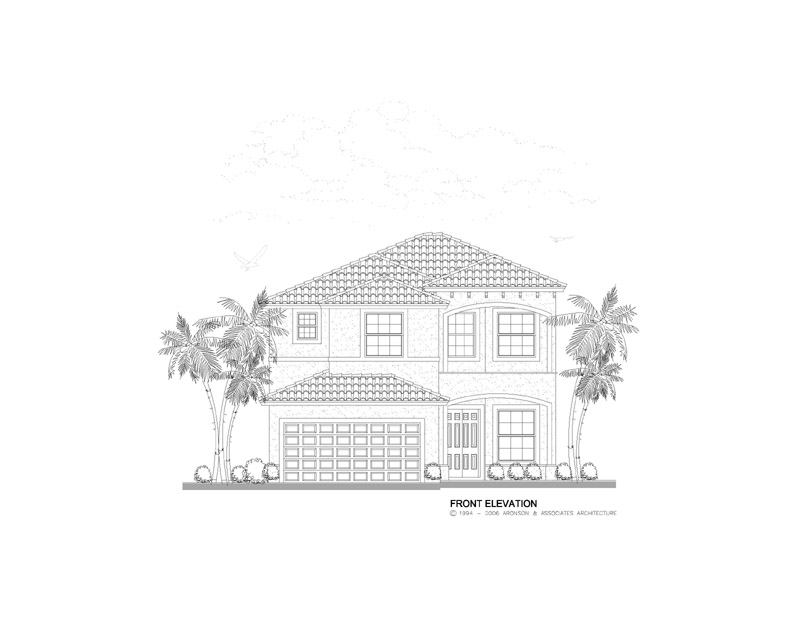

House Front Elevation

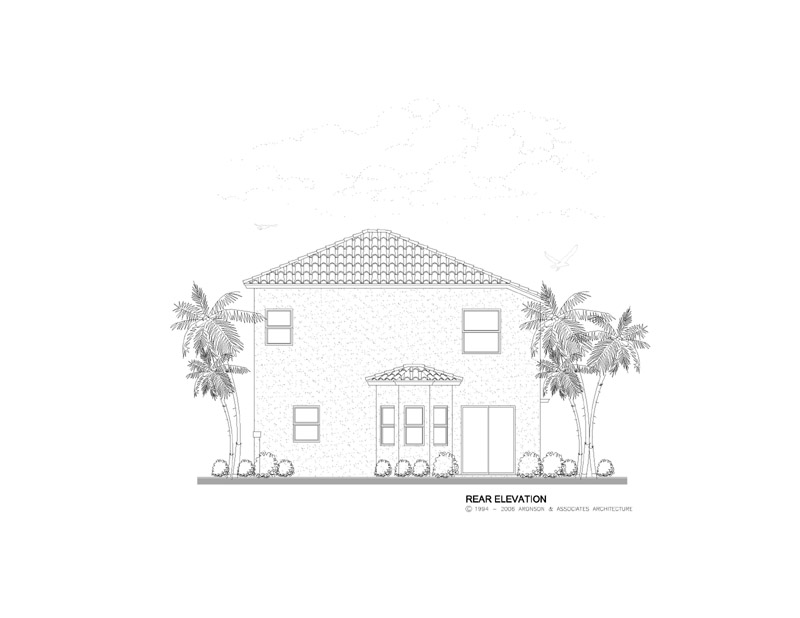

House Rear Elevation

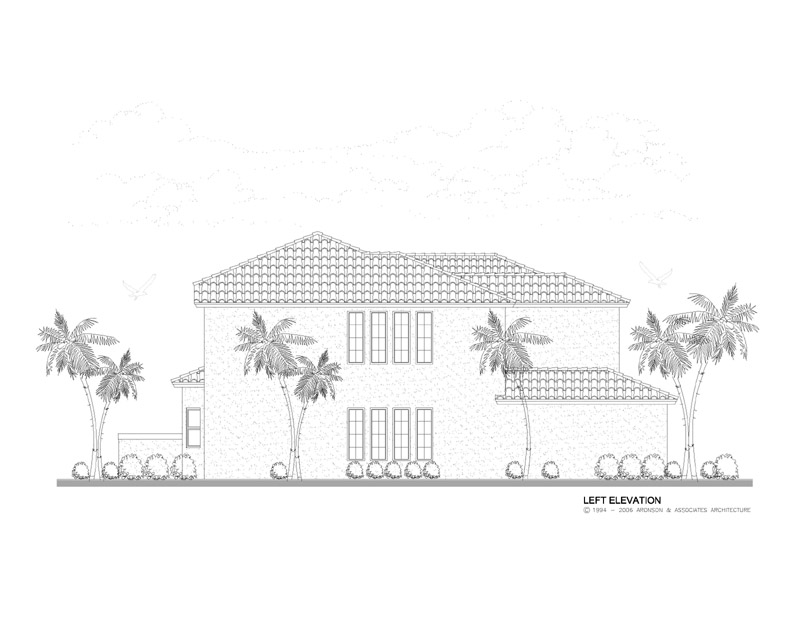

House Left Elevation

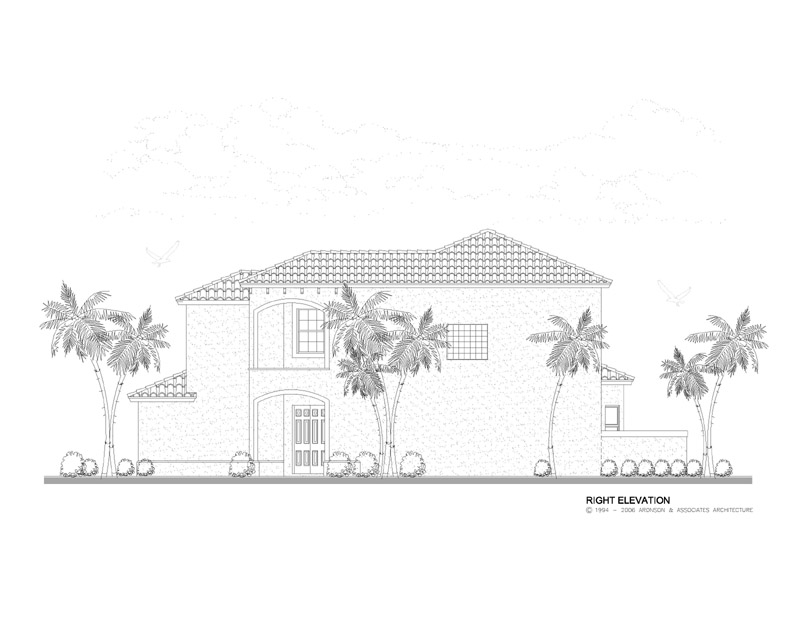

House Right Elevation
Two Story House Plans
First Floor Plan
House Second Floor Plan
House Front Elevation
House Rear Elevation
House Left Elevation
House Right Elevation

Plan Summary

  • Stories

    2

  • Bedrooms

    4

  • Bathrooms

    2

  • Garage

    2 car

  • Width x Length

    33'6" x 56'9"

  • First Floor Sq Ft

    1115

  • Second Floor Sq Ft

    1248

  • Total AC Sq Ft

    2363

  • Total Under Roof Sq Ft

    2902

Order Plan
Compare Plan
Save Plan
Customize Plan

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money
Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This 2,363 sq. ft., two-story, Mediterranean home floor plan has four bedrooms, two and one-half bathrooms and a two-car garage. This plan has outstanding curb appeal. There is plenty of closet space. The formal foyer invites guests into the living room. The compact design makes use of every inch of space with this design. The master suite has a large walk-in closet, tray ceiling and a luxurious master bathroom. The large kitchen with eating bar, cafe, and pantry opens to the dining room. The unique design combines the living and dining rooms to maximize space. Purchase and download this home floor plan today.

Dimensions

  • Width x Length 33'6" x 56'9"
  • Height 28'-4
  • Stories 2/

Garage

  • Number of Cars 2
  • Attached Yes
  • Location Left

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 4
  • Possible 0
  • Total 4

Bathrooms

  • Full 2
  • Half 1
  • Total 2

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 1

Features

  • Fireplace No
  • Elevator No
  • Pool No
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1200

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $1800

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $700

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $800

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $900

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1050

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1200

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type Steel joist
  • Spacing 24
  • Subfloor Concrete
  • Thickness 3/4

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. tile
  • Wind Speed 140

First Floor

  • Primary Living 9'-3
  • Secondary Living 9'-3
  • Primary Bedrooms 9'-3
  • Secondary Bedrooms 9'-3
  • Bathrooms 9'-3
  • Common Areas 9'-3

Second Floor

  • Primary Bedrooms 9'-3
  • Secondary Bedrooms 9'-3
  • Bathrooms 9'-3
  • Common Areas 9'-3

Exterior

  • Garage 9'-3
  • Covered Entry 9'-3
  • Covered Patio 0
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 1115
  • Second Floor AC 1248
  • Total AC 2363

Total Under Roof Sq Ft

  • Garage 419
  • Covered Entry 120
  • Covered Patio 0
  • Covered Balconies 0
  • Total Under Roof 2902
