House Plans
Plan Summary
-
Stories
2
-
Bedrooms
4
-
Bathrooms
3
-
Garage
2 car
-
Width x Length
45' x 53'
-
First Floor Sq Ft
1418
-
Second Floor Sq Ft
1040
-
Total AC Sq Ft
2458
-
Total Under Roof Sq Ft
2941
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
This plan is restricted.
Please call 1-855-PLANS-123 (1-954-736-4696) for more information
Plan Description
This 2,458 sq. ft., two-story Florida-style home floor plan has four bedrooms, three bathrooms and a two-car garage. The kitchen is huge and has an eating bar, a breakfast area, opening to the family room. The exclusive master suite has a large walk-in closet and a luxurious master bathroom. This design is ideal for narrow lot. Buy this home floor plan now.
Dimensions
- Width x Length 45' x 53'
- Height 25'-4
- Stories 2/
Garage
- Number of Cars 2
- Attached Yes
- Location Left
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 0
- Total 4
Bathrooms
- Full 3
- Half 0
- Total 3

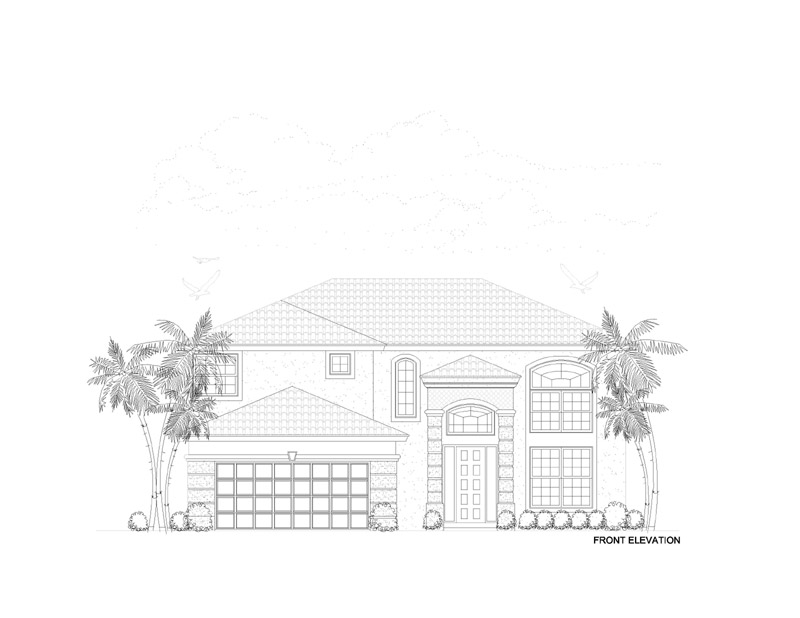

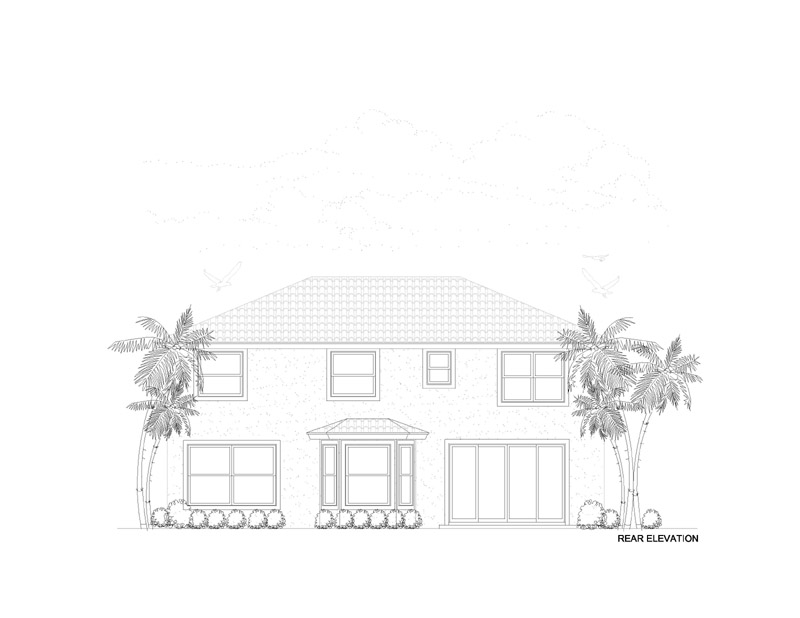

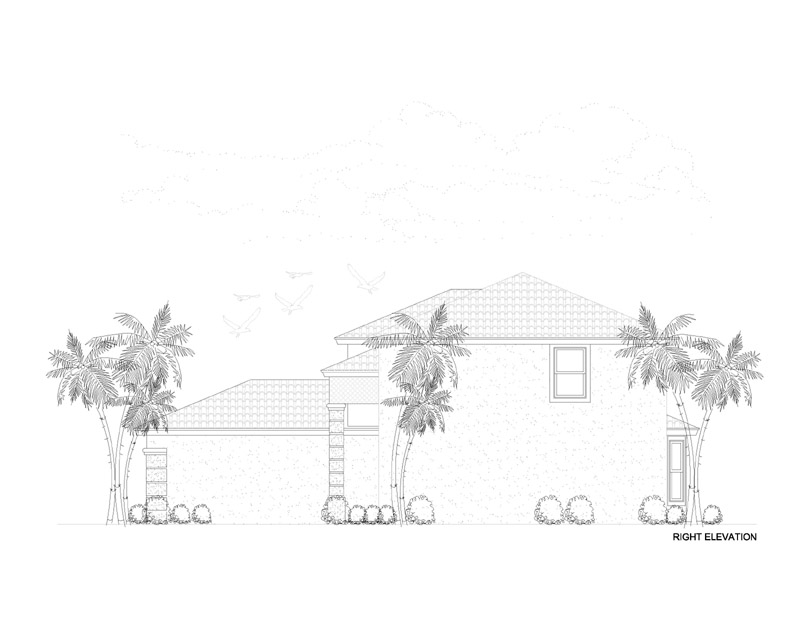

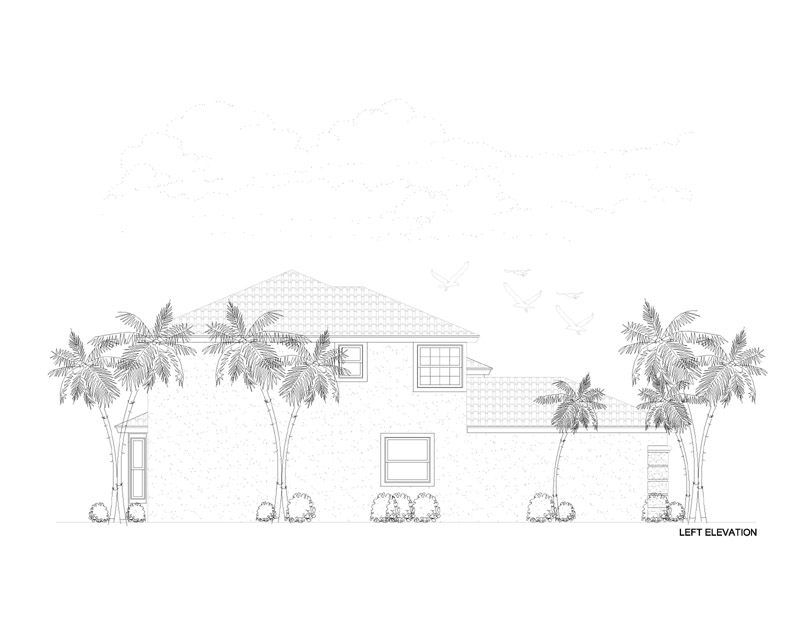

Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1200
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1800
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $700
- (Extra Sets: $50)
- More Information
3 Sets Price: $800
- (Extra Sets: $50)
- More Information
5 Sets Price: $900
- (Extra Sets: $50)
- More Information
8 Sets Price: $1050
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1200
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type wood truss
- Spacing 24
- Subfloor Plywood
- Thickness 3/4
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

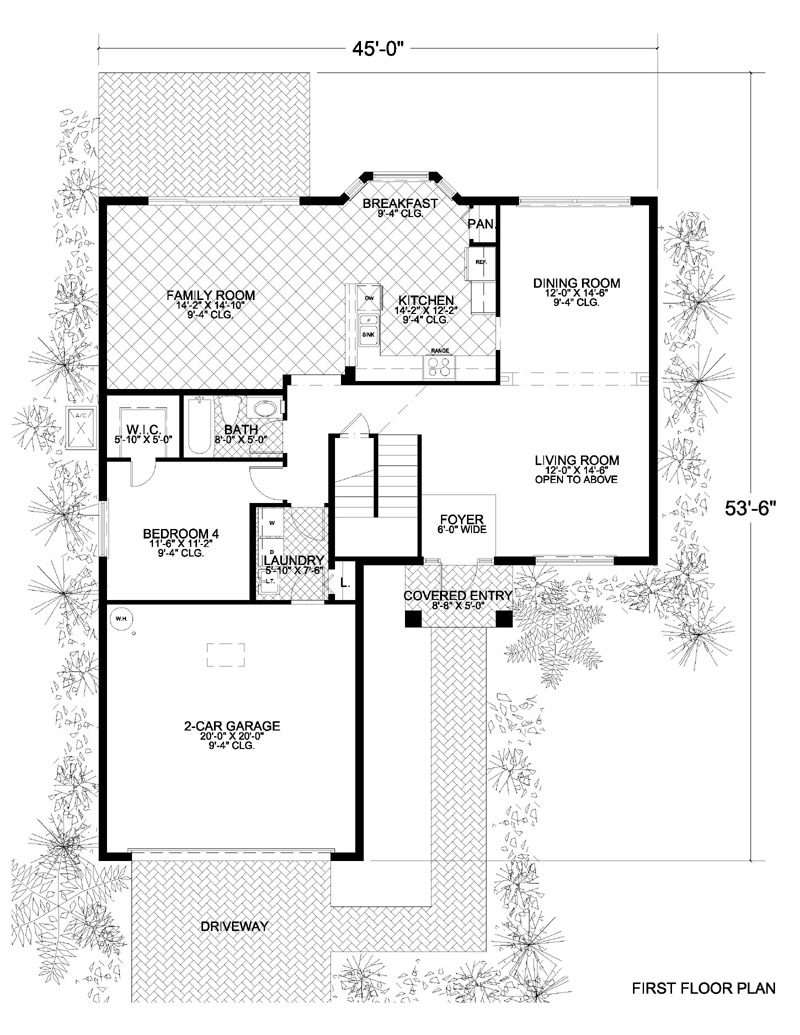

First Floor
- Primary Living 9'-4
- Secondary Living 9'-4
- Primary Bedrooms 0'
- Secondary Bedrooms 9'-4
- Bathrooms 9'-4
- Common Areas 0

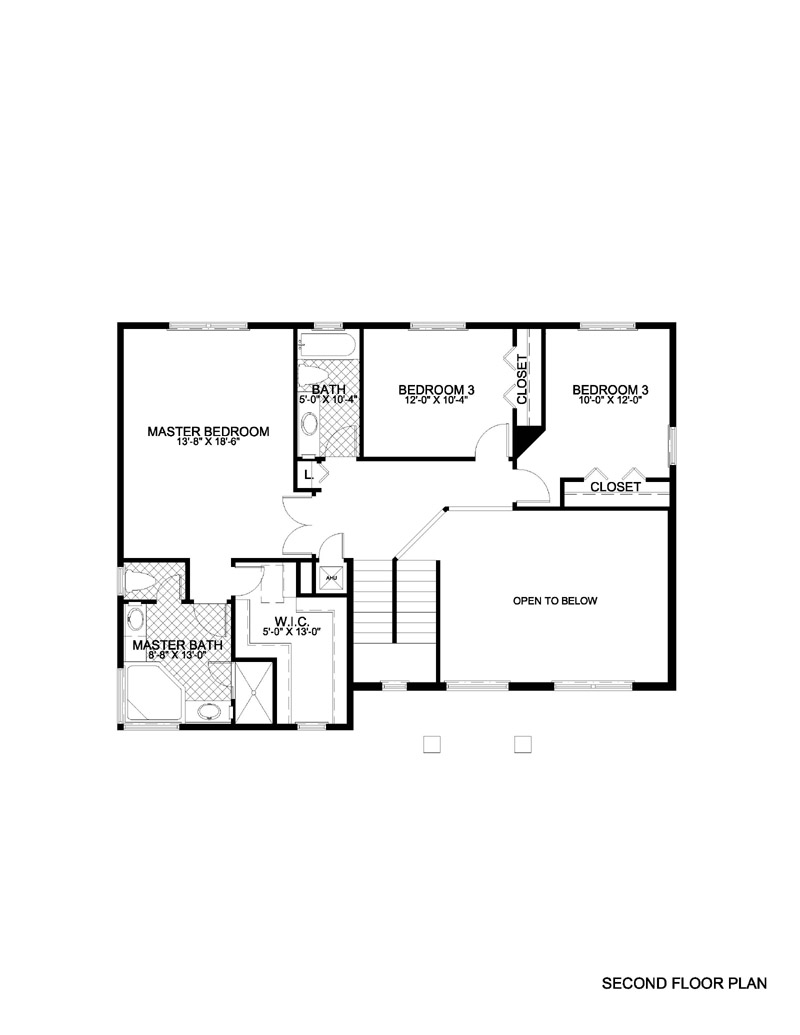

Second Floor
- Primary Bedrooms 8'-0
- Secondary Bedrooms 8'-0
- Bathrooms 8'-0
- Common Areas 0
Exterior
- Garage 9'-4
- Covered Entry 15'-5
- Covered Patio 0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 1418
- Second Floor AC 1040
- Total AC 2458
Total Under Roof Sq Ft
- Garage 440
- Covered Entry 43
- Covered Patio 0
- Covered Balconies 0
- Total Under Roof 2941
