House Plans
Plan Summary
-
Stories
1
-
Bedrooms
3
-
Bathrooms
3
-
Garage
2 car
-
Width x Length
35' x 107'
-
First Floor Sq Ft
2469
-
Total AC Sq Ft
2469
-
Total Under Roof Sq Ft
3350
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

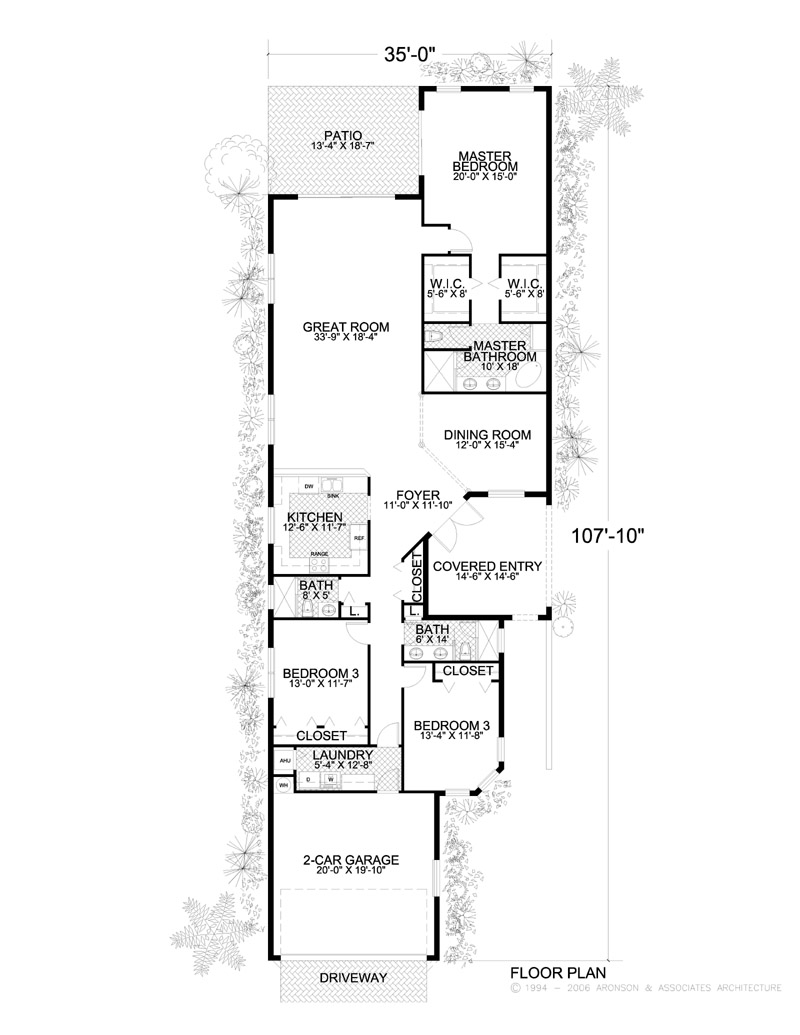

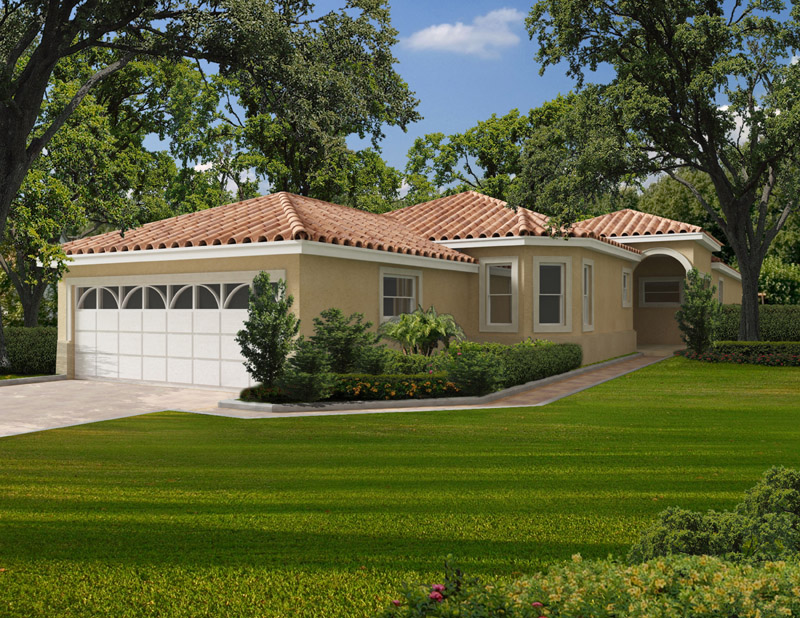

This 2,469 sq. ft., one-story, Florida-style home floor plan has three bedrooms, three bathrooms and a two-car garage. The kitchen is huge and has an eating bar – opening to a great room. The exclusive master suite has a large walk-in closet and a luxurious master bath. This design is ideal for narrow lot. Download this home plan now.
Dimensions
- Width x Length 35' x 107'
- Height 18'-8
- Stories 1/
Garage
- Number of Cars 2
- Attached Yes
- Location Left
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 3
- Possible 0
- Total 3
Bathrooms
- Full 3
- Half 0
- Total 3

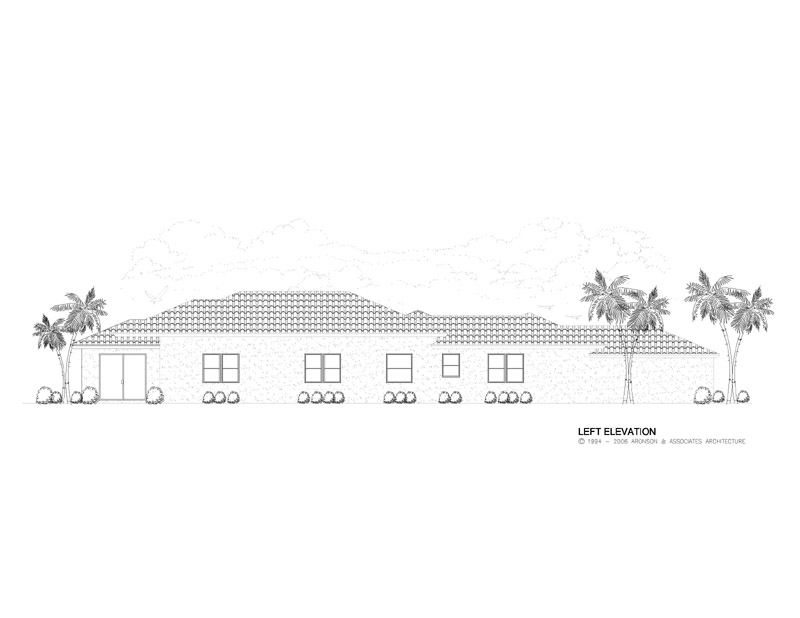

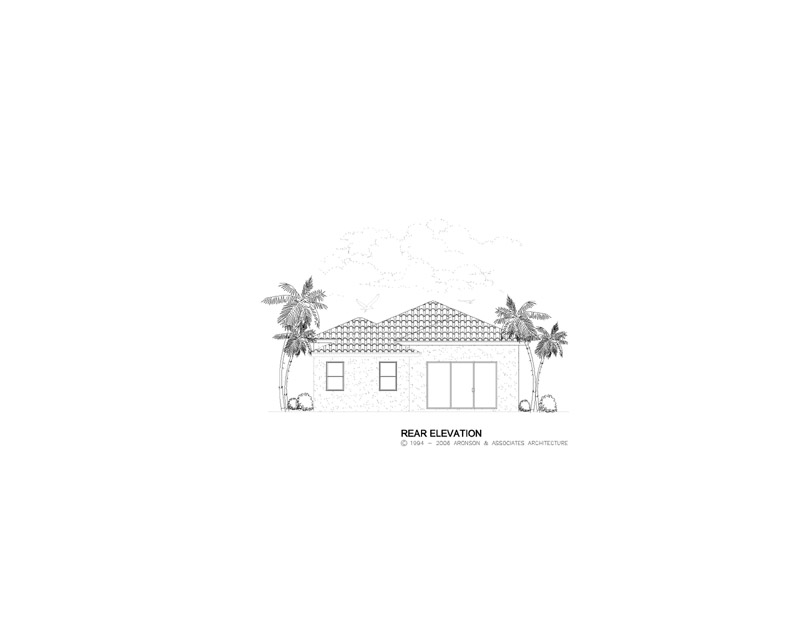

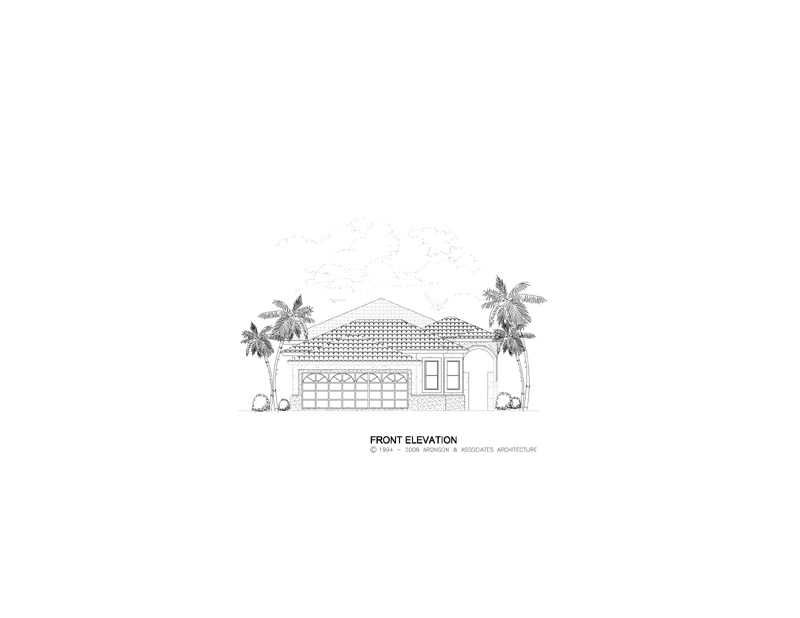

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1200
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1800
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $700
- (Extra Sets: $50)
- More Information
3 Sets Price: $800
- (Extra Sets: $50)
- More Information
5 Sets Price: $900
- (Extra Sets: $50)
- More Information
8 Sets Price: $1050
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1200
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140
First Floor
- Primary Living 12'
- Secondary Living 12'
- Primary Bedrooms 10'
- Secondary Bedrooms 10'
- Bathrooms 10'
- Common Areas 12'
Exterior
- Garage 8'
- Covered Entry 12'
- Covered Patio 0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 2469
- Total AC 2469
Total Under Roof Sq Ft
- Garage 429
- Covered Entry 208
- Covered Patio 248
- Covered Balconies 0
- Total Under Roof 3350
