PLAN SUMMARY
-
Stories
1
-
Bedrooms
4
-
Bathrooms
3
-
Garage
2 car
-
Width x Length:
43' 6" x 84' 4"
-
First Floor Sq Ft
2,486 Sq. Ft.
-
Total AC Sq Ft
2,486 Sq. Ft.
-
Total Under Roof Sq Ft
3,180 Sq. Ft.
-
$0.00
Plan Description

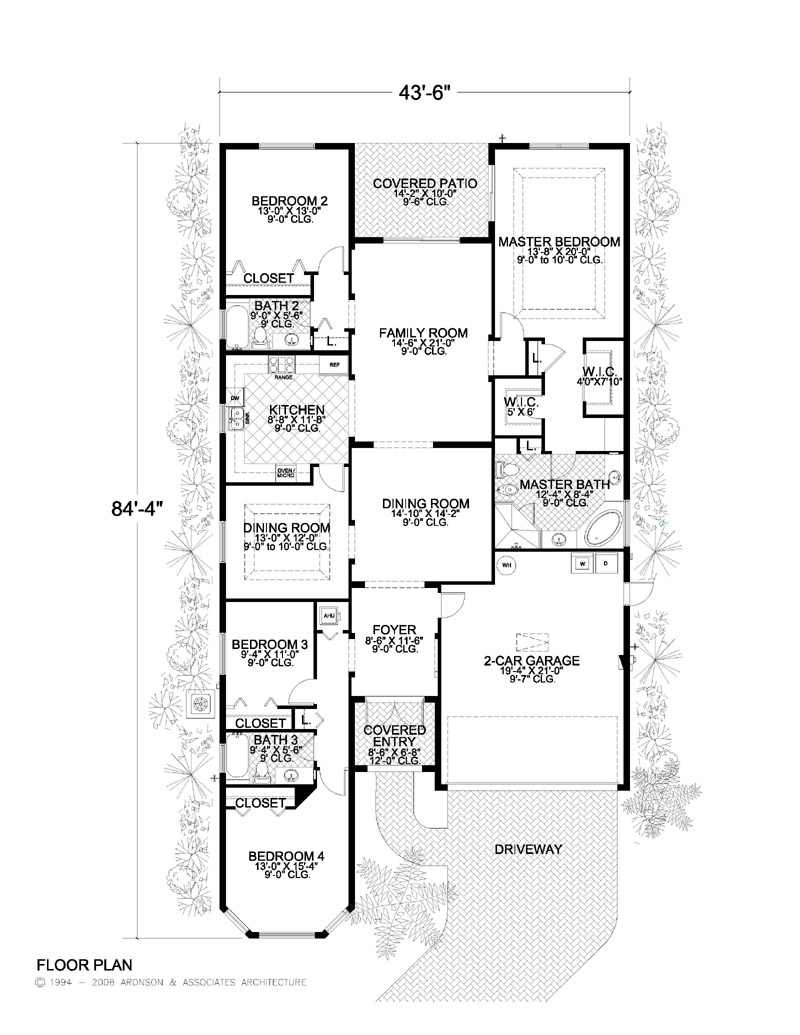

This 2.486 sq. ft., one-story home floor plan has four bedrooms, three bathrooms and a two-car garage. There is a large combination living room and family room making for optimum use of space. There is a formal dining room for entertaining or a large family. The exclusive master suite with tray ceiling has a large walk-in closet and a regal master bathroom. Download this home floor plan now.
Dimensions
-
Width x Length
43' 6" x 84' 4"
-
Height
19'
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Right
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
4
-
Possible
0
-
Total
4
Bathrooms
-
Full
3
-
Half
0
-
Total
3
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1200
CAD Disk Price: $1800
Reverse PDF Price: $1450
Reverse CAD Price: $2050
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $700
3 Sets Price: $800
5 Sets Price: $900
8 Sets Price: $1050
Reproducible Vellum Price: $1200
Base – Not for Construction Price: $700
3 Sets (Reverse) Price: $1050
5 Sets (Reverse) Price: $1150
8 Sets (Reverse) Price: $1300
Reproducible Vellum (Reverse) Price: $1450
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
Fiber glass
-
Wind Speed
140
First Floor
-
Primary Living
9'
-
Secondary Living
9'
-
Primary Bedrooms
9' to 10'
-
Secondary Bedrooms
9'
-
Bathrooms
9'
-
Common Areas
0
Exterior
-
Garage
9'-7
-
Covered Entry
12'
-
Covered Patio
9'-6
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2486
-
Total AC
2486
Total Under Roof Sq Ft
-
Garage
486
-
Covered Entry
67
-
Covered Patio
141
-
Covered Balconies
0
-
Total Under Roof
3180
