House Plans
Plan Summary
-
Stories
1
-
Bedrooms
3
-
Bathrooms
2
-
Garage
2 car
-
Width x Length
50' x 80'
-
First Floor Sq Ft
2493
-
Total AC Sq Ft
2493
-
Total Under Roof Sq Ft
3303
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

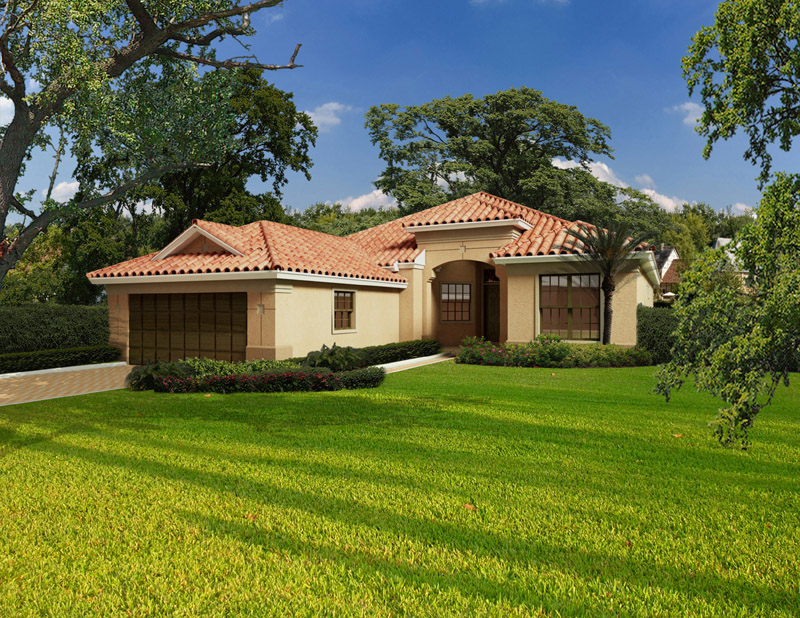

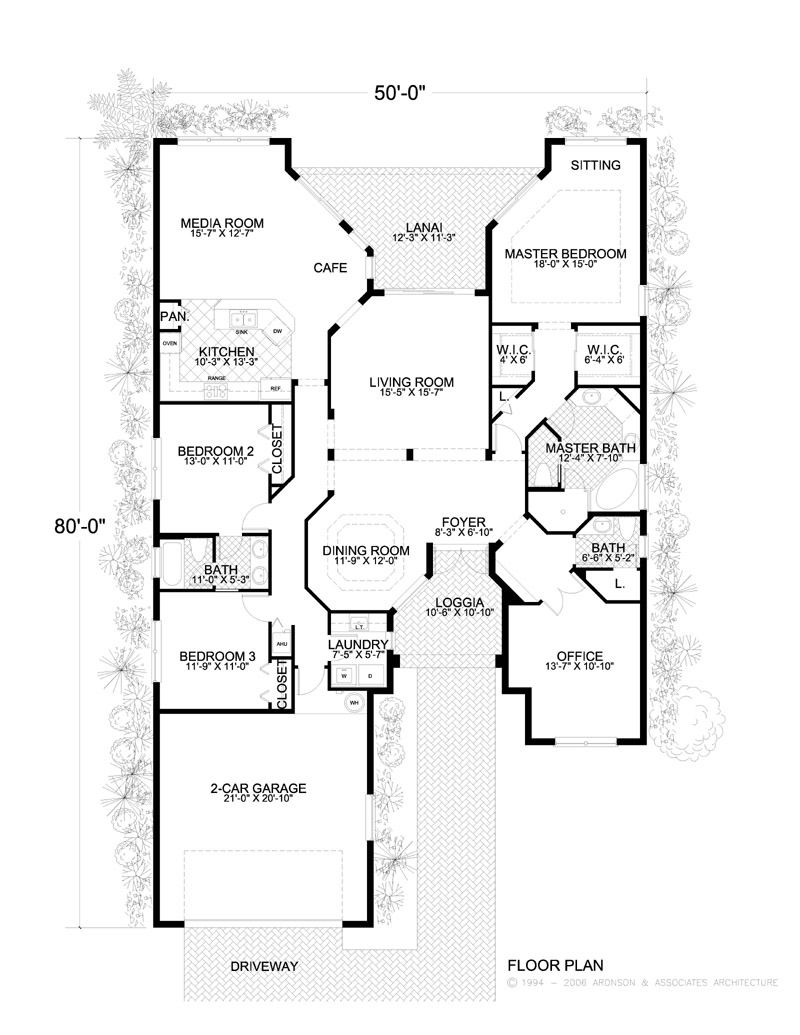

This 2,493 sq. ft., one-story home floor plan has three bedrooms, two and a half bathrooms and a two-car garage. The kitchen is designed with a breakfast area and adjacent to a media room. The combined living room and dining room are spacious, creating an open atmosphere. The master suite is impressive with a master bathroom and spacious walk-in closet. The master suite has a private entrance to a lanai. The laundry room is conveniently located near the garage. Purchase and download this one-story home floor plan today.
Dimensions
- Width x Length 50' x 80'
- Height 22'-11
- Stories 1/
Garage
- Number of Cars 2
- Attached Yes
- Location Left
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 3
- Possible 1
- Total 3
Bathrooms
- Full 2
- Half 1
- Total 2

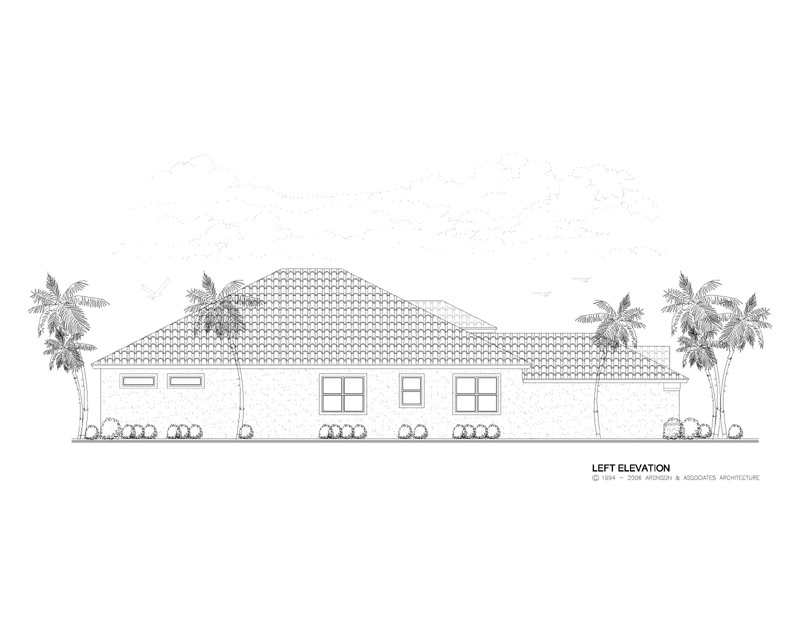

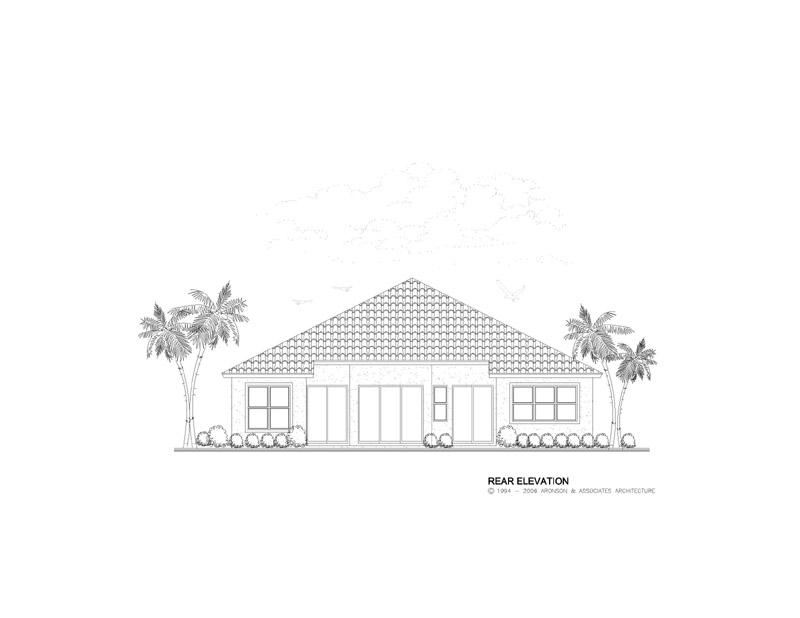

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1200
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1800
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $700
- (Extra Sets: $50)
- More Information
3 Sets Price: $800
- (Extra Sets: $50)
- More Information
5 Sets Price: $900
- (Extra Sets: $50)
- More Information
8 Sets Price: $1050
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1200
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 6:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140
First Floor
- Primary Living 12'
- Secondary Living 10'
- Primary Bedrooms 10' to 10'-8
- Secondary Bedrooms 10'
- Bathrooms 10'
- Common Areas 12'
Exterior
- Garage 8'
- Covered Entry 15'
- Covered Patio 11'-9
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 2493
- Total AC 2493
Total Under Roof Sq Ft
- Garage 510
- Covered Entry 193
- Covered Patio 107
- Covered Balconies 0
- Total Under Roof 3303
