PLAN SUMMARY
-
Stories
1
-
Bedrooms
2
-
Bathrooms
2
-
Garage
2 car
-
Width x Length:
78' 2" x 76' "
-
First Floor Sq Ft
2,520 Sq. Ft.
-
Total AC Sq Ft
2,520 Sq. Ft.
-
Total Under Roof Sq Ft
3,174 Sq. Ft.
$0.00
Plan Description

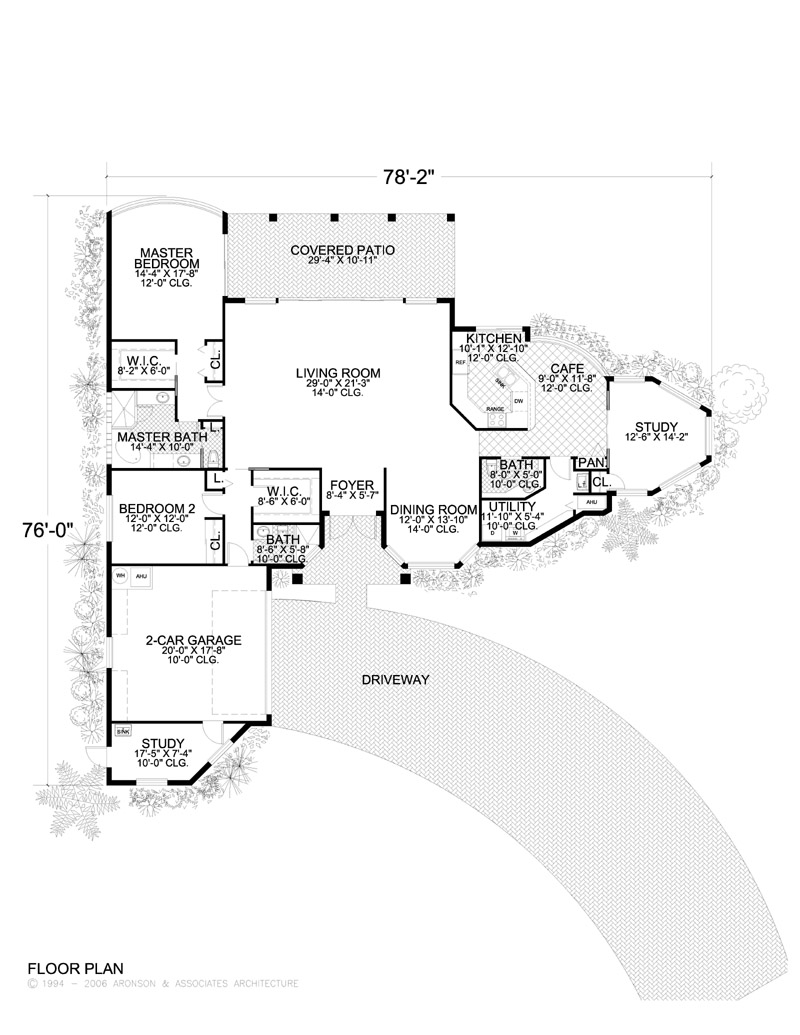

This 2,520 sq. ft., one-story home floor plan has two bedrooms and study, two and one-half bathrooms, a two-car garage and is full of amenities. The luxuries of this design include a covered entry, rear patio and formal dining area. The master bedroom suite has a private access to a covered patio. This special design features a secluded studio off the garage. The Hallmark of this home design is a study which lets in plenty of natural light. This model boasts an enormous living room opening to a large covered patio. All exterior areas of this design display superb curb appeal incorporating double-paneled doors with above transom window. Get this one story home floor plan today.
Dimensions
-
Width x Length
78' 2" x 76' "
-
Height
22'-9
-
Stories
1/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
2
-
Possible
1
-
Total
2
Bathrooms
-
Full
2
-
Half
1
-
Total
2
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1250
CAD Disk Price: $1850
Reverse PDF Price: $1500
Reverse CAD Price: $2100
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $750
3 Sets Price: $850
5 Sets Price: $950
8 Sets Price: $1100
Reproducible Vellum Price: $1250
Base – Not for Construction Price: $750
3 Sets (Reverse) Price: $1100
5 Sets (Reverse) Price: $1200
8 Sets (Reverse) Price: $1350
Reproducible Vellum (Reverse) Price: $1500
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
14'
-
Secondary Living
14'
-
Primary Bedrooms
12'
-
Secondary Bedrooms
12'
-
Bathrooms
10'
-
Common Areas
12'
Exterior
-
Garage
10'
-
Covered Entry
14'
-
Covered Patio
0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2520
-
Total AC
2520
Total Under Roof Sq Ft
-
Garage
428
-
Covered Entry
168
-
Covered Patio
58
-
Covered Balconies
0
-
Total Under Roof
3174
