House Plan Model 2647-2070

Browsing: By Two Story

Home Rendering

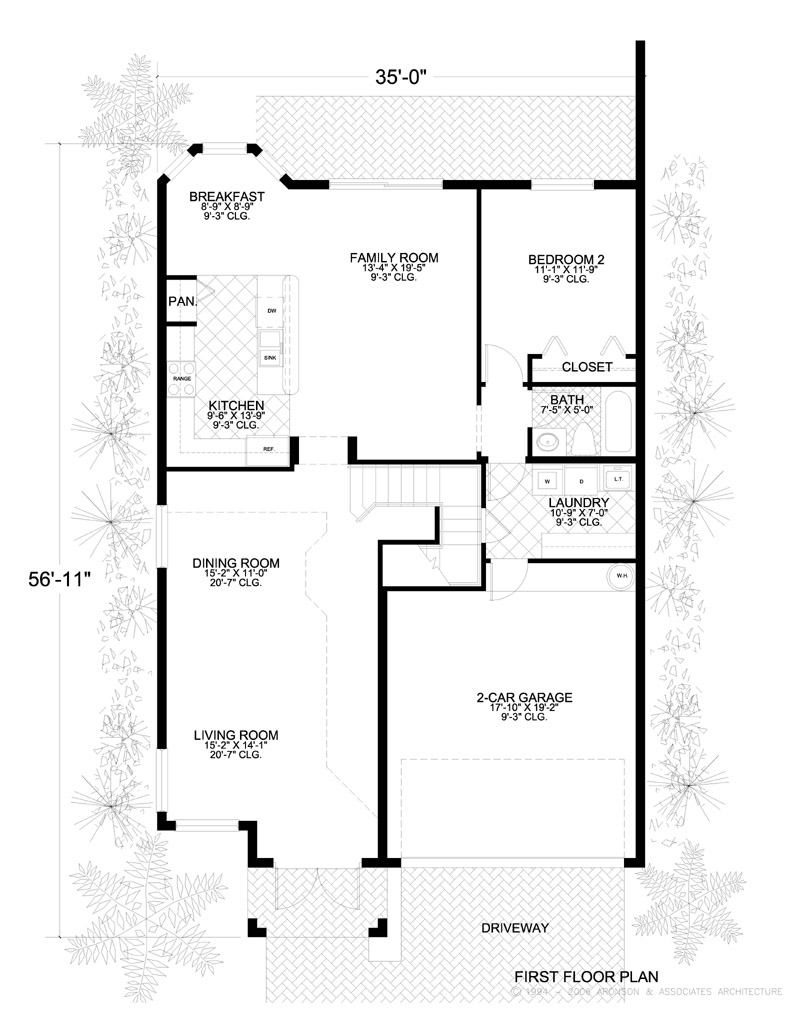

First Home Floor Plan

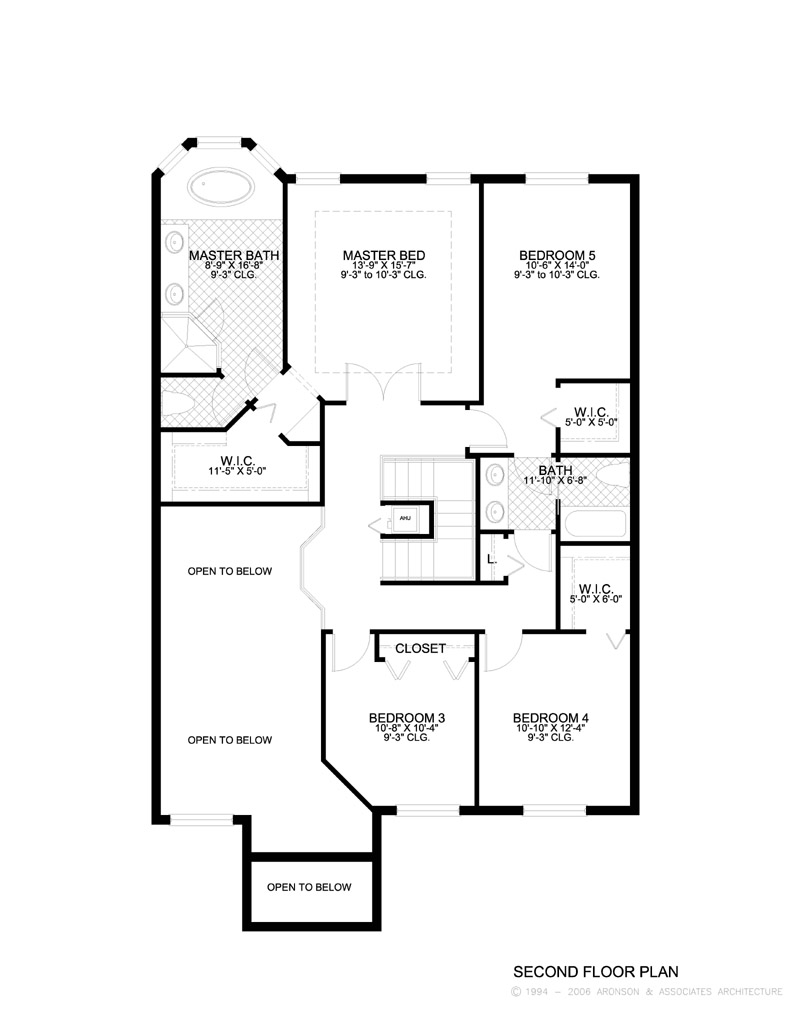

Second Floor Home Plan

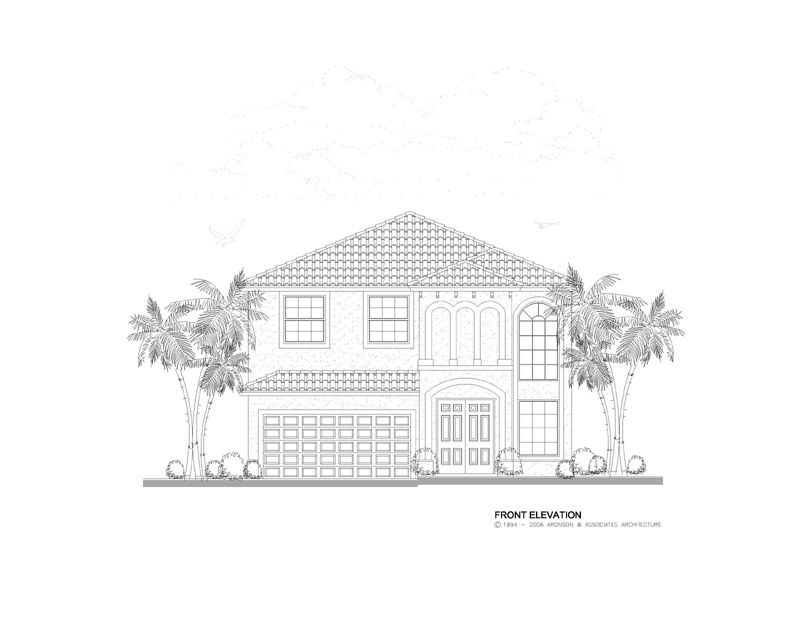

Front Elevation View of Home
Rear Elevation View of Home

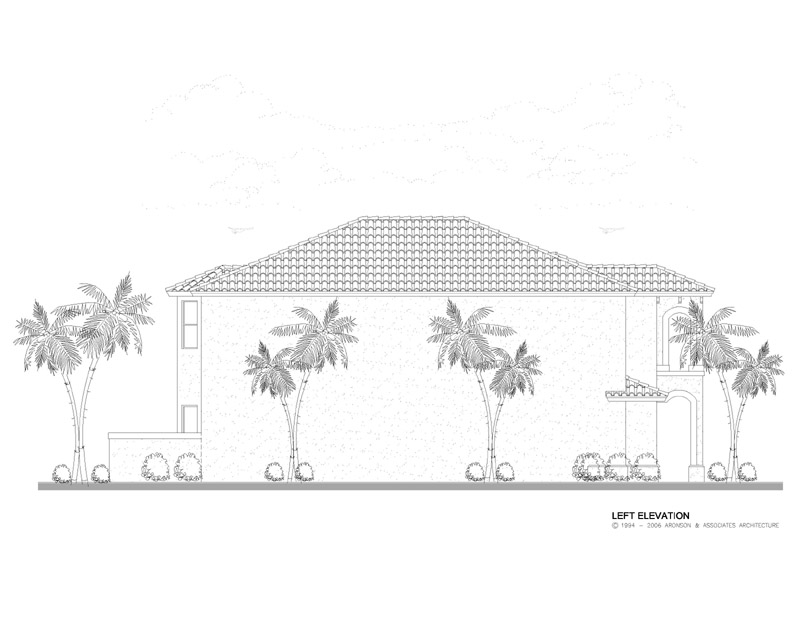

Left Elevation View of Home

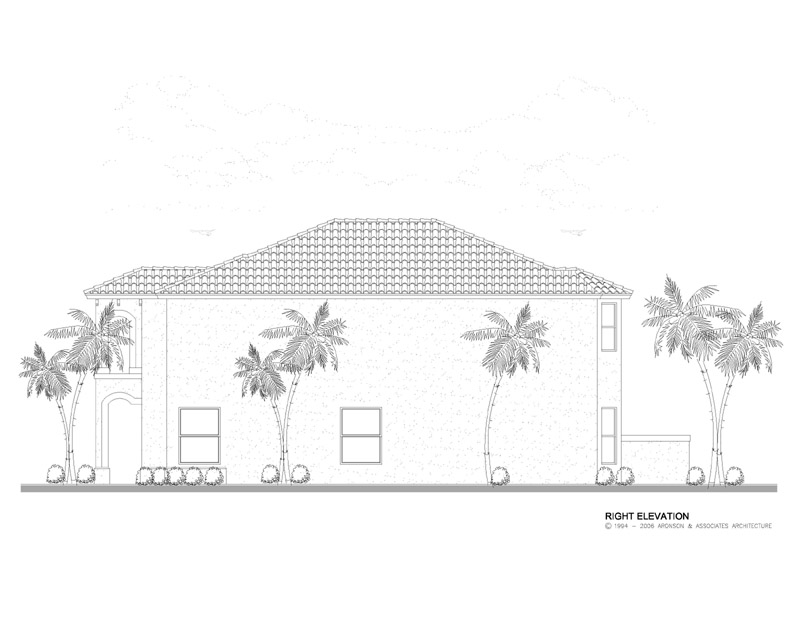

Right Elevation View of Home
Home Rendering
First Home Floor Plan
Second Floor Home Plan
Front Elevation View of Home
Rear Elevation View of Home
Left Elevation View of Home
Right Elevation View of Home

Plan Summary

  • Stories

    2

  • Bedrooms

    5

  • Bathrooms

    3

  • Garage

    2 car

  • Width x Length

    35' x 56'

  • First Floor Sq Ft

    1338

  • Second Floor Sq Ft

    1309

  • Total AC Sq Ft

    2647

  • Total Under Roof Sq Ft

    3090
