House Plans
Plan Summary
-
Stories
2
-
Bedrooms
4
-
Bathrooms
2
-
Garage
2 car
-
Width x Length
49' x 59'
-
First Floor Sq Ft
1978
-
Second Floor Sq Ft
733
-
Total AC Sq Ft
2711
-
Total Under Roof Sq Ft
3140
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
This plan is restricted.
Please call 1-855-PLANS-123 (1-954-736-4696) for more information
Plan Description
This two-story, 2,711 sq. ft., Florida-style home floor plan has four bedrooms, two and one-half bathrooms and a two-car garage. There is an exclusive master suite with large walk-in closets and a luxurious master bath. The design includes a study, a gourmet delight kitchen with breakfast area opened to a big family room. Get this home floor plan today.
Dimensions
- Width x Length 49' x 59'
- Height 26'-0
- Stories 2/
Garage
- Number of Cars 2
- Attached Yes
- Location Right
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 0
- Total 4
Bathrooms
- Full 2
- Half 1
- Total 2

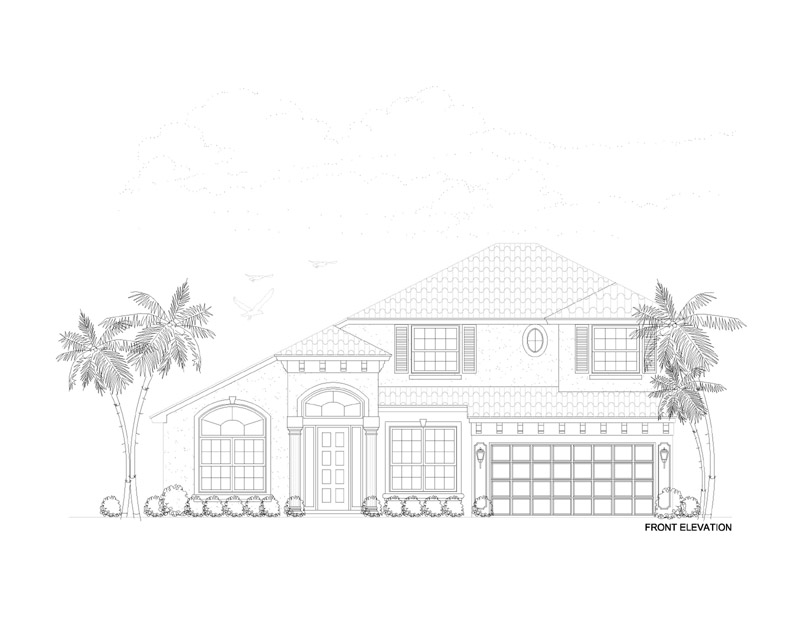

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 2
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1250
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1850
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $750
- (Extra Sets: $50)
- More Information
3 Sets Price: $850
- (Extra Sets: $50)
- More Information
5 Sets Price: $950
- (Extra Sets: $50)
- More Information
8 Sets Price: $1100
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1250
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type wood truss
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

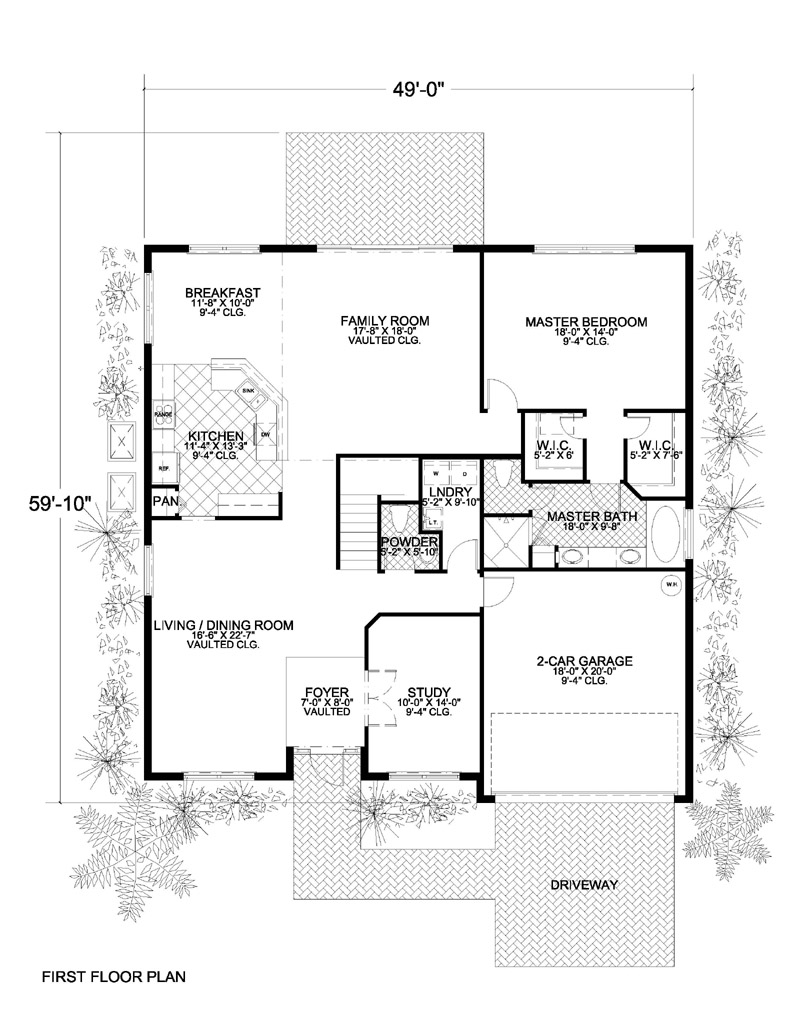

First Floor
- Primary Living 9'-4
- Secondary Living 9'-4
- Primary Bedrooms 9'-4
- Secondary Bedrooms 0
- Bathrooms 9'*4
- Common Areas 9'-4

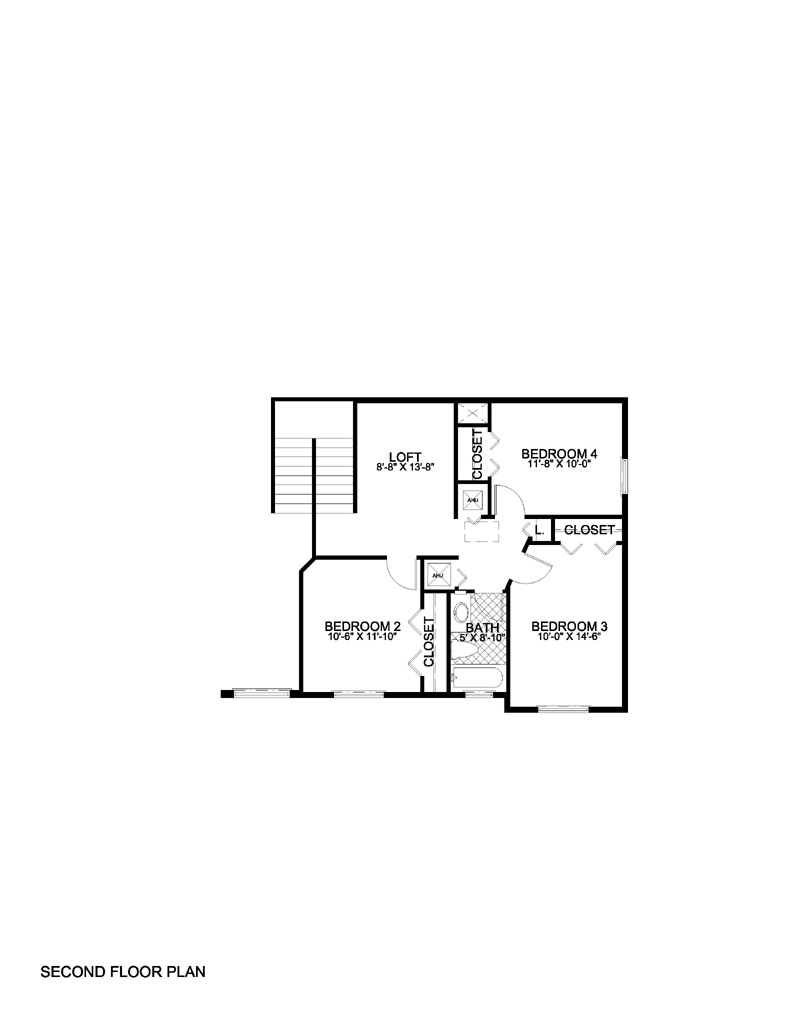

Second Floor
- Primary Bedrooms 0
- Secondary Bedrooms 8'-0
- Bathrooms 8'-0
- Common Areas 0
Exterior
- Garage 9'-4
- Covered Entry 15'-4
- Covered Patio 0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 1978
- Second Floor AC 733
- Total AC 2711
Total Under Roof Sq Ft
- Garage 387
- Covered Entry 42
- Covered Patio 0
- Covered Balconies 0
- Total Under Roof 3140
