House Plans
Plan Summary
-
Stories
1
-
Bedrooms
4
-
Bathrooms
3
-
Garage
2 car
-
Width x Length
61'8" x 74'6"
-
First Floor Sq Ft
2762
-
Total AC Sq Ft
2762
-
Total Under Roof Sq Ft
3730
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

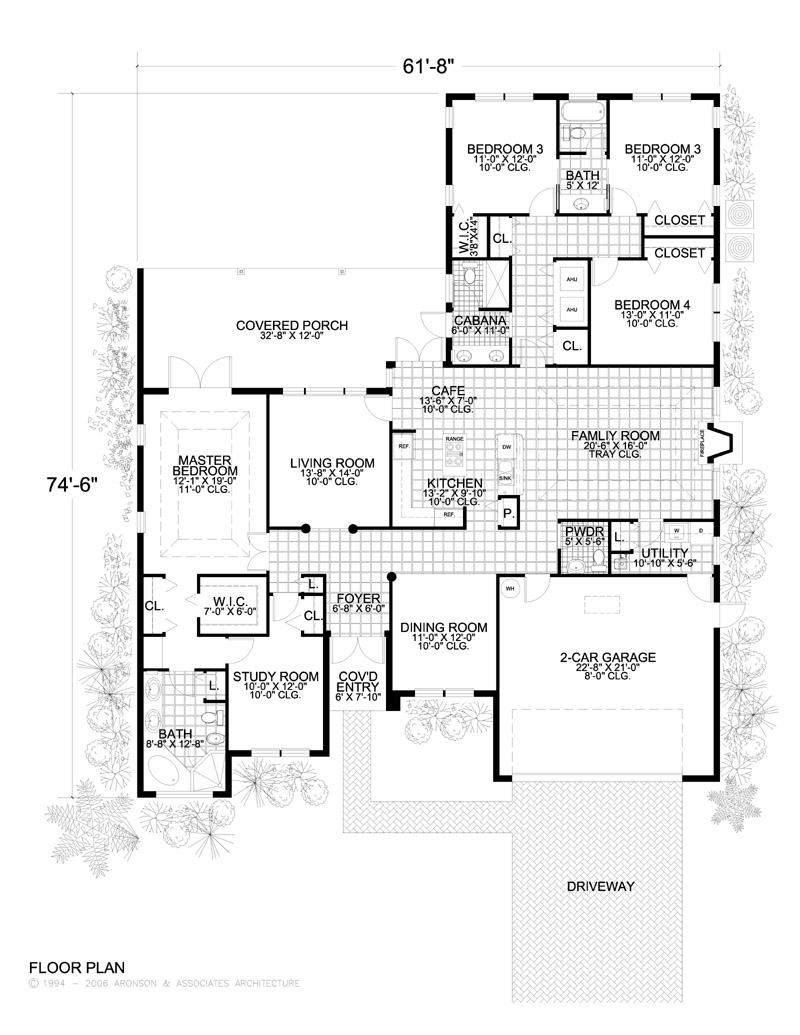

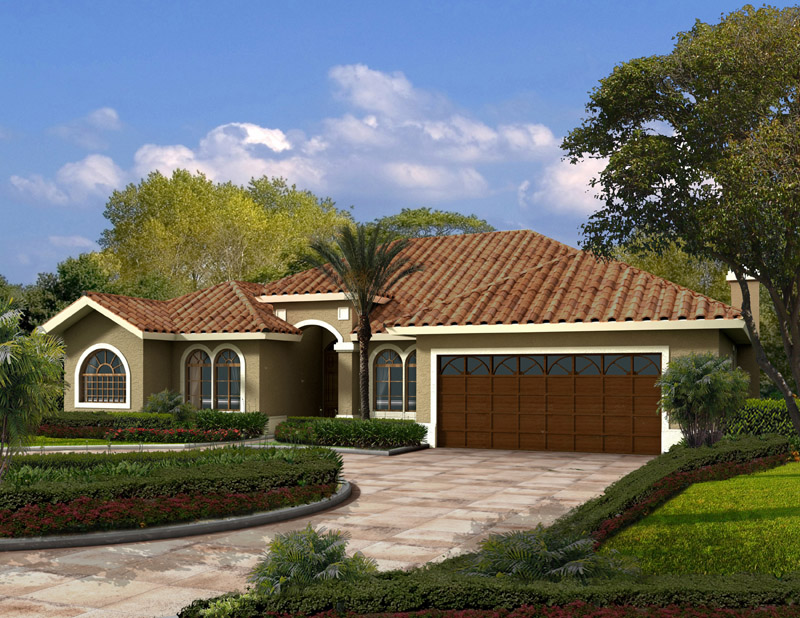

This one-story 2,762 sq. ft., home floor plan has four bedrooms, two and one-half bathrooms, plus a Cabana bathroom and a two-car garage. The exquisite French doors with arched transom accent the entrance. The kitchen has a huge island with an eating bar opening to the family room. A luxurious master suite feature a large walk-in closet, tray ceilings and private study. One of the opulent highlights of this home are the high ceilings. Purchase this home floor plan today.
Dimensions
- Width x Length 61'8" x 74'6"
- Height 24'
- Stories 1/
Garage
- Number of Cars 2
- Attached Yes
- Location Right
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 1
- Total 4
Bathrooms
- Full 3
- Half 1
- Total 3

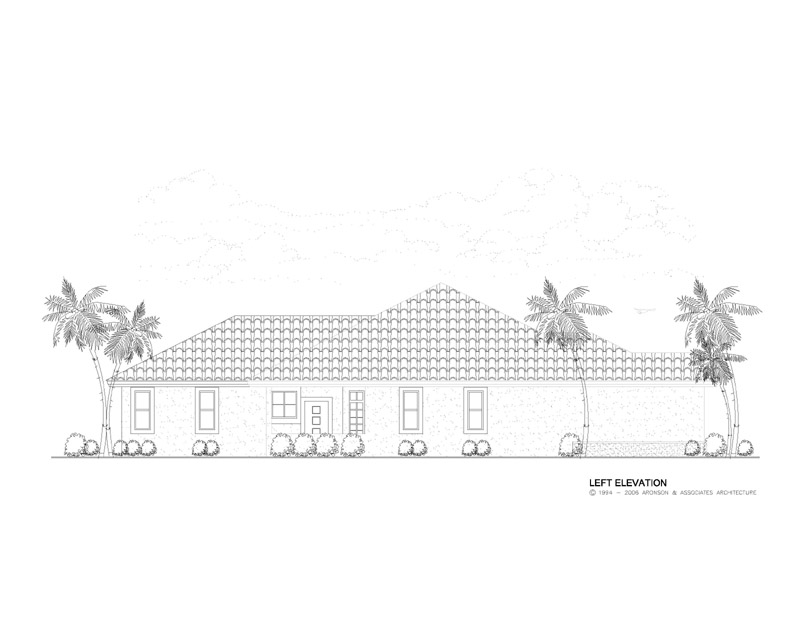

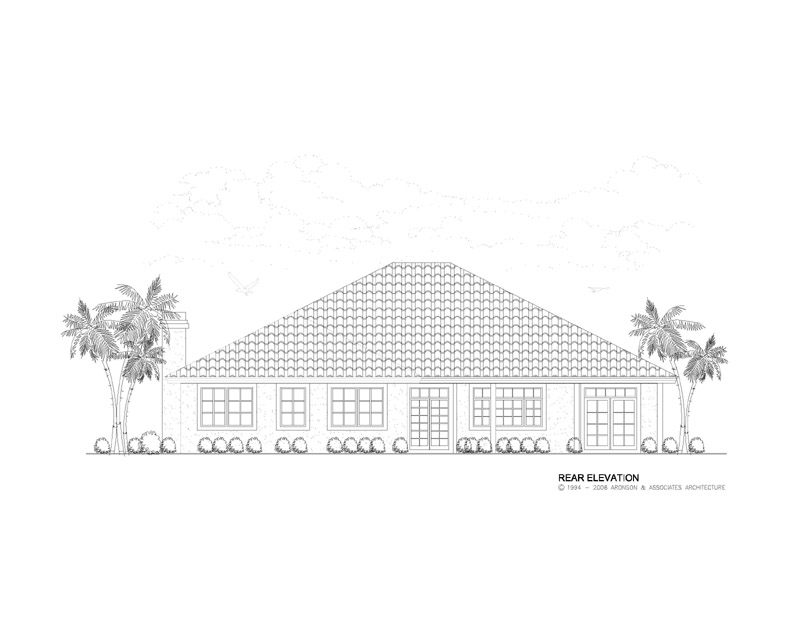

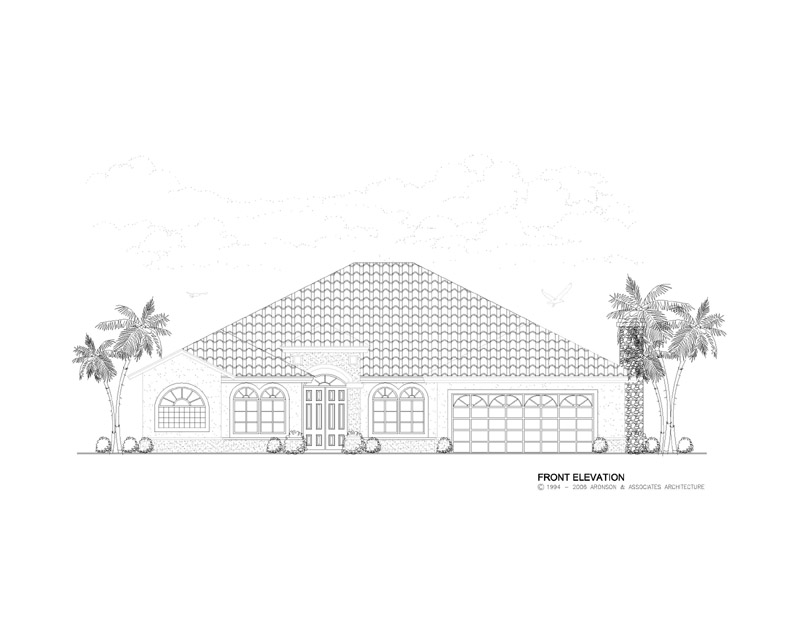

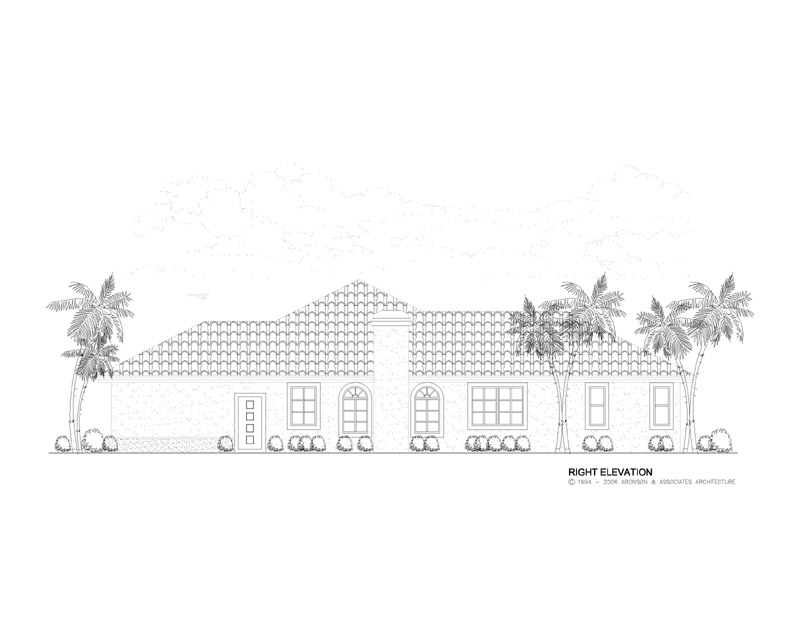

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace Yes
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1250
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1850
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $750
- (Extra Sets: $50)
- More Information
3 Sets Price: $850
- (Extra Sets: $50)
- More Information
5 Sets Price: $950
- (Extra Sets: $50)
- More Information
8 Sets Price: $1100
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1250
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 6:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140
First Floor
- Primary Living 10'
- Secondary Living 10'
- Primary Bedrooms 11'
- Secondary Bedrooms 10'
- Bathrooms 0
- Common Areas 0
Exterior
- Garage 8'
- Covered Entry 0
- Covered Patio 0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 2762
- Total AC 2762
Total Under Roof Sq Ft
- Garage 524
- Covered Entry 47
- Covered Patio 396
- Covered Balconies 0
- Total Under Roof 3730
