PLAN SUMMARY
-
Stories
1
-
Bedrooms
6
-
Bathrooms
4
-
Garage
0 car
-
Width x Length:
45' " x 84' "
-
First Floor Sq Ft
2,765 Sq. Ft.
-
Total AC Sq Ft
2,765 Sq. Ft.
-
Total Under Roof Sq Ft
2,969 Sq. Ft.
-
$0.00
Plan Description

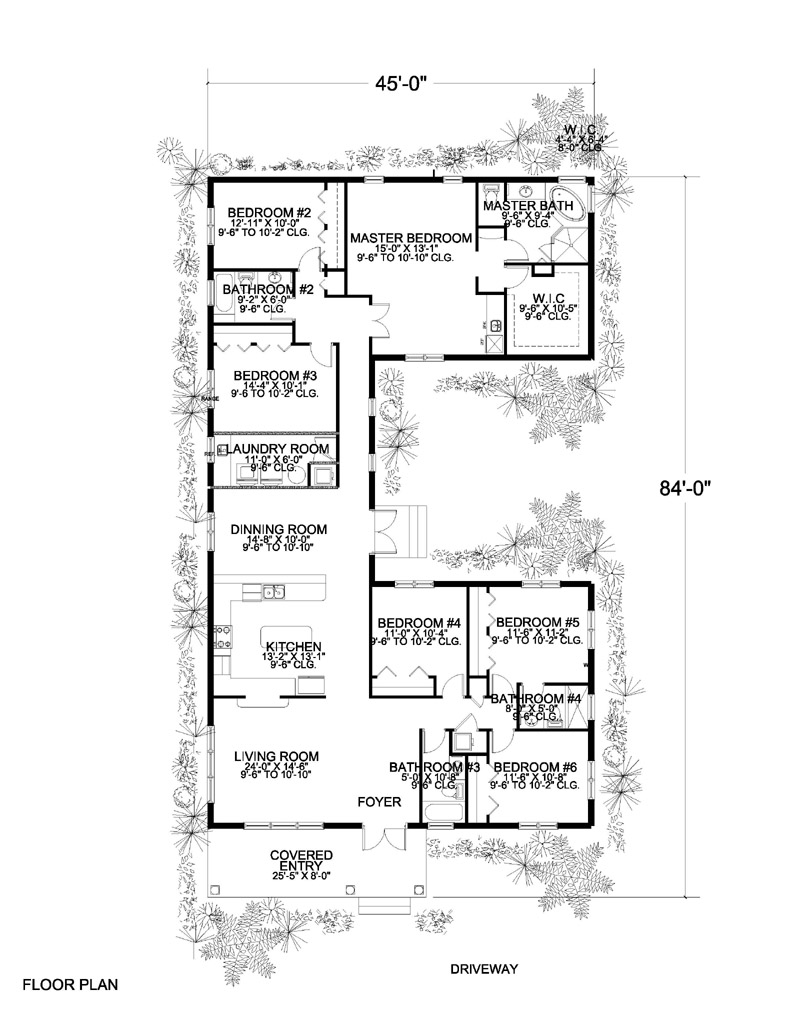

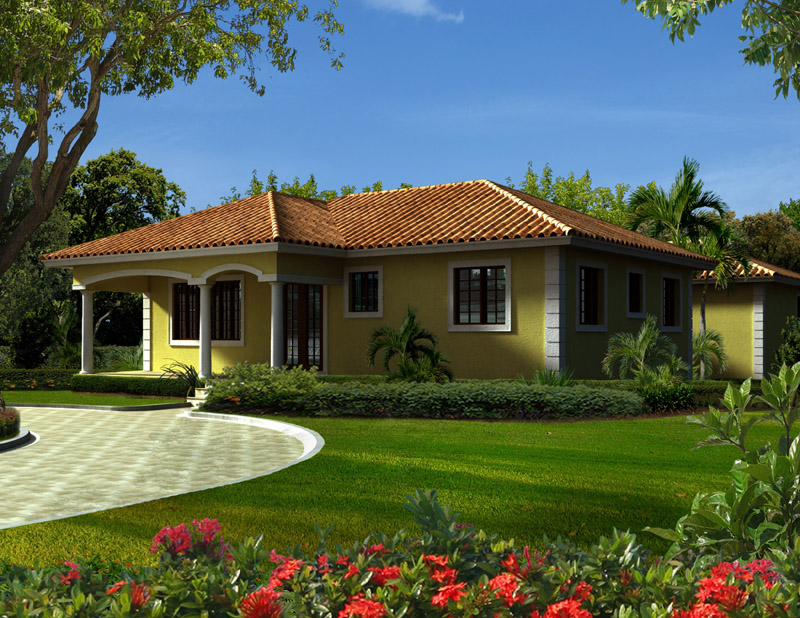

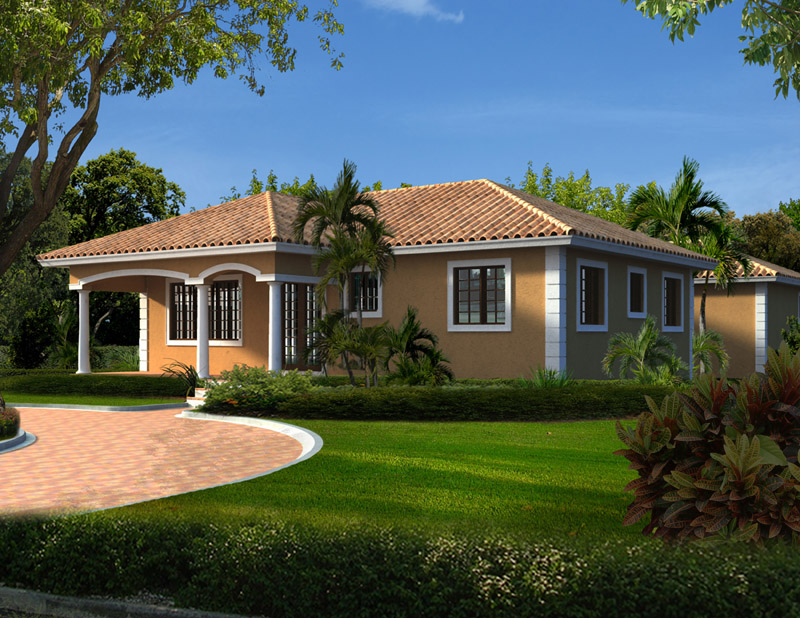

This 2,765 sq. ft., one-story, Florida-style home floor plan has six bedrooms, four bathrooms. The exquisite French doors accent the entrance. The kitchen has a huge island with an eating bar opening to the dining room. A luxurious master suite features a large walk-in closet, tray ceilings and morning kitchen. One of the opulent highlights of this home is the court yard creating a private and cozy outdoor space. Purchase and download this home floor plan today.
Dimensions
-
Width x Length
45' " x 84' "
-
Height
16'-7
-
Stories
1/
Garage
-
Number of Cars
0
-
Attached
No
-
Location
N/A
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
6
-
Possible
0
-
Total
6
Bathrooms
-
Full
4
-
Half
0
-
Total
4

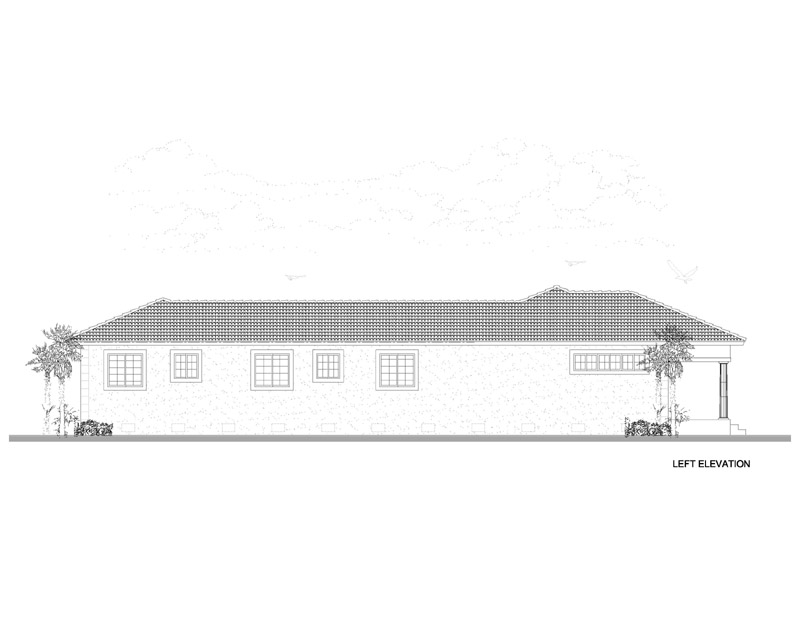

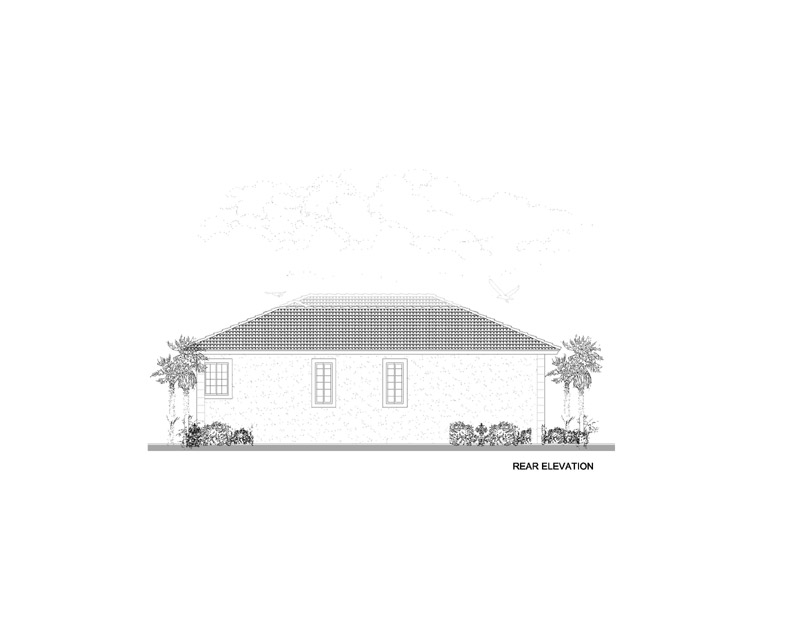

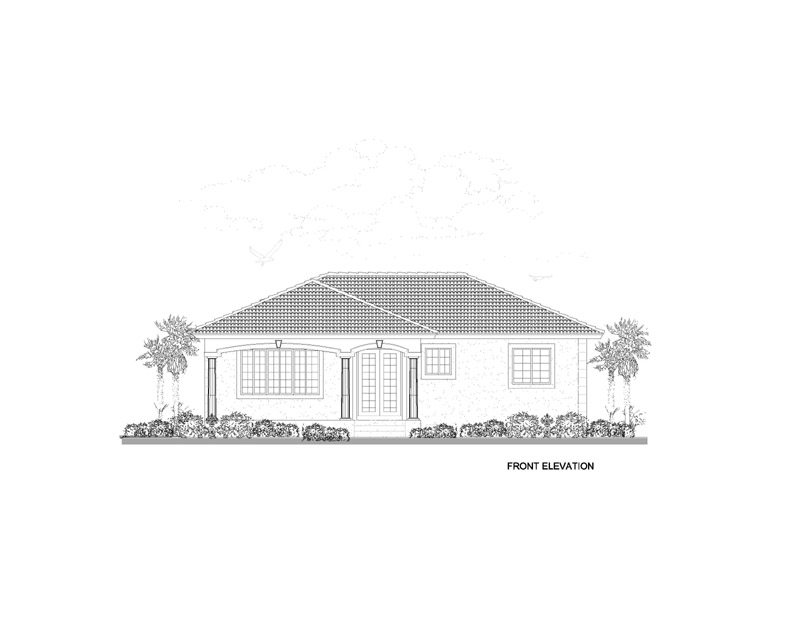

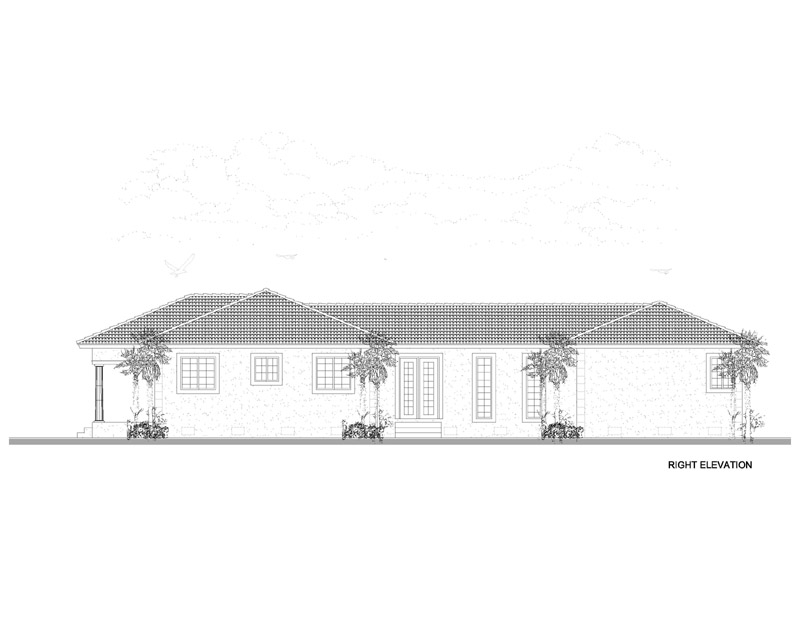

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1250
CAD Disk Price: $1850
Reverse PDF Price: $1500
Reverse CAD Price: $2100
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $750
3 Sets Price: $850
5 Sets Price: $950
8 Sets Price: $1100
Reproducible Vellum Price: $1250
Base – Not for Construction Price: $750
3 Sets (Reverse) Price: $1100
5 Sets (Reverse) Price: $1200
8 Sets (Reverse) Price: $1350
Reproducible Vellum (Reverse) Price: $1500
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
9'-6
-
Secondary Living
9'-6
-
Primary Bedrooms
9'-6 to 10'-10
-
Secondary Bedrooms
9'-6
-
Bathrooms
9'-6
-
Common Areas
0
Exterior
-
Garage
0
-
Covered Entry
10'-0
-
Covered Patio
0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2765
-
Total AC
2765
Total Under Roof Sq Ft
-
Garage
0
-
Covered Entry
204
-
Covered Patio
0
-
Covered Balconies
0
-
Total Under Roof
2969
