House Plan Model 2777-9501

Browsing: By One Story

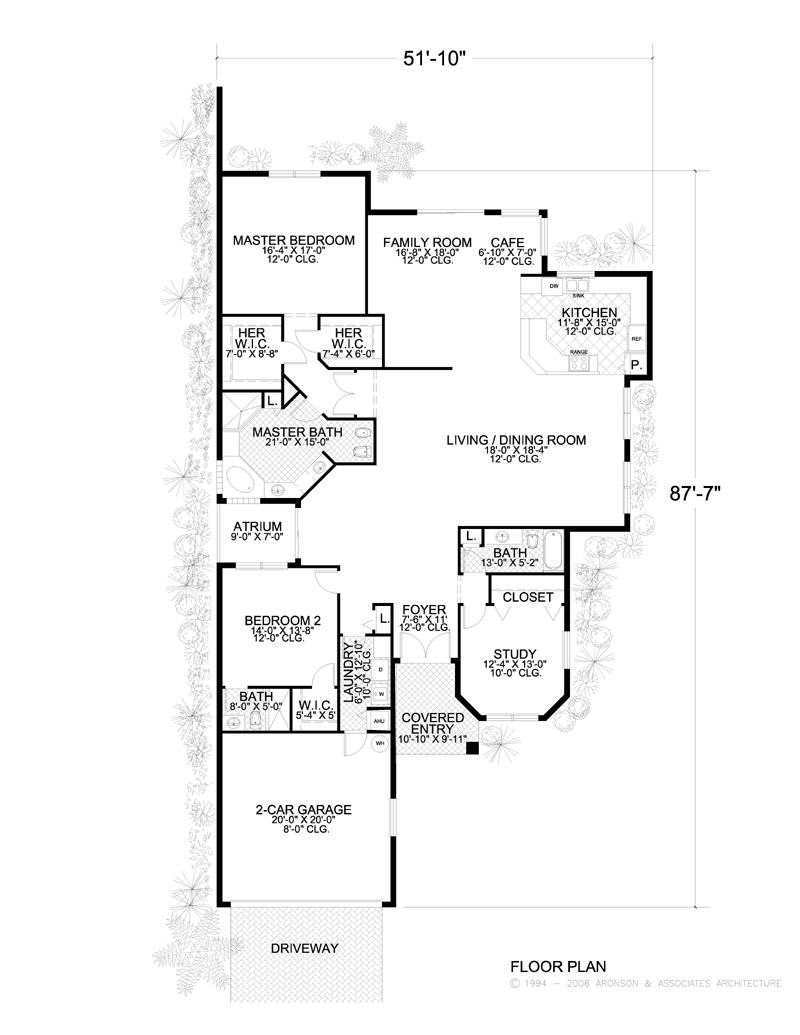

One Story Home Floor Plan
House Floor Plans

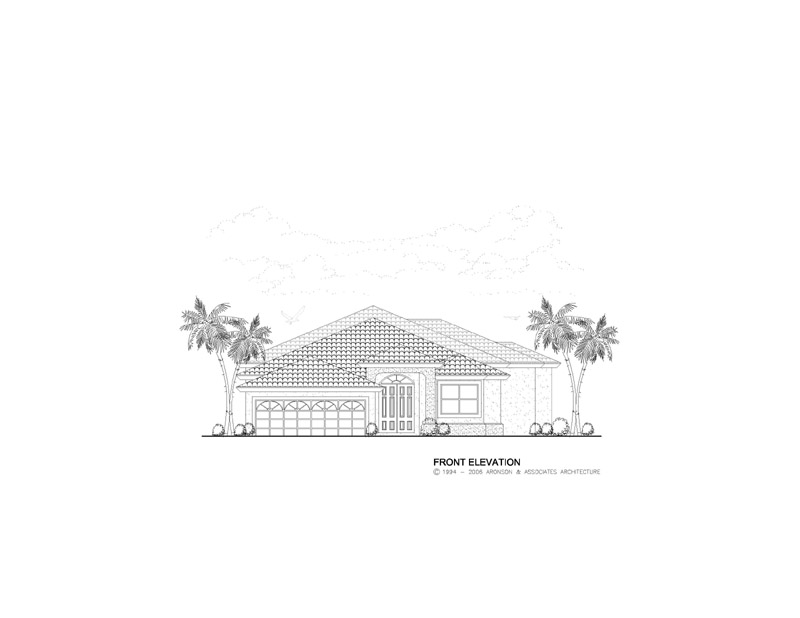

House Front Elevation View

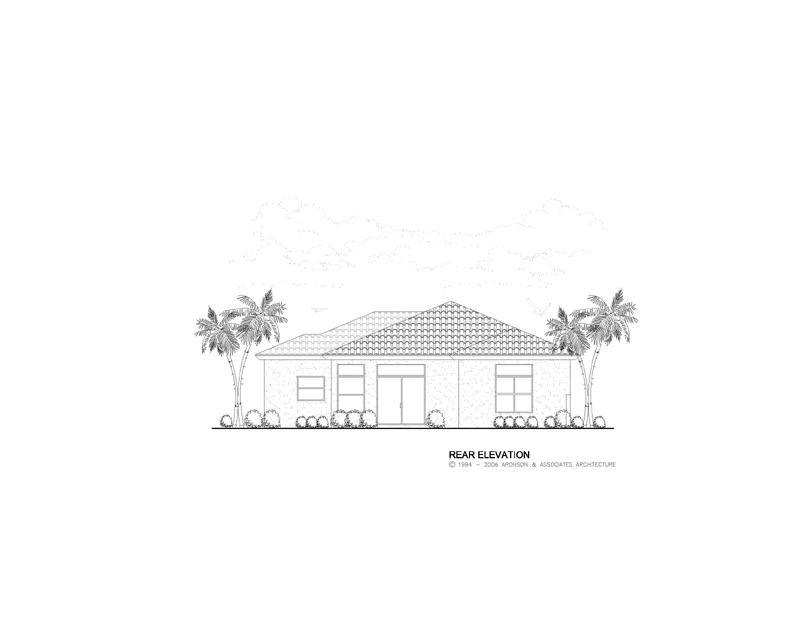

House Rear Elevation View

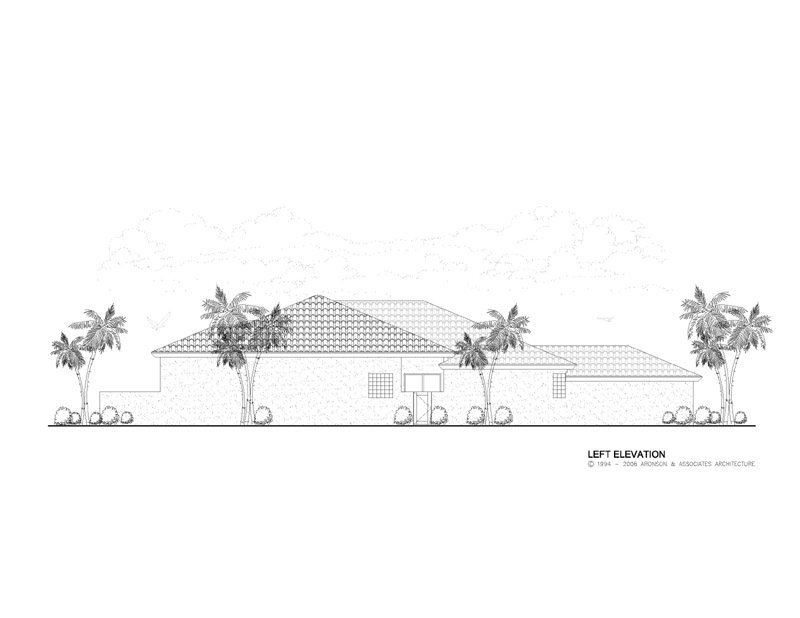

House Left Elevation View

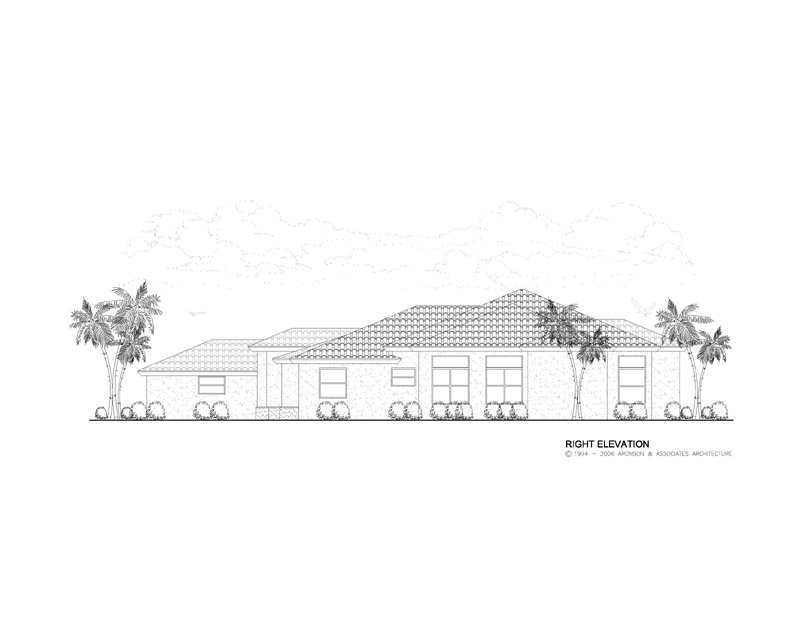

House Right Elevation View
One Story Home Floor Plan
House Floor Plans
House Front Elevation View
House Rear Elevation View
House Left Elevation View
House Right Elevation View

Plan Summary

  • Stories

    1

  • Bedrooms

    3

  • Bathrooms

    3

  • Garage

    2 car

  • Width x Length

    51'10" x 87'7"

  • First Floor Sq Ft

    2777

  • Total AC Sq Ft

    2777

  • Total Under Roof Sq Ft

    3372
