House Plans
Plan Summary
-
Stories
1
-
Bedrooms
4
-
Bathrooms
3
-
Garage
3 car
-
Width x Length
59' x 77'
-
First Floor Sq Ft
2853
-
Total AC Sq Ft
2853
-
Total Under Roof Sq Ft
3933
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

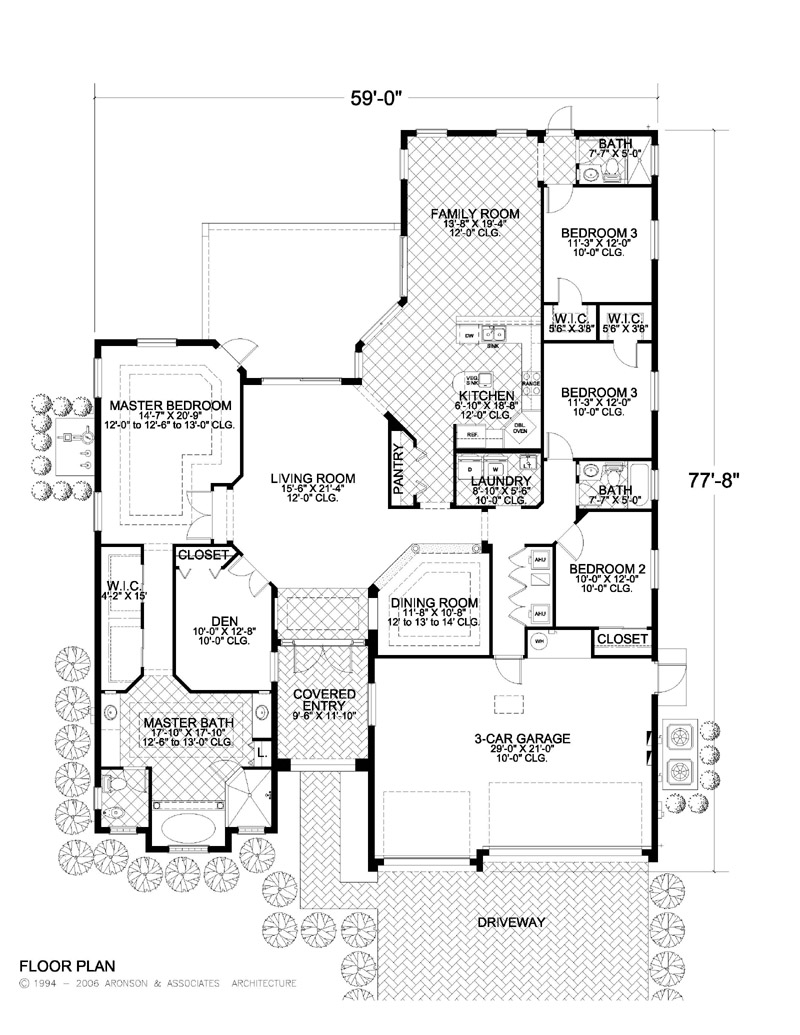

This classic, Florida-style, 2,853 sq. ft., one-story home floor plan has four bedrooms, three bathrooms and a three-car garage. This Contemporary, open layout home is full of amenities. The formal dining area has a tray ceiling. The large master suite has “His and Her” walk-in closets and a luxurious master bathroom. This model includes a den. Purchase this Contemporary home floor plan layout today.
Dimensions
- Width x Length 59' x 77'
- Height 19'-3
- Stories 1/
Garage
- Number of Cars 3
- Attached Yes
- Location Right
Wall Construction
- Interior Metal stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 1
- Total 4
Bathrooms
- Full 3
- Half 0
- Total 3
Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1250
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1850
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $750
- (Extra Sets: $50)
- More Information
3 Sets Price: $850
- (Extra Sets: $50)
- More Information
5 Sets Price: $950
- (Extra Sets: $50)
- More Information
8 Sets Price: $1100
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1250
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material 0
- Wind Speed 140
First Floor
- Primary Living 12'
- Secondary Living 0
- Primary Bedrooms 12'-2
- Secondary Bedrooms 10'
- Bathrooms 12'-6
- Common Areas 0
Exterior
- Garage 10'
- Covered Entry 0
- Covered Patio 0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 2853
- Total AC 2853
Total Under Roof Sq Ft
- Garage 659
- Covered Entry 125
- Covered Patio 296
- Covered Balconies 0
- Total Under Roof 3933
