House Plans
Plan Summary
-
Stories
2
-
Bedrooms
4
-
Bathrooms
3
-
Garage
2 car
-
Width x Length
60' x 60'
-
First Floor Sq Ft
2224
-
Second Floor Sq Ft
637
-
Total AC Sq Ft
2861
-
Total Under Roof Sq Ft
3912
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

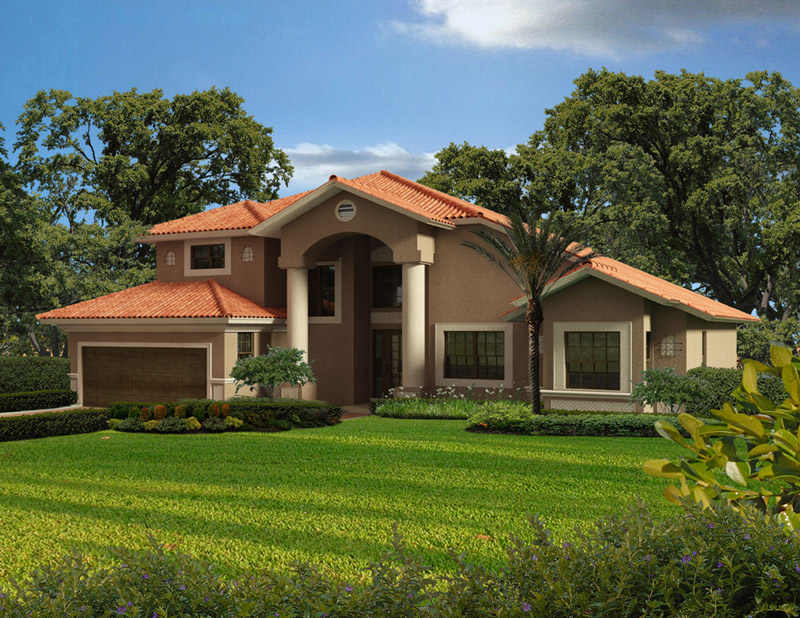

This beautiful, 2,861 sq. ft., two-story, classic Florida-style house floor plan features four bedrooms, two bathrooms, a cabana, covered entrance and a patio. This model provides a large kitchen and a cafe area opening to the family room. There is a formal dining room, a master suite with large walk-in-closet and a regal master bathroom adding to the luxury of this design. Purchase this house floor plan today.
Dimensions
- Width x Length 60' x 60'
- Height 28'-6
- Stories 2/
Garage
- Number of Cars 2
- Attached Yes
- Location Left
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 0
- Total 4
Bathrooms
- Full 2
- Half 0
- Total 3
Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 2
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1250
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1850
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $750
- (Extra Sets: $50)
- More Information
3 Sets Price: $850
- (Extra Sets: $50)
- More Information
5 Sets Price: $950
- (Extra Sets: $50)
- More Information
8 Sets Price: $1100
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1250
- (Extra Sets: $150)
- More Information
Foundation Type
- Type monolithic
- Option 0
Floor System
- Type Wood Truss
- Spacing 24
- Subfloor wood
- Thickness 3/4
Roof System
- Type wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140

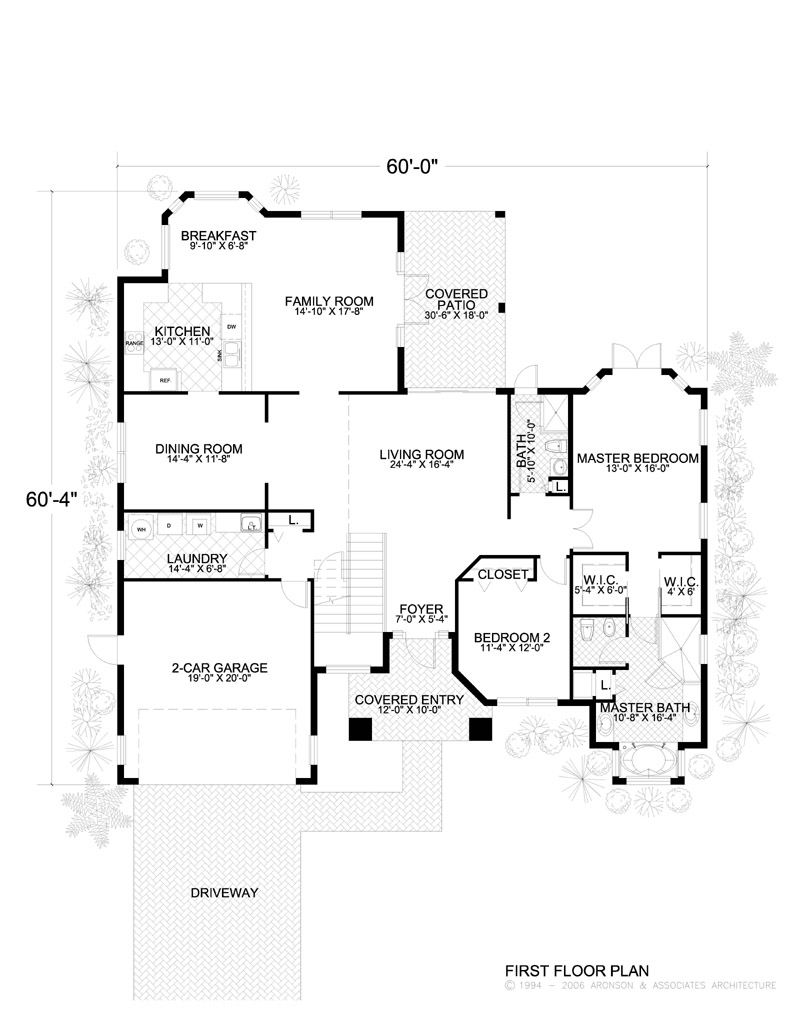

First Floor
- Primary Living 10'-0
- Secondary Living 10'-0
- Primary Bedrooms 10'-0
- Secondary Bedrooms 10'-0
- Bathrooms 10'-0
- Common Areas 10'-0

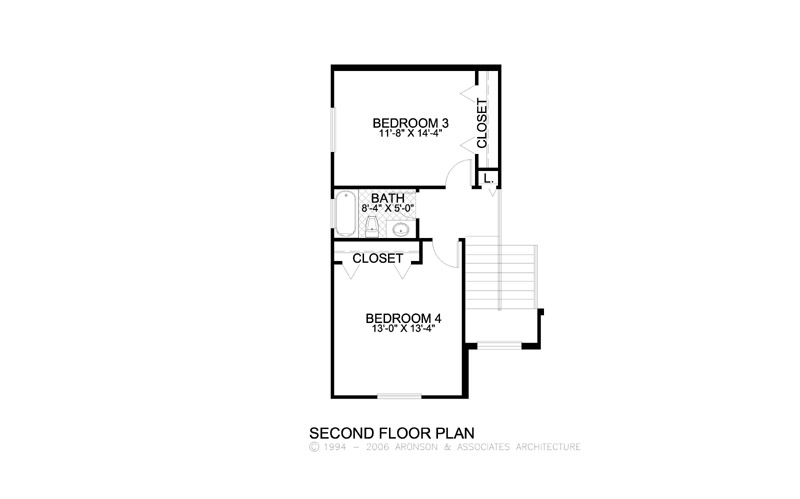

Second Floor
- Primary Bedrooms 0
- Secondary Bedrooms 10'-0
- Bathrooms 10'-0
- Common Areas 0
Exterior
- Garage 10'-0
- Covered Entry 19'-0
- Covered Patio 10'-0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 2224
- Second Floor AC 637
- Total AC 2861
Total Under Roof Sq Ft
- Garage 414
- Covered Entry 100
- Covered Patio 537
- Covered Balconies 0
- Total Under Roof 3912
