House Plans
Plan Summary
-
Stories
1
-
Bedrooms
3
-
Bathrooms
3
-
Garage
3 car
-
Width x Length
62' x 75'
-
First Floor Sq Ft
2897
-
Total AC Sq Ft
2897
-
Total Under Roof Sq Ft
3866
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

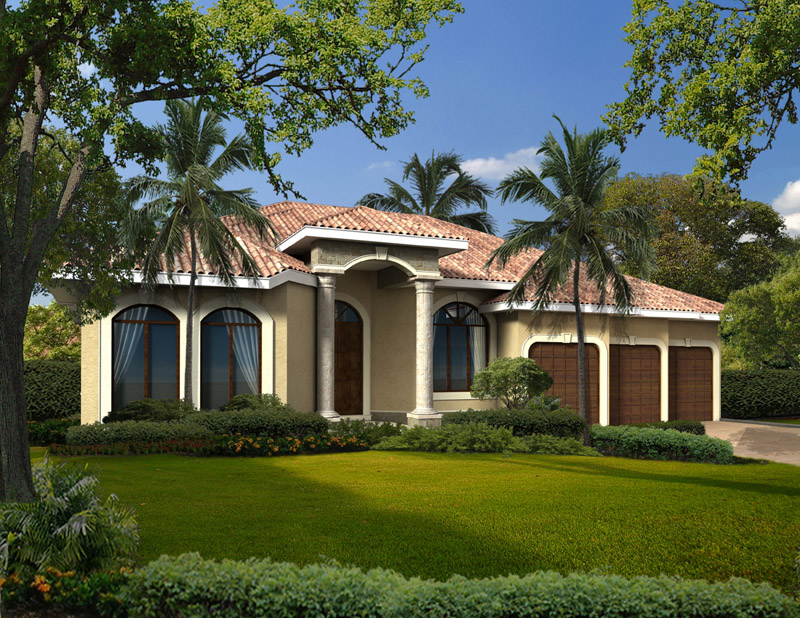

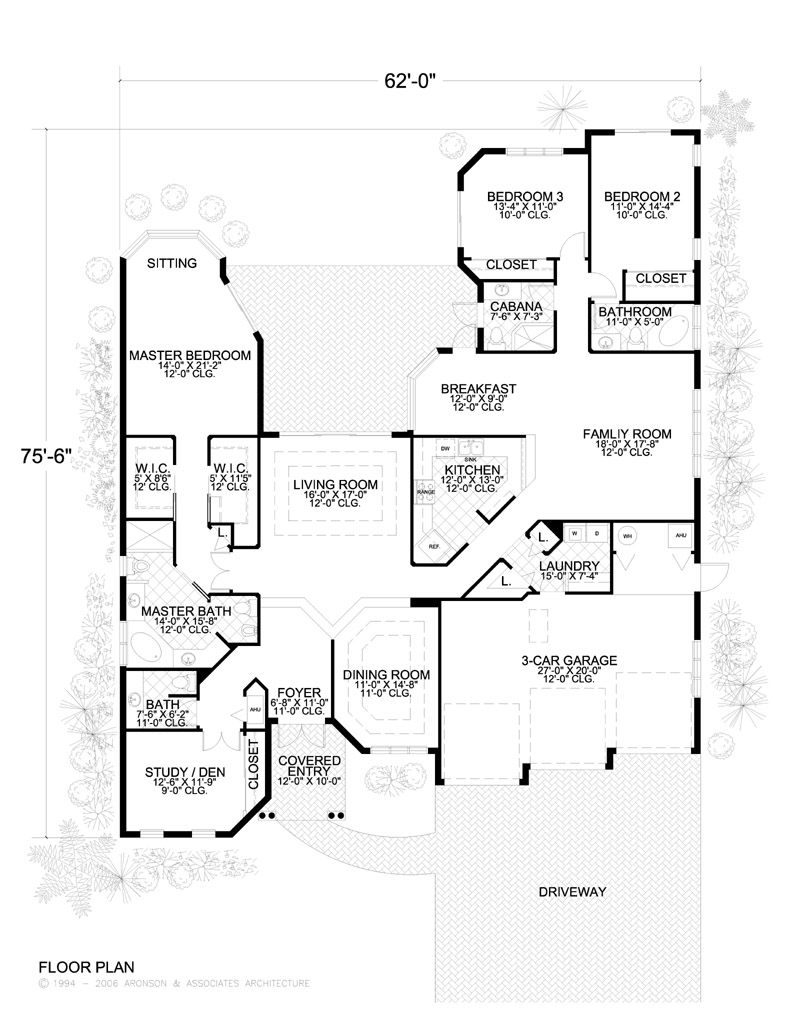

This charming 2,897 sq. ft., one-story, classic Florida Mediterranean-style home floor plan features three bedrooms, a den, two and a half bathrooms, a cabana, three-car garage and a towering covered entry. The floor plan provides a unique kitchen designed with an eating bar and breakfast area opening to a family room. The luxurious master bedroom suite has “His and Her” walk-in closets, sitting area and stylish tray ceilings – placing accent to this design. The highlight of this design is the rear extension of the house creating a private courtyard. Download this charming home floor plan today.
Dimensions
- Width x Length 62' x 75'
- Height 25'-7
- Stories 1/
Garage
- Number of Cars 3
- Attached Yes
- Location right
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 3
- Possible 1
- Total 3
Bathrooms
- Full 3
- Half 1
- Total 3
Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1250
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1850
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $750
- (Extra Sets: $50)
- More Information
3 Sets Price: $850
- (Extra Sets: $50)
- More Information
5 Sets Price: $950
- (Extra Sets: $50)
- More Information
8 Sets Price: $1100
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1250
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 6:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140
First Floor
- Primary Living 12'-0
- Secondary Living 12'-0
- Primary Bedrooms 12'-0
- Secondary Bedrooms 10'-0
- Bathrooms 11'-0
- Common Areas 12'-0
Exterior
- Garage 10'-0
- Covered Entry 0
- Covered Patio 0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 2897
- Total AC 2897
Total Under Roof Sq Ft
- Garage 512
- Covered Entry 100
- Covered Patio 357
- Covered Balconies 0
- Total Under Roof 3866
