House Plans
Plan Summary
-
Stories
1
-
Bedrooms
3
-
Bathrooms
3
-
Garage
2 car
-
Width x Length
40' x 101'
-
First Floor Sq Ft
2998
-
Total AC Sq Ft
2998
-
Total Under Roof Sq Ft
3702
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

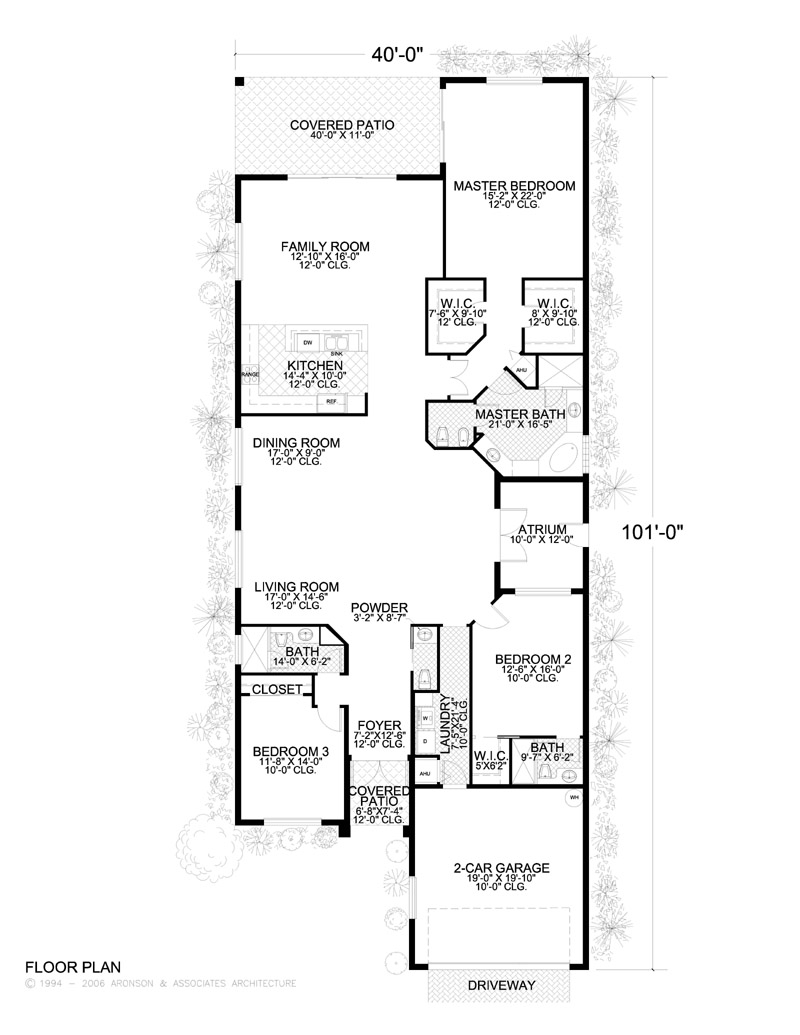

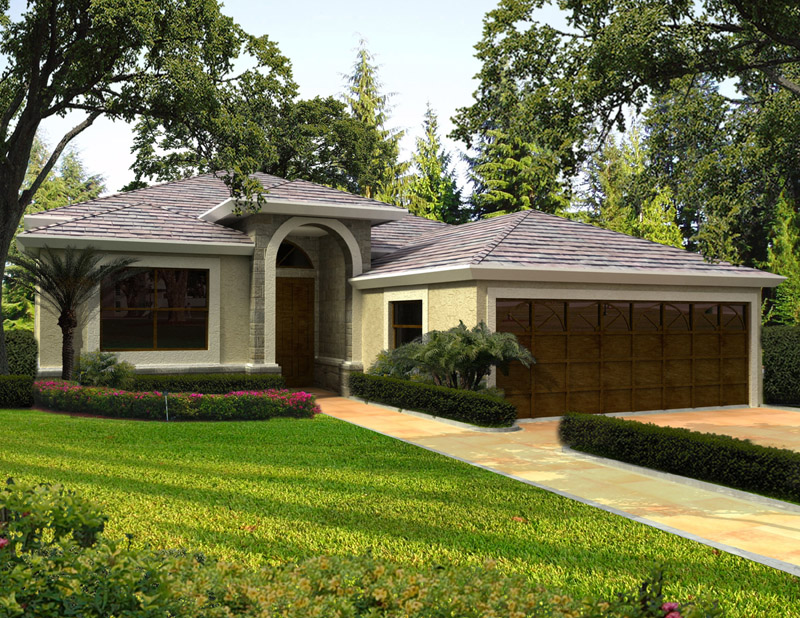

This lovely 2,998 sq. ft., one-story, classic Florida Mediterranean-style house floor plan features three bedrooms, three and one-half bathrooms and a two-car garage. The prominent columns and arches provide a strong curb appeal. A custom wood door with arched transom accents the covered entrance. This design provides a large kitchen with eating bar opening to the media room. The large combined living room and dining room maximize space. This model features an exclusive master suite with “His and Hers” walk-in closets and a luxurious master bath. Purchase and download this lovely house plan today.
Dimensions
- Width x Length 40' x 101'
- Height 19'-8
- Stories 1/
Garage
- Number of Cars 2
- Attached Yes
- Location right
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 3
- Possible 0
- Total 3
Bathrooms
- Full 3
- Half 1
- Total 3

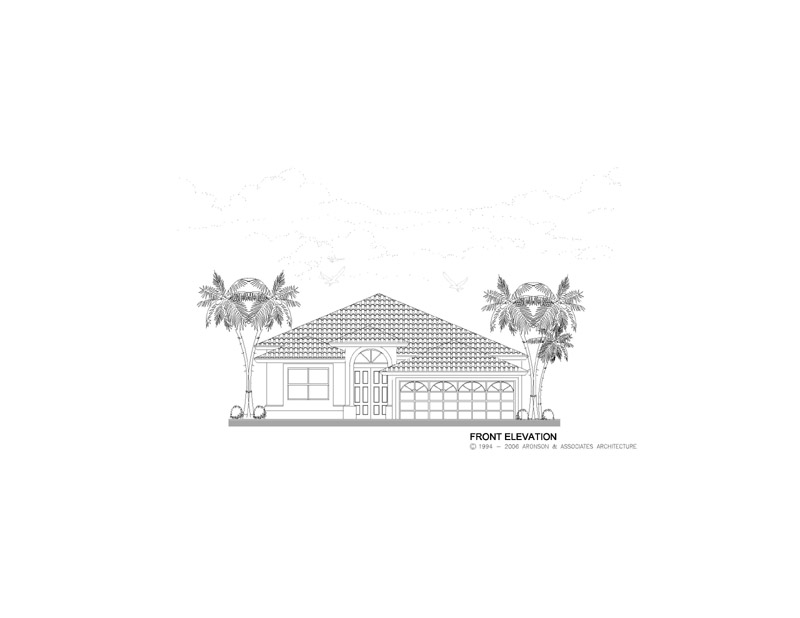

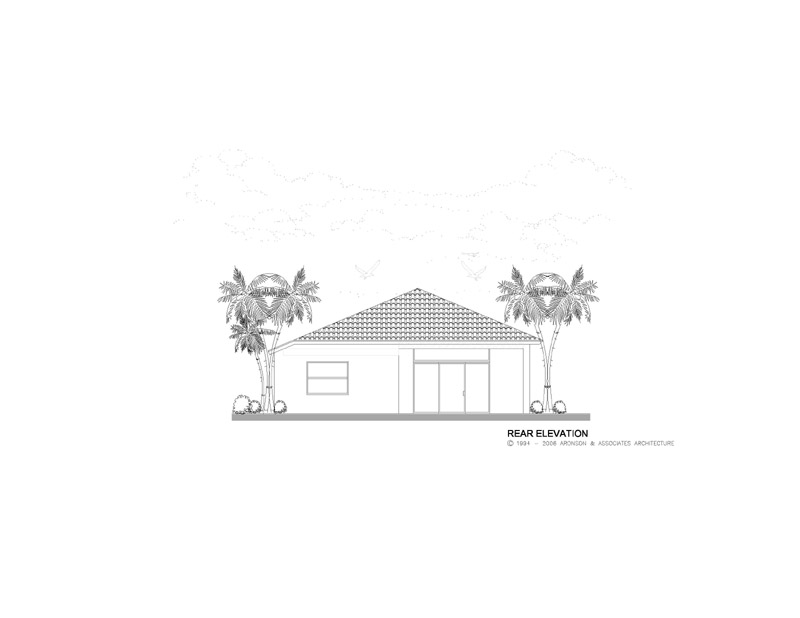

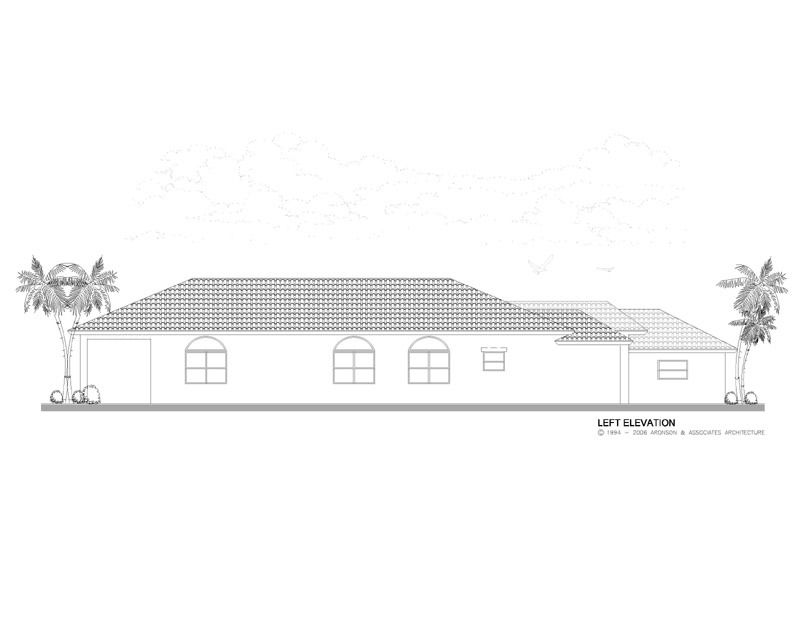

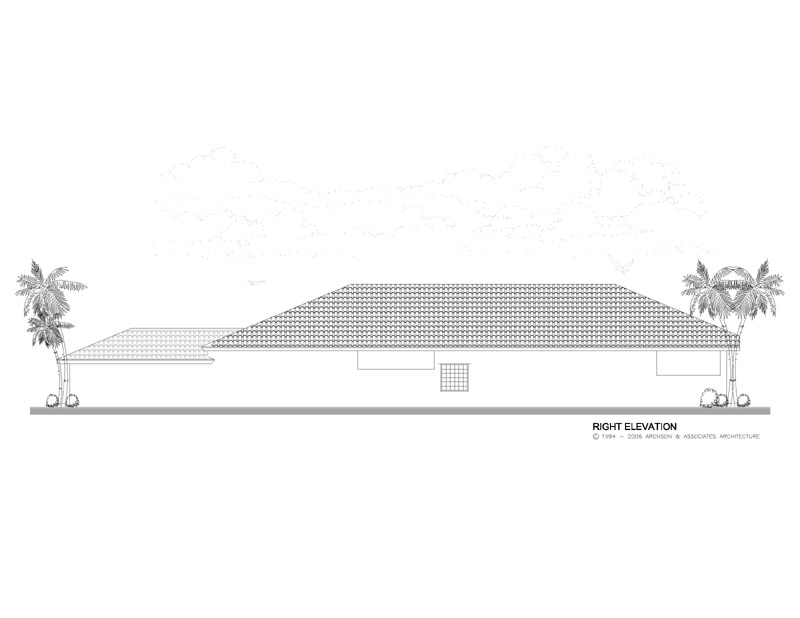

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1250
- (Extra Sets: $150)
- More Information
CAD Disk Price: $1850
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $750
- (Extra Sets: $50)
- More Information
3 Sets Price: $850
- (Extra Sets: $50)
- More Information
5 Sets Price: $950
- (Extra Sets: $50)
- More Information
8 Sets Price: $1100
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1250
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140
First Floor
- Primary Living 12'-0
- Secondary Living 12'-0
- Primary Bedrooms 12'-0
- Secondary Bedrooms 10'-0
- Bathrooms 0
- Common Areas 10'-0
Exterior
- Garage 8'-0
- Covered Entry 12'-0
- Covered Patio 0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 2998
- Total AC 2998
Total Under Roof Sq Ft
- Garage 421
- Covered Entry 28
- Covered Patio 255
- Covered Balconies 0
- Total Under Roof 3702
