House Plans
Plan Summary
-
Stories
1
-
Bedrooms
4
-
Bathrooms
3
-
Garage
3 car
-
Width x Length
60' x 90'
-
First Floor Sq Ft
3053
-
Total AC Sq Ft
3053
-
Total Under Roof Sq Ft
4250
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

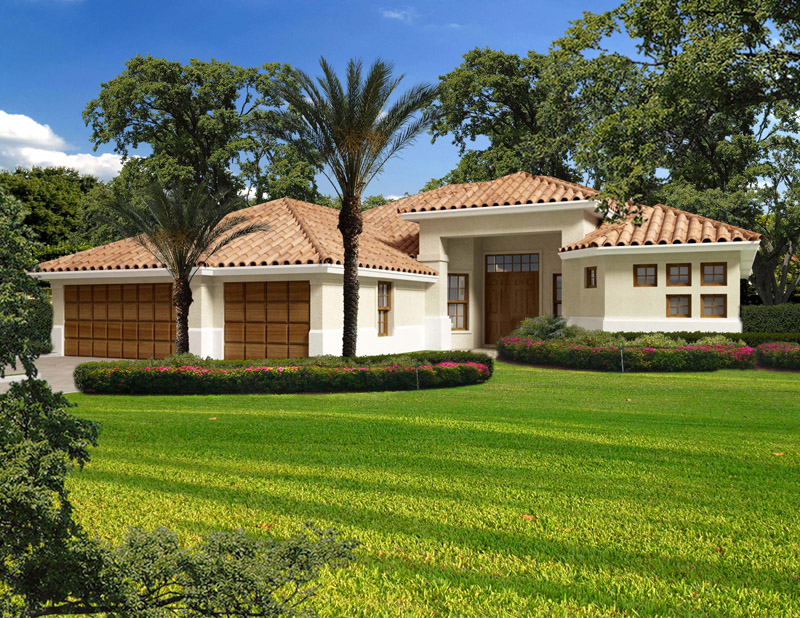

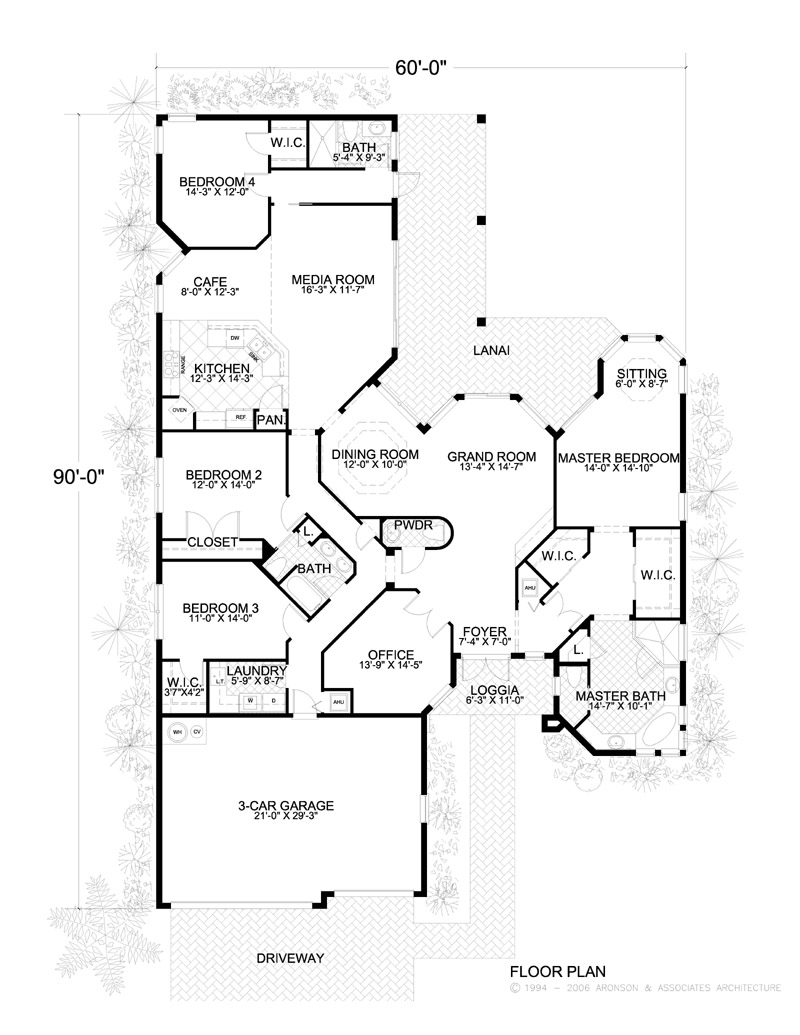

This luxurious, 3,053 sq. ft., one-story home floor plan has four bedrooms, three and one-half bathrooms and a three-car garage. The kitchen has a breakfast area and located adjacent to a media room. This is a well thought-out and charming home. The home is a Contemporary open layout design and offers optional elevations. The exclusive master suite has “His and Hers” walk-in closets, a sitting area and luxurious master bathroom opening onto a covered lanai. An attractive addition to this design is the home office! Get this luxurious home floor plan today.
Dimensions
- Width x Length 60' x 90'
- Height 22'
- Stories 1/
Garage
- Number of Cars 3
- Attached Yes
- Location Left
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 1
- Total 4
Bathrooms
- Full 3
- Half 1
- Total 3

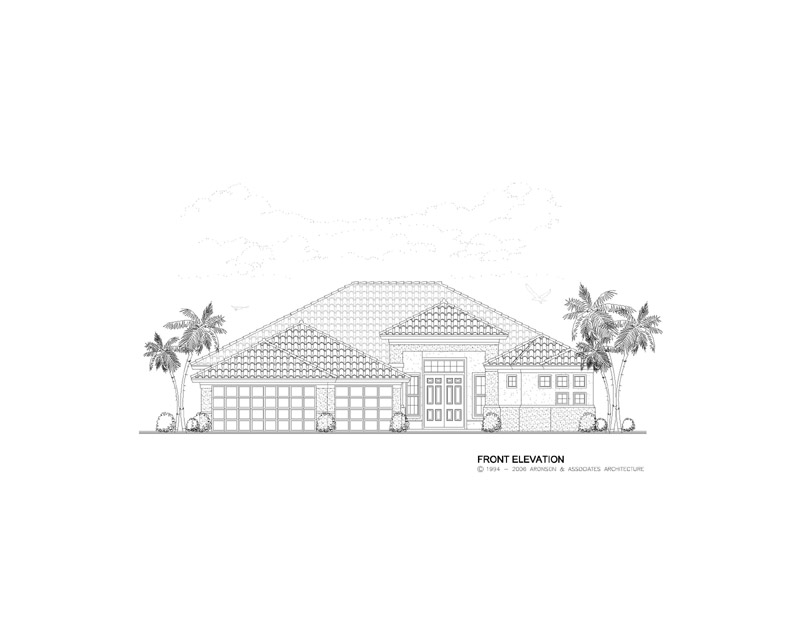

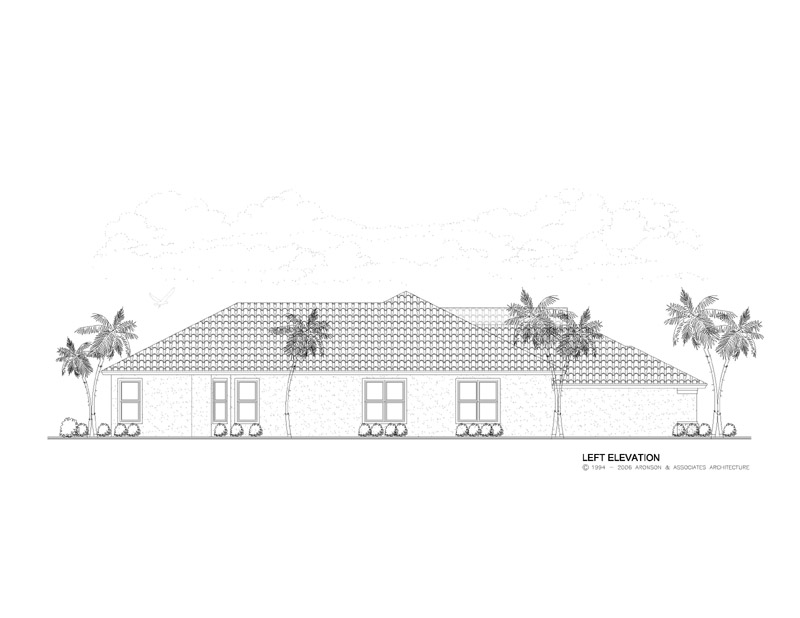

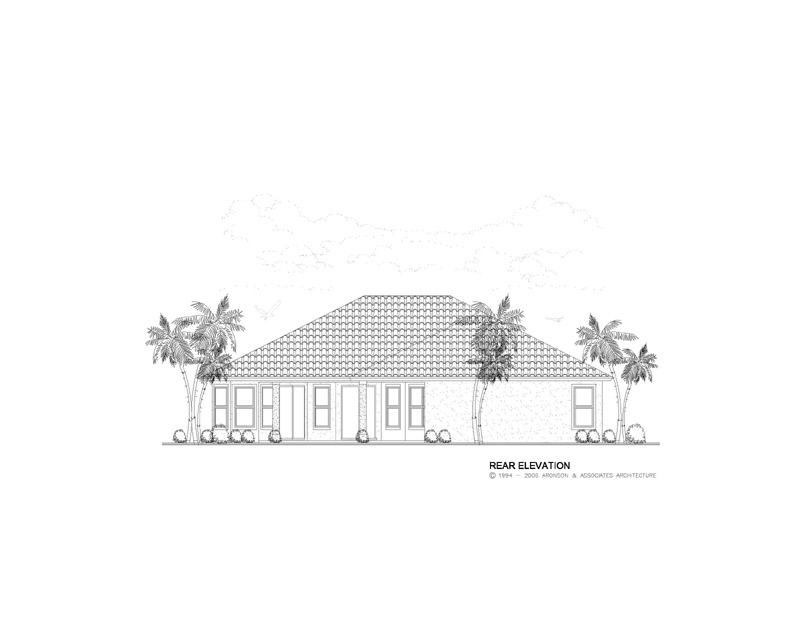

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1350
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2050
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $850
- (Extra Sets: $50)
- More Information
3 Sets Price: $950
- (Extra Sets: $50)
- More Information
5 Sets Price: $1050
- (Extra Sets: $50)
- More Information
8 Sets Price: $1200
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1350
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140
First Floor
- Primary Living 12'
- Secondary Living 12'
- Primary Bedrooms 10' to 11'
- Secondary Bedrooms 10'
- Bathrooms 10'
- Common Areas 10'
Exterior
- Garage 8'
- Covered Entry 14'-8
- Covered Patio 10'
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 3053
- Total AC 3053
Total Under Roof Sq Ft
- Garage 650
- Covered Entry 472
- Covered Patio 75
- Covered Balconies 0
- Total Under Roof 4250
