House Plan Model 3117-9901

Browsing: By Two Story

House Rendering

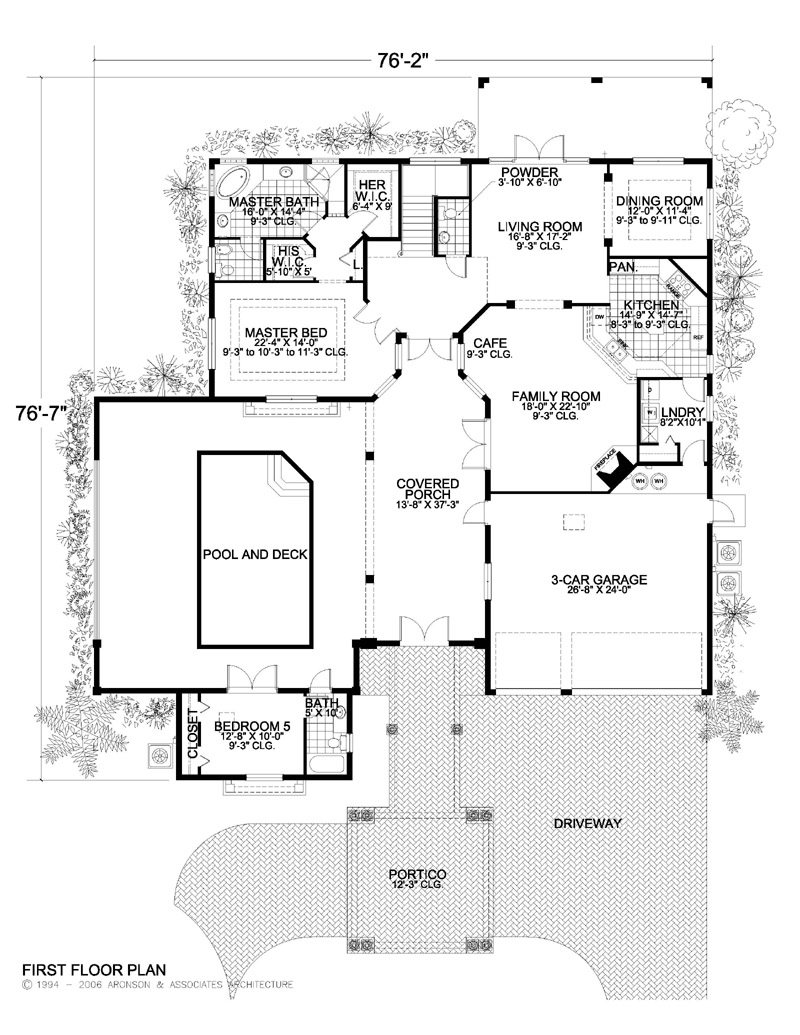

First Floor Plan

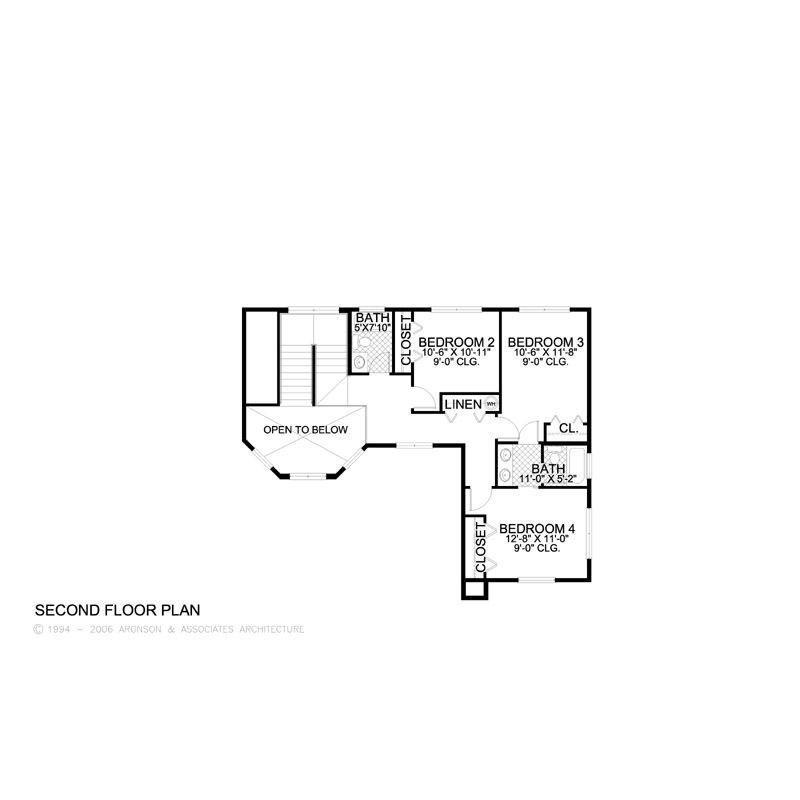

Second Floor Home Plan

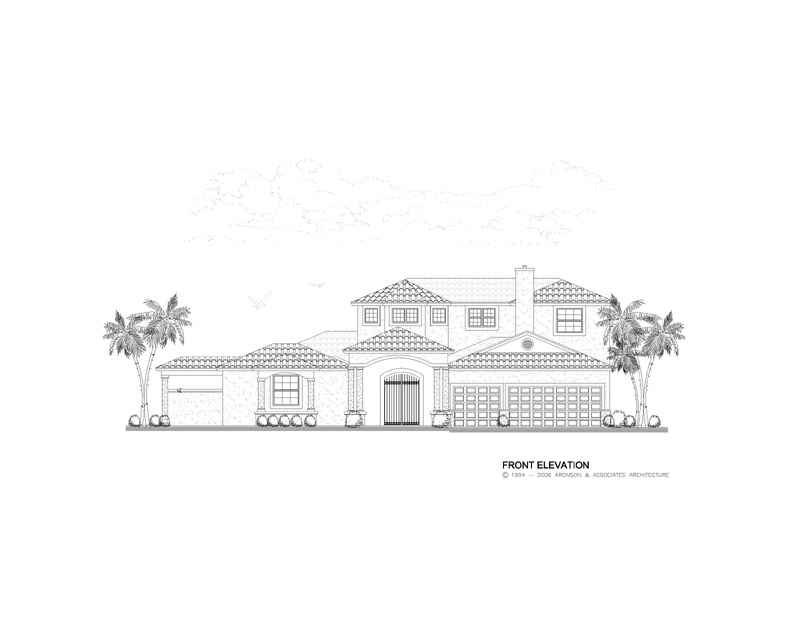

House Front Elevation View

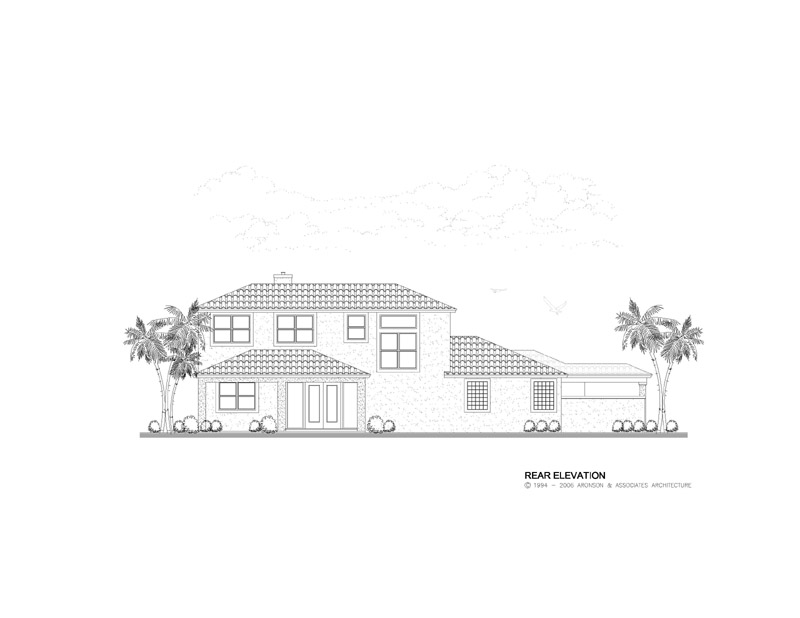

House Rear Elevation View

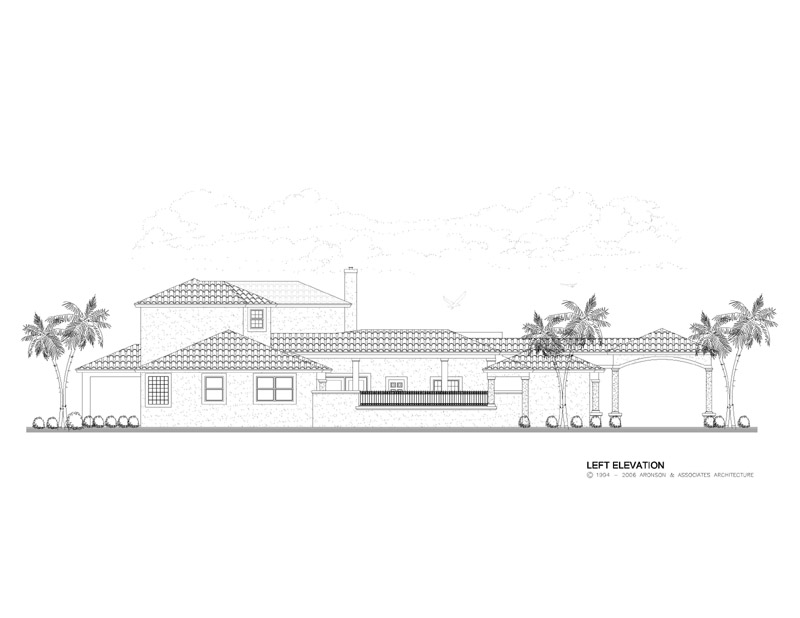

House Left Elevation View

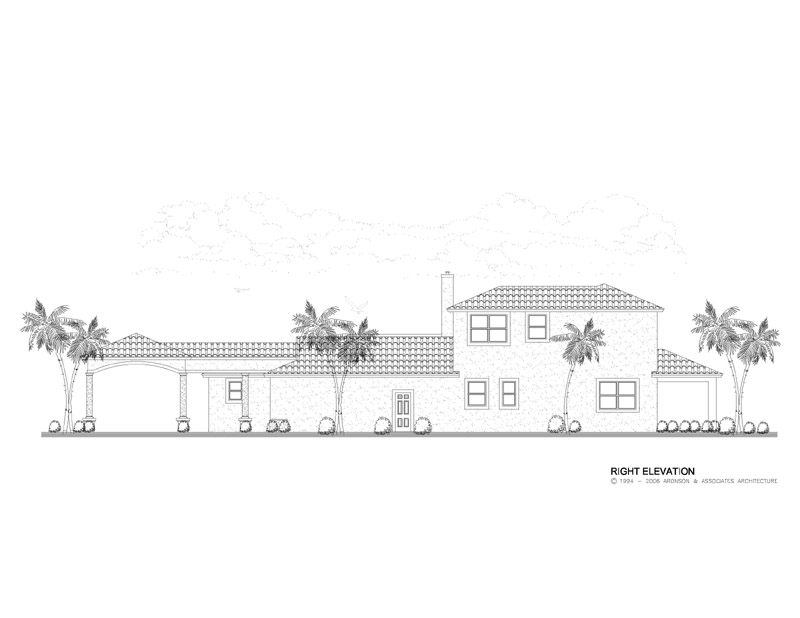

House Right Elevation View
House Rendering
First Floor Plan
Second Floor Home Plan
House Front Elevation View
House Rear Elevation View
House Left Elevation View
House Right Elevation View

Plan Summary

  • Stories

    2

  • Bedrooms

    4

  • Bathrooms

    5

  • Garage

    3 car

  • Width x Length

    76'4" x 97'11"

  • First Floor Sq Ft

    2318

  • Second Floor Sq Ft

    799

  • Total AC Sq Ft

    3117

  • Total Under Roof Sq Ft

    5338

Order Plan
Compare Plan
Save Plan
Customize Plan

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money
Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This beautiful, 3,117 sq. ft., two-story, Mediterranean-style house plan features four bedrooms, three and one-half bathrooms plus a cabana, a three-car garage and a gated arched entrance with an enclosed courtyard. The first story displays an elegant formal dining room with butler’s pantry, a huge island kitchen with eating bar opening to the family room. There is a media room with wet bar and a two-level library and gallery. The large master suite has walk-in closets and a morning kitchen, tray ceilings and a regal master bath opening onto a private balcony adding to the luxury of the design. Purchase this beautiful 2-story home plan today.

Dimensions

  • Width x Length 76'4" x 97'11"
  • Height 25'-2
  • Stories 2/

Garage

  • Number of Cars 3
  • Attached Yes
  • Location right

Wall Construction

  • Interior Metal Stud
  • Exterior CMU Block
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 4
  • Possible 0
  • Total 4

Bathrooms

  • Full 4
  • Half 1
  • Total 5

Elevation

  • Finishes Stucco
  • Master Bedroom Location 1
  • Utility Location 1

Features

  • Fireplace Yes
  • Elevator No
  • Pool Yes
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1350

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2050

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $850

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $950

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1050

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1200

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1350

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type monolithic
  • Option 0

Floor System

  • Type Wood Truss
  • Spacing 24
  • Subfloor wood
  • Thickness 1/2

Roof System

  • Type wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. Tile
  • Wind Speed 140

First Floor

  • Primary Living 9'-3
  • Secondary Living 0
  • Primary Bedrooms 9'-3
  • Secondary Bedrooms 9'-3
  • Bathrooms 9'-3
  • Common Areas 9'-3

Second Floor

  • Primary Bedrooms 0
  • Secondary Bedrooms 9'-0
  • Bathrooms 9'-0
  • Common Areas 9'-0

Exterior

  • Garage 11'-8
  • Covered Entry 12'-3
  • Covered Patio 8'-8
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 2318
  • Second Floor AC 799
  • Total AC 3117

Total Under Roof Sq Ft

  • Garage 743
  • Covered Entry 715
  • Covered Patio 285
  • Covered Balconies 478
  • Total Under Roof 5338
