House Plan Model 3212-0408

Browsing: By Two Story

Beautiful House Plans

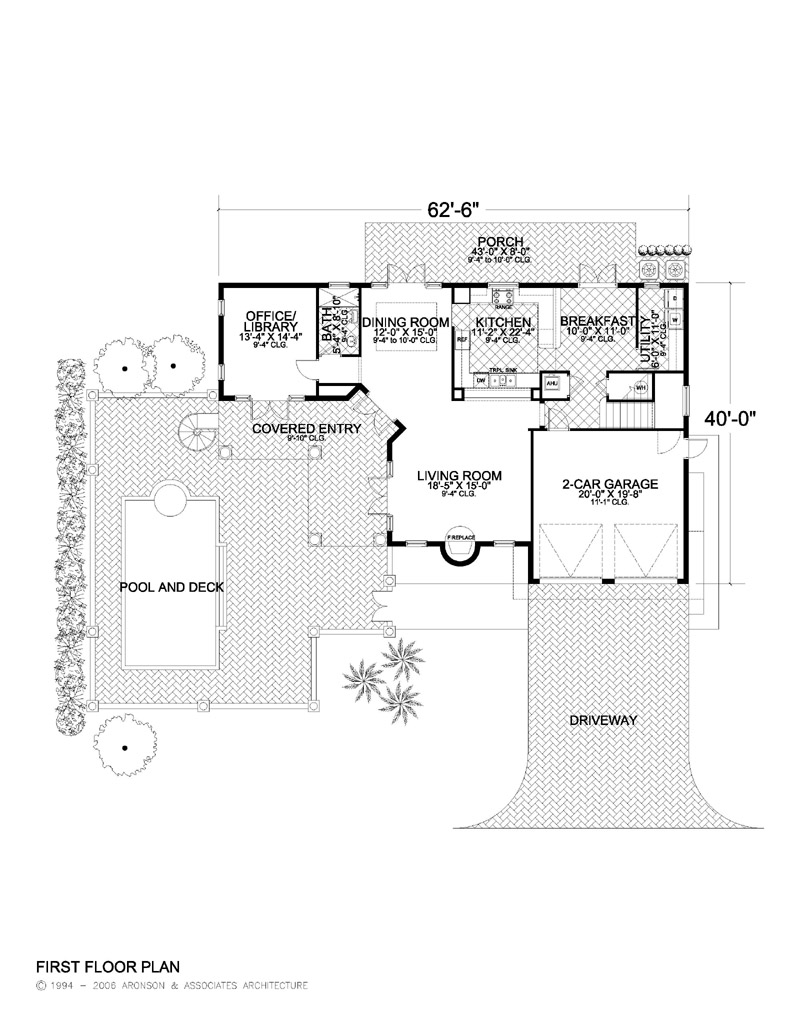

First Floor Home Plan

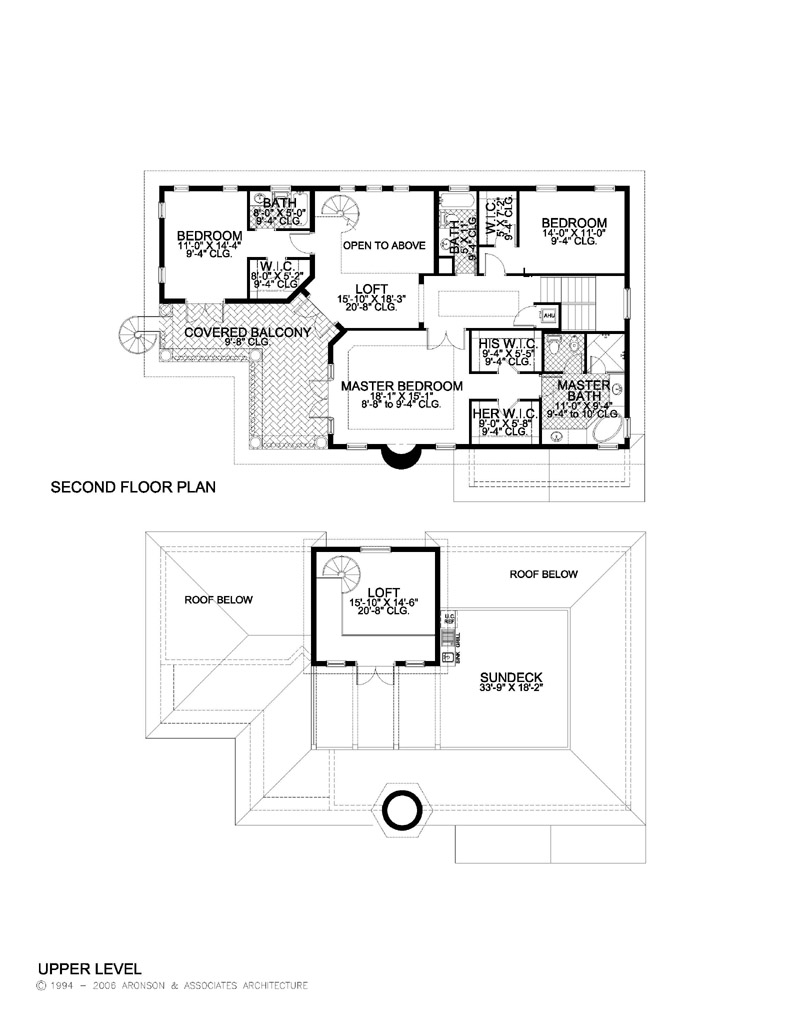

Upper Level Home Plan

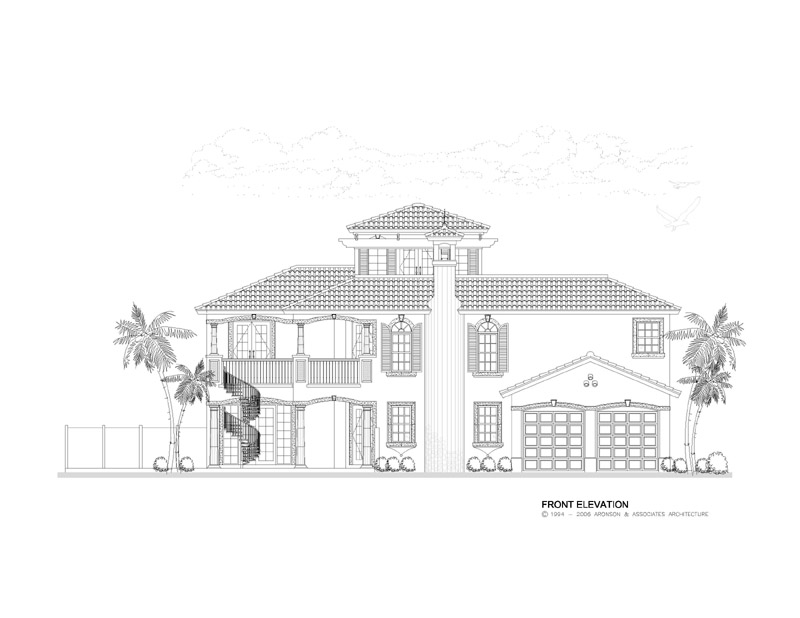

Front Elevation House View

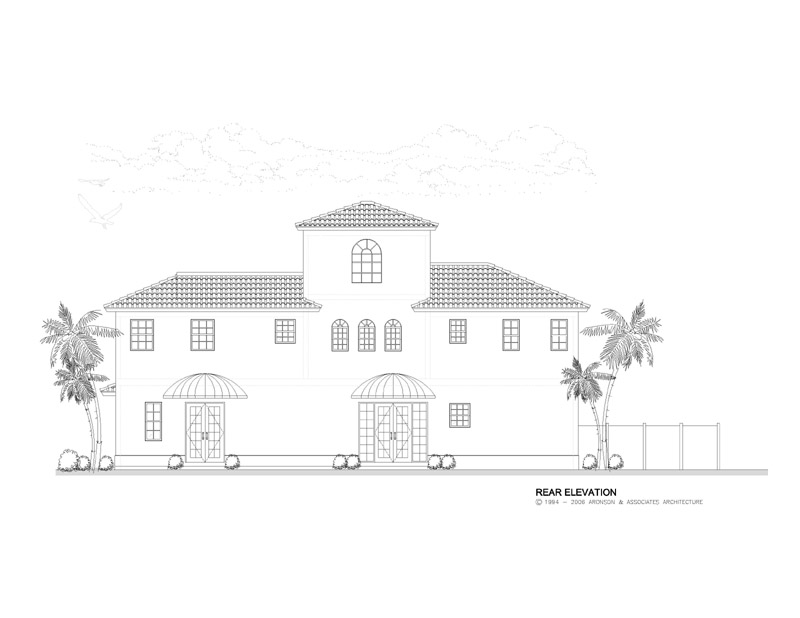

Rear Elevation View of Home

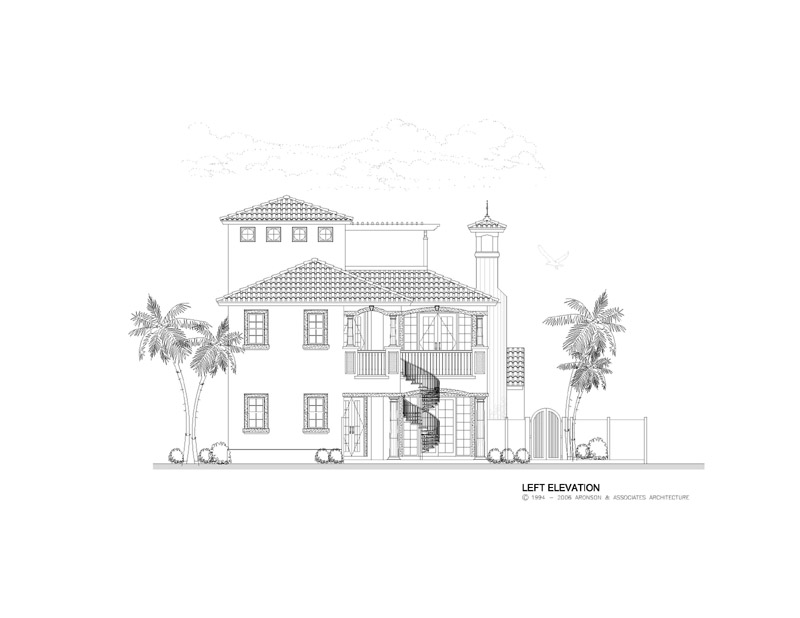

Left Elevation View of House

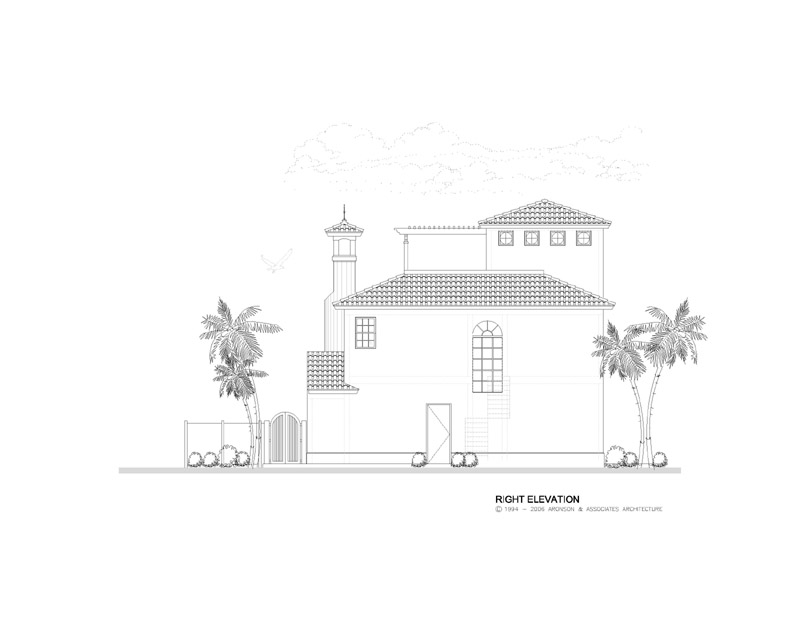

Right Elevation Home View
Beautiful House Plans
First Floor Home Plan
Upper Level Home Plan
Front Elevation House View
Rear Elevation View of Home
Left Elevation View of House
Right Elevation Home View

Plan Summary

  • Stories

    2/3

  • Bedrooms

    3

  • Bathrooms

    4

  • Garage

    2 car

  • Width x Length

    62'6" x 40'0"

  • First Floor Sq Ft

    1434

  • Second Floor Sq Ft

    1675

  • Total AC Sq Ft

    3212

  • Total Under Roof Sq Ft

    4234

Order Plan
Compare Plan
Save Plan
Customize Plan

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money
Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This two-story 3,212 sq. ft., Spanish-style house plan features a loft and deck, three bedrooms, four bathrooms, a study and a two-car garage. The grand covered entrance presents spectacular curb appeal. The first story provides a large living room and dining room with a stately fireplace, a gourmet delight kitchen and stylish tray ceilings. A master suite with walk-in closets, sitting area and a regal master bathroom opens to a covered patio adding to the luxury of this design. Get this 2-story house plan today.

Dimensions

  • Width x Length 62'6" x 40'0"
  • Height 35'-8
  • Stories 2/3/

Garage

  • Number of Cars 2
  • Attached Yes
  • Location right

Wall Construction

  • Interior Metal Stud
  • Exterior CMU Block
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 3
  • Possible 1
  • Total 3

Bathrooms

  • Full 4
  • Half 0
  • Total 4

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 2

Features

  • Fireplace Yes
  • Elevator No
  • Pool Yes
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1350

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2050

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $850

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $950

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1050

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1200

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1350

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type monolithic
  • Option 0

Floor System

  • Type American
  • Spacing 0
  • Subfloor Concrete
  • Thickness 0

Roof System

  • Type wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. Tile
  • Wind Speed 140

First Floor

  • Primary Living 9'-4
  • Secondary Living 9'-4
  • Primary Bedrooms
  • Secondary Bedrooms 0
  • Bathrooms 9'-4
  • Common Areas 9'-4

Second Floor

  • Primary Bedrooms 8'-8
  • Secondary Bedrooms 8'-8
  • Bathrooms 9'-4
  • Common Areas 9'-4

Exterior

  • Garage 11'-1
  • Covered Entry 9'-10
  • Covered Patio 0
  • Covered Balcony 9'-8

Total AC Sq Ft

  • First Floor AC 1434
  • Second Floor AC 1675
  • Total AC 3212

Total Under Roof Sq Ft

  • Garage 424
  • Covered Entry 299
  • Covered Patio 0
  • Covered Balconies 299
  • Total Under Roof 4234
