House Plans
Plan Summary
-
Stories
1
-
Bedrooms
4
-
Bathrooms
3
-
Garage
2 car
-
Width x Length
70' x 81'
-
First Floor Sq Ft
3224
-
Total AC Sq Ft
3224
-
Total Under Roof Sq Ft
4682
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

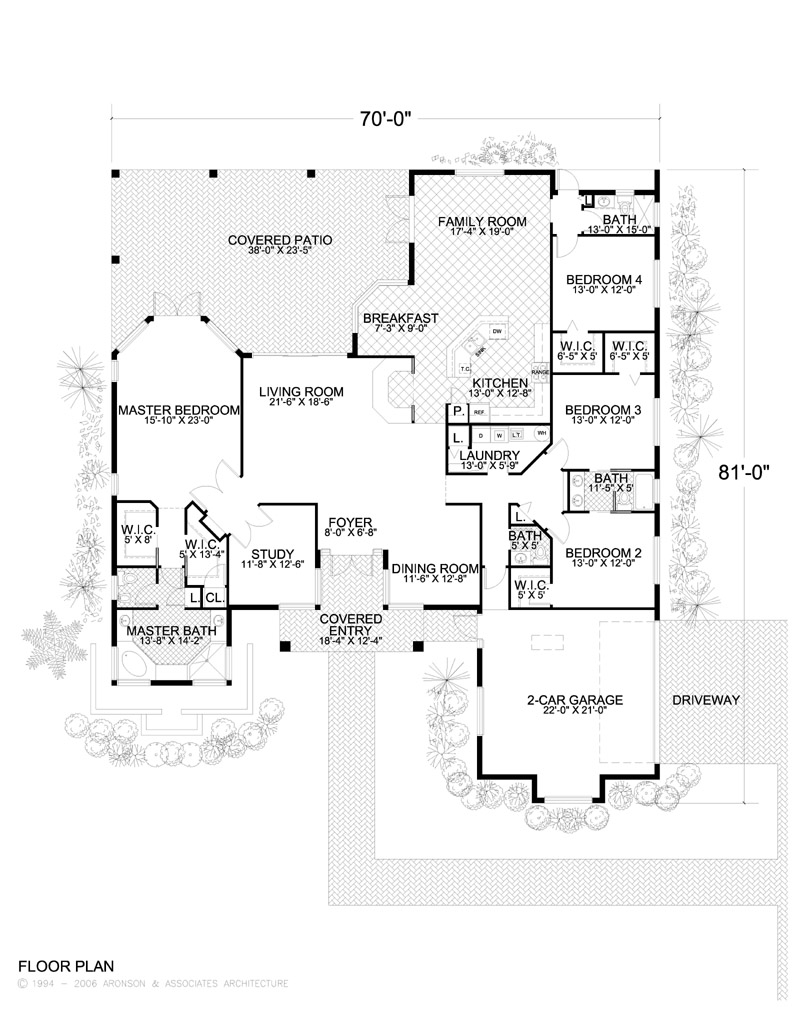

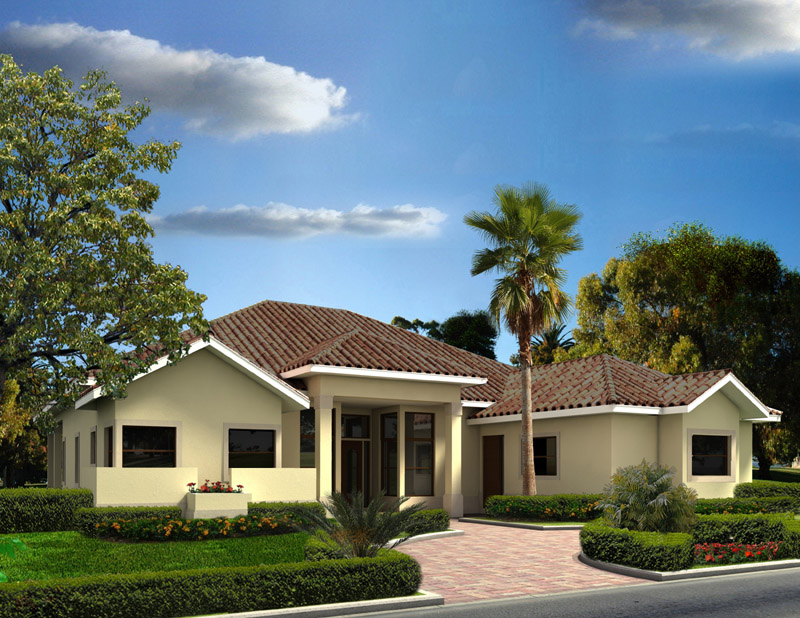

This 3,224 sq. ft., one-story, Contemporary, Florida-style home floor plan features four bedrooms, three and one-half bathrooms, a grand covered entry and a large covered patio. The patio creates a great place to enjoy the outdoors! This home model includes a formal foyer, inviting guests into the living room. It is flanked by a dining room and study, a large kitchen with an eating bar and breakfast area opening to the family room. The exclusive master suite features “His and Hers” walk-in closets with a regal master bathroom opening onto a covered patio, adding to the luxury of this design. Purchase and download this home floor plan today.
Dimensions
- Width x Length 70' x 81'
- Height 28'-6
- Stories 1/
Garage
- Number of Cars 2
- Attached Yes
- Location Right
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 0
- Total 4
Bathrooms
- Full 3
- Half 1
- Total 3

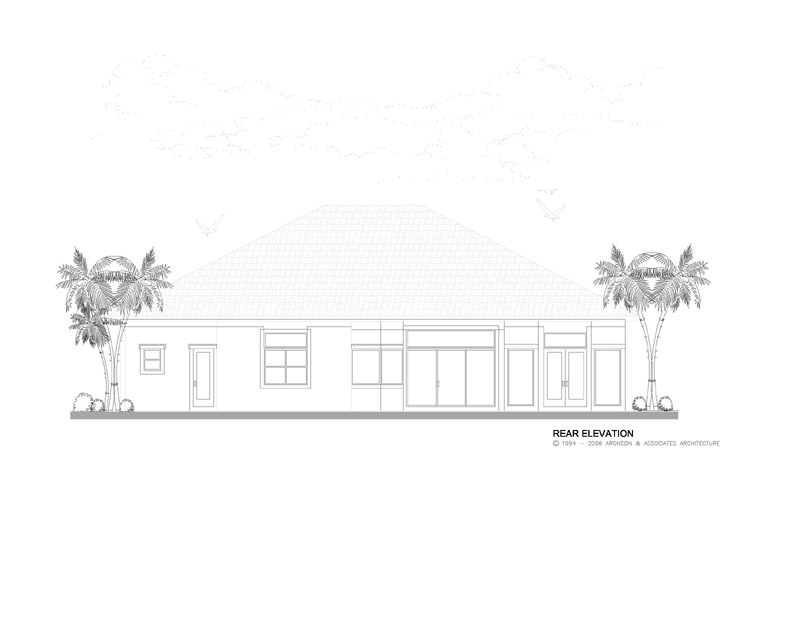

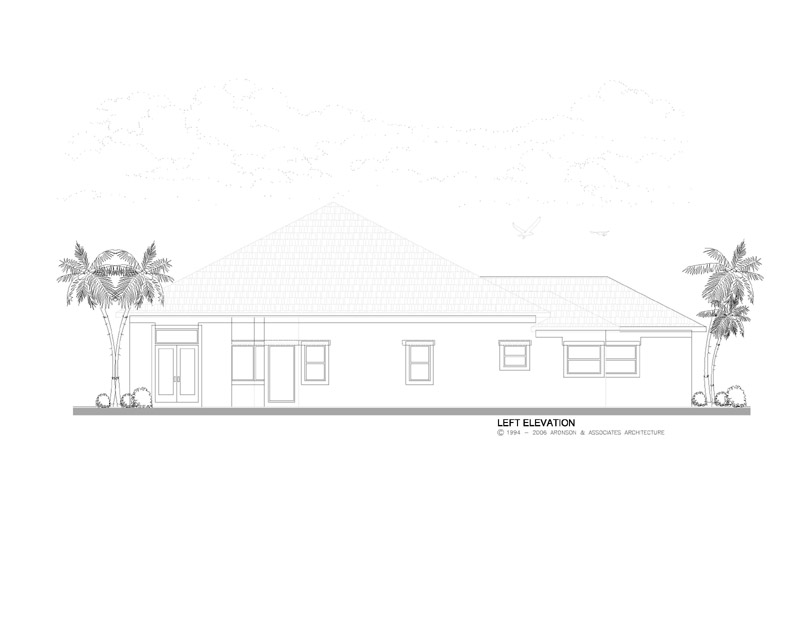

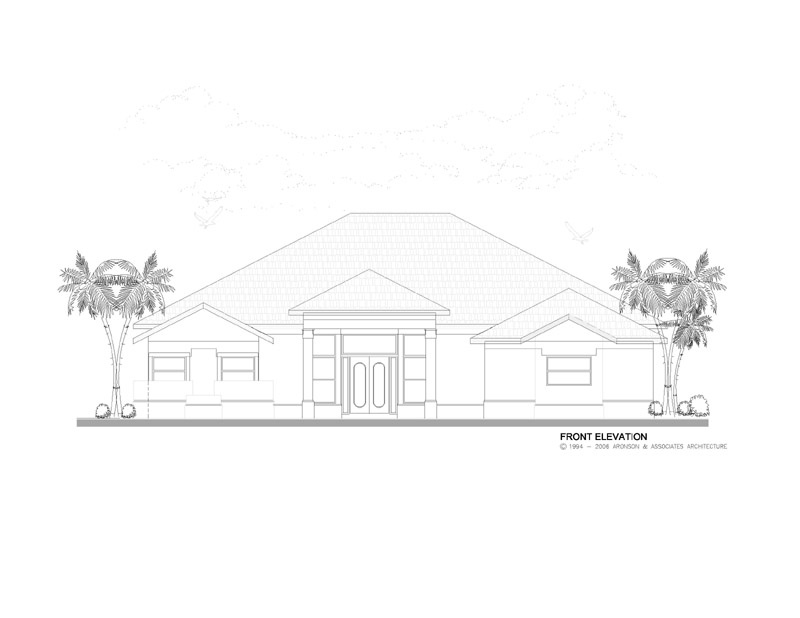

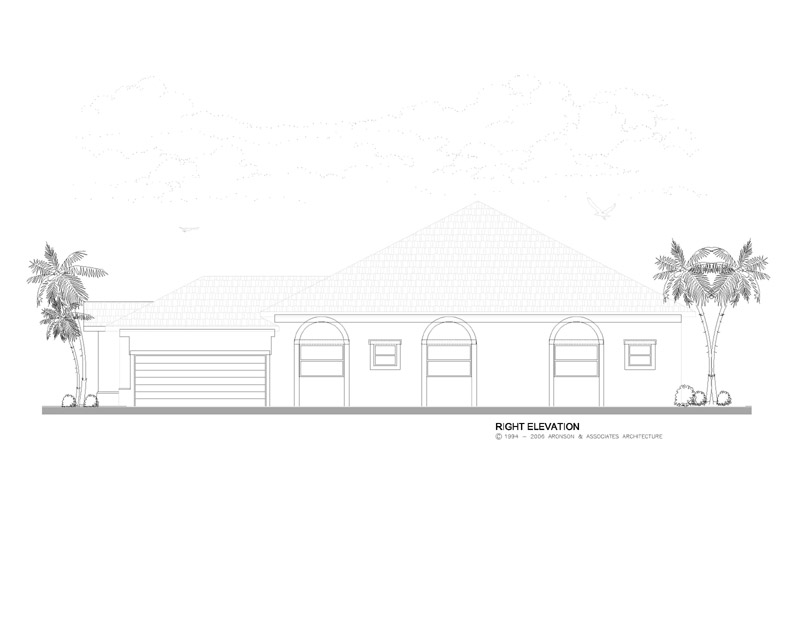

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1350
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2050
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $850
- (Extra Sets: $50)
- More Information
3 Sets Price: $950
- (Extra Sets: $50)
- More Information
5 Sets Price: $1050
- (Extra Sets: $50)
- More Information
8 Sets Price: $1200
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1350
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140
First Floor
- Primary Living 12'-0
- Secondary Living 12'-0
- Primary Bedrooms 12'-0
- Secondary Bedrooms 12'-0
- Bathrooms 10'-0
- Common Areas 10'-0
Exterior
- Garage 10'-0
- Covered Entry 14'-0
- Covered Patio 12'-0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 3224
- Total AC 3224
Total Under Roof Sq Ft
- Garage 534
- Covered Entry 154
- Covered Patio 770
- Covered Balconies 0
- Total Under Roof 4682
