House Plan Model 3250-9811

Browsing: By Two Story

Large Home Rendering

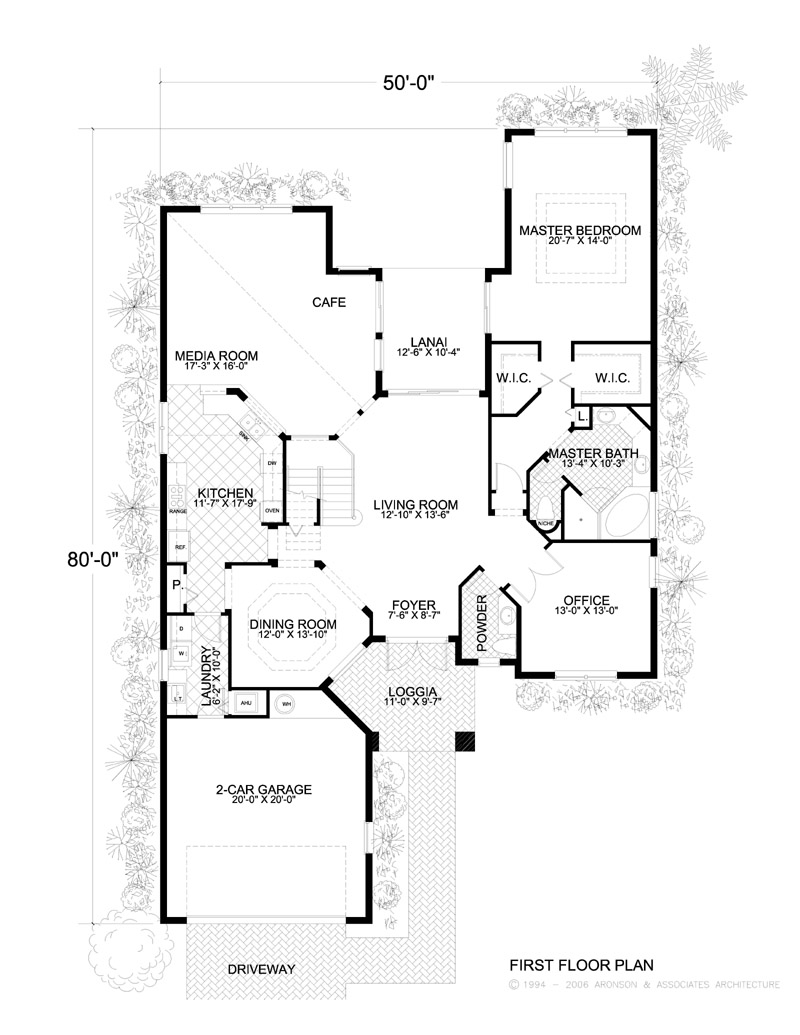

House First Floor Plan

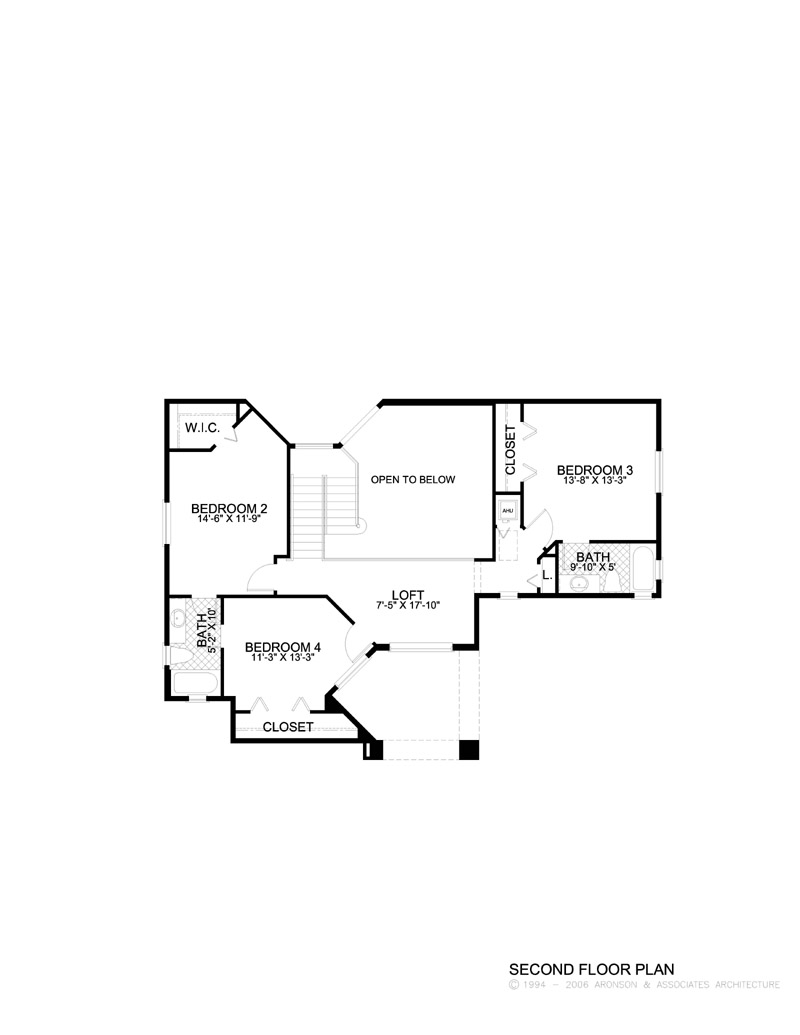

House Second Floor Plan

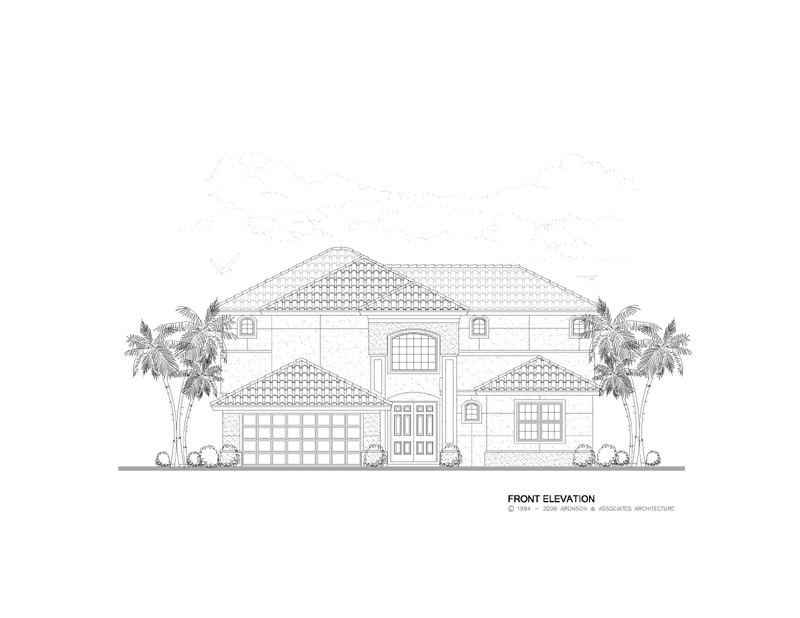

House Front Elevation View

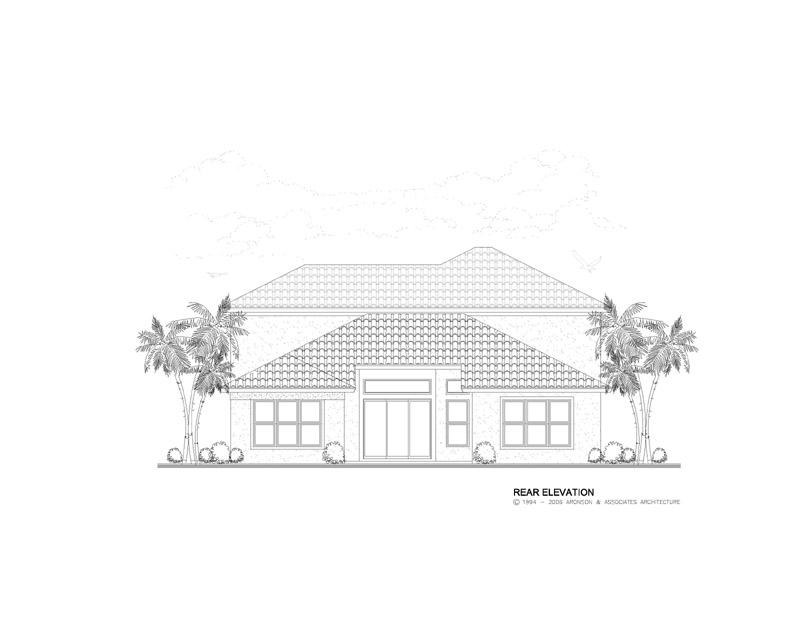

House Rear Elevation View

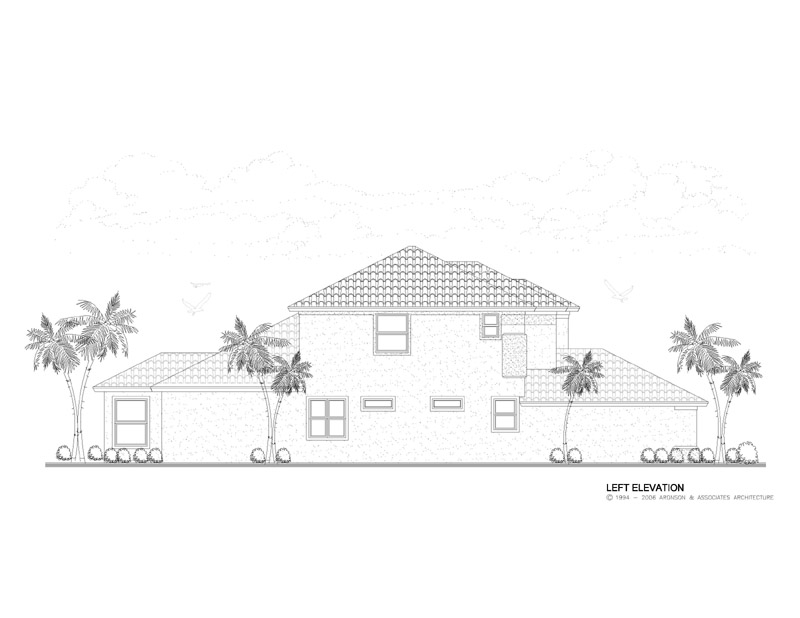

House Left Elevation View

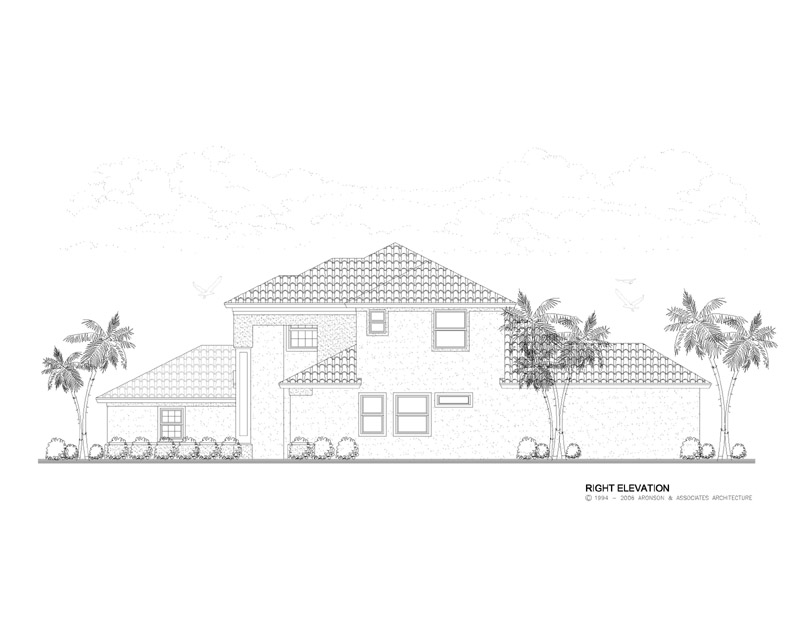

House Right Elevation View
Large Home Rendering
House First Floor Plan
House Second Floor Plan
House Front Elevation View
House Rear Elevation View
House Left Elevation View
House Right Elevation View

Plan Summary

  • Stories

    2

  • Bedrooms

    5

  • Bathrooms

    4

  • Garage

    2 car

  • Width x Length

    50' x 80'

  • First Floor Sq Ft

    2268

  • Second Floor Sq Ft

    982

  • Total AC Sq Ft

    3250

  • Total Under Roof Sq Ft

    3964

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money

Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This 3,250 sq. ft. two-story Florida Mediterranean home floor plan features five bedrooms, three and one-half bathrooms and a three-car garage. There is a grand covered entrance featuring a custom door and arched transom. This home also has a lanai! The unique design of this home also features a home office located adjacent to the master suite. This master suite has walk-in closets and a regal master bathroom. The gourmet kitchen with an eating bar and pantry opens to a combination cafe and media room, adding to the luxury of this design. Get this home floor plan today.

Dimensions

  • Width x Length 50' x 80'
  • Height 29'-8
  • Stories 2/

Garage

  • Number of Cars 2
  • Attached Yes
  • Location Left

Wall Construction

  • Interior Metal Stud
  • Exterior CMU Block
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 5
  • Possible 0
  • Total 5

Bathrooms

  • Full 3
  • Half 1
  • Total 4

Elevation

  • Finishes Stucco
  • Master Bedroom Location 1
  • Utility Location 2

Features

  • Fireplace No
  • Elevator No
  • Pool No
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1350

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2050

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $850

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $950

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1050

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1200

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1350

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type monolithic
  • Option 0

Floor System

  • Type Wood Truss
  • Spacing 0
  • Subfloor wood
  • Thickness 3/4

Roof System

  • Type wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. Tile
  • Wind Speed 140

First Floor

  • Primary Living 20'-10
  • Secondary Living
  • Primary Bedrooms 10'-0
  • Secondary Bedrooms 0
  • Bathrooms 9'-4
  • Common Areas 9'-4

Second Floor

  • Primary Bedrooms 0
  • Secondary Bedrooms 9'-4
  • Bathrooms 9'-4
  • Common Areas 0

Exterior

  • Garage 8'-0
  • Covered Entry 20'-0
  • Covered Patio 10'-0
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 2268
  • Second Floor AC 982
  • Total AC 3250

Total Under Roof Sq Ft

  • Garage 463
  • Covered Entry 124
  • Covered Patio 127
  • Covered Balconies 0
  • Total Under Roof 3964
