House Plans
Plan Summary
-
Stories
2
-
Bedrooms
4
-
Bathrooms
3
-
Garage
2 car
-
Width x Length
39'10" x 78'4"
-
First Floor Sq Ft
1654
-
Second Floor Sq Ft
1617
-
Total AC Sq Ft
3271
-
Total Under Roof Sq Ft
4082
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
This plan is restricted.
Please call 1-855-PLANS-123 (1-954-736-4696) for more information
Plan Description
This 3,271 sq. ft. two-story, Florida-style house floor plan has four bedrooms and three and one-half bathrooms. This design includes a library. The huge kitchen with an eating bar opens to the family room . The master bedroom on the second floor provides his and hers walk-in closets and a regal master bathroom. Balconies and covered patio adds to a strong curb appeal. This design offers many unique amenities and presents a floor layout which maximizes the use of space. Get this house plan today.
Dimensions
- Width x Length 39'10" x 78'4"
- Height 26'-10
- Stories 2/
Garage
- Number of Cars 2
- Attached Yes
- Location left
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 0
- Total 4
Bathrooms
- Full 3
- Half 0
- Total 3

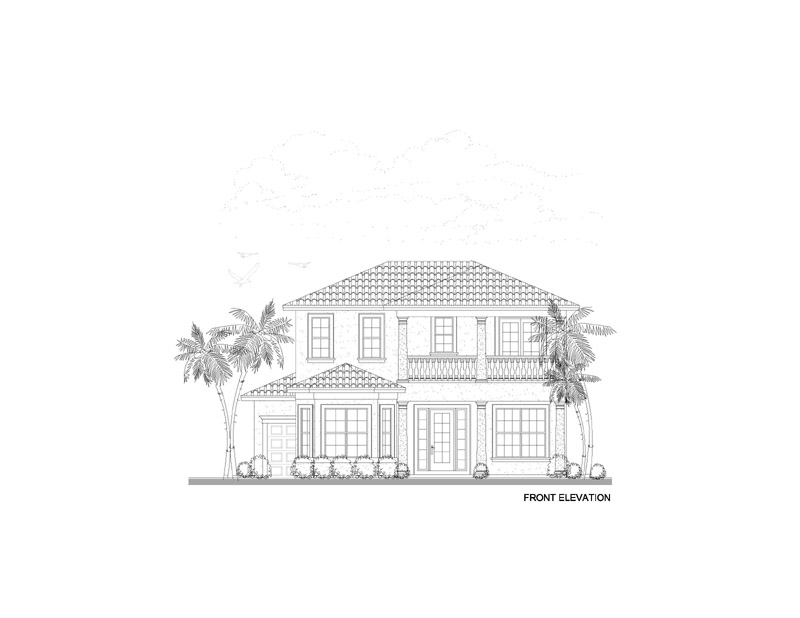

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1350
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2050
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $850
- (Extra Sets: $50)
- More Information
3 Sets Price: $950
- (Extra Sets: $50)
- More Information
5 Sets Price: $1050
- (Extra Sets: $50)
- More Information
8 Sets Price: $1200
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1350
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type wood truss
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140
First Floor
- Primary Living 10'-2
- Secondary Living 10'-2
- Primary Bedrooms 0
- Secondary Bedrooms 0
- Bathrooms 10'-2
- Common Areas 0

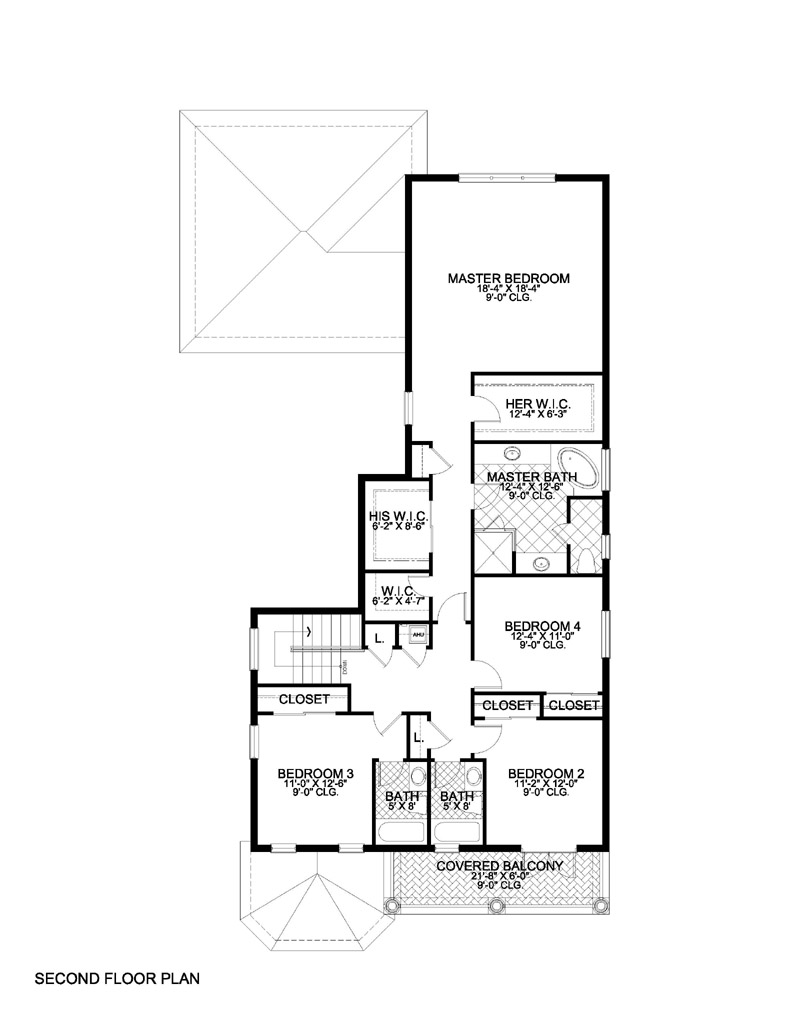

Second Floor
- Primary Bedrooms 9'-0
- Secondary Bedrooms 9'-0
- Bathrooms 9'-0
- Common Areas 0
Exterior
- Garage 10'-2
- Covered Entry 10'-2
- Covered Patio 10'-2
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 1654
- Second Floor AC 1617
- Total AC 3271
Total Under Roof Sq Ft
- Garage 418
- Covered Entry 130
- Covered Patio 133
- Covered Balconies 130
- Total Under Roof 4082
