PLAN SUMMARY
-
Stories
2
-
Bedrooms
5
-
Bathrooms
4
-
Garage
3 car
-
Width x Length:
210' 7" x 80' "
-
First Floor Sq Ft
2,743 Sq. Ft.
-
Second Floor Sq Ft
587 Sq. Ft.
-
Total AC Sq Ft
3,330 Sq. Ft.
-
Total Under Roof Sq Ft
4,417 Sq. Ft.
$0.00
Plan Description

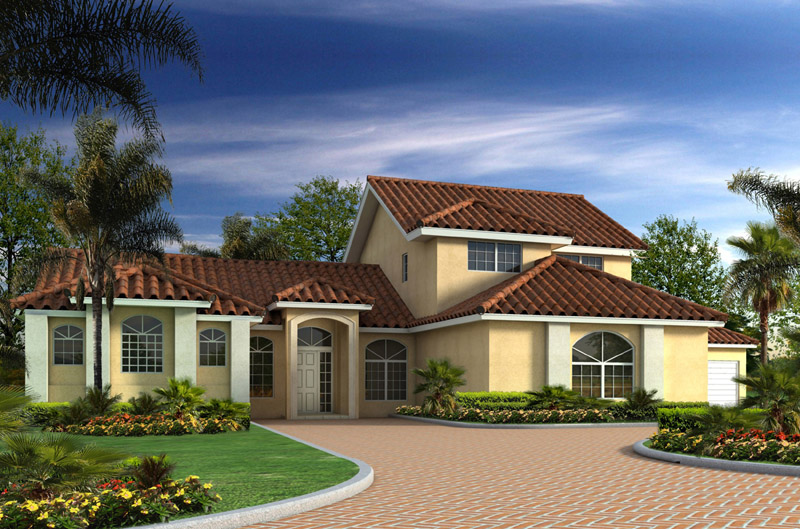

This beautiful 3,330 sq. ft., two-story, classic home floor plan features five bedrooms, three bathrooms plus a cabana, a two-car garage + one detached garage attached to full bed-bathroom. This design includes an exclusive master suite with large walk-in closets with a regal master bathroom next to a covered patio. An island kitchen is centrally located with a dinning room, family room and living room. Purchase this 5 bedrooms home floor plan today.
Dimensions
-
Width x Length
210' 7" x 80' "
-
Height
30'-8
-
Stories
2/
Garage
-
Number of Cars
3
-
Attached
Yes
-
Location
Left and right
Wall Construction
-
Interior
Metal Stud
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
5
-
Possible
0
-
Total
5
Bathrooms
-
Full
4
-
Half
0
-
Total
4

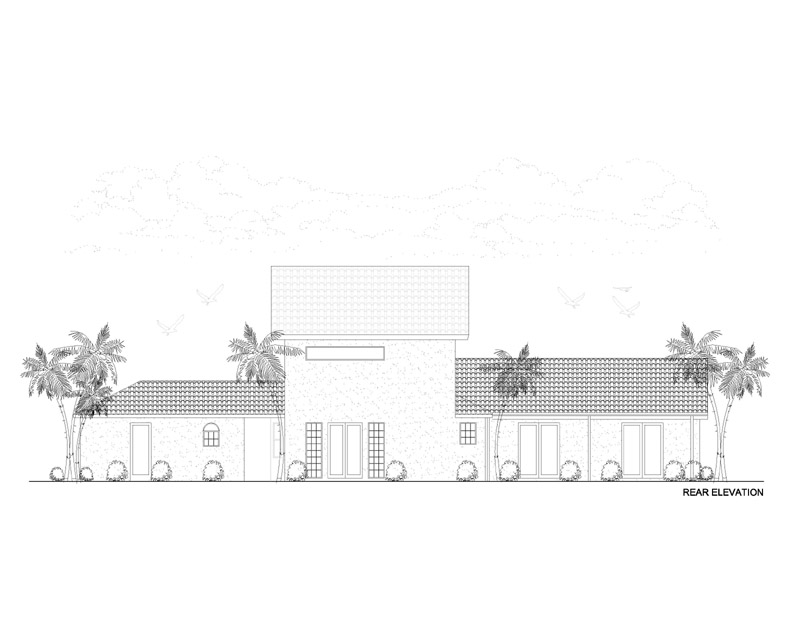

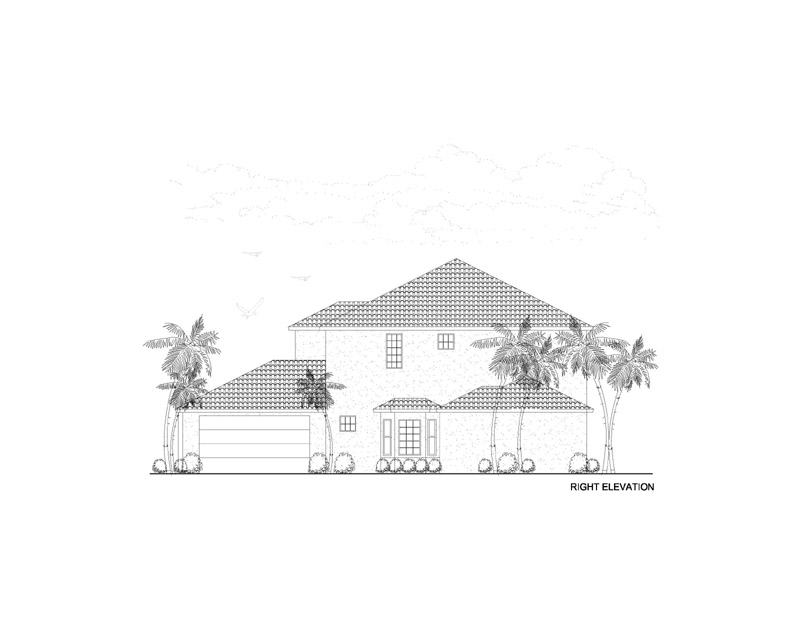

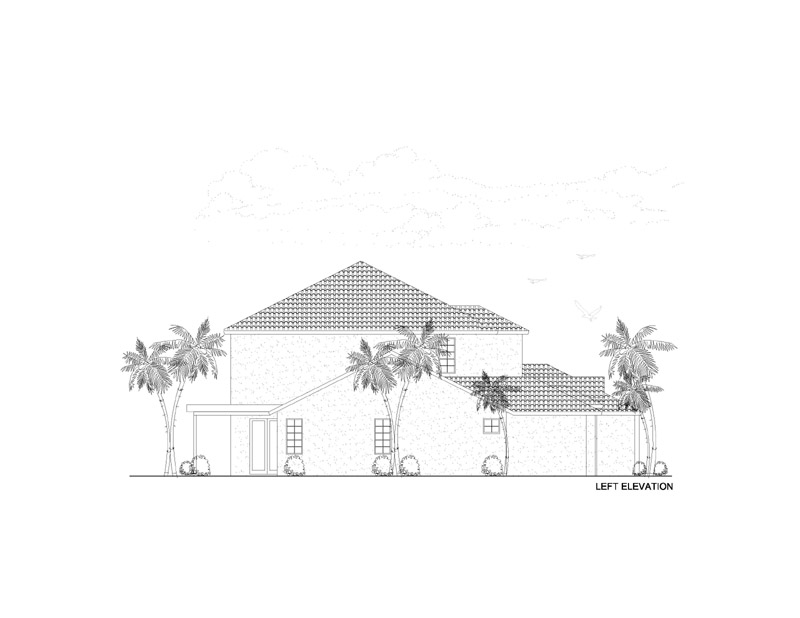

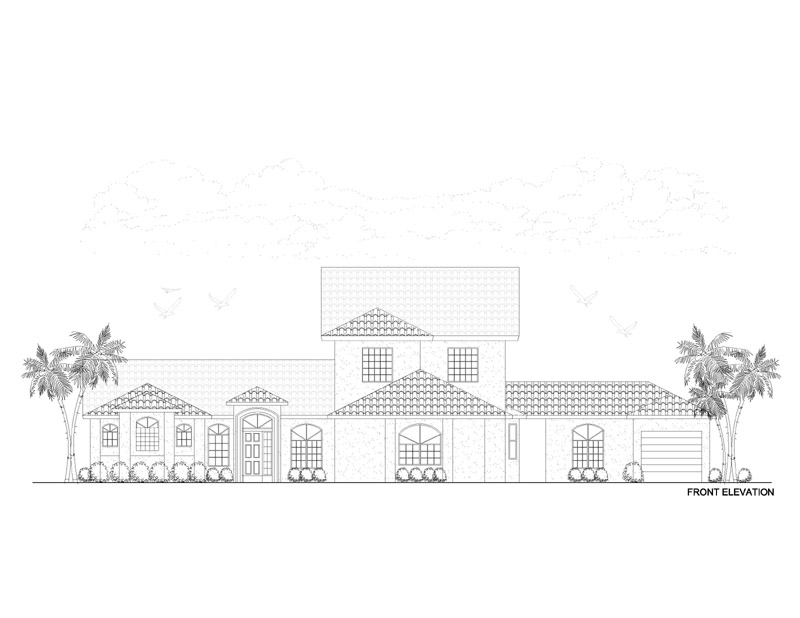

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
Yes
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1350
CAD Disk Price: $2050
Reverse PDF Price: $1600
Reverse CAD Price: $2300
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $850
3 Sets Price: $950
5 Sets Price: $1050
8 Sets Price: $1200
Reproducible Vellum Price: $1350
Base – Not for Construction Price: $850
3 Sets (Reverse) Price: $1150
5 Sets (Reverse) Price: $1300
8 Sets (Reverse) Price: $1450
Reproducible Vellum (Reverse) Price: $1600
Foundation Type
-
Type
Piling
-
Option
0
Floor System
-
Type
Wood Truss
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. Tile
-
Wind Speed
140

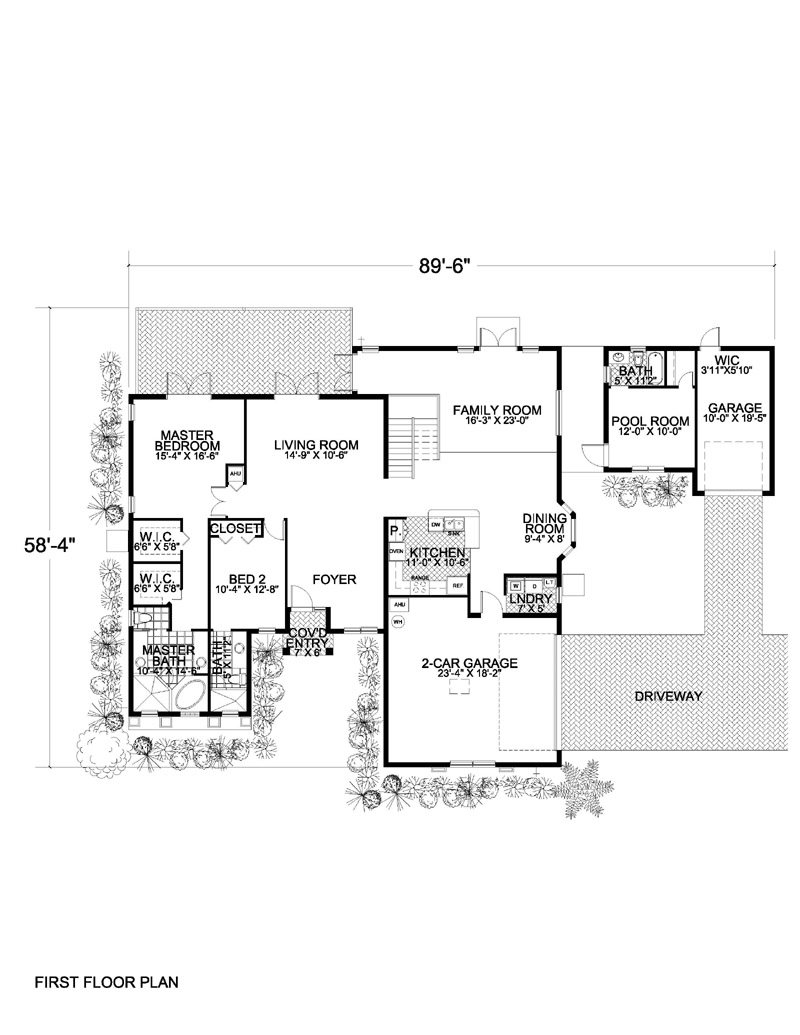

First Floor
-
Primary Living
9'-0
-
Secondary Living
9'-0
-
Primary Bedrooms
0
-
Secondary Bedrooms
9'-0
-
Bathrooms
9'-0
-
Common Areas
9'-0

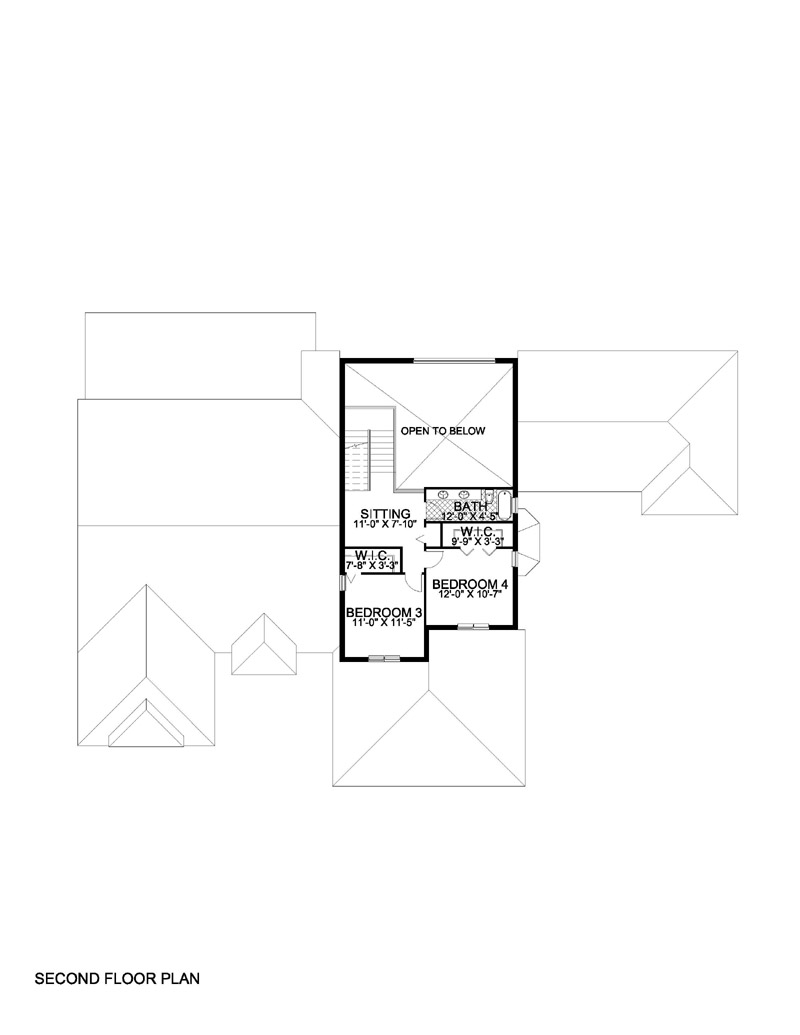

Second Floor
-
Primary Bedrooms
9'-10
-
Secondary Bedrooms
-
Bathrooms
9'-10
-
Common Areas
0
Exterior
-
Garage
9'-0
-
Covered Entry
9'-0
-
Covered Patio
0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2743
-
Second Floor AC
587
-
Total AC
3330
Total Under Roof Sq Ft
-
Garage
589
-
Covered Entry
36
-
Covered Patio
462
-
Covered Balconies
0
-
Total Under Roof
4417
