House Plans
Plan Summary
-
Stories
1
-
Bedrooms
4
-
Bathrooms
3
-
Garage
3 car
-
Width x Length
73'3" x 88'6"
-
First Floor Sq Ft
3442
-
Total AC Sq Ft
3442
-
Total Under Roof Sq Ft
4470
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

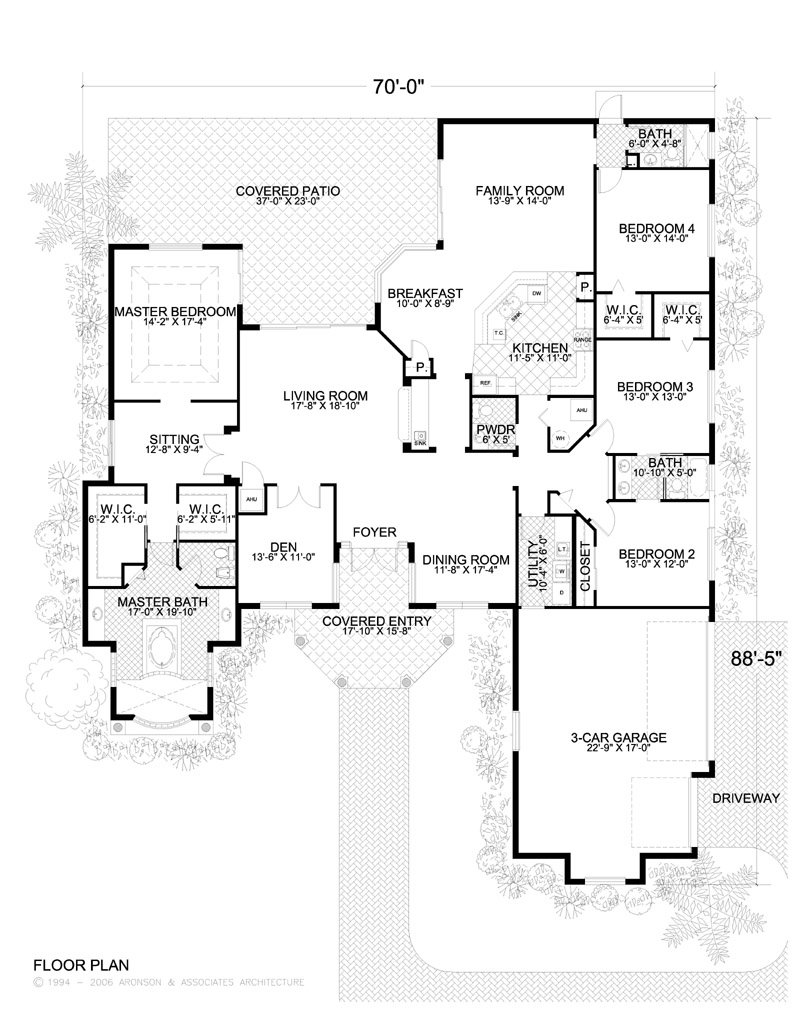

This one-story, classic Florida Mediterranean, luxury home features an open design with four bedrooms, two and one-half bathrooms plus a cabana, a three-car garage, grand covered entrance, columns and arches providing a spectacular curb appeal. The floor plan provides a gourmet kitchen with pantry and an eating bar opening to a family room. There is a den for additional privacy and an exclusive master suite with a sitting area, “His and Hers” walk-in closets and a regal master bathroom opening to a covered patio.
Dimensions
- Width x Length 73'3" x 88'6"
- Height 28'-6
- Stories 1/
Garage
- Number of Cars 3
- Attached Yes
- Location Right
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 1
- Total 4
Bathrooms
- Full 3
- Half 1
- Total 3

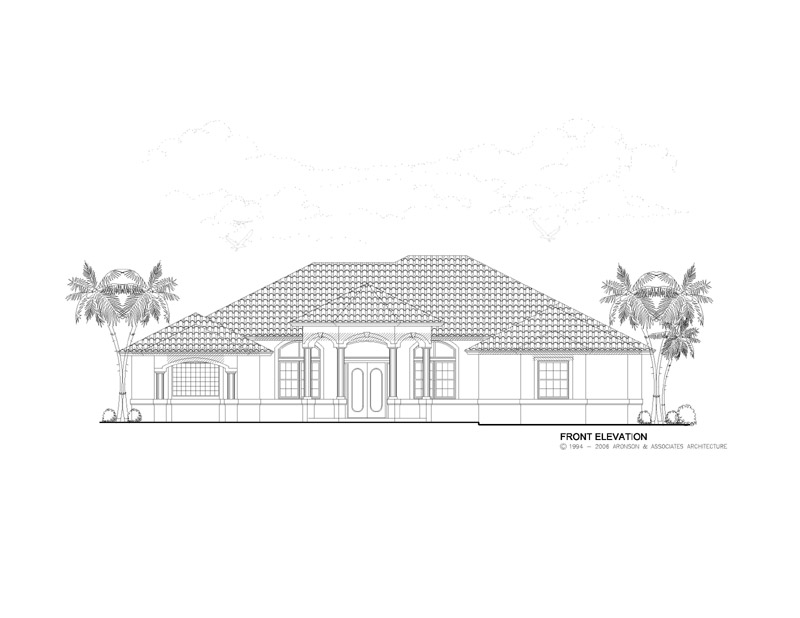

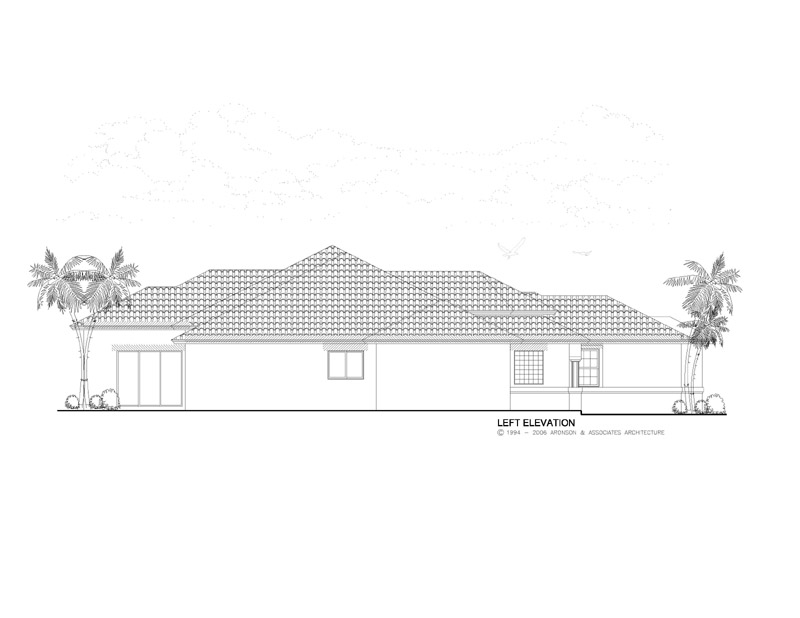

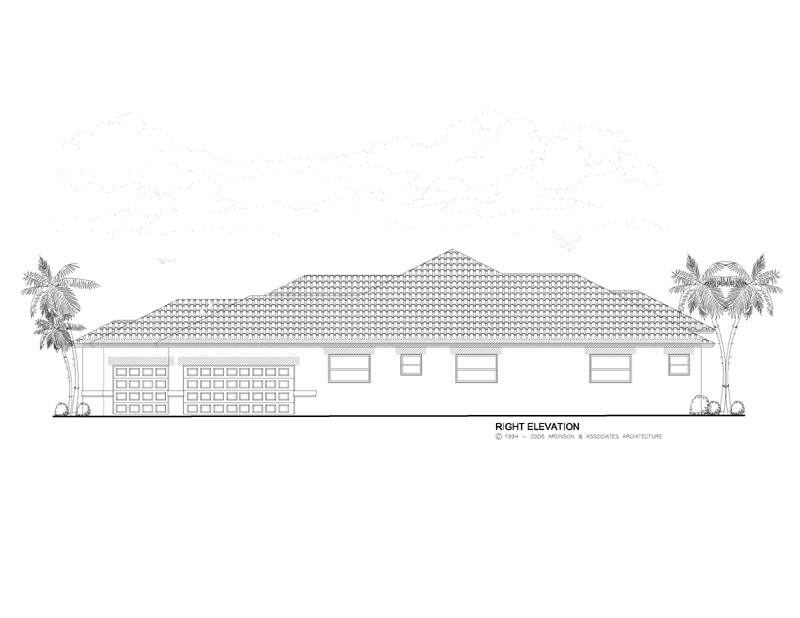

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1350
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2050
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $850
- (Extra Sets: $50)
- More Information
3 Sets Price: $950
- (Extra Sets: $50)
- More Information
5 Sets Price: $1050
- (Extra Sets: $50)
- More Information
8 Sets Price: $1200
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1350
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 6:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140
First Floor
- Primary Living 10'-0
- Secondary Living 10'-0
- Primary Bedrooms 8'-0
- Secondary Bedrooms 10'-0
- Bathrooms 10'-0
- Common Areas 10'-0
Exterior
- Garage 10'-10
- Covered Entry 11'-10
- Covered Patio 10'-0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 3442
- Total AC 3442
Total Under Roof Sq Ft
- Garage 682
- Covered Entry 196
- Covered Patio 150
- Covered Balconies 0
- Total Under Roof 4470
