House Plan Model 3497-9816

Browsing: By Two Story

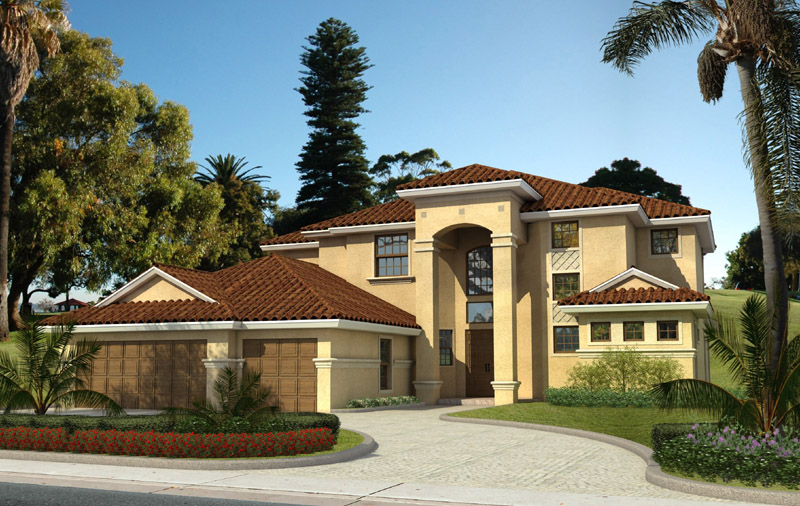

House Rendering

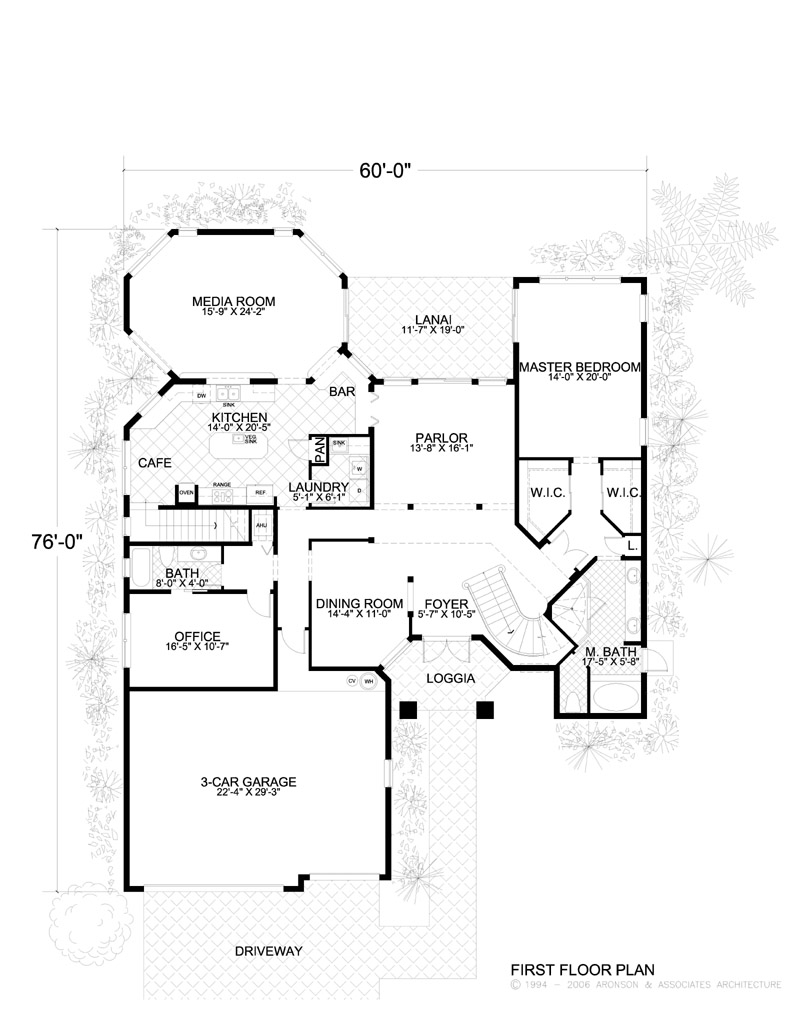

First Floor House Plan

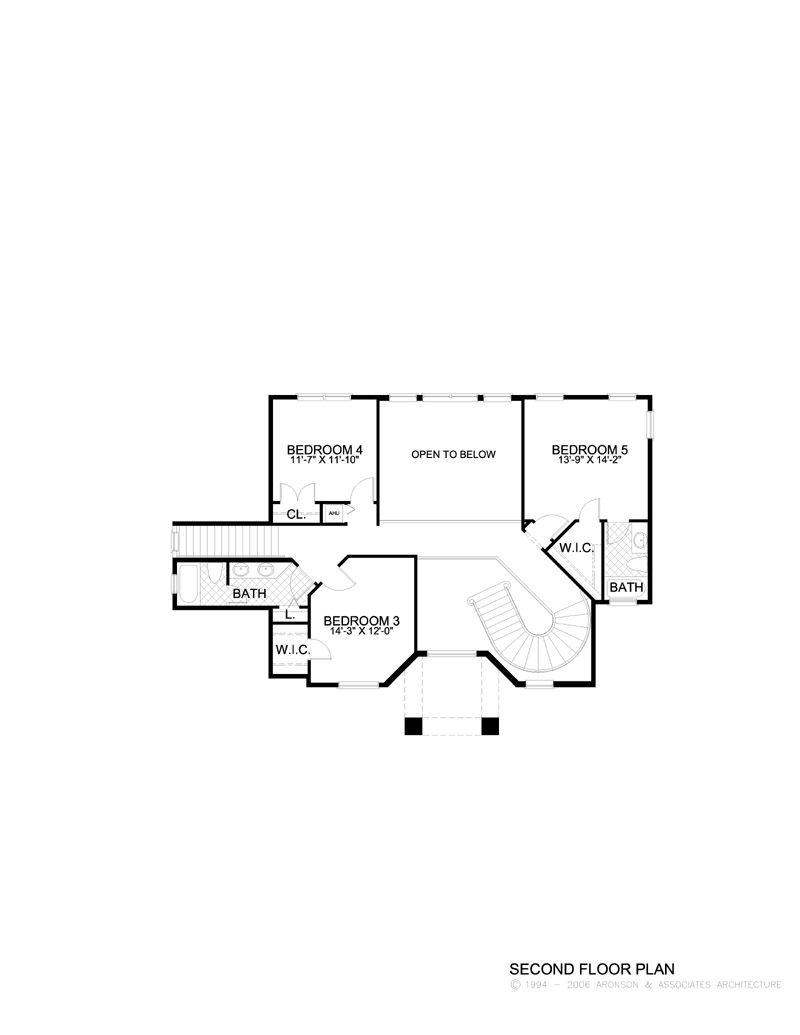

Second Floor House Plan
House Front Elevation View

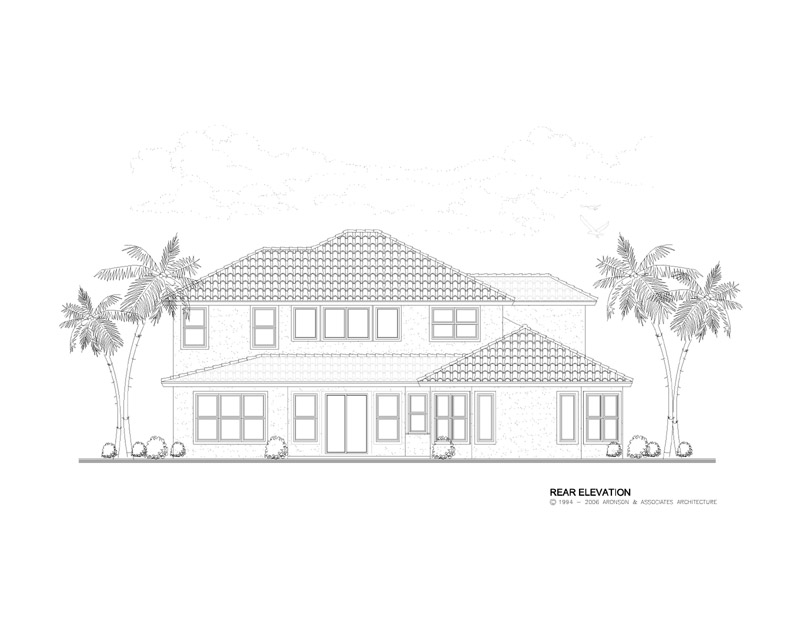

House Rear Elevation View

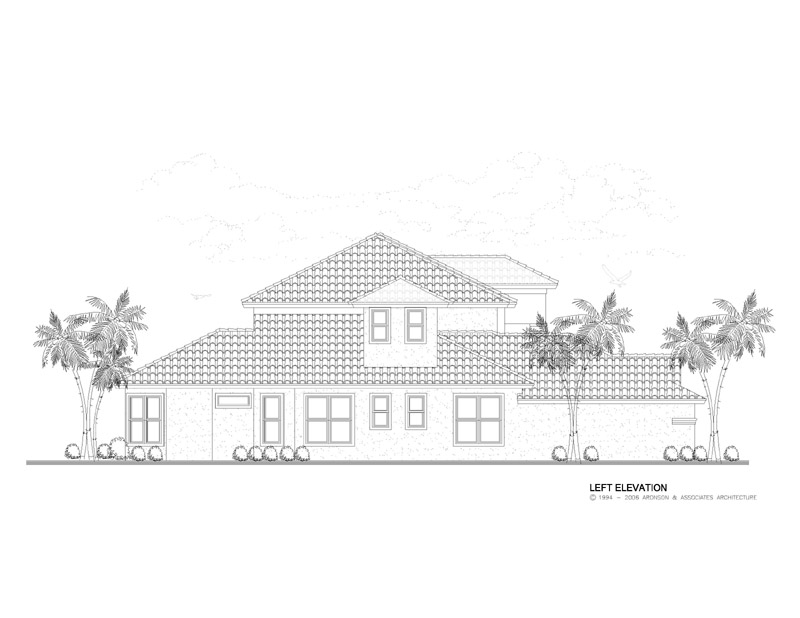

House Left Elevation View

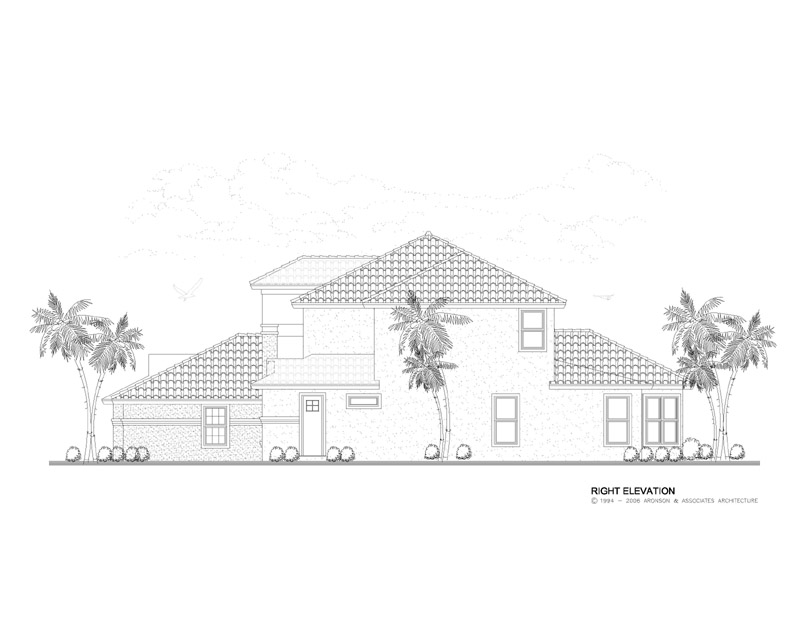

Right Elevation View of House
House Rendering
First Floor House Plan
Second Floor House Plan
House Front Elevation View
House Rear Elevation View
House Left Elevation View
Right Elevation View of House

Plan Summary

  • Stories

    2

  • Bedrooms

    5

  • Bathrooms

    4

  • Garage

    3 car

  • Width x Length

    60' x 76'

  • First Floor Sq Ft

    2521

  • Second Floor Sq Ft

    976

  • Total AC Sq Ft

    3497

  • Total Under Roof Sq Ft

    4552

Order Plan
Compare Plan
Save Plan
Customize Plan

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money
Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This two-story, Mediterranean-style home has five bedrooms, four bathrooms and a three-car garage. The home has eight-foot high French doors with arched transom accenting the covered entrance. This luxurious design offers optional elevations. The design is Contemporary and the open central design has a parlor with two-volume ceiling. This design is unique in that it features a home office and a towering covered entrance. The gourmet island kitchen with an eating bar and cafe opens to a media room. This model includes an exclusive master suite with large walk-in closets and a regal master bath that opens onto the lanai.

Dimensions

  • Width x Length 60' x 76'
  • Height 0
  • Stories 2/

Garage

  • Number of Cars 3
  • Attached Yes
  • Location Left

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 4
  • Possible 1
  • Total 5

Bathrooms

  • Full 4
  • Half 0
  • Total 4

Elevation

  • Finishes Stucco
  • Master Bedroom Location 1
  • Utility Location 2

Features

  • Fireplace No
  • Elevator No
  • Pool No
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1350

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2050

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $850

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $950

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1050

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1200

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1350

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type Steel joist
  • Spacing 24
  • Subfloor Concrete
  • Thickness 3/4

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. tile
  • Wind Speed 140

First Floor

  • Primary Living 10'
  • Secondary Living 10'
  • Primary Bedrooms 10'
  • Secondary Bedrooms 0
  • Bathrooms 10'
  • Common Areas 20'-9

Second Floor

  • Primary Bedrooms 0
  • Secondary Bedrooms 9'-3
  • Bathrooms 9'-3
  • Common Areas 9'-3

Exterior

  • Garage 8'-0
  • Covered Entry 23'-6
  • Covered Patio 10'-0
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 2521
  • Second Floor AC 976
  • Total AC 3497

Total Under Roof Sq Ft

  • Garage 741
  • Covered Entry 98
  • Covered Patio 216
  • Covered Balconies 0
  • Total Under Roof 4552
