PLAN SUMMARY
-
Stories
2
-
Bedrooms
6
-
Bathrooms
4
-
Garage
2 car
-
Width x Length:
50' " x 80' "
-
First Floor Sq Ft
2,261 Sq. Ft.
-
Second Floor Sq Ft
1,282 Sq. Ft.
-
Total AC Sq Ft
3,543 Sq. Ft.
-
Total Under Roof Sq Ft
4,257 Sq. Ft.
$0.00
Plan Description

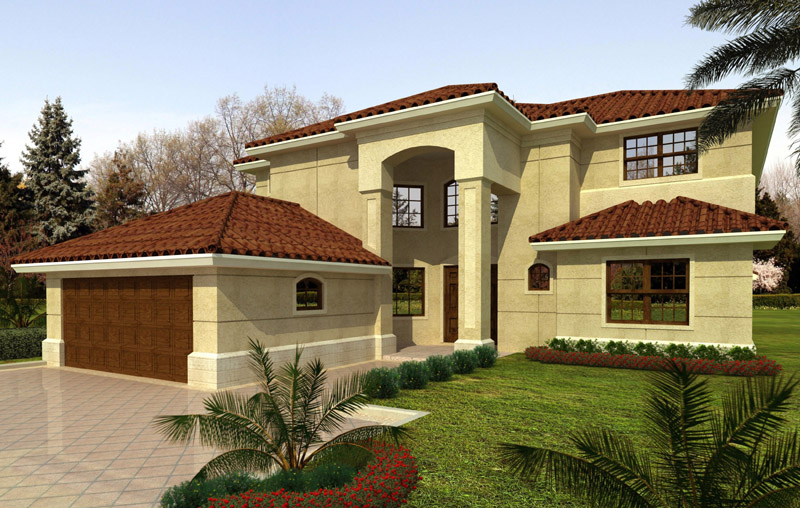

This beautiful, 3,543 sq. ft., two-story, classic Florida Mediterranean-style home floor features five bedrooms, three and one-half bathrooms, a two-car garage, grand covered entrance with custom front door with an arched transom. This unique design includes a master suite with walk-in closets and a regal master bath with a home office adjacent. A gourmet delight kitchen opens to a combination cafe and media room which adds to the luxury of this design. Purchase this home floor plan today.
Dimensions
-
Width x Length
50' " x 80' "
-
Height
29'-6
-
Stories
2/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal Stud
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
5
-
Possible
1
-
Total
6
Bathrooms
-
Full
3
-
Half
1
-
Total
4

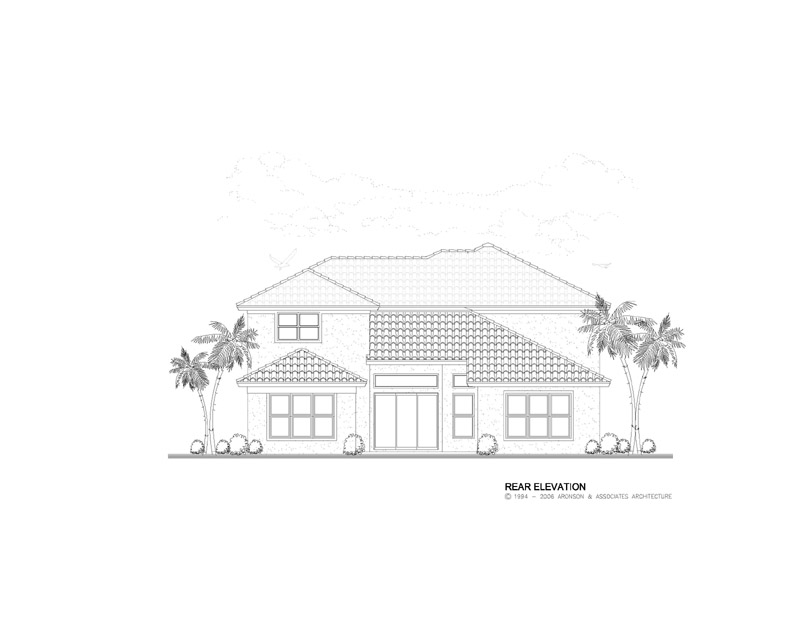

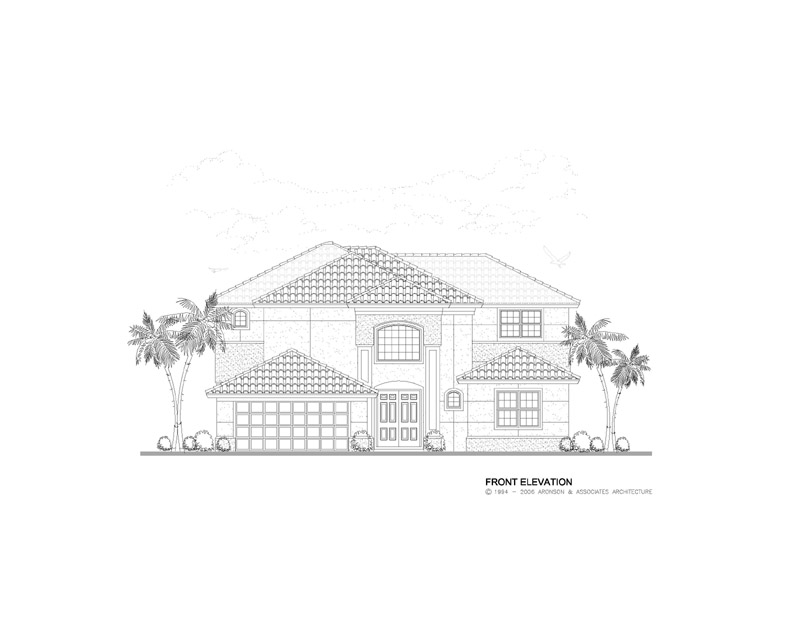

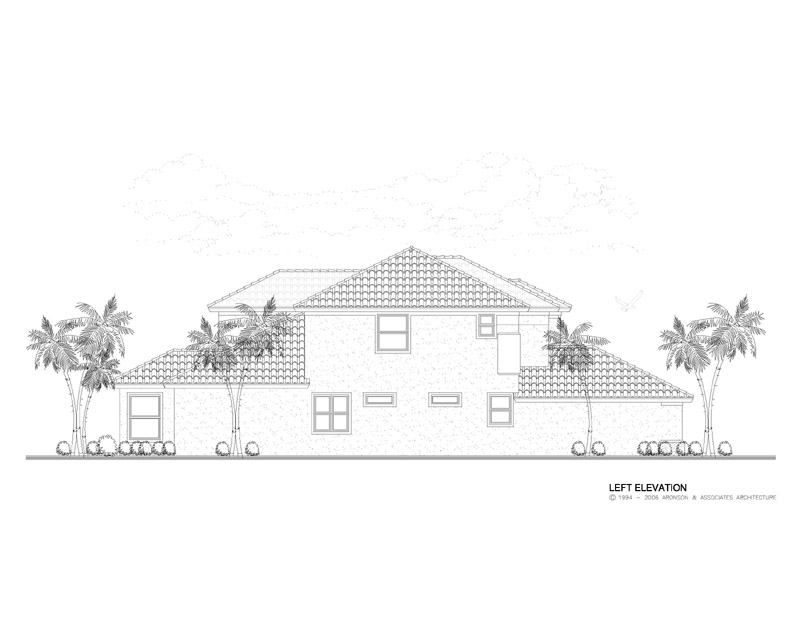

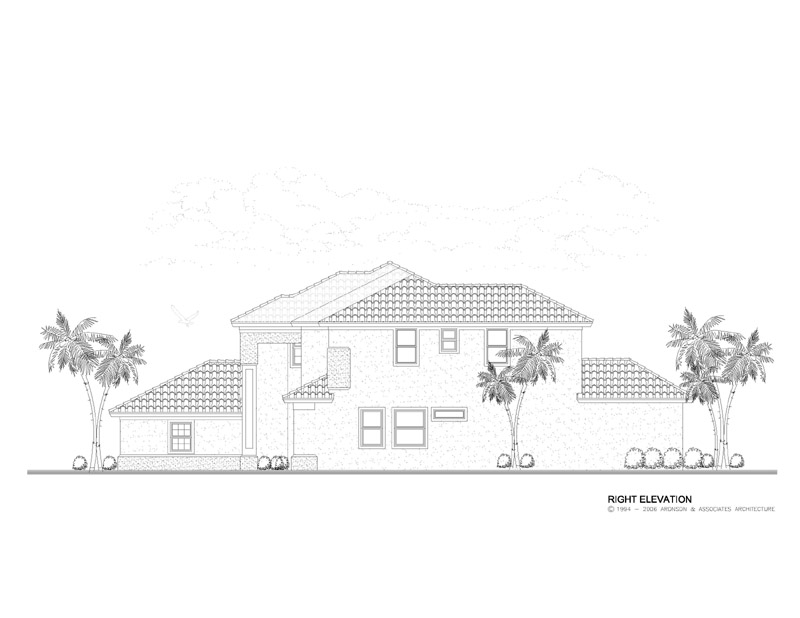

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
2
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1400
CAD Disk Price: $2100
Reverse PDF Price: $1650
Reverse CAD Price: $2350
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $900
3 Sets Price: $1000
5 Sets Price: $1100
8 Sets Price: $1250
Reproducible Vellum Price: $1400
Base – Not for Construction Price: $900
3 Sets (Reverse) Price: $1250
5 Sets (Reverse) Price: $1350
8 Sets (Reverse) Price: $1500
Reproducible Vellum (Reverse) Price: $1650
Foundation Type
-
Type
monolithic
-
Option
0
Floor System
-
Type
Wood Truss
-
Spacing
24
-
Subfloor
wood
-
Thickness
3/4
Roof System
-
Type
wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. Tile
-
Wind Speed
140

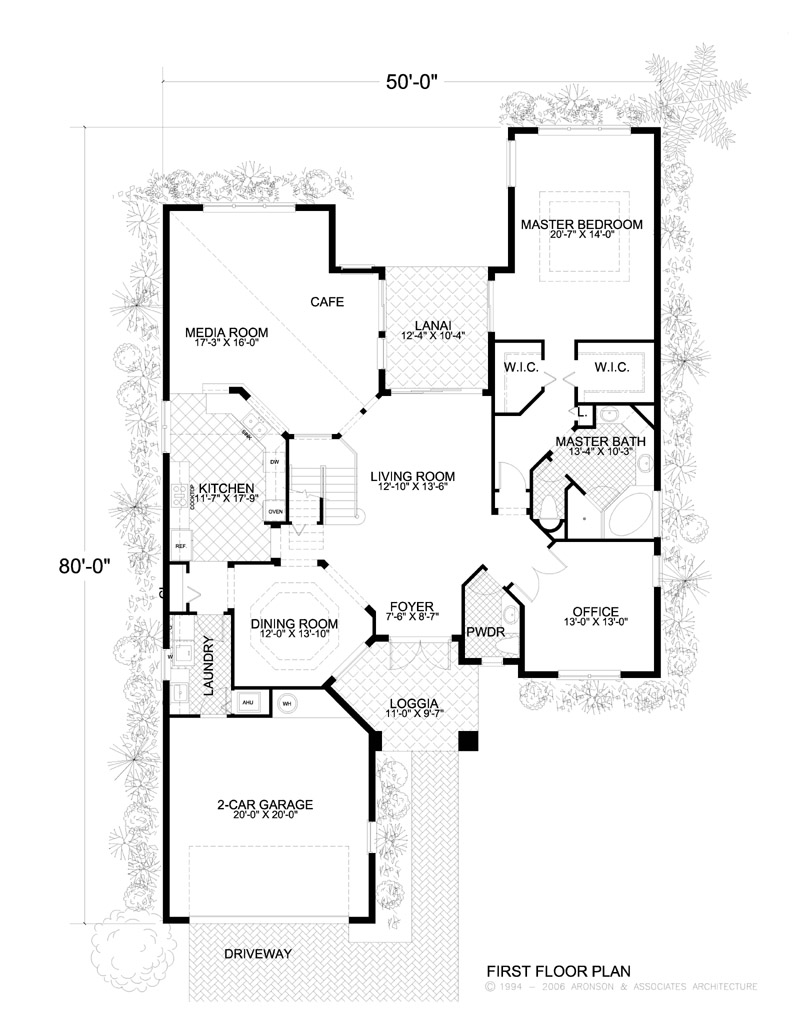

First Floor
-
Primary Living
9'-0
-
Secondary Living
10'-0
-
Primary Bedrooms
10'-0
-
Secondary Bedrooms
0
-
Bathrooms
10'-0
-
Common Areas
10'-0

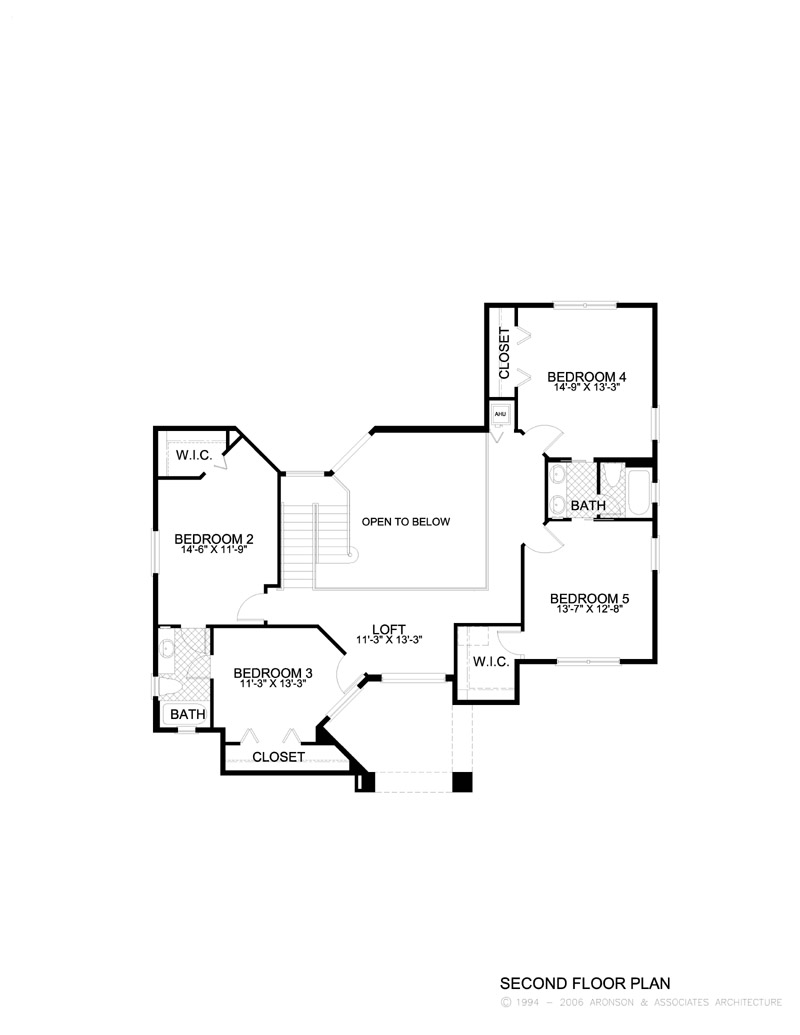

Second Floor
-
Primary Bedrooms
0
-
Secondary Bedrooms
9'-4
-
Bathrooms
9'-4
-
Common Areas
9'-4
Exterior
-
Garage
8'-0
-
Covered Entry
20'-10
-
Covered Patio
10'-0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2261
-
Second Floor AC
1282
-
Total AC
3543
Total Under Roof Sq Ft
-
Garage
463
-
Covered Entry
124
-
Covered Patio
127
-
Covered Balconies
0
-
Total Under Roof
4257
