House Plans
Plan Summary
-
Stories
2
-
Bedrooms
5
-
Bathrooms
4
-
Garage
3 car
-
Width x Length
60' x 74'
-
First Floor Sq Ft
2534
-
Second Floor Sq Ft
1030
-
Total AC Sq Ft
3564
-
Total Under Roof Sq Ft
4650
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

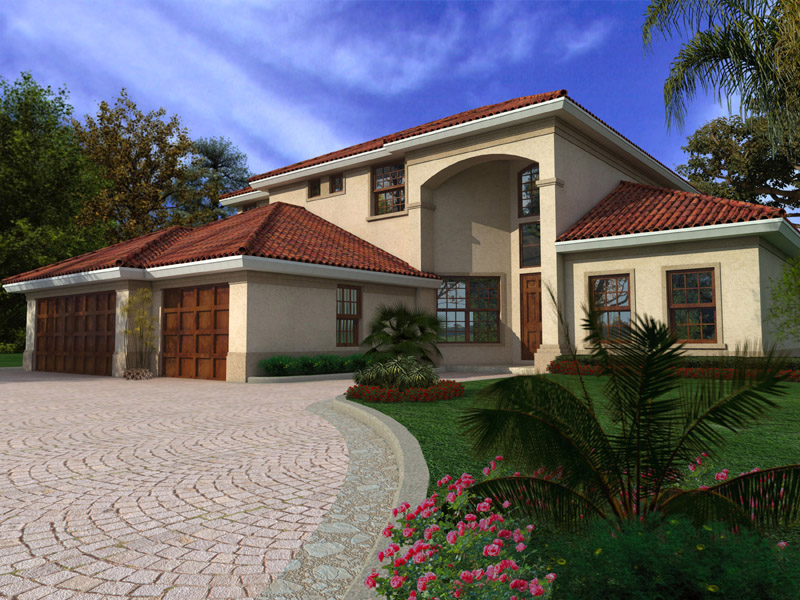

This two-story 3,464 sq. ft. house plan features five bedrooms, four bathrooms, a three-car garage, a towering covered entry and a lanai. The home model includes a large island kitchen with an eating bar and pantry opening to a combination cafe and media room. The master suite features walk-in closets and a regal master bathroom with a luxurious spa tub. There is a private entrance which adds to the luxury of this design. Purchase this two-story house plan today.
Dimensions
- Width x Length 60' x 74'
- Height 28'-6
- Stories 2/
Garage
- Number of Cars 3
- Attached Yes
- Location Left
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 1
- Total 5
Bathrooms
- Full 4
- Half 0
- Total 4

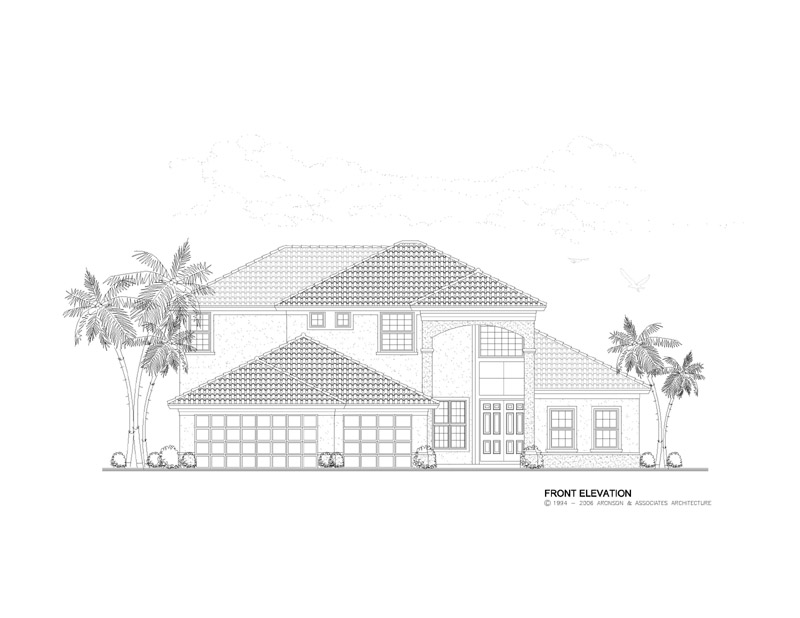

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 2
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1400
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2100
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $900
- (Extra Sets: $50)
- More Information
3 Sets Price: $1000
- (Extra Sets: $50)
- More Information
5 Sets Price: $1100
- (Extra Sets: $50)
- More Information
8 Sets Price: $1250
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1400
- (Extra Sets: $150)
- More Information
Foundation Type
- Type monolithic
- Option 0
Floor System
- Type Wood Truss
- Spacing 24
- Subfloor wood
- Thickness 3/4
Roof System
- Type wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140

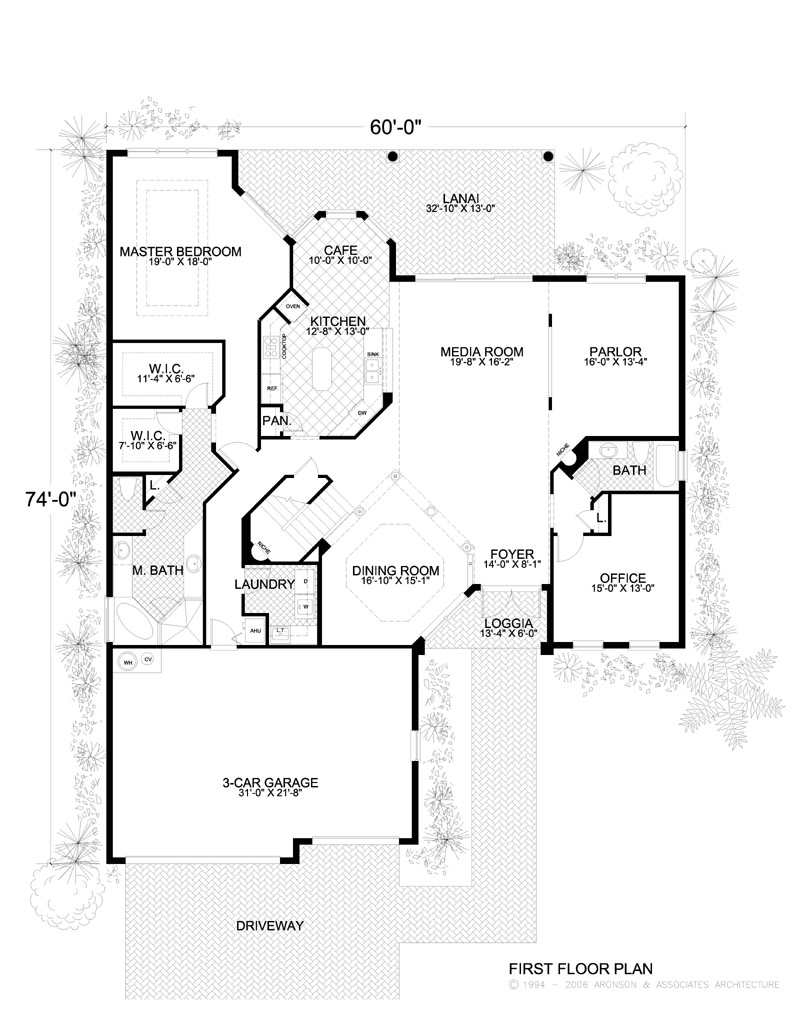

First Floor
- Primary Living 10'-0
- Secondary Living open to above
- Primary Bedrooms 10'-0
- Secondary Bedrooms 0
- Bathrooms 0
- Common Areas 10'-0

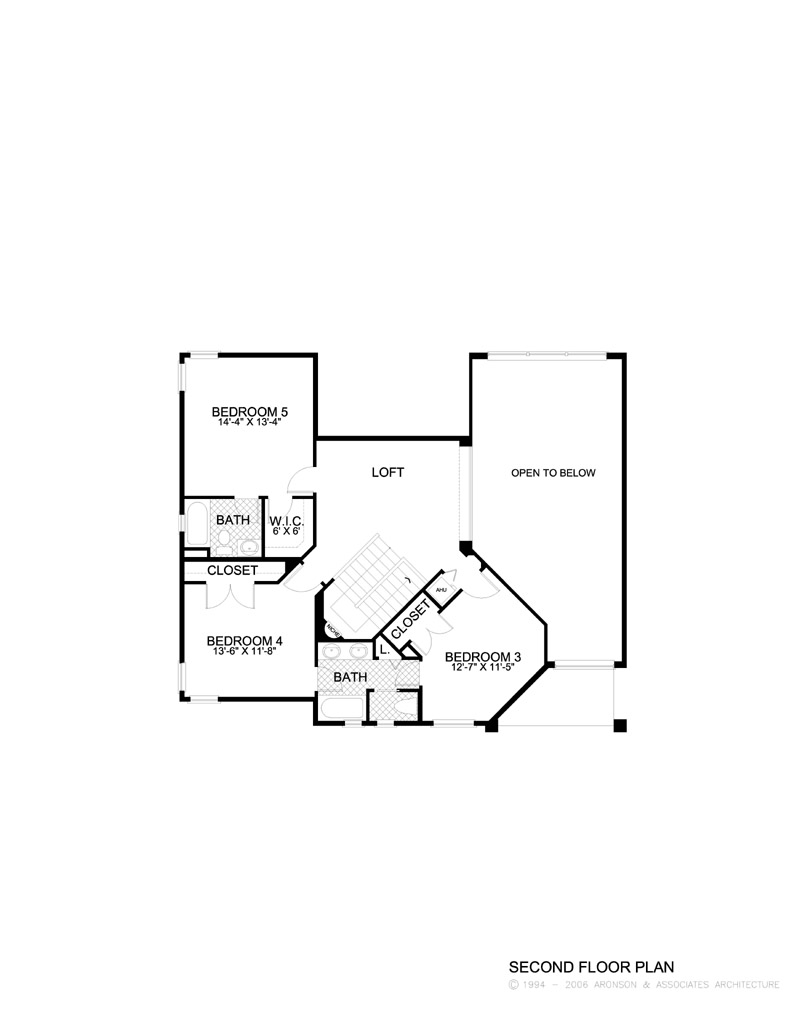

Second Floor
- Primary Bedrooms 0
- Secondary Bedrooms 9'-2
- Bathrooms 9'-2
- Common Areas 9'-2
Exterior
- Garage 8'-0
- Covered Entry 20'-10
- Covered Patio 10'-0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 2534
- Second Floor AC 1030
- Total AC 3564
Total Under Roof Sq Ft
- Garage 697
- Covered Entry 62
- Covered Patio 327
- Covered Balconies 0
- Total Under Roof 4650
