House Plans
Plan Summary
-
Stories
1
-
Bedrooms
4
-
Bathrooms
4
-
Garage
3 car
-
Width x Length
76'5" x 94'0"
-
First Floor Sq Ft
3600
-
Total AC Sq Ft
3600
-
Total Under Roof Sq Ft
5139
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
This plan is restricted.
Please call 1-855-PLANS-123 (1-954-736-4696) for more information
Plan Description

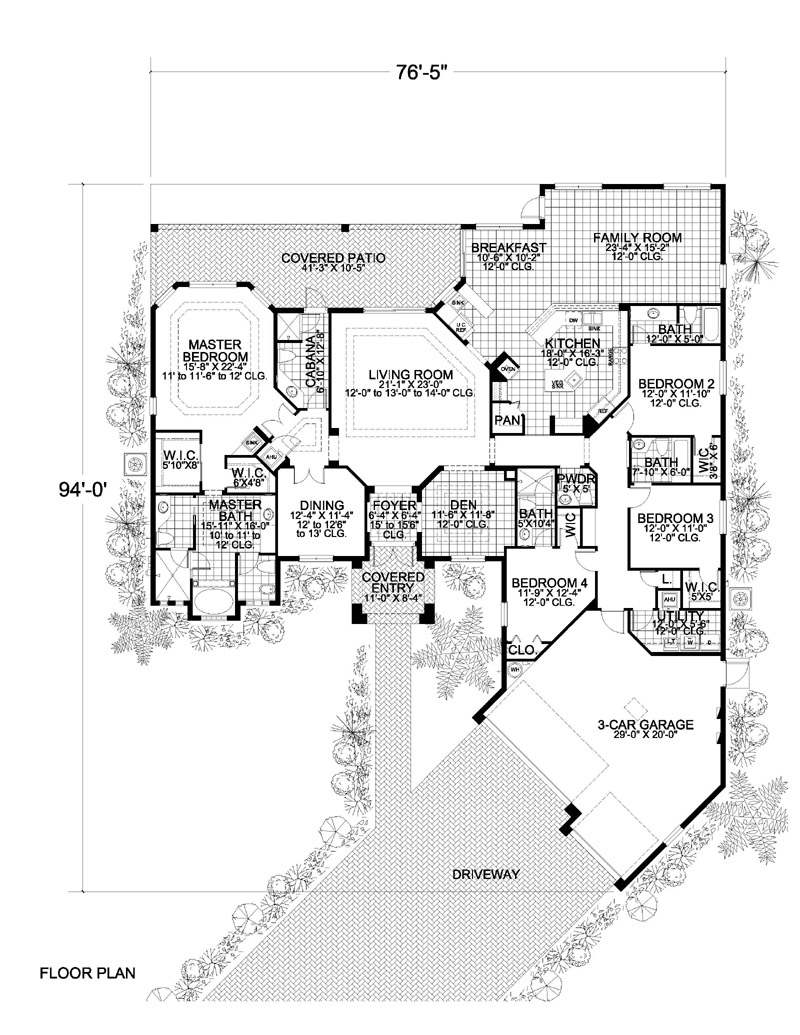

This luxurious 3,600 sq. ft., one-story home floor plan features four bedrooms, four bathrooms plus a powder room and a three-car garage. Each bedroom suite offers the convenience of it’s own bathroom. The suite has a private entrance. The columns and arches provide strong curb appeal to the home. A grand covered lanai extend the living room outward. The master suite features a spacious dressing area, “His and Hers” walk-in closets and a luxurious master bathroom. The large island in the kitchen with an eating bar and pantry provides a breakfast area and opens to the family room. Purchase this luxurious 1-story home floor plan today.
Dimensions
- Width x Length 76'5" x 94'0"
- Height 21'-8
- Stories 1/
Garage
- Number of Cars 3
- Attached Yes
- Location Right
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 0
- Total 4
Bathrooms
- Full 4
- Half 1
- Total 4

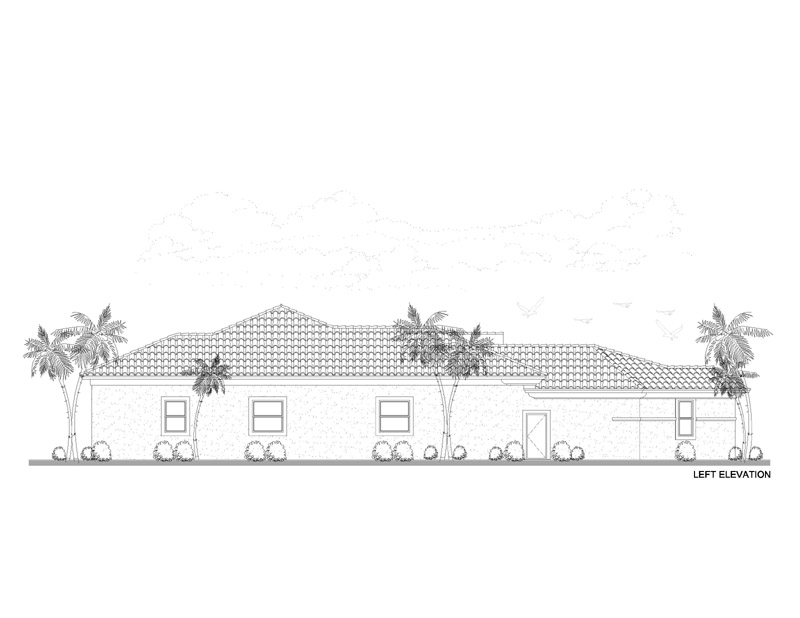

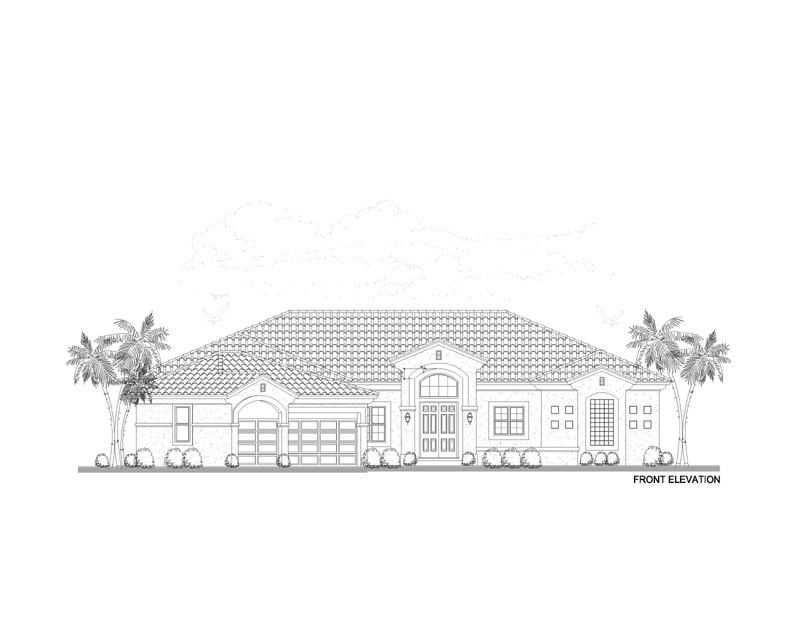

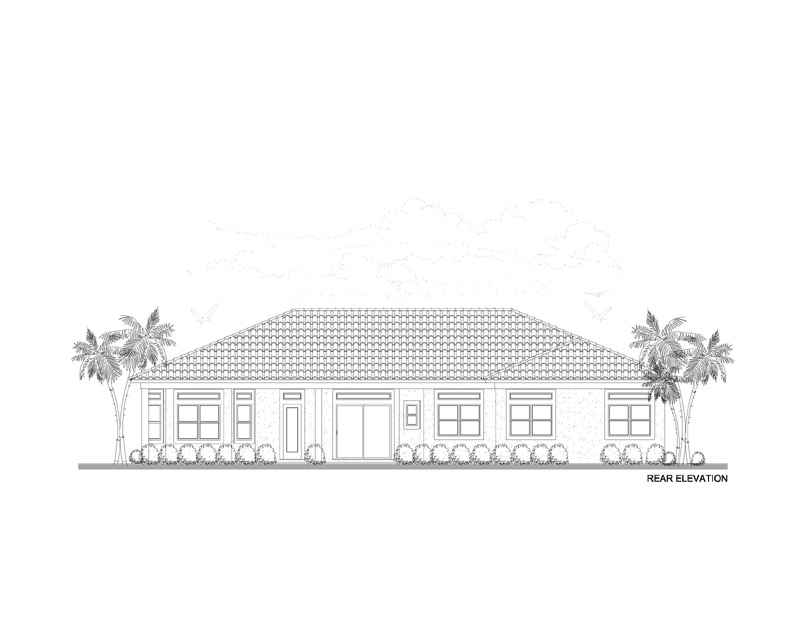

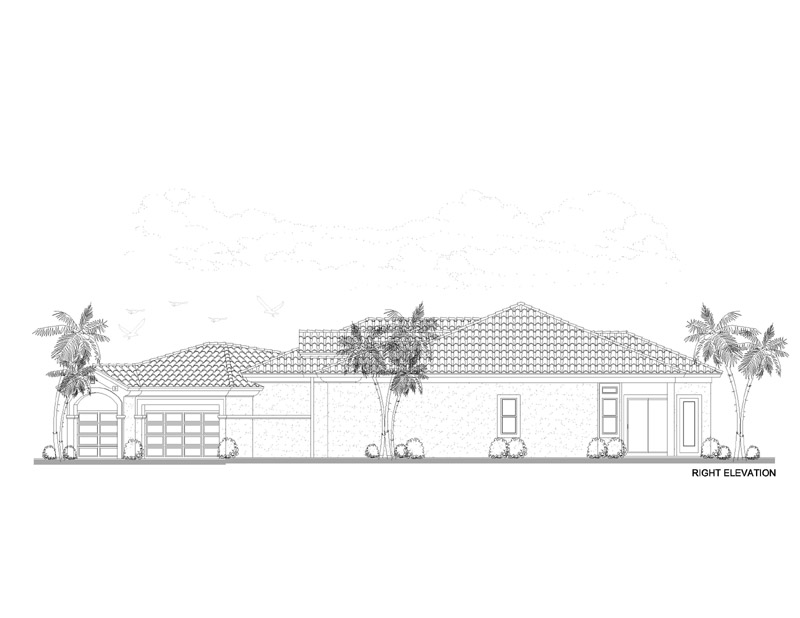

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1400
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2100
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $900
- (Extra Sets: $50)
- More Information
3 Sets Price: $1000
- (Extra Sets: $50)
- More Information
5 Sets Price: $1100
- (Extra Sets: $50)
- More Information
8 Sets Price: $1250
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1400
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140
First Floor
- Primary Living 12'-0
- Secondary Living 12'-0
- Primary Bedrooms 11'-0
- Secondary Bedrooms 12'-0
- Bathrooms 12'-0
- Common Areas 0
Exterior
- Garage 11'-4
- Covered Entry 15'-0
- Covered Patio 12'-0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 3600
- Total AC 3600
Total Under Roof Sq Ft
- Garage 752
- Covered Entry 105
- Covered Patio 682
- Covered Balconies 0
- Total Under Roof 5139
