House Plans
Plan Summary
-
Stories
2
-
Bedrooms
5
-
Bathrooms
5
-
Garage
3 car
-
Width x Length
55'8" x 60'2"
-
First Floor Sq Ft
1910
-
Second Floor Sq Ft
1791
-
Total AC Sq Ft
3701
-
Total Under Roof Sq Ft
4456
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
This plan is restricted.
Please call 1-855-PLANS-123 (1-954-736-4696) for more information
Plan Description
This 3,701 sq. ft., Mediterranean-style home floor plan has five bedrooms, four full bathrooms plus a powder room and a three-car garage. The luxurious master suite has walk in closets and a regal master bath. The large kitchen features a large pantry and breakfast area. The family room is large and centrally located opening to a patio. Purchase this home floor plan today.
Dimensions
- Width x Length 55'8" x 60'2"
- Height 29'-2
- Stories 2/
Garage
- Number of Cars 3
- Attached Yes
- Location Left
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 5
- Possible 0
- Total 5
Bathrooms
- Full 4
- Half 0
- Total 5

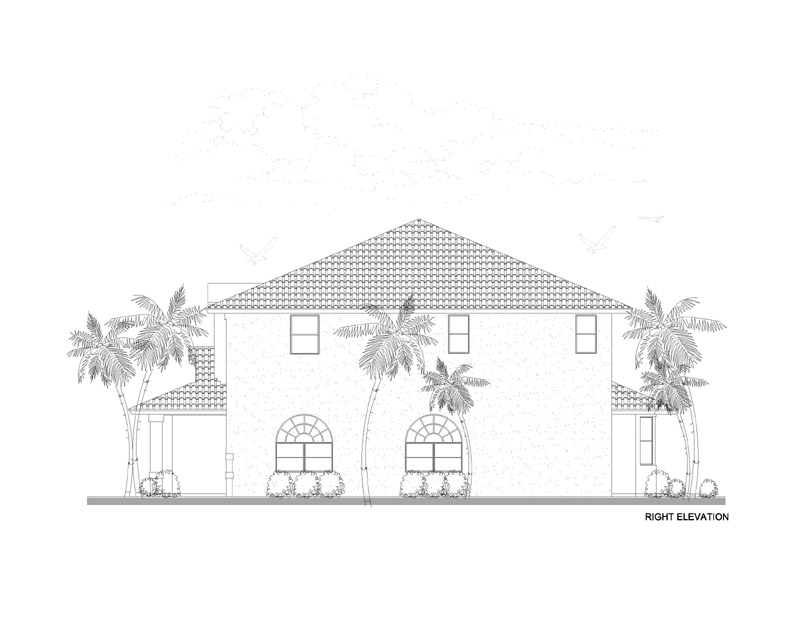

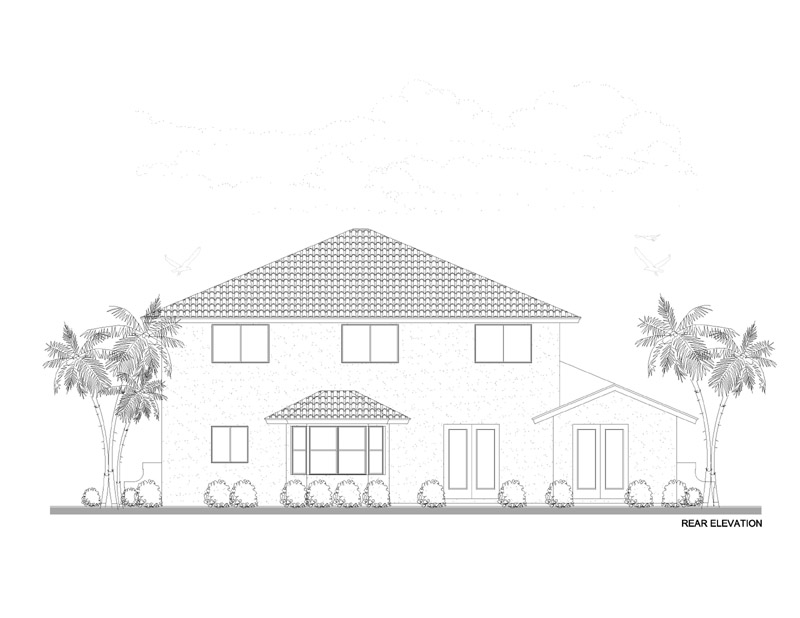

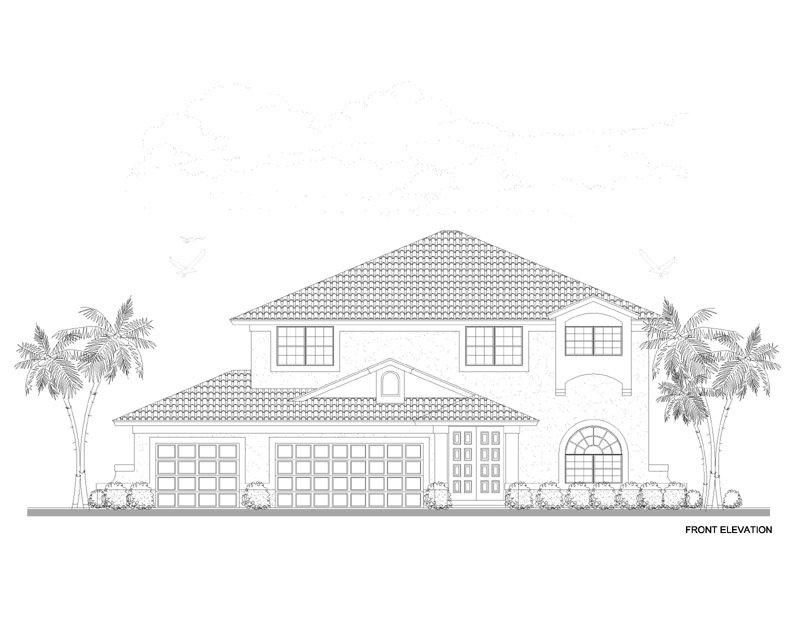

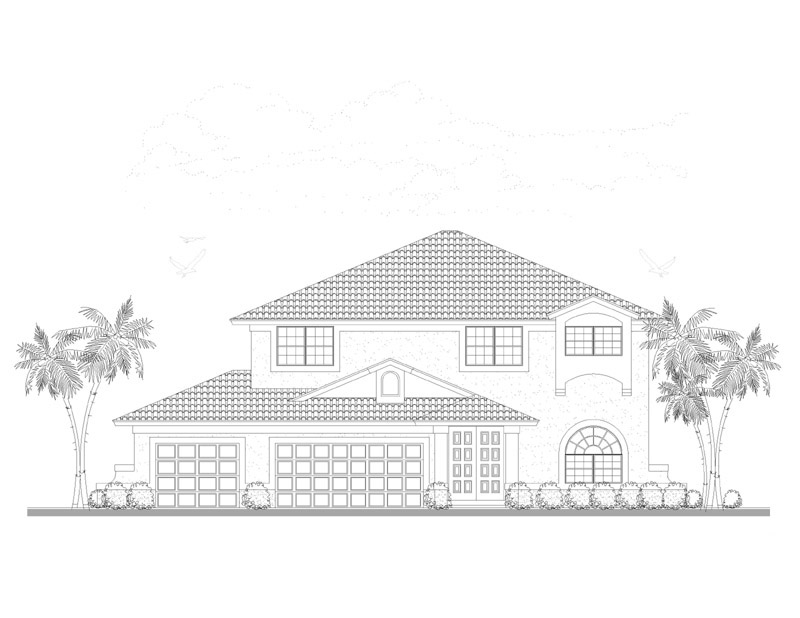

Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 2
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1400
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2100
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $900
- (Extra Sets: $50)
- More Information
3 Sets Price: $1000
- (Extra Sets: $50)
- More Information
5 Sets Price: $1100
- (Extra Sets: $50)
- More Information
8 Sets Price: $1250
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1400
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type Wood truss
- Spacing 24
- Subfloor wood
- Thickness 3/4
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

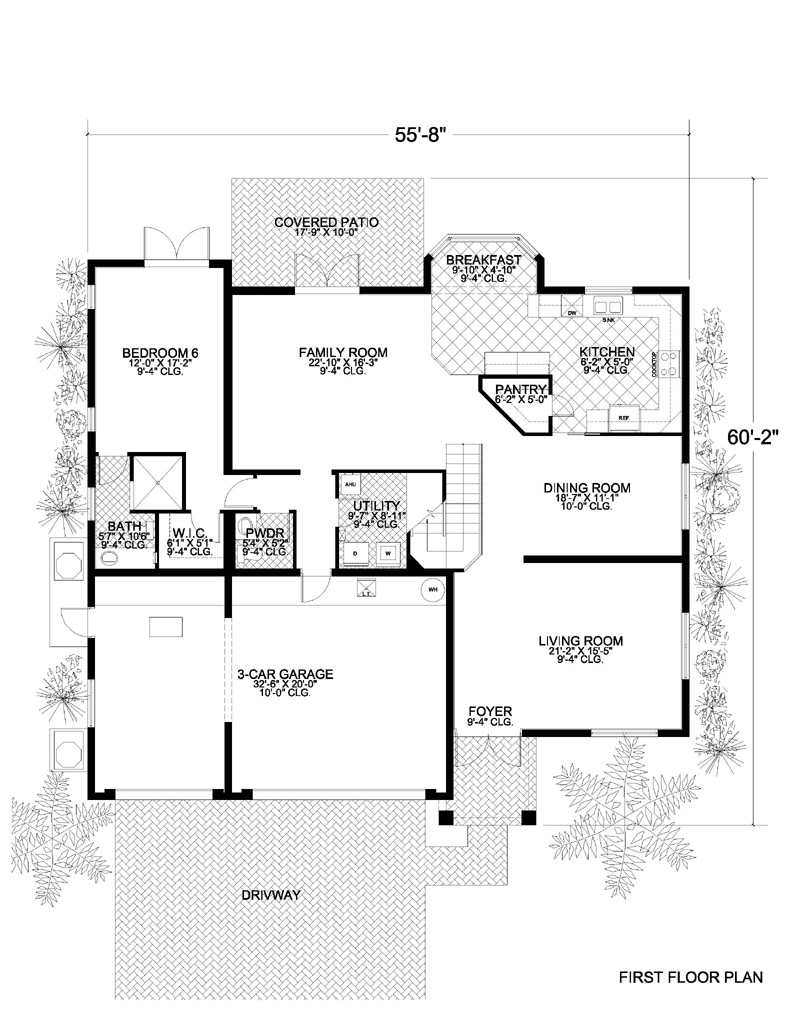

First Floor
- Primary Living 9'-3
- Secondary Living 9'-3
- Primary Bedrooms 0
- Secondary Bedrooms 9'-3
- Bathrooms 9'-3
- Common Areas 0

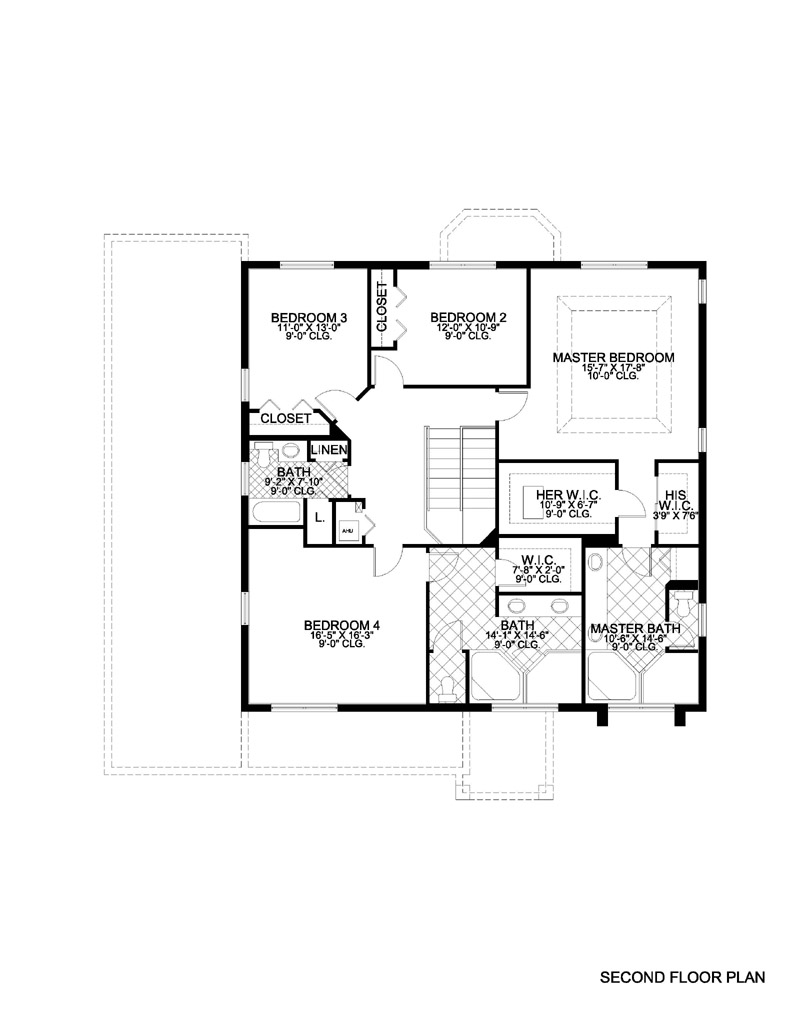

Second Floor
- Primary Bedrooms 9'-0
- Secondary Bedrooms 9'-0
- Bathrooms 9'-0
- Common Areas 0
Exterior
- Garage 9'-3
- Covered Entry 9'-3
- Covered Patio 0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 1910
- Second Floor AC 1791
- Total AC 3701
Total Under Roof Sq Ft
- Garage 689
- Covered Entry 66
- Covered Patio 0
- Covered Balconies 0
- Total Under Roof 4456
