House Plan Model 3715-2054

Browsing: By Two Story

Floor Plans for Homes

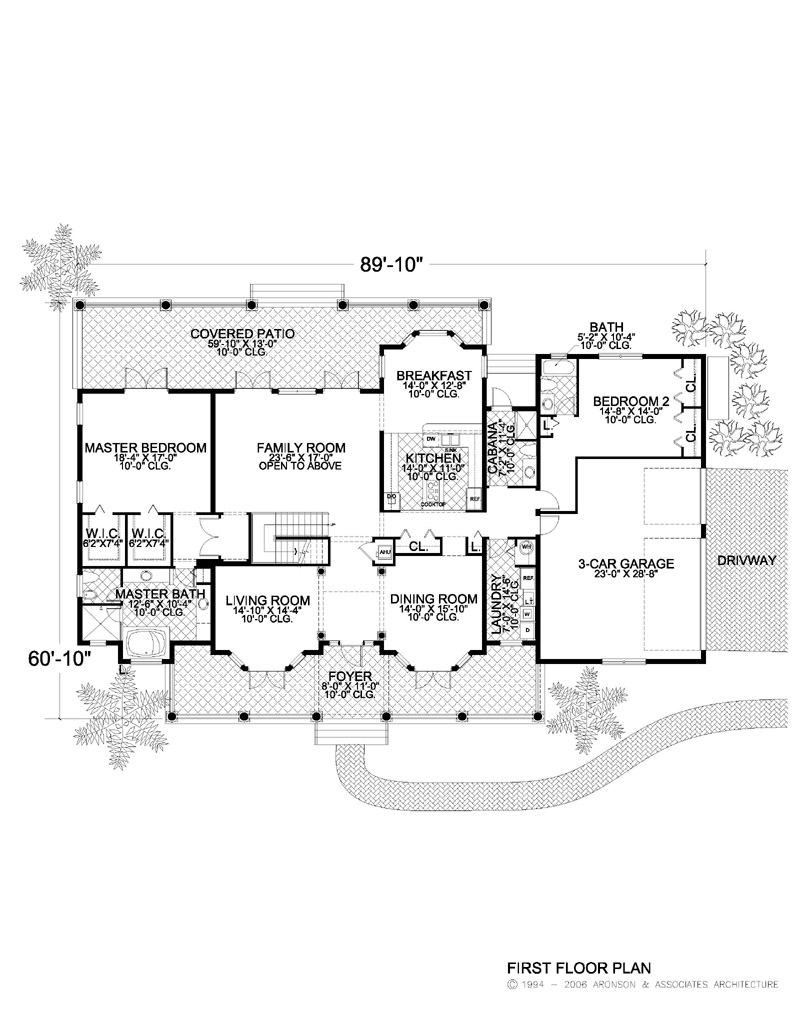

First Floor Plan of Home

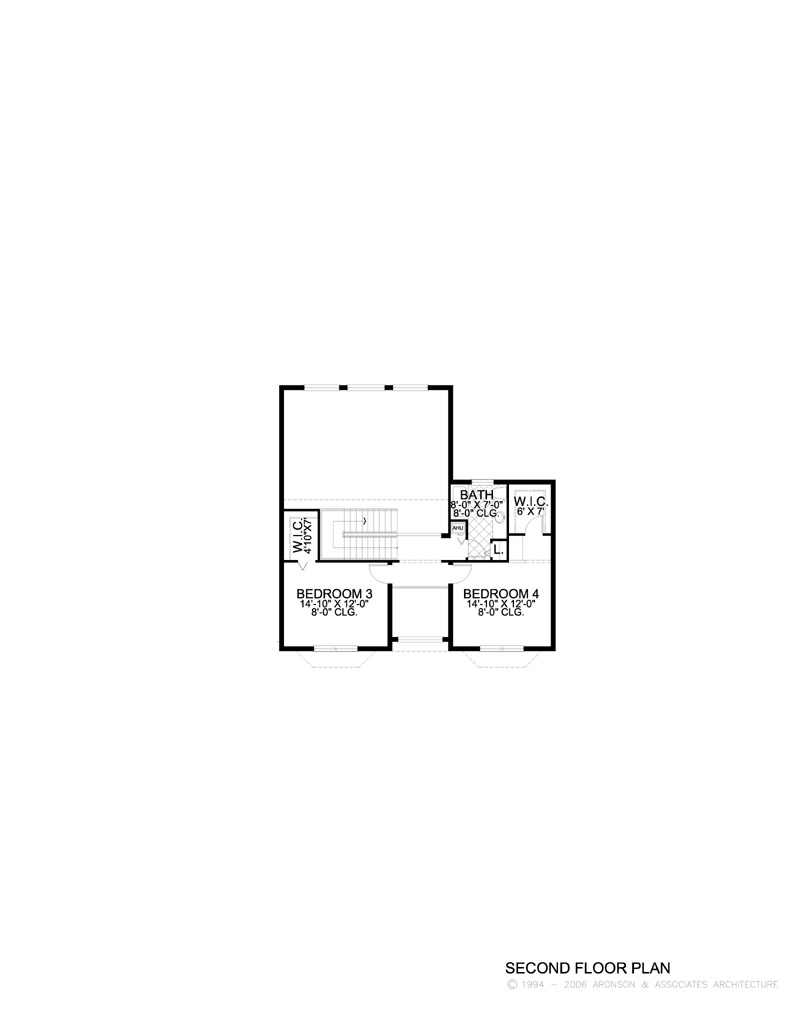

Second Floor
Front Elevation View of Home
Rear Elevation View of Home
Left Elevation View of Home
House Right Elevation View
Floor Plans for Homes
First Floor Plan of Home
Second Floor
Front Elevation View of Home
Rear Elevation View of Home
Left Elevation View of Home
House Right Elevation View

Plan Summary

  • Stories

    2

  • Bedrooms

    4

  • Bathrooms

    4

  • Garage

    3 car

  • Width x Length

    89'10" x 60'10"

  • First Floor Sq Ft

    3026

  • Second Floor Sq Ft

    689

  • Total AC Sq Ft

    3715

  • Total Under Roof Sq Ft

    5495

Order Plan
Compare Plan
Save Plan
Customize Plan
