PLAN SUMMARY
-
Stories
2
-
Bedrooms
4
-
Bathrooms
4
-
Garage
2 car
-
Width x Length:
54' 9" x 74' 8"
-
First Floor Sq Ft
2,993 Sq. Ft.
-
Second Floor Sq Ft
729 Sq. Ft.
-
Total AC Sq Ft
3,722 Sq. Ft.
-
Total Under Roof Sq Ft
4,581 Sq. Ft.
$0.00
Plan Description

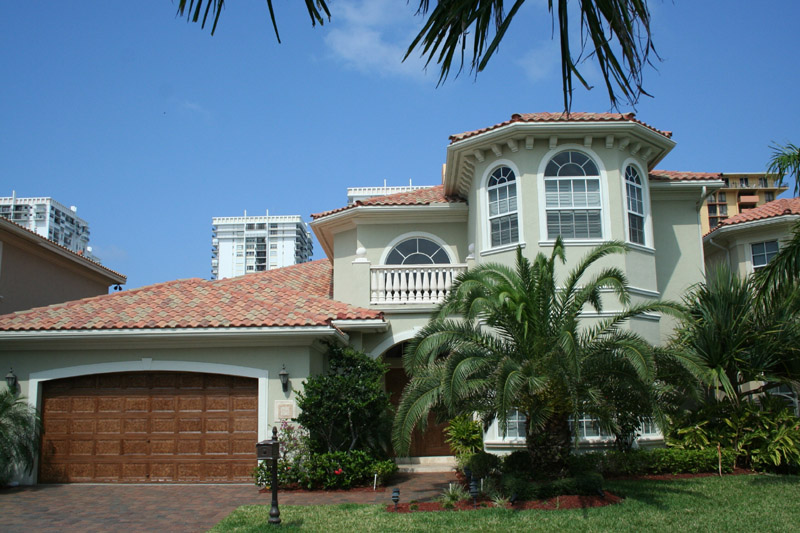

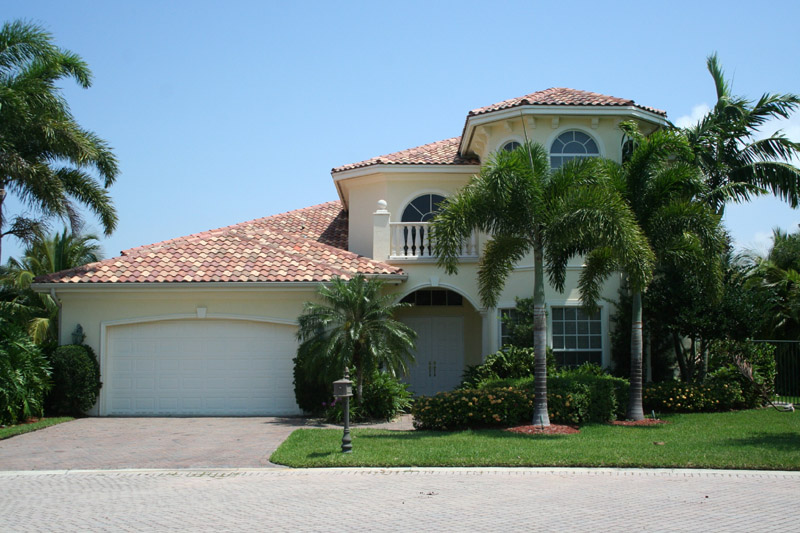

This luxurious, two-story, 3,722 sq. ft., Mediterranean-style waterfront home floor plan features four bedrooms, three full bathroom, a powder room, cabana bath and a two-car garage. The exquisite French doors with arched transom accent the covered entrance. The master suite has “His and Hers” walk-in closets. A great first impression is made by a formal two volume foyer. The large island kitchen features an eating bar and breakfast area and opens to a family room. There is a large living room with tray ceiling and wet bar opening onto a patio. Purchase this home floor plan today.
Dimensions
-
Width x Length
54' 9" x 74' 8"
-
Height
29'-8
-
Stories
2/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
4
-
Possible
0
-
Total
4
Bathrooms
-
Full
4
-
Half
1
-
Total
4
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
2
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1400
CAD Disk Price: $2100
Reverse PDF Price: $1650
Reverse CAD Price: $2350
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $900
3 Sets Price: $1000
5 Sets Price: $1100
8 Sets Price: $1250
Reproducible Vellum Price: $1400
Base – Not for Construction Price: $900
3 Sets (Reverse) Price: $1250
5 Sets (Reverse) Price: $1350
8 Sets (Reverse) Price: $1500
Reproducible Vellum (Reverse) Price: $1650
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
Wood truss
-
Spacing
0
-
Subfloor
wood
-
Thickness
3/4
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
14' to 14'-8
-
Secondary Living
14'
-
Primary Bedrooms
12' to 13'
-
Secondary Bedrooms
12' to 13'
-
Bathrooms
10'-8
-
Common Areas
10' to 14'
Second Floor
-
Primary Bedrooms
0
-
Secondary Bedrooms
0
-
Bathrooms
0
-
Common Areas
0
Exterior
-
Garage
9'-4
-
Covered Entry
12'-4
-
Covered Patio
14'
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2993
-
Second Floor AC
729
-
Total AC
3722
Total Under Roof Sq Ft
-
Garage
507
-
Covered Entry
70
-
Covered Patio
282
-
Covered Balconies
0
-
Total Under Roof
4581
