House Plans
Plan Summary
-
Stories
2
-
Bedrooms
4
-
Bathrooms
4
-
Garage
2 car
-
Width x Length
63'8" x 47'6"
-
First Floor Sq Ft
1820
-
Second Floor Sq Ft
1940
-
Total AC Sq Ft
3760
-
Total Under Roof Sq Ft
4329
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
This plan is restricted.
Please call 1-855-PLANS-123 (1-954-736-4696) for more information
Plan Description
This 3,760 sq. ft., two-story, Colonial-style home floor plan has four bedrooms, four and one-half bathrooms and a two-car garage. A “larger than life” feeling is made by high ceilings. Stylish tray ceilings also accent this design. Contemporary open layout, this is a home presenting a spacious appeal. The cozy library makes a perfect retreat. A gourmet’s delight island kitchen with a cafe opened to a covered patio. The exclusive master suite features “His and Hers” walk-in closets, stylish tray ceilings and a luxurious master bath opening onto a private balcony. You’ll love this design if you’re looking for a home with a spacious feel while providing many private places. This model is the perfect choice for enjoying both indoor and outdoor living. Purchase this Colonial-style home floor plan today.
Dimensions
- Width x Length 63'8" x 47'6"
- Height 35'-2
- Stories 2/
Garage
- Number of Cars 2
- Attached Yes
- Location Right
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 0
- Total 4
Bathrooms
- Full 4
- Half 0
- Total 4
Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 1
Features
- Fireplace Yes
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1400
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2100
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $900
- (Extra Sets: $50)
- More Information
3 Sets Price: $1000
- (Extra Sets: $50)
- More Information
5 Sets Price: $1100
- (Extra Sets: $50)
- More Information
8 Sets Price: $1250
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1400
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type Concrete
- Spacing 0
- Subfloor Concrete
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

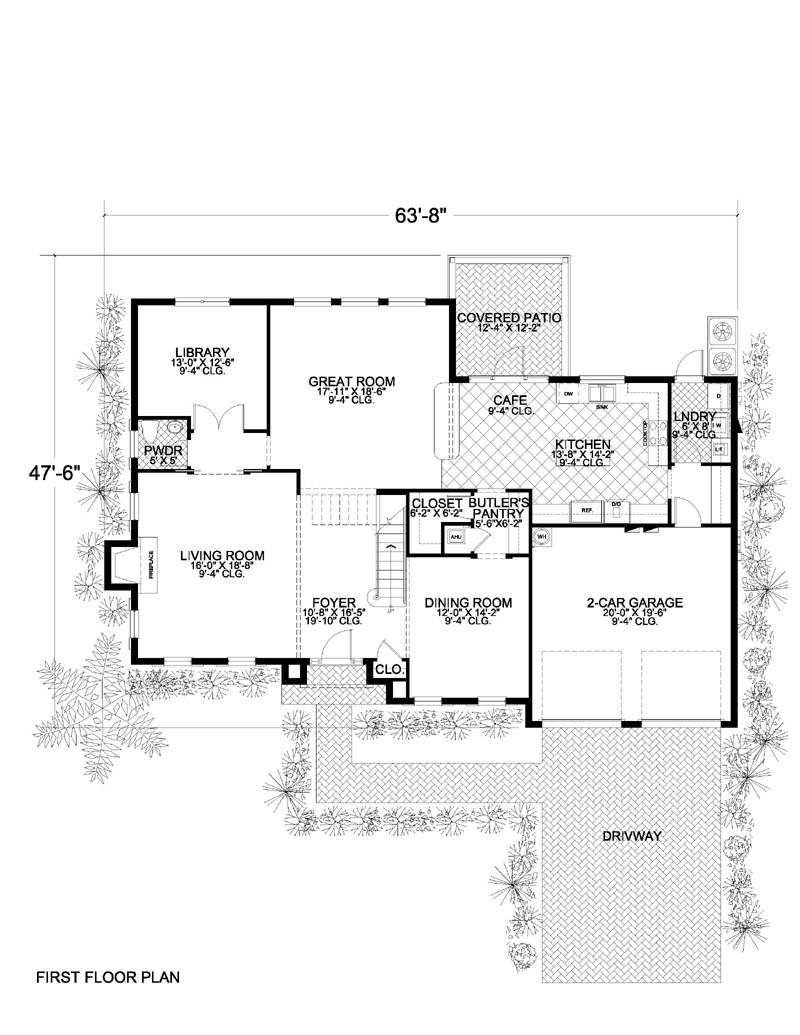

First Floor
- Primary Living 9'-4
- Secondary Living 9'-4
- Primary Bedrooms 0
- Secondary Bedrooms 0
- Bathrooms 9'-4
- Common Areas 9'-4

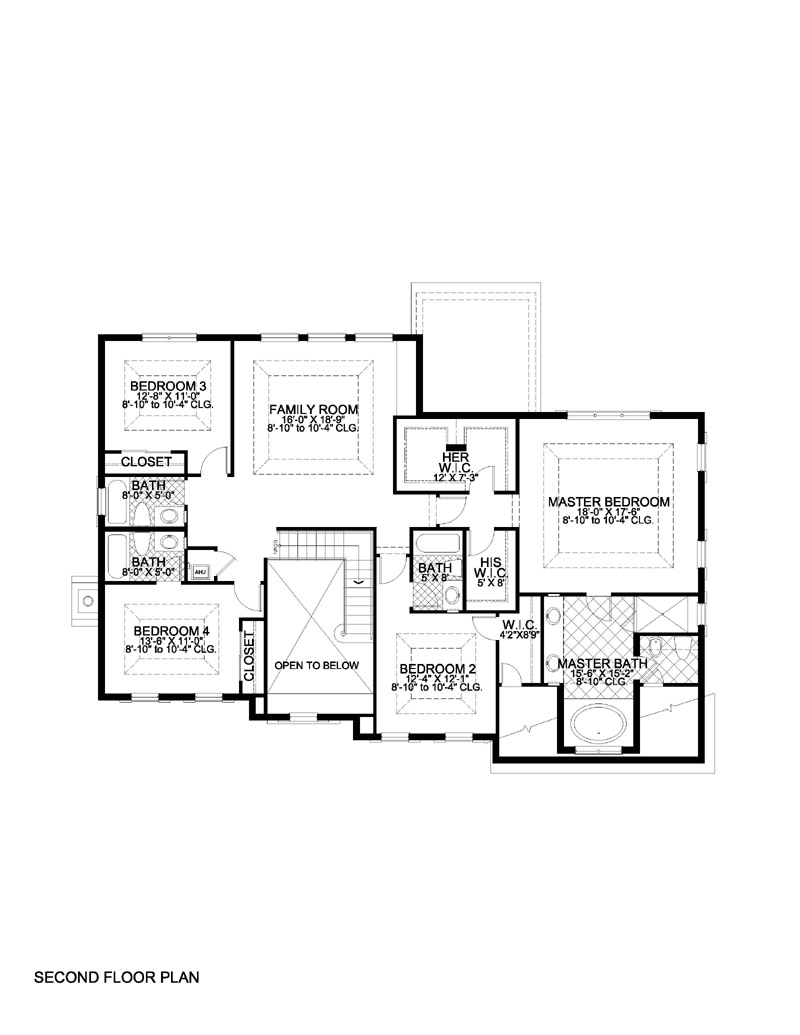

Second Floor
- Primary Bedrooms 9'-8
- Secondary Bedrooms 9'-8
- Bathrooms 9'-8
- Common Areas 0
Exterior
- Garage 9'-4
- Covered Entry 9'-4
- Covered Patio 9'-4
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 1820
- Second Floor AC 1940
- Total AC 3760
Total Under Roof Sq Ft
- Garage 418
- Covered Entry 12
- Covered Patio 139
- Covered Balconies 0
- Total Under Roof 4329
